ZTT-ACA1High Power 500mW Dual Band AC Wi-Fi USB Adapter

ACA1 High Power 500mW Dual Band AC Wi-Fi USB Adapter User’s Guide ACA1 USER’S GUIDE 1 CONTENTS INTRODUCTION .............................................................................................................................................. 2 GETTING STARTED .......................................................................................................................................... 3 Package Contents ................................................................................................................................................... 3 Connectors and LED Indicators ............................................................................................................................... 4 Windows 8, 7 and Vista Installation ...................................................................................................................... 5 Disabling your Original Wi-Fi Adapter ................................................................................................................. 10 Windows XP Installation ...................................................................................................................................... 12 Mac OS X Installation ........................................................................................................................................... 17 Using the Amped Wireless Utility (Mac) ............................................................................................................. 30 TROUBLESHOOTING AND SUPPORT INFORMATION ........................................................................................... 33 WARRANTY AND REGULATORY INFORMATION ................................................................................................. 42 ACA1 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com ACA1 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Dual Band AC Wi-Fi USB Adapter  Detachable High Gain Dual Band 5dBi Antennas  USB 3.0 Cable  Setup Guide  CD: User's Guide and Software  Laptop Monitor Mounting Clip ACA1 USER’S GUIDE 4 Connectors and LED Indicators Mini USB 3.0: The included USB 3.0 cable attaches to the Mini USB connector on the Adapter. The other end connects to available USB ports on your PC. For maximum speed, a USB 3.0 port is required. The adapter is backwards compatible with USB 1.0 and 2.0 but will function at lower speeds. Do not attach the cable until after you have installed the software. Antenna Connector: RJ-SMA antenna connector - Compatible with all antennas with RP-SMA connectors. Upgradable to high gain antennas for more range. Activity LED: Blinks rapidly when wireless data traffic is passing through the High Power Adapter. ACA1 USER’S GUIDE 5 SETUP GUIDE Windows 8, 7 and Vista Installation a) Power on your PC and Insert the CD Locate the Setup CD and insert it into your CD drive. ACA1 USER’S GUIDE 6 When the Menu page appears click on Setup for Windows to begin the installation process. If the Menu page does not appear, select Run Autoload.exe if prompted or browse your CD drive and double-click the Autoload.exe file. b) Click Yes to allow the program to make changes and continue with the installation. ACA1 USER’S GUIDE 7 c) Continue with the Installation Click Next to proceed with the installation. d) Restart your Computer A prompt will appear asking you to restart your computer. Select Yes and click Finish to restart your computer. Be sure to save any unsaved work before clicking Finish to avoid losing any unsaved data. ACA1 USER’S GUIDE 8 e) Plug in the High Power USB Adapter After the computer has fully rebooted, locate an available USB ports (USB 3.0 port required for maximum performance) and insert the USB Adapter. Windows should automatically begin installing the driver for use with the USB Adapter. ACA1 USER’S GUIDE 9 f) Connect to a Wireless Network a) Select the Wi-Fi icon on your Windows desktop taskbar b) If your PC has a previously installed Wi-Fi adapter, your new Amped Wi-Fi adapter should appear as “Wi-Fi 2” or “Wireless Network Connection 2” and your original Wi-Fi adapter as “Wi-Fi” or “Wireless Network Connection”. c) Choose any network under “Wi-Fi 2” or “Wireless Network Connection 2” to connect to and enter the security key if prompted. ACA1 USER’S GUIDE 10 Disabling your Original Wi-Fi Adapter Disabling Wi-Fi 1 will stop it from showing up in your Wi-Fi available network list. This is not permanent. You can re-enable it by following Step E below. a) Go to the Windows 8 desktop and find the Wi-Fi icon. b) Right-click on the Wi-Fi icon in the taskbar and select “Open Network and Sharing Center”. c) Select “Change Adapter Settings” from left side. d) Find your Wi-Fi icon (Not Wi-Fi 2), right-click it and “Disable” from the dropdown menu. Continue to next page... ACA1 USER’S GUIDE 11 e) To re-enable your original Wi-Fi adapter, follow the same steps above and click “Enable” at Step D instead of “Disable”. ACA1 USER’S GUIDE 12 Windows XP Installation a) Power on your PC and Insert the CD Locate the Setup CD and insert it into your CD drive. ACA1 USER’S GUIDE 13 b) When the Menu page appears click on Install Software to begin the installation process. If the Menu page does not appear, select Run Autoload.exe if prompted or browse your Cd drive and double-click the Autoload.exe file. c) Begin the Installation Click Next to continue with the installation. ACA1 USER’S GUIDE 14 d) Insert yo…

Text truncated - open the document above for the full version.

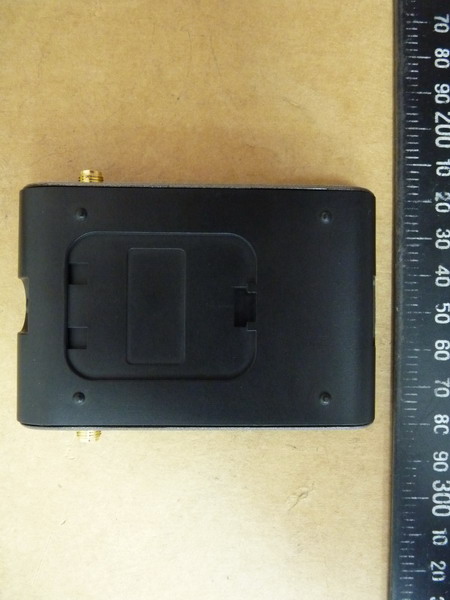

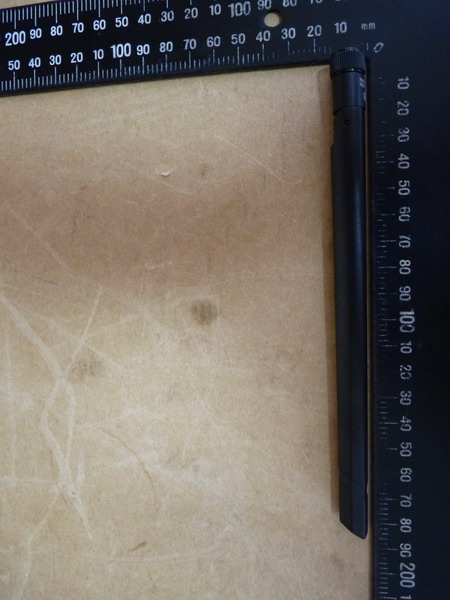

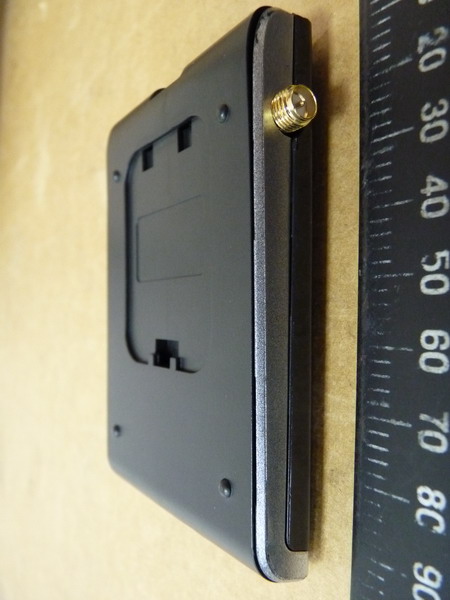

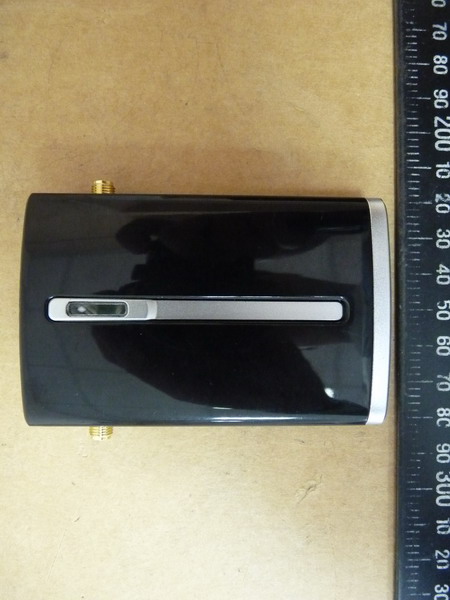

Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 16 External Photos Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 16

Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 16 Internal Photos Antenna B Antenna A Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 16 Registration number: W6M21301-12973-FCC FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 16

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: High Power 500mW Dual Band AC Wi-Fi USB Adapter Model No: ACA1 The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : High Power 500mW Dual Band AC Wi-Fi USB Adapter will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M21301-12973-C-1 and the accompanying calculations. Company: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Registration number: W6M21301-12973-C-1 FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 38 of 129 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain(Directional gain) 5.8GHz:802.11a EIRP = 24.38 dBm + 7.01 dBi = 31.39 dBm 5.8GHz:802.11n(20MHz), 802.11n(40MHz) EIRP = 27.12 dBm + 7.01 dBi = 34.13 dBm 5.8GHz:802.11ac EIRP = 21.27 dBm + 7.01 dBi = 28.28 dBm 2.4GHz:802.11b/g EIRP = 22.75 dBm + 5.01 dBi = 27.76 dBm 2.4GHz:802.11n(20MHz), 802.11n(40MHz) EIRP = 22.78 dBm + 5.01 dBi = 27.79 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain 5.8GHz:802.11a Item Unit Value Remarks P mW 274.1574 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm 2 0.2740 Calculated value 5.8GHz:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 515.2286 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm 2 0.5149 Calculated value Registration number: W6M21301-12973-C-1 FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 39 of 129 5.8GHz:802.11ac Item Unit Value Remarks P mW 133.9677 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm 2 0.1339 Calculated value 2.4GHz:802.11b/g Item Unit Value Remarks P mW 188.3649 Peak value D dB AG dBi 5.01 G 3.1696 Calculated Value R cm 20 Assumed value S mW/cm 2 0.1188 Calculated value 2.4GHz:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 189.6706 Peak value D dB AG dBi 5.01 G 3.1696 Calculated Value R cm 20 Assumed value S mW/cm 2 0.1196 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21301-12973-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for High Power 500mW Dual Band AC Wi-Fi USB Adapter Model No.: ACA1 FCC ID: ZTT-ACA1 Registration number: W6M21301-12973-C-1 FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 129 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 8 2 TECHNICAL TEST ..................................................................................................................9 2.1 SUMMARY OF TEST RESULTS................................................................................................. 9 2.2 T EST ENVIRONMENT............................................................................................................. 9 2.3 TEST EQUIPMENT LIST........................................................................................................ 10 2.4 GENERAL TEST PROCEDURE............................................................................................... 12 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 14 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 15 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 38 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 38 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 40 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 41 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 63 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 80 3.8 PEAK POWER SPECTRAL DENSITY.................................................................................... 102 3.9 R ADIATED EMISSION FROM DIGITAL PART....................................................................... 125 3.10 POWER LINE CONDUCTED EMISSION................................................................................ 126 APPENDIX............................................................................................................................ 129 Registration number: W6M21301-12973-C-1 FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 129 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 a/b/g/n/ac. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: August 19, 2013 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: August 19, 2013 Kevin Wang Date WTS Name Signature Registration number: W6M21301-12973-C-1 FCC ID: ZTT-ACA1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 129 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Sh…
