ZTT-RTA2600High Power AC2600 Wi-Fi Router

User’s Guide RTA2600 ATHENA HIGHPOWER TM AC2600 WI-FI ® ROUTER WITH MU-MIMO 1 CONTENTS INTRODUCTION ..................................................................... 3 GETTING STARTED ................................................................. 4 Package Contents ...................................................................... 4 LED Indicators............................................................................ 5 Back Panel Description .............................................................. 7 BASIC SETUP GUIDE ............................................................... 9 Setup Preparations .................................................................... 9 Welcome to the Setup Wizard ................................................ 14 5G Hz WI-FI SETTINGS ........................................................... 20 Basic Settings (5.0GHz) ............................................................ 20 Basic Settings: Guest Networks (5.0GHz) ................................ 22 Security Settings (5.0GHz) ....................................................... 23 Advanced Settings (5.0GHz) .................................................... 24 Airtime Allocation (5.0GHz) ..................................................... 25 Wireless Coverage Controls (5.0GHz) ...................................... 26 Access Schedule (5.0GHz) ........................................................ 26 Wi-Fi Protected Setup – WPS (5.0GHz).................................... 28 2.4GHz WI-FI SETTINGS ........................................................ 29 Basic Settings (2.4GHz) ............................................................ 29 Basic Settings: Guest Networks (2.4GHz) ................................ 31 S ecurity Settings (2.4GHz) ....................................................... 32 Advanced Settings (2.4GHz) .................................................... 33 Airtime Allocation (2.4GHz) ..................................................... 34 Wireless Coverage Controls (2.4GHz) ...................................... 35 Access Schedule (2.4GHz) ........................................................ 35 Wi- Fi Protected Setup – WPS (2.4GHz) .................................... 37 NE TWORK SETTINGS ............................................................ 38 Lo cal Network (LAN) ................................................................ 38 Internet Network (WAN).......................................................... 40 Bridge Mode ............................................................................ 42 N etwork Settings: Advanced Settings ...................................... 43 SEC URITY FEATURES ............................................................ 45 Block Websites ......................................................................... 46 User Access (MAC Address Filtering) ....................................... 47 User Access (IP Address Filtering) ............................................ 48 U SB STORAGE ...................................................................... 49 US B Storage: Local Sharing ...................................................... 49 USB Storage: FTP Server .......................................................... 53 FIREWALL SETTINGS ............................................................. 54 Port Filtering ............................................................................ 55 Port Forwarding ....................................................................... 56 DMZ (Demilitarized Zone) ........................................................ 57 Denial of Service ...................................................................... 58 Q UALITY OF SERVICE ............................................................ 59 ROUTING SETUP .................................................................. 60 MANAGEMENT FEATURES ................................................... 61 2 System Status .......................................................................... 62 Network Statistics ................................................................... 63 Dynamic DNS Settings ............................................................. 64 System Clock ........................................................................... 65 System Logs ............................................................................. 66 Upgrade Firmware .................................................................. 67 P assword Settings ................................................................... 70 TEC HNICAL SPECIFICATION................................................... 71 D EFAULT SETTINGS .............................................................. 72 TRO UBLESHOOTING & SUPPORT INFORMATION .................. 73 W ARRANTY AND REGULATORY INFORMATION .................... 90 L EGAL NOTICES AND DISCLAIMERS....................................... 99 3 INTRODUCTION Thank you for purchasing The ATHENA High Power AC2600 Wi-Fi Router with MU-MIMO. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com 4 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  ATHENA – High Power AC2600 Wi-Fi Router with MU-MIMO  Four Detachable High Gain Antennas  RJ-45 Ethernet Cable  Power Adapter  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android App 5 LED Indicators Power/WPS: Indicates when the Router is powered on. The LED will remain on. Blinks when Wi-Fi Protected Setup (WPS) is activated and the Router awaits a connection. 5.0GHz W…

Text truncated - open the document above for the full version.

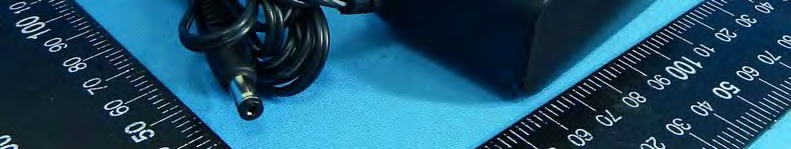

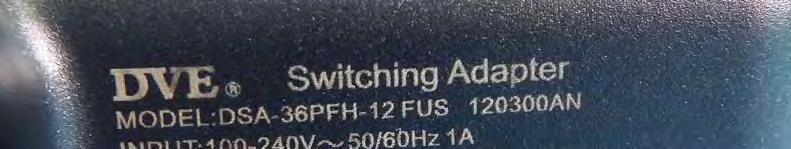

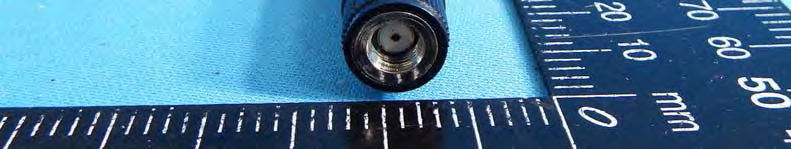

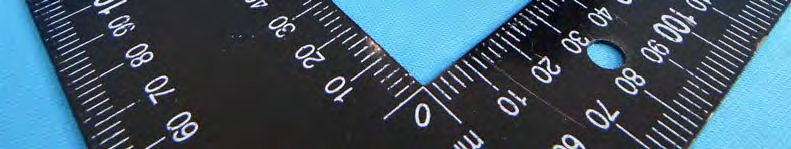

Report No. : EP530939 SPORTON International Inc. Page Number : B1 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP530939 SPORTON International Inc. Page Number : B2 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B3 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B12 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B13 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

103.636 49.394 7.629 44 RTA1750 content This device complied with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ATHENA - High Power AC2600 Wi-Fi Router with MU-MIMO S/N: MAC (2.4GHz): MAC (5GHz): WPS Pin: Designed in the USA by Amped Wireless Assembled in China FCC ID: ZTT-RTA2600 IC: 10233A-RTA2600 Model: RTA2600 Factory Default Settings: To reset to factory default settings, hold down the reset button for 5-10 seconds. Login Settings Web Menu: http://setup.ampedwireless.com IP Address: 192.168.3.1 Wi-Fi Settings SSID (2.4GHz): Amped_Athena_2.4 Security Key WPA/WPA2: wireless Power Rating: DC 12V 3A SSID (5GHz): Amped_Athena_5.0 Security Key WPA/WPA2: wireless Power / WPS 5GHz Connection 2.4GHz Connection InternetUSB LED INDICATORS For product support, installation guides, software updates and frequently asked questions, please visit: http://www.ampedwireless.com/support/ NON OUTLINED: OUTLINED: Amped Wireless RTA2600 Belly Label 3/25/15 Condential

Report No. : EP530939 SPORTON International Inc. Page Number : B4 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B5 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B6 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B7 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B8 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B9 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B10 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP530939 SPORTON International Inc. Page Number : B11 of B13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA530939 SPORTON INTERNATIONAL INC. Page No. : 1 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA530939 SPORTON INTERNATIONAL INC. Page No. : 2 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 5150~5250MHz (non-beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 4 23.06 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 4 23.32 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 4 23.05 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 4 23.13 Yes 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 4 23.08 Yes 5150-5250 ac (VHT80) 5210 48 [1] 4 19.41 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 5725 MHz – 5850 MHz (non-beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5]4 24.03 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5]4 24.51 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2]4 25.13 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5]4 24.54 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2]4 24.55 Yes 5725-5850 ac(VHT80) 5775 155 [1] 4 12.36 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 4 27.07 Yes 2400-2483.5 g 2412-2462 1-11 [11] 4 24.93 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 4 24.59 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 4 22.34 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF Exposure Report Report No. :FA530939 SPORTON INTERNATIONAL INC. Page No. : 3 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF General Information 5150~5250MHz (beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 4 22.38 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 4 22.41 5150-5250 ac (VHT80) 5210 48 [1] 4 17.95 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 5725 MHz – 5850 MHz (beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5725-5850 ac(VHT20) 5745-5825 149-165 [5] 4 19.99 5725-5850 ac(VHT40) 5755-5795 151-159 [2] 4 18.05 5725-5850 ac(VHT80) 5775 155 [1] 4 14.38 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF Exposure Report Report No. :FA530939 SPORTON INTERNATIONAL INC. Page No. : 4 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result (non-beamforming) Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain port 1 Chain port 2 Chain port 3 Chain port 4 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 5GHz 419.24 18.20 17.93 20.57 25.13 5.01 30.14 0.2056 2.4GHz 420.31 20.78 21.49 21.49 27.07 5.03 32.10 0.3228 Co-location Total 0.5284 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR530939 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR530939 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1GHz. For 1 GHz to 5 GHz, test distance is 3m; For 5 GHz to 40 GHz, test distance is 1m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR530939 SPORTON INTERNATIONAL INC. Page No. : 3 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Below 1GHz Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in the frequency range of 30 MHz to 1000 MHz using a calibrated bi-log antenna. Transmitter Radiated Unwanted Emissions Above 1GHz The frequency range of 1 GHz to 40 GHz using a calibrated horn antenna. Note: FCC’s permission to use 1.5m as an alternative per TCB…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : 1 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : High Power AC2600 Wi-Fi Router Brand Name : Amped Wireless Model No. : RTA2600 FCC ID : ZTT-RTA2600 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei City, Taiwan The product sample received on Apr. 02, 2015 and completely tested on May 06, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.4444290MHz 27.12 (Margin 19.86dB) - AV 33.41 (Margin 23.57dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 7.03 / 40M: 35.04 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 29.99 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: 1.65 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.50MHz: 41.74dB Restricted Bands [dBuV/m at 3m]: 2389.30MHz 70.05 (Margin 3.95dB) - PK 53.82 (Margin 0.18dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4874MHz 54.04 (Margin 19.96dB) - PK 49.96 (Margin 4.04dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR530939AC Rev. 01 Initial issue of report Jun. 12, 2015 2500-2690 FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 4 29.99 Yes 2400-248…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR530939AC SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
