ZTT-RTA1900TITAN-High Power AC1900 Wi-Fi Router

User’s Guide RTA1900 TITAN HIGHPOWER TM AC1900 WI-FI ® ROUTER 1 CONTENTS INTRODUCTION ..................................................................... 3 GETTING STARTED ................................................................. 4 Package Contents ...................................................................... 4 LED Indicators............................................................................ 5 Back Panel Description .............................................................. 7 BASIC SETUP GUIDE ............................................................... 9 Setup Preparations .................................................................... 9 Welcome to the Setup Wizard ................................................ 14 5GHz WI-FI SETTINGS ........................................................... 20 Basic Settings (5.0GHz) ............................................................ 20 Basic Settings: Guest Networks (5.0GHz) ................................ 22 Security Settings (5.0GHz) ....................................................... 23 Advanced Settings (5.0GHz) .................................................... 23 Wireless Coverage Controls (5.0GHz) ...................................... 25 Access Schedule (5.0GHz) ........................................................ 25 Wi-Fi Protected Setup – WPS (5.0GHz).................................... 27 2.4GHz WI-FI SETTINGS ........................................................ 28 Basic Settings (2.4GHz) ............................................................ 28 Basic Settings: Guest Networks (2.4GHz) ................................ 30 Security Settings (2.4GHz) ....................................................... 31 Advanced Settings (2.4GHz) .................................................... 32 Wir eless Coverage Controls (2.4GHz) ...................................... 33 Access Schedule (2.4GHz) ........................................................ 33 Wi-Fi Protected Setup – WPS (2.4GHz).................................... 35 NETWORK SETTINGS ............................................................ 36 Local Network (LAN) ................................................................ 36 Internet Network (WAN).......................................................... 38 Bridge Mode ............................................................................ 40 Network Settings: Advanced Settings ...................................... 41 SECURITY FEATURES ............................................................ 43 Block Websites ......................................................................... 43 User Access (MAC Address Filtering) ....................................... 44 User Access (IP Address Filtering) ............................................ 45 USB S TORAGE ...................................................................... 46 USB Storage: Local Sharing ...................................................... 46 USB Storage: FTP Server .......................................................... 50 FIREWALL SETTINGS ............................................................. 51 Port Filtering ............................................................................ 52 Port Forwarding ....................................................................... 53 DMZ (Demilitarized Zone) ........................................................ 54 Denial of Service ...................................................................... 55 QUALITY OF SERVICE ............................................................ 56 ROUTING SETUP .................................................................. 57 MANAGEMENT FEATURES ................................................... 58 System Status........................................................................... 59 Network Statistics .................................................................... 60 Dyna mic DNS Settings .............................................................. 61 System Clock ............................................................................ 62 System Logs ............................................................................. 63 Upgrade Firmware ................................................................... 64 2 Password Settings ................................................................... 67 TECHNICAL SPECIFICATION .................................................. 68 DEF AULT SETTINGS .............................................................. 69 TROUB LESHOOTING & SUPPORT INFORMATION .................. 70 WAR RANTY AND REGULATORY INFORMATION .................... 85 LEG AL NOTICES AND DISCLAIMERS....................................... 93 3 INTRODUCTION Thank you for purchasing The TITAN High Power AC1900 Wi-Fi Router. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com 4 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  TITAN – High Power AC1900 Wi-Fi Router  Four Detachable High Gain Antennas  RJ-45 Ethernet Cable  Power Adapter  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android/Windows App 5 LED Indicators Power/WPS: Indicates when the Router is powered on. The LED will remain on. Blinks when Wi-Fi Protected Setup (WPS) is activated and the Router awaits a connection. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 5GHz wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or recei…

Text truncated - open the document above for the full version.

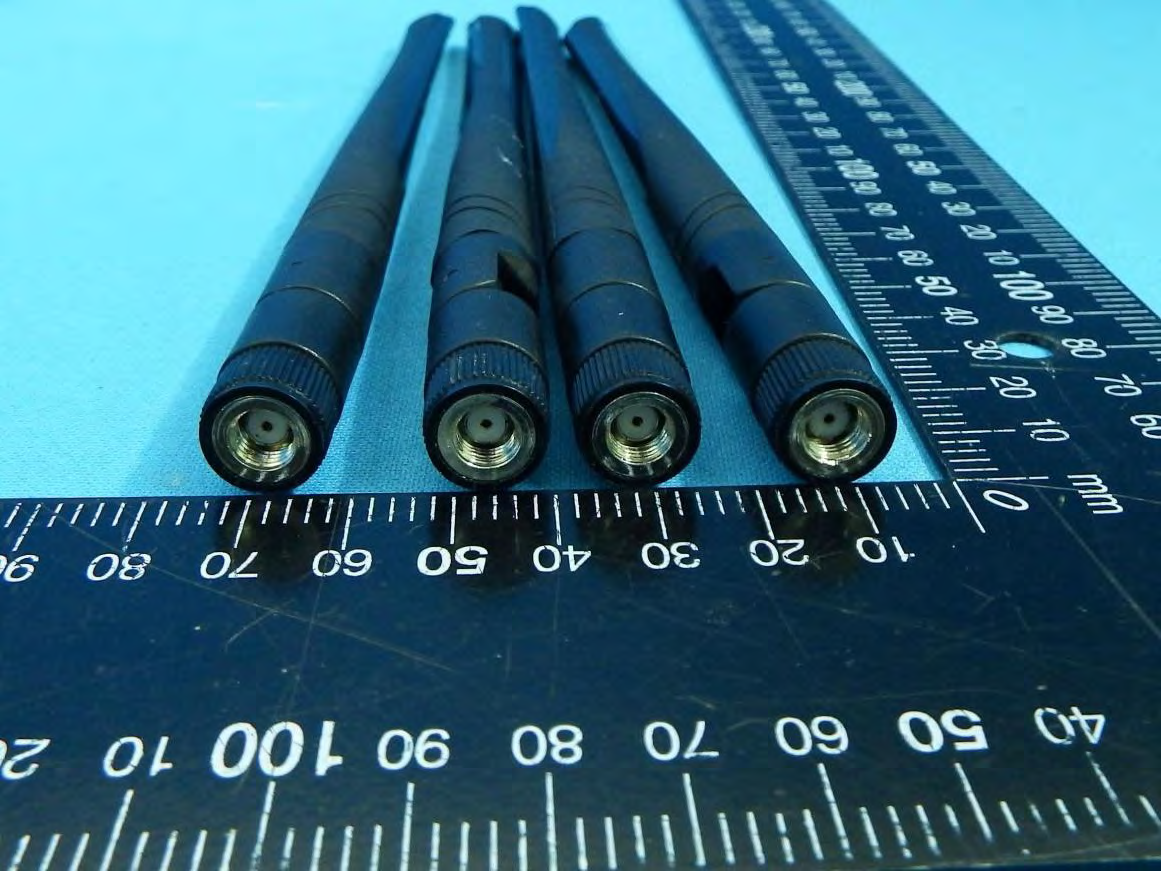

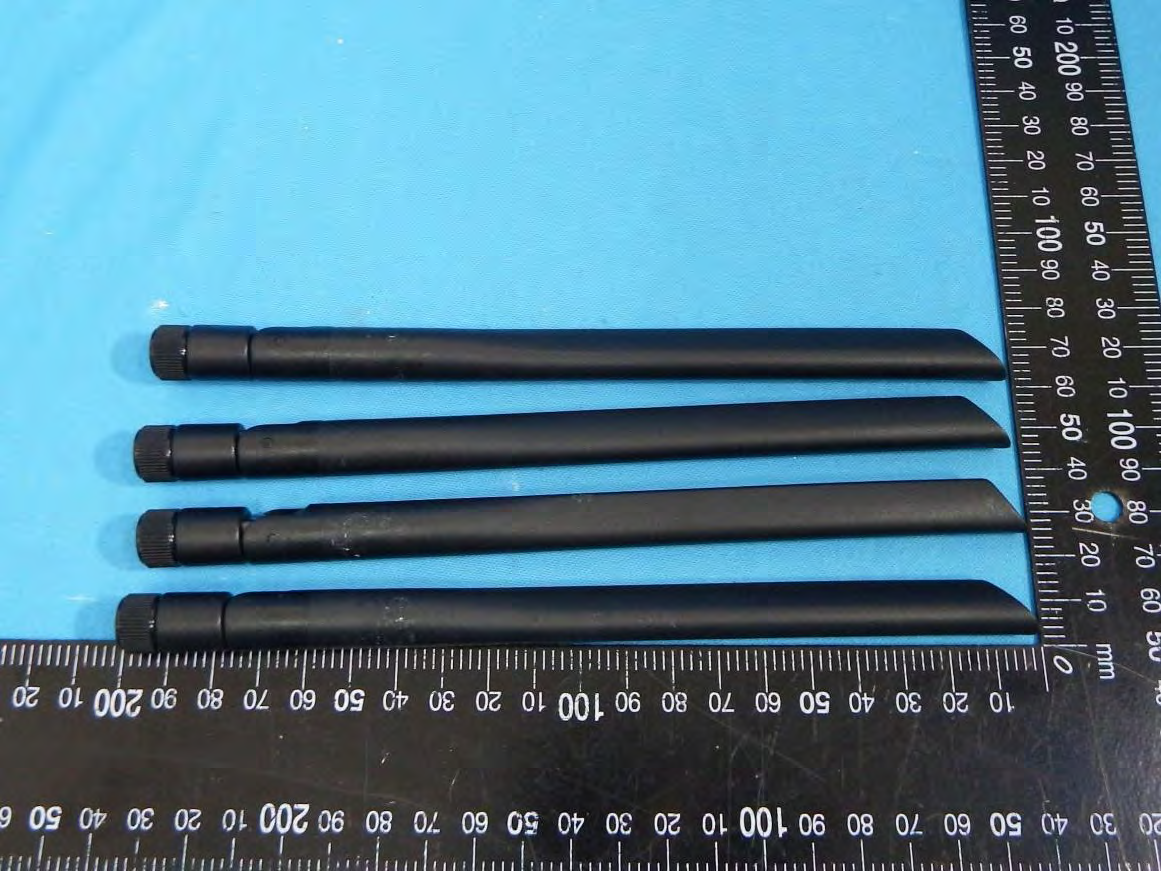

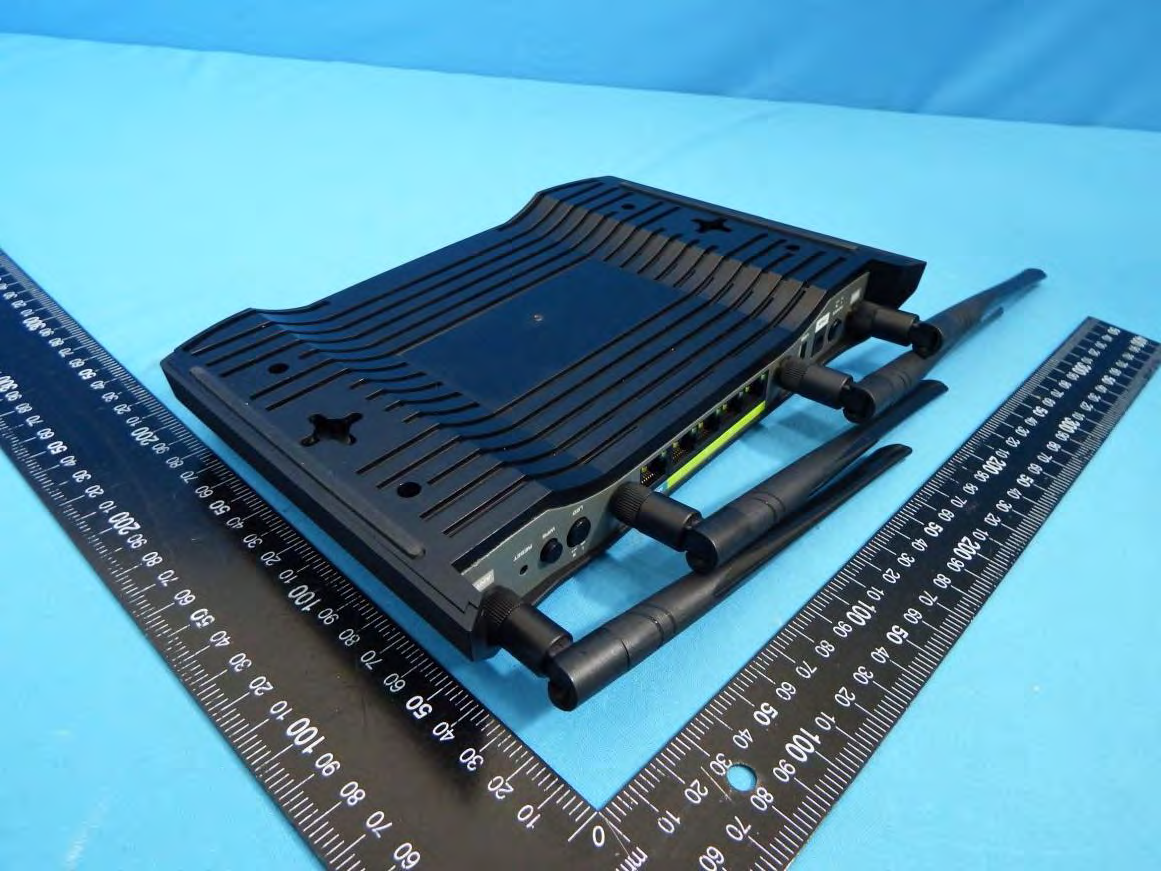

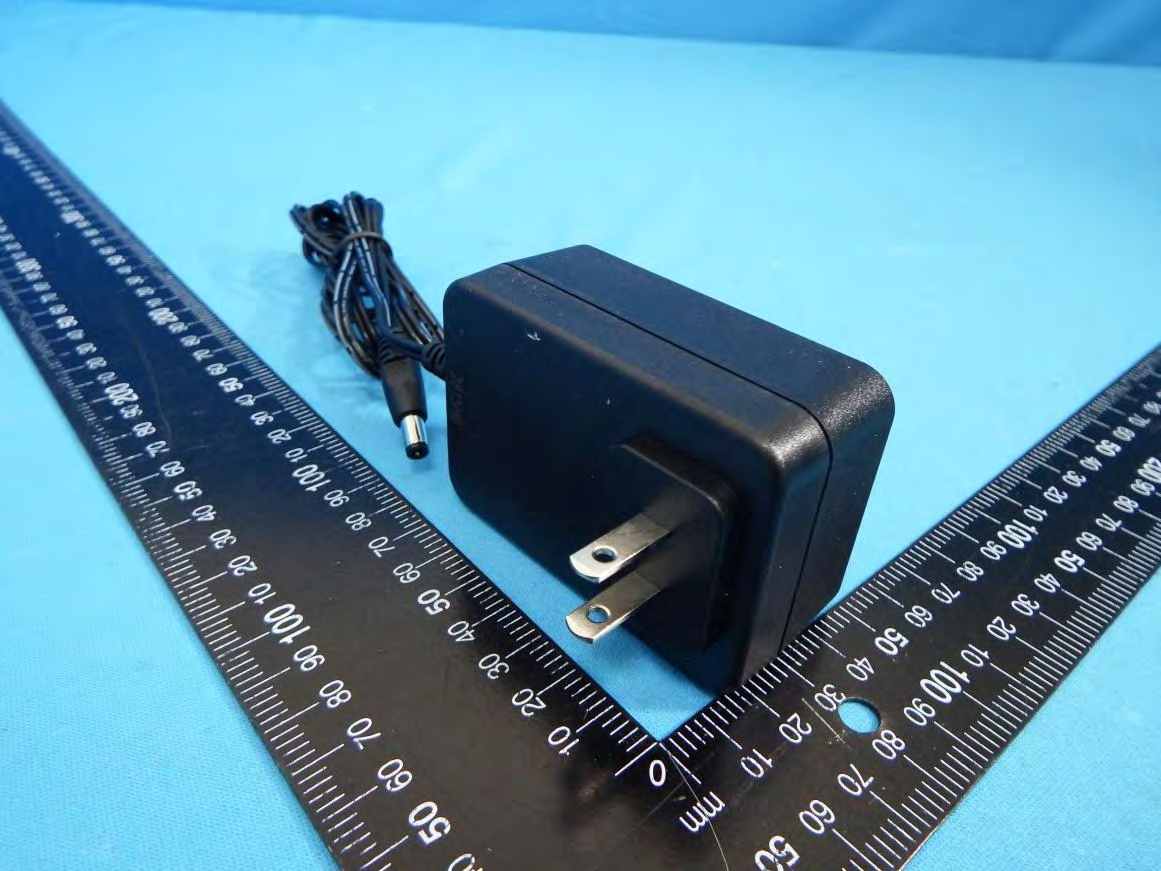

Report No. : EP552736 SPORTON International Inc. Page Number : B1 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT EUT + Antenna Group 1 Report No. : EP552736 SPORTON International Inc. Page Number : B2 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B3 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT + Antenna Group 2 Report No. : EP552736 SPORTON International Inc. Page Number : B4 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B5 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B13 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Antenna Group 1 Report No. : EP552736 SPORTON International Inc. Page Number : B14 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Antenna Group 2 Report No. : EP552736 SPORTON International Inc. Page Number : B15 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B16 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

103.636 49.394 7.629 44 RTA1750 content This device complied with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TITAN - High Power AC1900 Wi-Fi Router S/N: MAC (2.4GHz): MAC (5GHz): WPS Pin: Designed in the USA by Amped Wireless Assembled in China FCC ID: ZTT-RTA1900 IC: 10233A-RTA1900 Model: RTA1900 Factory Default Settings: To reset to factory default settings, hold down the reset button for 5-10 seconds. Login Settings Web Menu: http://setup.ampedwireless.com IP Address: 192.168.3.1 Wi-Fi Settings SSID (2.4GHz): Amped_Titan_2.4 Security Key WPA/WPA2: wireless Power Rating: DC 12V 2.5A SSID (5GHz): Amped_Titan_5.0 Security Key WPA/WPA2: wireless Power / WPS 5GHz Connection 2.4GHz Connection InternetUSB LED INDICATORS For product support, installation guides, software updates and frequently asked questions, please visit: http://www.ampedwireless.com/support/ NON OUTLINED: OUTLINED: Amped Wireless RTA1900 Belly Label 5/21/2015 Condential

Report No. : EP552736 SPORTON International Inc. Page Number : B6 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B7 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B8 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2.4G(Port 1) 5G(Port 2) 2.4G(Port 3) 5G(Port 3) 2.4G(Port 2) 5G(Port 1) Report No. : EP552736 SPORTON International Inc. Page Number : B9 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B10 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B11 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP552736 SPORTON International Inc. Page Number : B12 of B16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : TITAN-High Power AC1900 Wi-Fi Router Brand Name : Amped Wireless Model No. : RTA1900 FCC ID : ZTT-RTA1900 Standard : ANSI/IEEE C95.1 Applicant : Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei City, Taiwan The product sample received on May 26, 2015 and completely tested on Jul. 17, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 3 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA552736 Rev. 01 Initial issue of report Aug. 17, 2015 Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 4 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 5 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 26.93 2400-2483.5 g 2412-2462 1-11 [11] 1 24.77 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 24.74 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 24.96 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) b 1 26.93 5.03 31.96 0.312572 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 6 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.2G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 1 27.53 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 24.42 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 27.35 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 24.46 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 27.39 5150-5250 ac (VHT80) 5210 48 [1] 3 24.71 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) a 1 27.53 5.01 32.54 0.357232 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA552736 SPORTON INTERNATIONAL INC. Page No. : 7 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure (5.8G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5] 1 26.53 5725-5850 n (HT20) 5745-5825 149-165 [5] 3 28.91 5725-5850 n (HT40) 5755-5795 151-159 [2] 3 29.73 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 3 29.80 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 3 29.72 5725-5850 ac (VHT80) 5775 155 [1] 3 27.76 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposur…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR552736 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR552736 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.1.4.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.1.4.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1 GHz and test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR552736 SPORTON INTERNATIONAL INC. Page No. : 3 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions (below 1GHz) Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in the frequency range of 30 MHz to 1000 MHz using a calibrated bi-log antenna. Transmitter Radiated Unwanted Emissions (Above 1GHz) Electric field tests shall be performed in the frequency range of 1 GHz to 10th harmonic of highest fundamental frequency or 40 GHz using a calibrated horn antenna. 1.1.5 Transmitter Ra…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR552736AN SPORTON INTERNATIONAL INC. Page No. : 1 of 96 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : TITAN-High Power AC1900 Wi-Fi Router Brand Name : Amped Wireless Model No. : RTA1900 FCC ID : ZTT-RTA1900 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz 5725 MHz – 5850 MHz FCC Classification : UNII Applicant : Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei City, Taiwan Function : Outdoor AP; Indoor AP; Fixed P2P AP Portable Client The product sample received on May 26, 2015 and completely tested on Jul. 17, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR552736AN SPORTON INTERNATIONAL INC. Page No. : 2 of 96 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ....................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 17 3.3 RF Output Power .................................................................................................................................. 21 3.4 Peak Power Spectral Density ............................................................................................................... 25 3.5 Transmitter Bandedge Emissions ........................................................................................................ 29 3.6 Transmitter Unwanted Emissions ......................................................................................................... 33 3.7 Frequency Stability ............................................................................................................................... 94 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 96 A PPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR552736AN SPORTON INTERNATIONAL INC. Page No. : 3 of 96 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Result 1.1.2 15.203 Antenna Requirement Complied 3.1 15.207 AC Power-line Conducted Emissions Complied 3.2 15.407(a) Emission Bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Complied 3.4 15.407(a) Peak Power Spectral Density Complied 3.5 15.407(b) Transmitter Bandedge Emissions Complied 3.6 15.407(b) Transmitter Unwanted Emissions Complied 3.7 15.407(g) Frequency Stability Complied FCC Test Report Report No. : FR552736AN SPORTON INTERNATIONAL INC. Page No. : 4 of 96 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR552736AN Rev. 01 Initial issue of report Aug. 17, 2015 FCC Test Report Report No. : FR552736AN SPORTON INTERNATIONAL INC. Page No. : 5 of 96 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information (5150-5250MHz band) Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 1 27.53 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 24.42 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 27.35 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 24.46 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 27.39 5150-5250 ac (VHT80) 5210 48 [1] 3 24.71 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 6…
