AP20000G High Power Wireless-N 600mW Gigabit Dual Band Access Point User’s Guide AP20000G USER’S GUIDE 1 CONTENTS INTRODUCTION ..................................................................... 2 GETTING STARTED ................................................................. 3 Package Contents ...................................................................... 3 LED Indicators............................................................................ 4 Back Panel Description .............................................................. 5 PLUG AND PLAY SETUP GUIDE ............................................... 6 ADDITIONAL SETTINGS .......................................................... 9 Accessing the Settings Menu ..................................................... 9 Welcome to the Dashboard .................................................... 11 Set the System Clock ............................................................... 12 Wireless Settings ..................................................................... 13 Setup Summary ....................................................................... 15 5.0GHz WIRELESS SETTINGS ................................................. 16 Basic Settings........................................................................... 16 Basic Settings: Guest Networks ............................................... 18 Security Settings ...................................................................... 19 Wi-Fi Protected Setup – WPS .................................................. 20 User Access ............................................................................. 21 Wireless Coverage Controls..................................................... 22 Access Schedule ...................................................................... 23 Advanced Settings ................................................................... 24 2.4GHz WIRELESS SETTINGS ................................................. 25 Basic Settings ........................................................................... 25 Basic Settings: Guest Networks ................................................ 27 Security Settings ...................................................................... 28 Wi-Fi Protected Setup – WPS ................................................... 29 User Access .............................................................................. 30 Wireless Coverage Controls ..................................................... 31 Access Schedule ....................................................................... 32 Advanced Settings.................................................................... 33 NETWORK SETTINGS ............................................................ 34 USB STORAGE ...................................................................... 36 USB Storage: Local Sharing ...................................................... 36 MANAGEMENT FEATURES ................................................... 40 System Clock ............................................................................ 41 System Logs ............................................................................. 42 Upgrade Firmware ................................................................... 43 Save/Reload Settings ............................................................... 44 TECHNICAL SPECIFICATIONS ................................................. 46 DEFAULT SETTINGS .............................................................. 47 TROUBLESHOOTING AND SUPPORT INFORMATION .............. 48 WARRANTY AND REGULATORY INFORMATION .................... 58 AP20000G USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com AP20000G USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless-N 600mW Gigabit Dual Band Access Point  Two Detachable 2dBi (for 2.4GHz), 4dBi (for 5.0GHz) High Gain Dual Band Antennas  Power Adapter (100-240v)  RJ-45 Ethernet Cable  Setup Guide  CD: User’s Guide  Stand for Vertical Mounting AP20000G USER’S GUIDE 4 LED Indicators Power: Indicates when the Access Point is powered on. The LED will remain on. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the wireless network. Gigabit Wired Ports 1-4: Indicates when a networking device is connected to a wired port on the back of the High Power Access Point. The LED blinks rapidly when wired data traffic is transmitted or received. Network Connection: Indicates when the Access Point is connected to an available network switch or a router’s LAN port. USB Connection: Indicates when a USB storage device is connected to the USB port. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. AP20000G USER’S GUIDE 5 Back Panel Description Antenna Connectors (1-2): RJ-SMA antenna connectors. Attach the included high gain dual band antennas to these connectors. USB Port: Attach USB storage devices, such as USB flash drives and external hard drives, for file sharing. Reset: Push down once to reboot the Access Point. Hold down for 5-10 seconds to reset the router back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Devices: Gigabit RJ-45 ports for connecting to wired computers o…

Text truncated - open the document above for the full version.

No.3, 2F-11, YuanQu St., Taipei City, 115 Taiwan

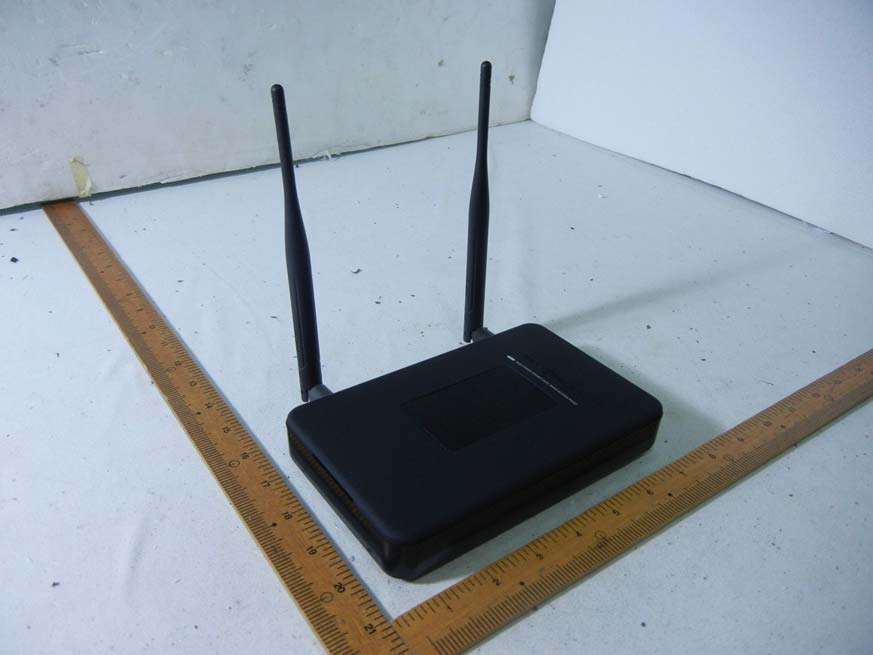

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued Date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A7 FCC ID : ZTT-AP20000G Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued Date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A7 FCC ID : ZTT-AP20000G CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued Date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A7 FCC ID : ZTT-AP20000G

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 4 FCC ID : ZTT-AP20000G Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT High Power Wireless-N 600mW Gigabit Dual Band Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 20.49 dBm (111.9 mW) 802.11g: 21.85 dBm (153.1 mW) 802.11n (20MHz): 24.82 dBm (303.23 mW) 802.11n (40MHz): 24.82 dBm (303.43 mW) 802.11a: 23.89 dBm (244.9 mW) 802.11an (20MHz): 26.77 dBm (475.41 mW) 802.11an (40MHz): 26.69 dBm (466.70 mW) Antenna gain (Max) 802.11b/g/n: 2 dBi ; 802.11a, an: 4 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 26.77 dBm (475.41 mW) at 5785 MHz (withnumeric 4.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 4 FCC ID : ZTT-AP20000G TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 4 FCC ID : ZTT-AP20000G Maximum Permissible Exposure ANT R Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 20.42 2.0 20 0.035 1 802.11g 2412-2462 25.76 2.0 20 0.119 1 802.11n (20MHz) 2412-2462 25.60 2.0 20 0.114 1 802.11n (40MHz) 2422-2452 25.60 2.0 20 0.114 1 802.11a 5150-5250 8.06 4.0 20 0.003 1 802.11a 5725-5850 23.87 4.0 20 0.122 1 802.11an (20MHz) 5150-5250 8.11 4.0 20 0.003 1 802.11an (20MHz) 5725-5850 23.70 4.0 20 0.117 1 802.11an (40MHz) 5190-5230 9.09 4.0 20 0.004 1 802.11an (40MHz) 5755-5795 23.65 4.0 20 0.116 1 ANT L Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 20.49 2.0 20 0.035 1 802.11g 2412-2462 25.80 2.0 20 0.120 1 802.11n (20MHz) 2412-2462 25.59 2.0 20 0.114 1 802.11n (40MHz) 2422-2452 25.86 2.0 20 0.122 1 802.11a 5150-5250 7.64 4.0 20 0.003 1 802.11a 5725-5850 23.89 4.0 20 0.122 1 802.11an (20MHz) 5150-5250 7.09 4.0 20 0.003 1 802.11an (20MHz) 5725-5850 23.82 4.0 20 0.120 1 802.11an (40MHz) 5190-5230 8.15 4.0 20 0.003 1 802.11an (40MHz) 5755-5795 23.71 4.0 20 0.117 1 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 4 of 4 FCC ID : ZTT-AP20000G ANT R+L Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11n (20MHz) 2412-2462 24.82 5.01 20 0.191 1 802.11n (40MHz) 2422-2452 24.82 5.01 20 0.191 1 802.11an (20MHz) 5150-5250 10.52 7.01 20 0.011 1 802.11an (20MHz) 5725-5850 26.71 7.01 20 0.469 1 802.11an (40MHz) 5150-5250 11.66 7.01 20 0.015 1 802.11an (40MHz) 5725-5850 26.66 7.01 20 0.463 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 224 FCC ID : ZTT-AP20000G FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment : High Power Wireless-N 600mW Gigabit Dual Band Access Point Model No. : AP20000G Trade Name : Amped Wireless FCC ID : ZTT-AP20000G ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 224 FCC ID : ZTT-AP20000G Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 9 2.4 Description of Test System ....................................................................................................... 10 2.5 General Information of Test ...................................................................................................... 11 2.6 Measurement Uncertainty ........................................................................................................ 11 3. Antenna Requirements ..................................................................................................................... 12 3.1 Standard Applicable ................................................................................................................. 12 3.2 Antenna Construction and Directional Gain ............................................................................. 12 4. Test of Conducted Emission ............................................................................................................ 13 4.1 Test Limit .................................................................................................................................. 13 4.2 Test Procedures ....................................................................................................................... 13 4.3 Typical Test Setup .................................................................................................................... 14 4.4 Measurement Equipment ......................................................................................................... 14 4.5 Test Result and Data ................................................................................................................ 15 4.6 Test Photographs ..................................................................................................................... 27 5. Test of Radiated Emission ............................................................................................................... 28 5.1 Test Limit .................................................................................................................................. 28 5.2 Test Procedures ....................................................................................................................... 28 5.3 Typical Test Setup .................................................................................................................... 29 5.4 Measurement Equipment ......................................................................................................... 29 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 30 5.6 Test Result and Data (30MHz ~ 25GHz) .................................................................................. 30 5.7 Test Photographs (30MHz~1000MHz) ..................................................................................... 96 5.8 Test Photographs (1000MHz~40000MHz) ............................................................................... 97 6. 6dB Bandwidth Measurement Data ................................................................................................. 98 6.1 Test Limit .................................................................................................................................. 98 6.2 Test Procedures ....................................................................................................................... 98 6.3 Test Setup Layout .................................................................................................................... 98 6.4 Measurement Equipment ......................................................................................................... 98 6.5 Test Result and Data ................................................................................................................ 99 7. Maximum Peak and Average Output Power ................................................................................. 121 7.1 Test Limit .........................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 98 of 224 FCC ID : ZTT-AP20000G 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d. The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100219 2011/11/24 2012/11/23 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 99 of 224 FCC ID : ZTT-AP20000G 6.5 Test Result and Data Test Date: Jun. 07, 2012 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) ANT R ANT L 802.11b (11Mbps) 01 2412 10.2 10.8 06 2437 11.0 10.8 11 2462 9.8 10.9 802.11g (54Mbps) 01 2412 16.7 16.8 06 2437 16.7 16.8 11 2462 16.9 16.8 802.11n HT20 (130Mbps) 01 2412 17.9 17.8 06 2437 18.0 18.0 11 2462 18.0 17.9 802.11n HT40 (270Mbps) 03 2422 36.2 36.6 06 2437 36.6 36.6 09 2452 36.6 36.4 Test Date: Jun. 15, 2012 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) ANT R ANT L 802.11a (54Mbps) 149 5745 16.6 16.7 157 5785 16.6 16.9 165 5825 16.6 16.8 802.11an HT20 (130Mbps) 149 5745 17.8 18.0 157 5785 17.7 17.8 165 5825 17.8 17.8 802.11an HT40 (270Mbps) 151 5755 36.4 36.4 155 5775 36.2 36.6 159 5795 36.2 36.6 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 100 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11b (11Mbps), ANT R Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 101 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11b (11Mbps), ANT R Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 102 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11g (54Mbps), ANT R Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 103 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 104 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 105 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 106 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11a (54Mbps), ANT R Channel: 149 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 157 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 107 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11a (54Mbps), ANT R Channel: 165 Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 149 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 108 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 157 Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 165 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 109 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 151 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 155 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 110 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 159 Modulation Standard: 802.11b (11Mbps), ANT L Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 111 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11b (11Mbps), ANT L Channel: 06 Modulation Standard: 802.11b (11Mbps), ANT L Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 112 of 224 FCC ID : ZTT-AP20000G Modulation Standard: 802.11g (54Mbps), ANT L Channel: 01 Modulation Standard: 802.11g (54Mbps), ANT L Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135-A Cerpass Technology Corp. Issued date : Aug. 22, 2012 Tel:886-2-2…
