ZTT-AP300ROUTER

AP300 High Power Wireless-300N Smart Access Point User’s Guide AP300 USER’S GUIDE 1 CONTENTS INTRODUCTION .................................................. 2 GETTING STARTED .............................................. 3 Package Contents ........................................................... 3 LED Indicators ................................................................. 4 Back Panel Description ................................................... 5 PLUG AND PLAY SETUP GUIDE ............................ 7 ADDITIONAL SETTINGS ....................................... 9 Accessing the Settings Menu .......................................... 9 Open your Web Browser .............................................. 10 Welcome to the Smart Setup Wizard ........................... 11 Set the System Clock ..................................................... 12 Wireless Network ID ..................................................... 13 Wireless Network Security ............................................ 14 Setup Summary ............................................................. 15 WIRELESS SETTINGS .......................................... 16 Basic Settings ................................................................ 16 Security Settings ........................................................... 16 Wireless Settings: Wi-Fi Protected Setup (WPS) ........... 19 Wireless Settings: Advanced Settings ........................... 20 SMART FEATURES .............................................. 21 Wireless Settings: Access Schedule ............................... 22 User Access Control ...................................................... 23 Wireless Coverage Controls .......................................... 24 IP SETTINGS ....................................................... 25 MANAGEMENT FEATURES ................................. 27 System Clock ................................................................. 28 Upgrade Firmware ........................................................ 29 Save and Reload Settings .............................................. 30 Password Settings ......................................................... 31 USING POWER OVER ETHERNET (PoE) ............... 32 TECHNICAL SPECIFICATIONS .............................. 34 DEFAULT SETTINGS ............................................ 35 TROUBLESHOOTING AND SUPPORT INFORMATION ................................................... 36 WARRANTY AND REGULATORY INFORMATION ........ 42 AP300 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com AP300 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless-300N Smart Access Point  Ethernet Cable  Power Supply  Access Point Stand  CD with Users Guide  Two High Gain 3dBi Antennas  Setup Guide AP300 USER’S GUIDE 4 LED Indicators Power: When lit, the power is on. Wireless Activity: Blinks rapidly when wireless data traffic is passing through the Access Point. Wired Connections: Shows the connection status and data activity of each wired LAN port. Network Connection: Shows the connection status between the Access Point and your router/network. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. AP300 USER’S GUIDE 5 Back Panel Description Antenna Connectors: RJ-SMA antenna connectors. Compatible with all antennas with RP-SMA connectors. Upgradable to high gain antennas for more range. Reset: Push down once to reboot the Smart Access Point. Hold down for 5-10 seconds to reset the device back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Network Port (5): RJ-45 port used to connect the Access Point to your router’s LAN port or any available network port. AP300 USER’S GUIDE 6 Wired Devices Ports (1-4): RJ-45 ports for connecting to wired computers or network devices. Supports up to 4 wired connections. Additional switches may be attached to these ports for additional LAN ports if needed. Power: Power adapter port. DC 12V 1A. AP300 USER’S GUIDE 7 PLUG AND PLAY SETUP GUIDE Connect the Smart Access Point to your Router a) Attach the Antennas b) Plug in the Power Adapter c) Connect the Smart Access Point to your Router’s network port (or any available port on a network switch) AP300 USER’S GUIDE 8 Connect your PC to the Smart Access Point Connecting Wirelessly: With your PC or Mac, scan for available wireless networks and locate the wireless network for the Smart Access Point: By default the Smart Access Point will have a SSID with the name: “Amped_AP” The default WPA security key is: “wireless” Wired Connections: Attach any wired devices to the Smart Access Point using Ethernet cables. Your Plug and Play setup is now complete. You may now use the Smart Access Point to access your network. AP300 USER’S GUIDE 9 ADDITIONAL SETTINGS Accessing the Settings Menu To access the settings menu for additional changes to the configuration of your Smart Access Point, you will need to access the settings menu. The settings menu will allow you to change all features and settings for the Smart Access Point. To access the settings menu follow the instructions below: a) Disconnect your computer from any wireless networks a) Attach your PC to the Access Point using an Ethernet cable AP300 USER’S GUIDE 10 Open your Web Browser a. Open your web browser b. Type in: http://setup.ampedwireless.com into the web address bar c. If the web menu fails to open type in the foll…

Text truncated - open the document above for the full version.

Request for Confidentiality Applicant Name: Amped Wireless. Address: 13089 Peyton Dr. #C307 Chino Hills, CA91709 To: Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: ZTT-AP300 Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Long term ‹ Block diagram ‹ Schematics Diagram ‹ Operational description We are aware that the documents that we are asking to be made confidential have been available to the public since they were certified. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jason Owen

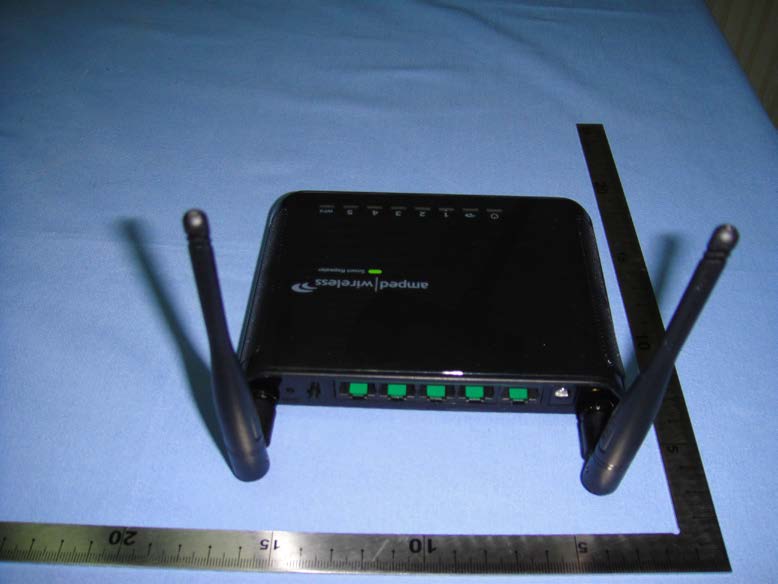

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 1 of 1 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Sample of FCC Label Model:AP300 FCC ID:ZTT-AP300 Model: AP300 FCC ID: ZTT-AP300

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 1 of 5 TOP INSIDE TOP INSIDE Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 2 of 5 PCB Main Board PCB Main Board Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 3 of 5 RJ45 Cable Antenna Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 4 of 5 Adapter Adapter Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 5 of 5 Case Case

Y11 25MHz Crystal is NC Used X1 40MHz Oscillator

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.: CANA12021309 IC: 10233A-AP300 Page:1 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT Product Name: Router Model Number: AP300 Applicant: Amped Wireless 13089 Peyton Dr. #C307 Chino Hills, CA91709 Date of Receipt: Feb. 13, 2012 Finished date of Test: Mar. 01, 2012 Applicable Standards: RSS-GEN RSS-210 RSS-102 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By: , Date: Approved By: (Jeff Lo) Date: (Johnson Ho, Director) PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.: CANA12021309 IC: 10233A-AP300 Page:2 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT RF POWER EXPOSURE EVALUATION TEST 1 LIMIT According to the requirement of IC Safety Code 6, Section 2.2.1 (a) Table 5. PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.: CANA12021309 IC: 10233A-AP300 Page:3 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT 1.2 TEST PROCEDURE 1. The EUT was operating in transmitter mode and could be controlled its channel. The power instrument read power value. 2. The EUT uses a chip antenna and the antenna gain is 0dBi declared by manufacturer. 3. As discussed in FCC OET Bulletin 65, calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a non-directional antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations (1) or (2) below [for conversion to electric or magnetic field strength see Equation (3) above]. These equations are generally accurate in the far-field of an antenna but will over-predict power density in the near field, where it could be used for making a" worst case" or conservative prediction. S=PG/4πR² (Eq.1) S=connect power/4πR² (Eq. 2) S=E²/3770=37.7H² (Eq. 3) where: S = power density (mW/cm 2 ) E = electric field strength (V/m) H = magnetic field strength (A/m) S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator (dBi) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) where: connect power = equivalent (or effective) isotropically radiated power. PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.: CANA12021309 IC: 10233A-AP300 Page:4 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT 1.3 CONNECT POWER AT THE ANTENNA CONNECTOR RESULT Temperature: 24°C Humidity: 52%RH Spectrum Detector: PK. Tested Mode: 802.11b/g/n Tested By: Jeff Lo Modulation Type: QPSK Tested Date: Feb. 06, 2012 CHANNEL NUMBER 802.11b CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 1 2412 20 2 22.24 0.265 0.527 10 6 2437 20 2 23.33 0.341 0.678 10 11 2462 20 2 21.17 0.207 0.412 10 CHANNEL NUMBER 802.11g CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 1 2412 20 2 22.18 0.261 0.519 10 6 2437 20 2 22.30 0.269 0.535 10 11 2462 20 2 23.17 0.328 0.653 10 CHANNEL NUMBER 802.11n CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 5 2422 20 2 23.42 0.348 0.692 10 8 2437 20 2 23.46 0.351 0.698 10 11 2452 20 2 23.89 0.388 0.772 10 NOTE 1: The values of PEAK POWER OUT same as 4.4 test results. PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.:FCCA12021309 FCC ID: ZTT-AP300 Page:1 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT Product Name: Router Model No.: AP300 Applicant: Amped Wireless 13089 Peyton Dr. #C307 Chino Hills, CA91709 Date of Receipt: Feb. 13, 2012 Finished date of Test: Mar. 01, 2012 Applicable Standards: 47 CFR Part 15, Subpart C ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Jeff Lo) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.:FCCA12021309 FCC ID: ZTT-AP300 Page:2 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................. 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION.......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................. 6 2.5 EUT OPERATING CONDITION.......................................................................... 7 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 7 3.1 SUMMARY OF TEST RESULTS ..................................................................... 8 4 . TECHNICAL CHARACTERISTICS TEST .......................................................... 9 4.1 CONDUCTED EMISSION TEST ........................................................................ 9 4.1.1 LIMIT ............................................................................................................... 9 4.1.2 TEST EQUIPMENT ......................................................................................... 9 4.1.3 TEST SETUP................................................................................................. 10 4.1.4 TEST PROCEDURE...................................................................................... 10 4.1.5 TEST RESULT............................................................................................... 11 4.2 RADIATED EMISSION TEST ......................................................................... 20 4.2.1 LIMIT ............................................................................................................. 20 4.2.2 TEST EQUIPMENT ....................................................................................... 21 4.2.3 TEST SET-UP................................................................................................ 22 4.2.4 TEST PROCEDURE...................................................................................... 24 4.2.5 TEST RESULT............................................................................................... 25 4.3 BANDWIDTH TEST ........................................................................................ 43 4.3.1 LIMIT ............................................................................................................. 43 4.3.2 TEST EQUIPMENT ....................................................................................... 43 4.3.3 TEST SET-UP................................................................................................ 43 4.3.4 TEST PROCEDURE...................................................................................... 43 4.3.5 EUT OPERATING CONDITION..................................................................... 43 4.3.6 TEST RESULT............................................................................................... 44 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309 Report No.:FCCA12021309 FCC ID: ZTT-AP300 Page:3 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT 4.4 PEAK POWER TEST ....................................................................................... 50 4.4.1 LIMIT ............................................................................................................. 50 4.4.2 TEST EQUIPMENT ....................................................................................... 50 4.4.3 TEST SET-UP................................................................................................ 50 4.4.4 TEST PROCEDURE...................................................................................... 50 4.4.5 EUT OPERATING CONDITION..................................................................... 50 4.4.6 TEST RESULT............................................................................................... 51 4.5 BAND EDGE TEST .......................................................................................... 57 4.5.1 LIMIT ............................................................................................................. 57 4.5.2 TEST E…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 1 of 3 PHOTOS OF Testing - Conducted test Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 2 of 3 Radiated test (below 1G , TX & Standby) Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 3 of 3 Radiated test (above 1G , TX & Standby)
