ZTT-AP600EXHigh Power Wireless-N 600mW Pro Access Point

WLAN Broadband Router User Manual - 1 - User's Manual of WLAN Broadband Router (1T1R) USER MANUAL 1.0.0 © 2011 WLAN Broadband Router User Manual - 2 - Table of Contents 1. Terminology .......................................................................................................... 5 2. Introduction .......................................................................................................... 7 2.1 Package contents .................................................................................... 7 2.2 Rear Panel Description .......................................................................... 8 2.3 Front Panel Description ......................................................................... 9 3. Installation .......................................................................................................... 10 3.1 Hardware Installation ........................................................................... 10 3.1.1 Appearance and Interface Introduction ............................................... 10 3.1.2 Hardware installation steps ................................................................. 12 3.2 Software Installation ............................................................................ 15 4. Software configuration ...................................................................................... 15 4.1 Prepare your PC to configure the WLAN Broadband Router ............. 15 4.2 Connect to the WLAN Broadband Router ........................................... 16 4.3 Management and configuration on the WLAN Broadband Router ..... 16 4.3.1 Setup Wizard ................................................................................ 16 4.3.2 Operation Mode ........................................................................... 20 4.3.3 Wireless........................................................................................ 21 4.3.3.1 Basic Settings ........................................................................ 21 4.3.3.2 Advanced Settings ................................................................ 23 4.3.3.3 Security ................................................................................. 24 4.3.3.3.1 Disable ....................................................................... 24 4.3.3.3.2 WEP ........................................................................... 25 4.3.3.3.3 WPA ........................................................................... 26 4.3.3.3.4 WPA2 ......................................................................... 27 4.3.3.3.5 WPA-Mixed ............................................................... 28 4.3.3.4 Access Control ...................................................................... 29 4.3.3.5 WDS Settings........................................................................ 30 4.3.3.5.1 WDS Security Setup .................................................. 31 4.3.3.5.2 WDS AP Table ........................................................... 31 4.3.3.6 Site Survey ............................................................................ 32 4.3.3.7 WPS ...................................................................................... 33 4.3.3.8 Schedule ................................................................................ 34 4.3.4 TCP/IP Settings ............................................................................ 35 4.3.4.1 LAN Interface Setup ............................................................. 35 4.3.4.1.1 Static DHCP Setup ..................................................... 37 4.3.4.2 WAN Interface Setup ............................................................ 38 WLAN Broadband Router User Manual - 3 - 4.3.4.2.1 Static IP ...................................................................... 38 4.3.4.2.2 DHCP Client .............................................................. 40 4.3.4.2.3 PPPoE ........................................................................ 42 4.3.4.2.4 PPTP .......................................................................... 44 4.3.4.2.5 L2TP .......................................................................... 46 4.3.5 Firewall ........................................................................................ 48 4.3.5.1 Port Filtering ......................................................................... 48 4.3.5.2 IP Filtering ............................................................................ 49 4.3.5.3 MAC Filtering....................................................................... 50 4.3.5.4 Port Forwarding .................................................................... 51 4.3.5.5 URL Filtering ........................................................................ 52 4.3.5.6 DMZ...................................................................................... 53 4.3.5.7 VLAN ................................................................................... 54 4.3.6 QoS .............................................................................................. 55 4.3.7 Management................................................................................. 57 4.3.7.1 Status ..................................................................................... 57 4.3.7.2 Statistics ................................................................................ 59 4.3.7.3 DDNS.................................................................................... 60 4.3.7.4 Time Zone Setting................................................................. 61 4.3.7.5 Denial-of-Service .................................................................. 62 4.3.7.6 Log ........................................................................................ 63 4.3.7.7 Upgrade Firmware ................................................................ 64 4.3.7.8 Save/ Reload Settings .................................................…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: High Power Wireless-N 600mW Pro Smart Repeater Trademark(s) and Model(s): Amped Wireless / AP600EX Manufacturer: Loopcomm Technology Inc. FCC ID in case other parts of this equipment are subject to certification: ZTT-AP600EX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: ISL-11LR078FB-MB 12/05/2011 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Amped Wireless Name/Title (legal representative): Jason Owen, CEO Address: 13089 Peyton Dr. #C307 Chino Hills CA 91709 Phone: 909-217-3229 Fax: 909-580-8883 E-mail: [email protected] Date: 12/13/2011 Signature: FCC

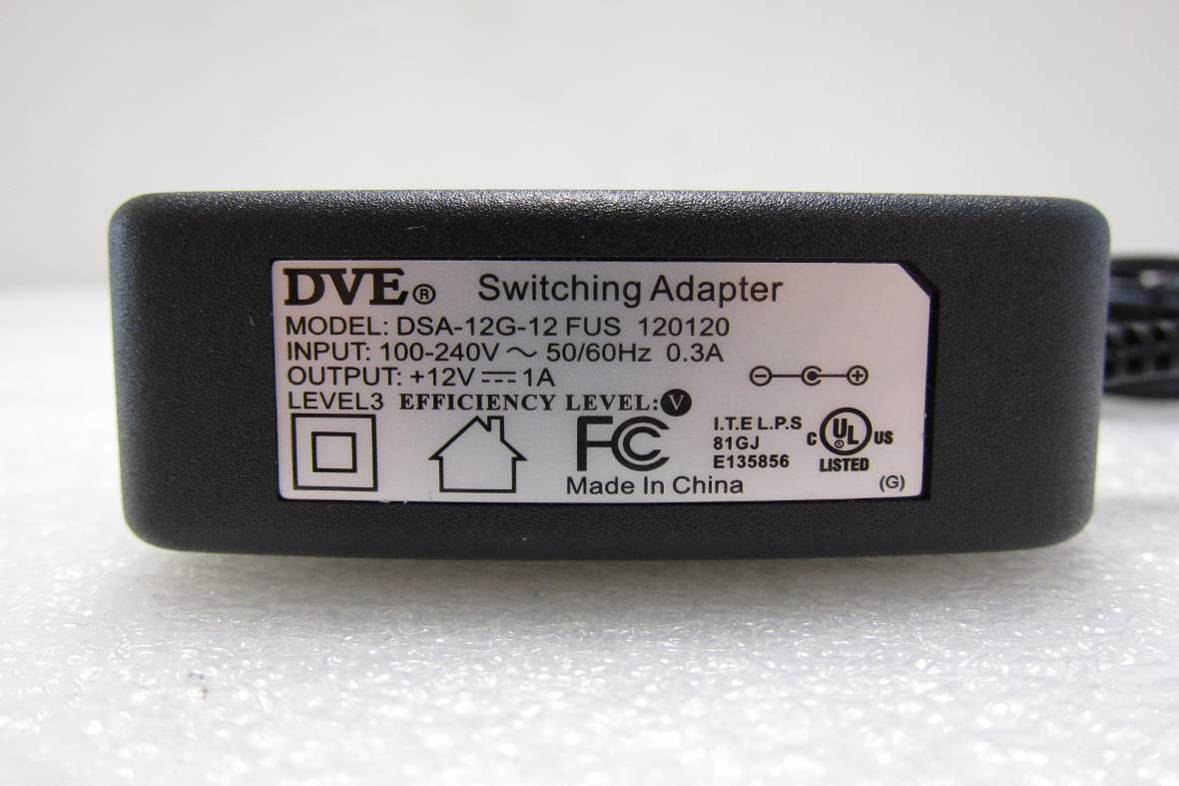

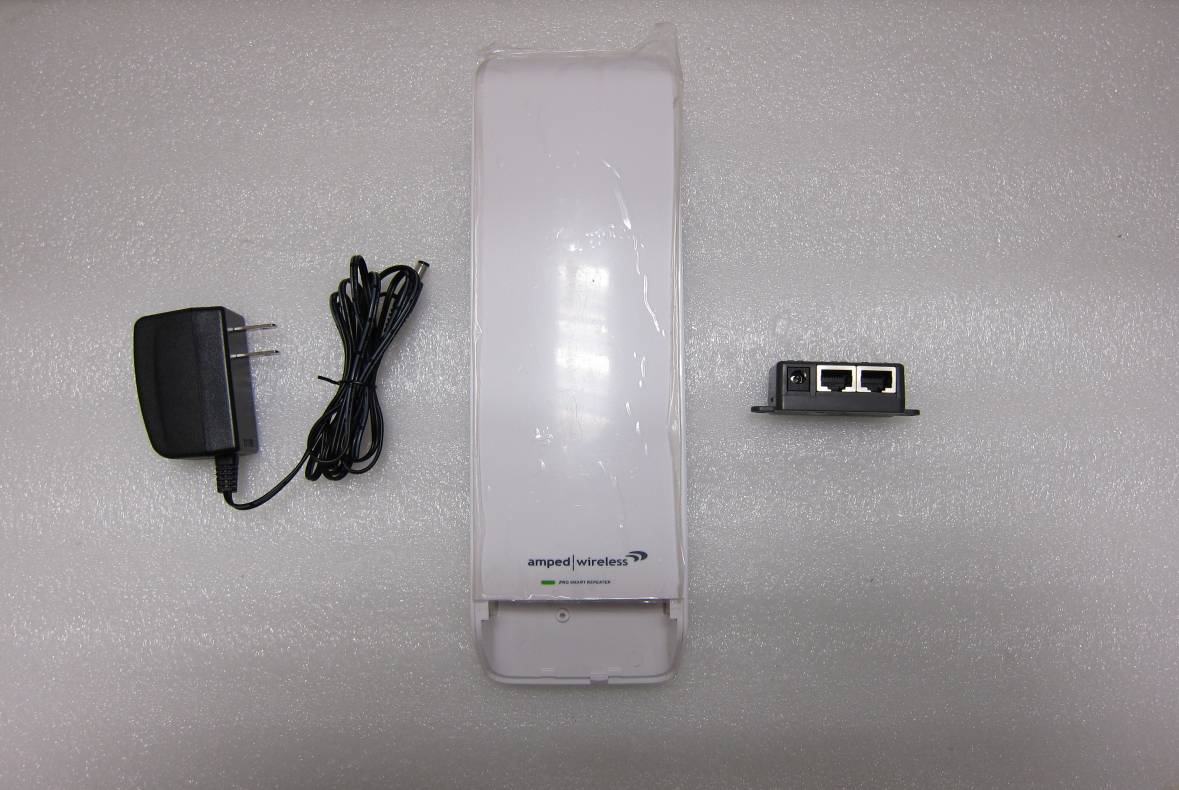

FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB All of EUT External of EUT – 1 FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB External of EUT – 2 External of EUT – 3 FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB External of EUT – 4

FCC ID LABEL FORMAT AND LOCATION Applicant: Amped Wireless FCC ID: ZTT-AP600EX

FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Internal of EUT – 1 Internal of EUT-2 WLAN Ant. FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Internal of EUT – 3 Internal of EUT-4 FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Internal of EUT – 5

FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB 1 Maximum Permissible Exposure (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB 1.2 Maximum Permissible Exposure (MPE) Evaluation 802.11b Cable loss = 0 Output Power limit CH Frequency (MHz) Detector PK (dBm) AV (dBm) (dBm) 1 2412 15.27 12.57 25 6 2437 15.14 12.87 25 11 2462 15.54 12.18 25 MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 15.54 (dBm) Maximum peak output power at antenna input terminal: 35.80964371 (mW) Duty cycle: 100 (%) Maximum Pav : 35.80964371 (mW) Antenna gain (typical): 10.76 (dBi) Maximum antenna gain: 11.91242008 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0849083 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.084908 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2462MHz. FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB 802.11g Cable loss = 0 Output Power limit CH Frequency (MHz) Detector PK (dBm) AV (dBm) (dBm) 1 2412 17.48 7.54 25 6 2437 17.85 8.01 25 11 2462 18.41 8.66 25 MPE Prediction (802.11g) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.41 (dBm) Maximum peak output power at antenna input terminal: 69.3425806 (mW) Duty cycle: 100 (%) Maximum Pav : 69.3425806 (mW) Antenna gain (typical): 10.76 (dBi) Maximum antenna gain: 11.91242008 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.1644184 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.164418 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462. FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB 802.11N 20MHz Cable loss = 0 Output Power limit CH Frequency (MHz) Detector PK (dBm) AV (dBm) (dBm) 1 2412 17.06 7.70 25 6 2437 17.40 8.16 25 11 2462 17.97 8.82 25 MPE Prediction (802.11n(2.4GHz)_20M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 17.97 (dBm) Maximum peak output power at antenna input terminal: 62.66138647 (mW) Duty cycle: 100 (%) Maximum Pav : 62.66138647 (mW) Antenna gain (typical): 10.76 (dBi) Maximum antenna gain: 11.91242008 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.1485766 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.148577 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462. FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB 802.11N 40MHz Cable loss = 0 Output Power limit CH Frequency (MHz) Detector PK (dBm) AV (dBm) (dBm) 3 2422 17.40 7.50 25 6 2437 17.53 7.79 25 9 2452 17.84 8.12 25 MPE Prediction (802.11n(2.4GHz)_40M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 17.84 (dBm ) Maximum peak output power at antenna input terminal: 60.81350013 (m W ) Duty cycle: 100 (%) Maximum Pav : 60.81350013 (m W ) Antenna gain (typical): 10.76 (dBi ) Maximum antenna gain: 11.91242008 (nu meric) Prediction distance: 20 (cm) Prediction frequency: 2452 (MH z) MPE limit for uncontrolled exposure at prediction 1 ( mW /cm2 ) Power density at predication frequency at 20 (cm) 0.1441951 (mW /cm^2) Measurement Result The predicted power density level at 20 cm is 0144195 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2452.

Page: 1 of 92 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : High Power Wireless-N 600mW Pro Smart Repeater Brand: Amped Wireless Model: AP600EX Model Difference: N/A FCC ID: ZTT-AP600EX FCC Rule Part: §15.247, Cat: DTS Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills CA 91709 Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-11LR078FC-MB Issue Date : 2011/12/05 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 92- FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB VERIFICATION OF COMPLIANCE Applicant: Amped Wireless Product Description: High Power Wireless-N 600mW Pro Smart Repeater Brand Name: Amped Wireless Model No.: AP600EX Model Difference: N/A FCC ID: ZTT-AP600EX Date of test: 2011/10/31 Date of EUT Received: 2011/10/31 ~ 2011/12/01 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2011/12/05 Dion Chang / Engineer Prepared By: Date: 2011/12/05 Eva Kao / Technical Supervisor Approved By: Date: 2011/12/05 Vincent Su / Technical Manager -3 of 92- FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Version Version No. Date Description 00 2011/12/05 Initial creation of document -4 of 92- FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK OUTPUT POWER MEASUREMENT ....................................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 17 7 6dB Bandwidth ..............…

Text truncated - open the document above for the full version.

FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Radiated Emission Set up Photo FCC ID: ZTT-AP600EX International Standards Laboratory Report Number: ISL-11LR078FC-MB Conducted Emission Set up Photo
