ZTT-APR175PProSeries High Power AC1750 Wi-Fi Access Point / Router / Range Extender / Bridge

APR175P ProSeries High Power AC1750 Wi-Fi Access Point / Router User’s Guide APR175P USER’S GUIDE 1 CONTENTS INTRODUCTION ........................................................... 4 GETTING STARTED ....................................................... 5 Package Contents ........................................................... 5 LED Indicators ................................................................. 6 Side Panel Description .................................................... 7 Mounting Instructions .................................................... 8 GETTING STARTED ....................................................... 9 OPERATIONAL MODES (BASIC SETUP) ........................ 10 ROUTER MODE ............................................................. 11 ACCESS POINT MODE .................................................... 22 WDS - ACCESS POINT MODE ........................................ 29 MANAGED ACCESS POINT MODE ................................. 36 ACCESS POINT CONTROLLER MODE ............................. 37 MORE SETTINGS ........................................................ 48 DASHBOARD ............................................................. 49 System Status................................................................ 49 Operational Mode ........................................................ 50 Basic Setup .................................................................... 51 Connected Devices ....................................................... 52 WDS Settings ................................................................ 53 WI-FI SETTINGS ..........................................................54 2.4GHz Status ................................................................ 54 2.4GHz Basic Settings .................................................... 55 2.4GHz Security ............................................................. 57 2.4GHz Output Power ................................................... 59 2.4GHz Site Survey ........................................................ 60 2.4GHz WDS .................................................................. 61 2.4GHz Access Schedule ................................................ 63 2.4GHz Advanced Settings ............................................ 64 5.0GHz Status ................................................................ 66 5.0GHz Basic Settings .................................................... 67 5.0GHz Security ............................................................. 69 5.0GHz Output Power ................................................... 71 5.0GHz Site Survey ........................................................ 72 5.0GHz WDS .................................................................. 73 5.0GHz Access Schedule ................................................ 75 5.0GHz Advanced Settings ............................................ 76 WPS Settings ................................................................. 78 MAC Address Filtering ................................................... 79 APR175P USER’S GUIDE 2 RADIUS Server ............................................................... 80 Internal RADIUS Server ................................................. 82 Radius Accounts ............................................................ 84 WMM / QoS .................................................................. 85 NETWORK SETTINGS .................................................. 86 Local Network (IPv4) ..................................................... 86 LAN Port Settings .......................................................... 87 VLAN ............................................................................. 89 Domain Redirect ........................................................... 90 Internet Network (WAN) IPv4 ....................................... 91 Advanced Settings ........................................................ 93 ADVANCED SETTINGS ................................................ 95 Port Forwarding ............................................................ 95 Port Filtering ................................................................. 96 DMZ (Demilitarized Zone) ............................................. 97 Denial of Service ........................................................... 98 IDS (Intrusion Detection System) .................................. 99 ADMINISTRATION ................................................... 100 System Status.............................................................. 100 Network Statistics ....................................................... 101 System Clock ............................................................... 102 Advanced Settings ...................................................... 103 System Logs ................................................................ 105 Alarm and LED Settings ............................................... 106 Upgrade Firmware ...................................................... 107 Save / Reload Settings ................................................. 109 Password Settings ....................................................... 110 ACCESS POINT CONTROLLER SETTINGS ..................... 111 DASHBOARD ............................................................... 115 System Status .............................................................. 115 Operational Mode ....................................................... 116 Basic Setup .................................................................. 117 Managed AP Overview ................................................ 118 Managed AP Map........................................................ 121 MANAGED AP STATUS................................................ 122 Access Points: Managed APs ....................................... 122 Access Points: Managed AP Groups ............................ 126 Wi-Fi Status: Active Wi-Fi Networks ........................... …

Text truncated - open the document above for the full version.

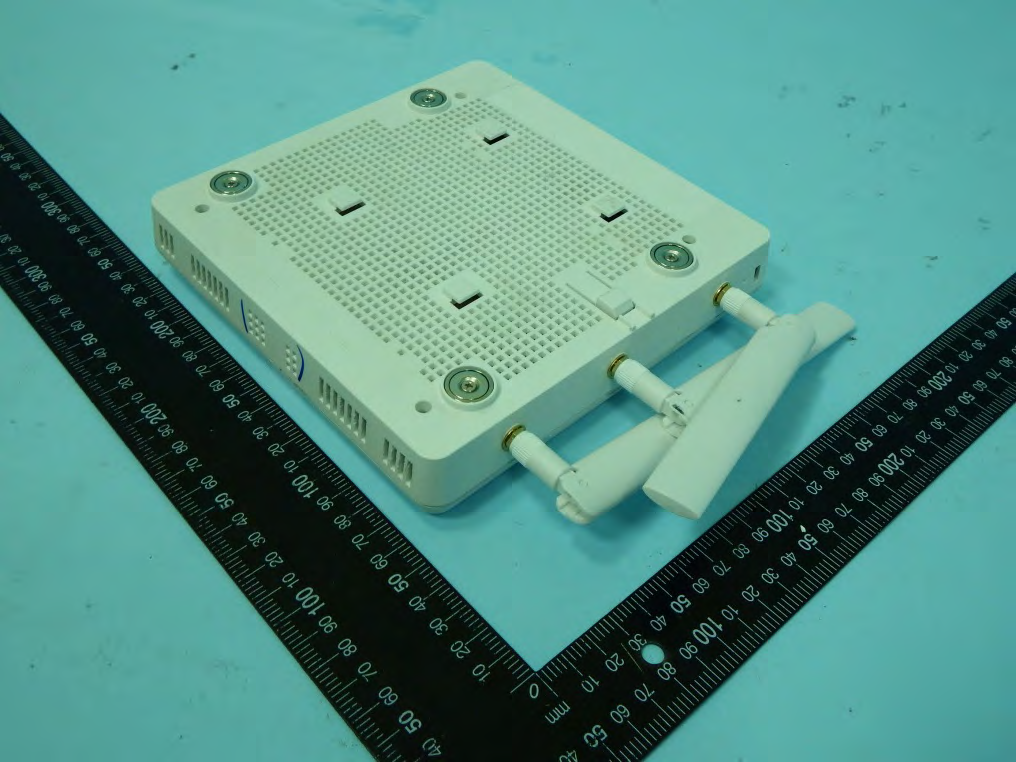

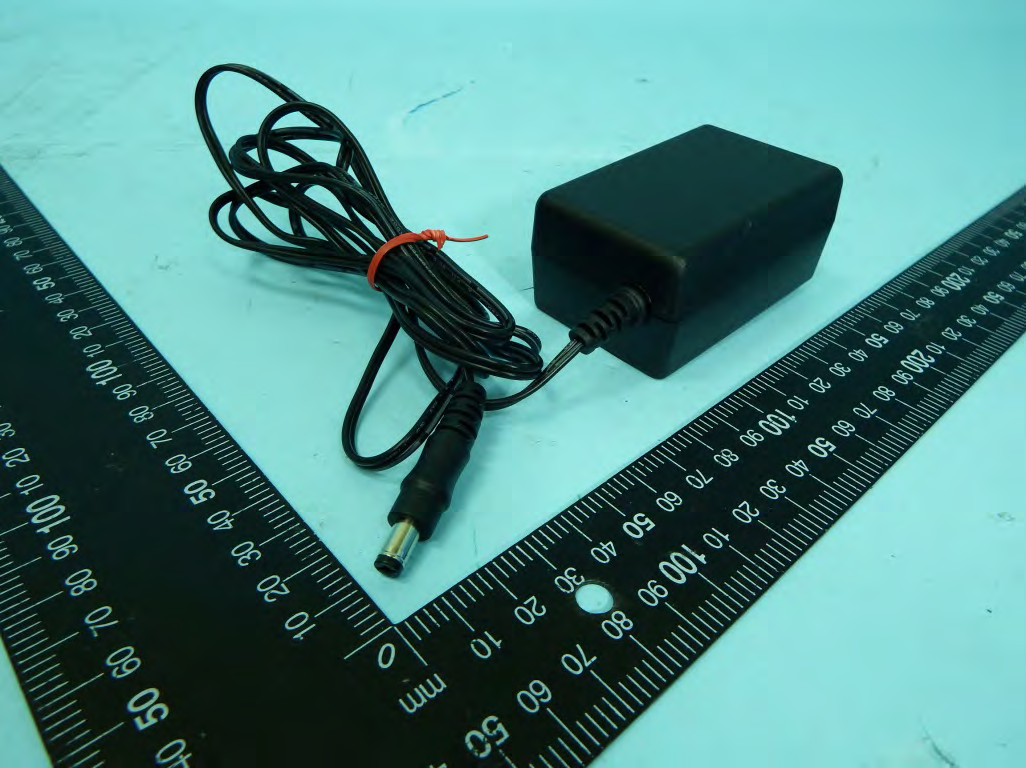

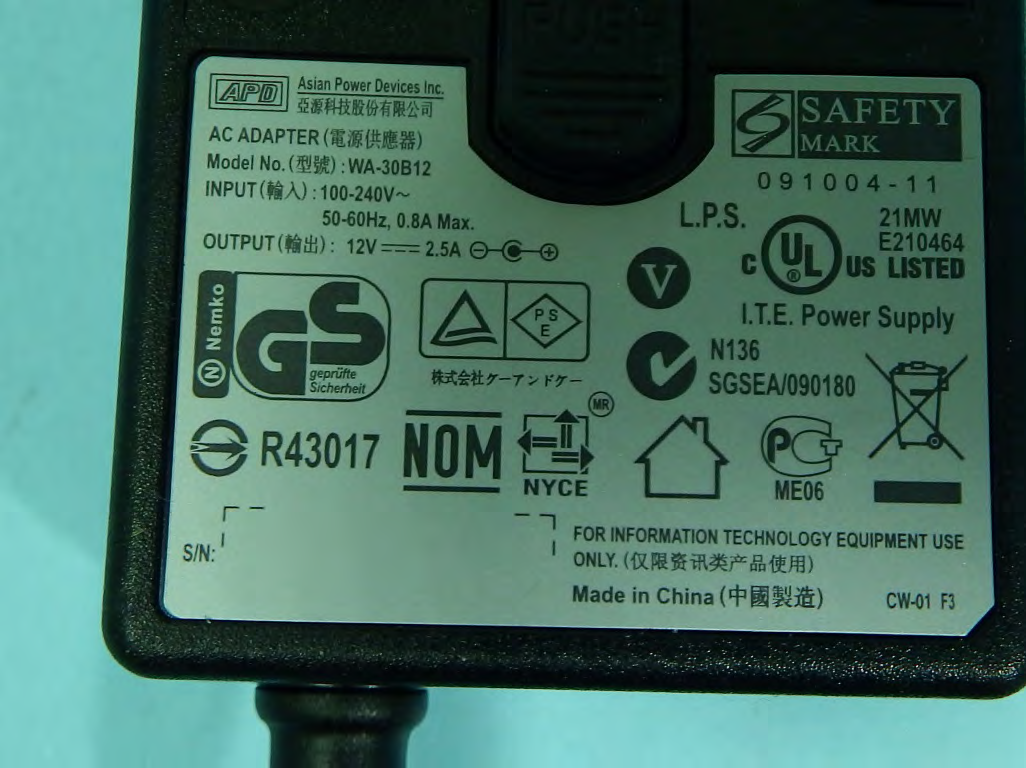

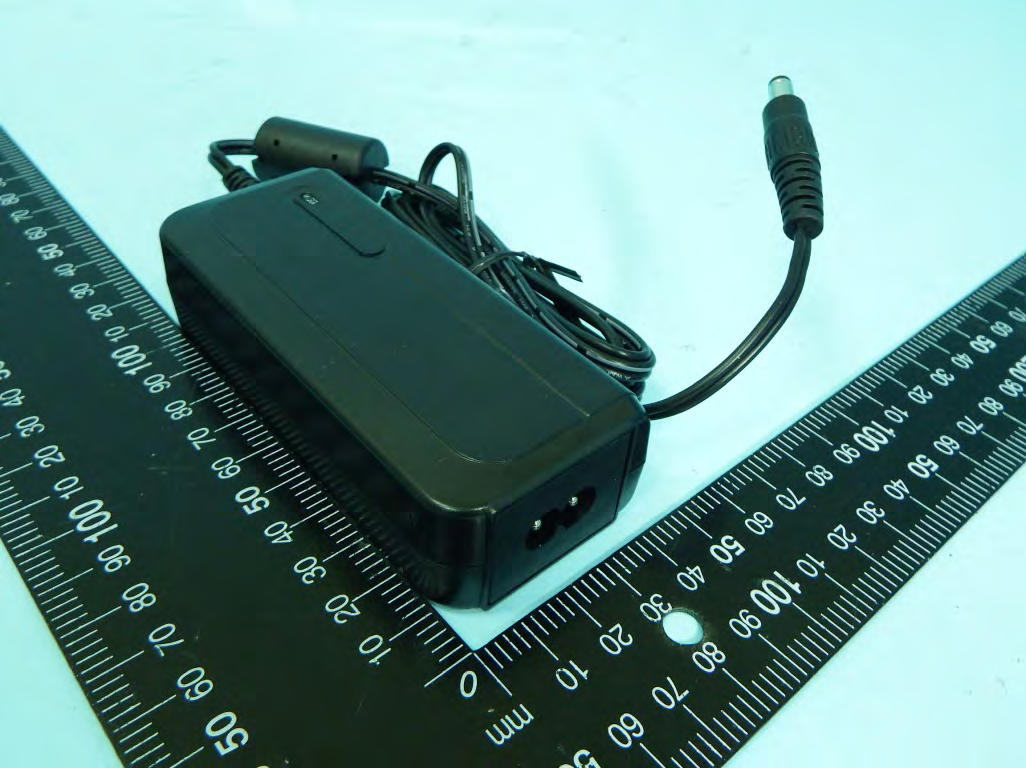

FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B1 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B2 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Port 1Port 2Port 3 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B12 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Adapter 1 Adapter 1 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B13 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Adapter 1 Adapter 1 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B14 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Adapter 1 Adapter 2 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B15 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Adapter 2 Adapter 2 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B16 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 Adapter 2 Adapter 2

Label Location

FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B4 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B6 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B7 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B8 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP411403-07 SPORTON International Inc. PAGE NUMBER : B11 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 22, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA411403-07 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA411403-07 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 5150~5250MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 1 14.98 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 14.06 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 16.97 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 14.14 Yes 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 16.94 Yes 5150-5250 ac (VHT80) 5210 42 [1] 3 16.82 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 5725 MHz – 5850 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5]1 25.01 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5]3 24.48 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2]3 24.93 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5]3 24.56 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2]3 24.78 Yes 5725-5850 ac(VHT80) 5775 155 [1] 3 24.71 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 22.46 Yes 2400-2483.5 g 2412-2462 1-11 [11] 1 22.78 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 22.90 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 18.84 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF Exposure Report Report No. :FA411403-07 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) 11A 1 25.01 2.58 27.59 0.11422 11N-20M 3 22.90 2.40 25.30 0.06747 Co-location Total 0.18169 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR411403-07 SPORTON INTERNATIONAL INC. Page No. : 1 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR411403-07 SPORTON INTERNATIONAL INC. Page No. : 2 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1GHz. For 1 GHz to 5 GHz, test distance is 3m; For 5 GHz to 40 GHz, test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR411403-07 SPORTON INTERNATIONAL INC. Page No. : 3 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Below 1GHz Magnetic field tests shall…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR411403-07AC SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 17 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR411403-07AC SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 14.501 MHz 43.66 (Margin 6.34dB) - AV 44.96 (Margin 15.04dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 6.63 / 40M: 34.48 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 28.26 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -3.10 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.00MHz: 28.72dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 72.52 (Margin 1.48dB) - PK 52.99 (Margin 1.01dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 7311MHz 65.16 (Margin 8.84dB) - PK 52.89 (Margin 1.11dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR411403-07AC SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR411403-07AC Rev. 01 Initial issue of report Nov. 19, 2014 2500-2690 FCC Test Report Report No. : FR411403-07AC SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 25.40 Yes 2400-2483.5 g 2412-2462 1-11 [11] 1 27.73 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 28.26 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 24.37 Yes Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) FCC Test Report Report No. : FR411403-07AC SPORTON INTERNATIONAL INC. Page No. : 6 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. External antenna (dedicated antennas) Sin…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR411403-07AI SPORTON INTERNATIONAL INC. Page No. : 2 of 63 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION OF EUT ...................................................................................................... 11 2.1 The Worst Case Modulation Configuration .......................................................................................... 11 2.2 The Worst Case Power Setting Parameter .......................................................................................... 11 2.3 The Worst Case Measurement Configuration ...................................................................................... 12 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 15 3.1 AC Power-line Conducted Emissions .................................................................................................. 15 3.2 6dB Bandwidth ..................................................................................................................................... 18 3.3 RF Output Power .................................................................................................................................. 20 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Transmitter Bandedge Emissions ........................................................................................................ 26 3.6 Transmitter Unwanted Emissions......................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 62 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR411403-07AI SPORTON INTERNATIONAL INC. Page No. : 3 of 63 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 16.211 MHz 40.35 (Margin 9.65dB) - AV 42.12 (Margin 17.88dB) - QP FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth [MHz] a:16.44 n(HT20):17.67 n(HT40):36.28 ac(VHT20):17.58 ac(VHT40):36.32 ac(VHT80): 73.60 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:29.84 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -4.27 PSD [dBm/MHz]:17 replace 8dBm/3kHz Complied 3.5 15.247(c) Transmitter Bandedge Emissions Non-Restricted Bands: 5720.91MHz: 22.49 dB Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 11490MHz 64.18 (Margin 9.82dB) - PK 52.93 (Margin 1.07dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR411403-07AI SPORTON INTERNATIONAL INC. Page No. : 4 of 63 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR411403-07AI Rev. 01 Initial issue of report Nov. 19, 2014 FR411403-07AI Rev. 02 Update RF Conducted Dec. 22, 2014 FCC Test Report Report No. : FR411403-07AI SPORTON INTERNATIONAL INC. Page No. : 5 of 63 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-…

Text truncated - open the document above for the full version.
