FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC RF exposure statement: IC Radiation Exposure Statement This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Déclaration d’expositionàla radiation :Cet équipement respecte les limites d’exposition aux rayonnements IC définies pour un environnement non contrôlé. Cet équipement doit être installé et mis en marche à une distance minimale de 20 cm qui sépare l’élément rayonnant de votre corps. L’émetteur ne doit ni être utilisé avec une autre antenne ou un autre émetteur ni se trouver à leur proximité.

Product Number: CY102400-10982LF-01A Product Name: 2.4GHz 2dBi Antenna Page 1 Version: 1.0 Issue Date: 2013-08-19 Index: 1. Reliability Testing 2. Specification 3. SParameter Test Data 4. Antenna Radiation Pattern 5. Mechanical Drawing 6. SGS Report ================================================== 1. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. Freq. Tol.: < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. Freq. Tol. : < ±5% 4. Endurance 24 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. Freq Tol.: < ±5% Product Number: CY102400-10982LF-01A Product Name: 2.4GHz 2dBi Antenna Page 2 Version: 1.0 Issue Date: 2013-08-19 2. Specification A. Electrical Characteristics S.W.R. 2400~2500MHz: <= 2.0 Antenna Gain 2.0 ± 0.7 dBi Impedance 50 Ohm B. Material Material of Radiator Cu (Plated) Connector Type SMA RP PLUG C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C 3. S Parameter Test data Product Number: CY102400-10982LF-01A Product Name: 2.4GHz 2dBi Antenna Page 3 Version: 1.0 Issue Date: 2013-08-19 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna

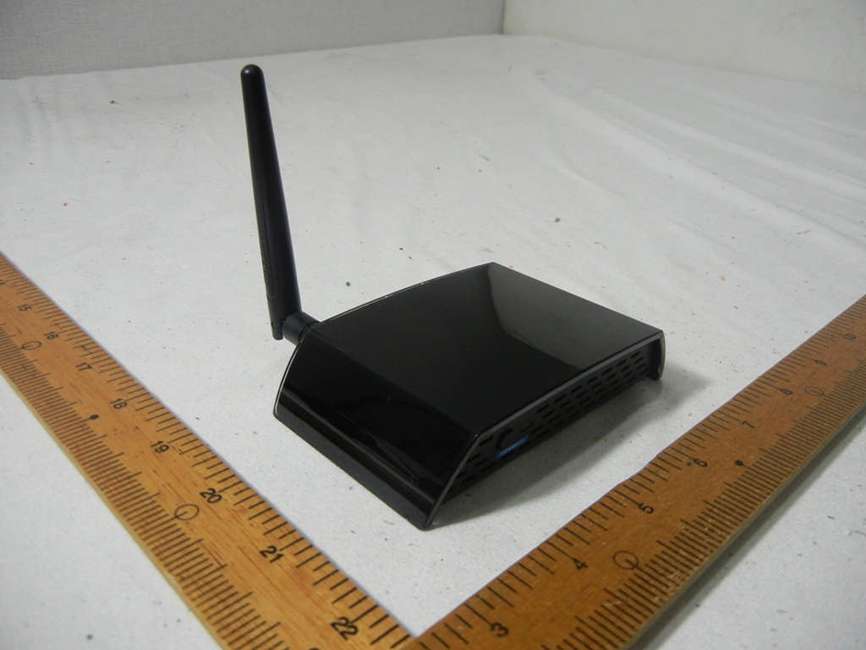

CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A6 FCC ID.:ZTT-BTSA1 Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A6 FCC ID.:ZTT-BTSA1 CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A6 FCC ID.:ZTT-BTSA1 CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A6 FCC ID.:ZTT-BTSA1 CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A6 FCC ID.:ZTT-BTSA1 CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6 of A6 FCC ID.:ZTT-BTSA1

CERPASS TECHNOLOGY CORP. Report No.: 1310101 Cerpass Technology Corp.Issued date:May 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:1 of 3 FCC ID:ZTT-BTSA1 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTBluetooth Speaker Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power GFSK: 14.15dBm (26.00 mW) /4-DQPSK: 14.78dBm (30.06 mW) 8DPSK: 14.98dBm(31.48 mW) Antenna gain (Max)2.0 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 14.98 dBm (31.48 mW)at 2441MHz(withnumeric 2.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 1310101 Cerpass Technology Corp.Issued date:May 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:2 of 3 FCC ID:ZTT-BTSA1 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 1310101 Cerpass Technology Corp.Issued date:May 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:3 of 3 FCC ID:ZTT-BTSA1 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) GFSK2402-248014.152.020 0.008 1 /4-DQPSK2402-248014.782.020 0.009 1 8DPSK2402-248014.982.020 0.010 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 98 FCC ID.:ZTT-BTSA1 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:Amped Wireless Address: 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment:Bluetooth Speaker Adapter Model No.:BTSA1 FCC ID.:ZTT-BTSA1 Trade Name:Amped Wireless The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFB1310101 Cerpass Technology Corp.Issued Date:May 05, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 98 FCC ID.:ZTT-BTSA1 Contents 1.Report of Measurements and Examinations .................................................................................... 6 1.1List of Measurements and Examinations ................................................................................... 6 2.Test Configuration of Equipment under Test ................................................................................... 7 2.1Feature of Equipment under Test............................................................................................... 7 2.2Carrier Frequency of Channels .................................................................................................. 7 2.3Test Mode & Test Software ........................................................................................................ 8 2.4Description of Test System......................................................................................................... 8 2.5General Information of Test........................................................................................................ 9 2.6Measurement Uncertainty .......................................................................................................... 9 3.Antenna Requirements.....................................................................................................................10 3.1Standard Applicable .................................................................................................................10 3.2Antenna Construction and Directional Gain.............................................................................10 4.Test of Conducted Emission............................................................................................................ 11 4.1Test Limit .................................................................................................................................. 11 4.2Test Procedures ....................................................................................................................... 11 4.3Typical Test Setup ....................................................................................................................12 4.4Measurement Equipment .........................................................................................................12 4.5Test Result and Data ................................................................................................................13 4.6Test Photographs .....................................................................................................................19 5.Test of Radiated Emission ...............................................................................................................20 5.1Test Limit ..................................................................................................................................20 5.2Test Procedures .......................................................................................................................20 5.3Typical Test Setup ...................................................................................................................21 5.4Measurement equipment .........................................................................................................21 5.5Test Result and Data (9kHz ~ 30MHz).....................................................................................22 5.6Test Result and Data (30MHz ~ 1GHz)....................................................................................22 5.7Test Result and Data (1GHz ~ 25GHz)....................................................................................34 5.8Test Photographs (30MHz ~ 1GHz) .........................................................................................52 5.9Test Photographs (1GHz ~ 25GHz) .........................................................................................53 6.20dB Bandwidth Measurement Data ...............................................................................................54 6.1Test Limit ..................................................................................................................................54 6.2Test Procedures .......................................................................................................................54 6.3Test Setup Layout ....................................................................................................................54 6.4Measurement equipment .........................................................................................................54 6.5Test Result and Data ................................................................................................................55 7.Frequencies Separation ...................................................................................................................61 7.1Test Limit ....................................…
