ZTT-PCI20EHigh Power AC1200 Wi-Fi PCI-E Adapter

Install Adapter USER’S GUIDE PCI20E High Power AC1200 Wi-Fi PCI-E Adapter C. Restart your Computer A prompt will appear asking you to restart your computer. Select Yes and click Finish to restart. D. Locate a Wireless Network Once Windows has completed the software installation, locate the Amped Wireless Utility on your desktop and open the software by double- clicking the icon. Select the Available Networks tab to view nearby networks. Highlight the network that you wish to connect to and double-click it to connect or click, Add to Profile, to have your computer connect automat- ically when the network is available. B. Start the Driver/Utility Installation If prompted, click Yes to begin the installation. A. From the Menu page, select Install Software If the Menu page does not appear, browse the CD drive and double-click the Autoload.exe file. Windows 8, 7, and Vista A. From the Menu page, select Install Software If the Menu page does not appear, browse the CD drive and double-click the Autoload.exe file. Windows XP 1 Follow the Instructions for your Operating System 3 B. Software Installation If you are prompted by a Windows Logo message, click Continue Anyway to proceed. C. Restart your Computer After the driver installation, a prompt will appear asking you to restart your computer. Select Yes and click Finish to restart. E. Connect to a Wireless Network If your network has security enabled, you can enter it in the Network Key field and click OK. D. Locate a Wireless Network Once Windows has completed the software installation, locate the Amped Wireless Utility on your desktop and open the software by double-clicking the icon. Select the Available Networks tab to view nearby networks. Highlight the network that you wish to connect to and double-click it to connect or click, Add to Profile, to have your computer connect automatically when the network is available. Amped Wireless Utility v020714 Got Questions? Phone: 888-573-8820 Email: [email protected] Web: www.ampedwireless.com/support ? Power off your PC and open the case to find an available PCI-E slot. Insert the Adapter into the available PCI-E slot and close the lid. Insert the Setup CD 2 3 Attach the Antennas Install the Adapter Locate the Antenna Stand and fasten the two antennas onto the antenna connectors. Attach the antenna cable to the antenna connectors on the Adapter (located on the back of your PC). If you choose not to use the antenna stand, you may also attach the antennas directly to the ant- enna connectors on the Adapter. Power on your Desktop PC Insert the Setup CD Note: Windows XP Users A Found New Hardware Wizard prompt will appear when your PC has powered on. Click Cancel to close the window and continue with the installation in Step 3 below. a b Amped Wireless Utility E. Connect to a Wireless Network If your network has security enabled, you can enter it in the Network Key field and click OK. Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Warranty and Regulatory Information The Amped Wireless (A division of Newo Corporation, Inc.) Limited Warranty Warranty Period: The Amped Wireless Limited Warranty is for one (1) year from the date of purchase for new products. Refurbished products carry the Limited Warranty for thirty (30) days after the date of purchase. Guarantee: Amped Wireless warrants to the original purchaser that the hardware of this Amped Wireless product shall be free of defects in design, assembly, material, or workmanship. Conditions: The Amped Wireless Limited Warranty is for repair or replacement only at the sole discretion of Amped Wireless. Amped Wireless does not issue any refunds for purchased product. In the event that Amped Wireless is unable to repair or replace a product (i.e. discontinued product), Amped Wireless will offer a credit toward the purchase of a similar product of equal or lesser value direct from Amped Wireless. Any repaired or replacement products will be warranted for the remainder of the original Warranty Period or th…

Text truncated - open the document above for the full version.

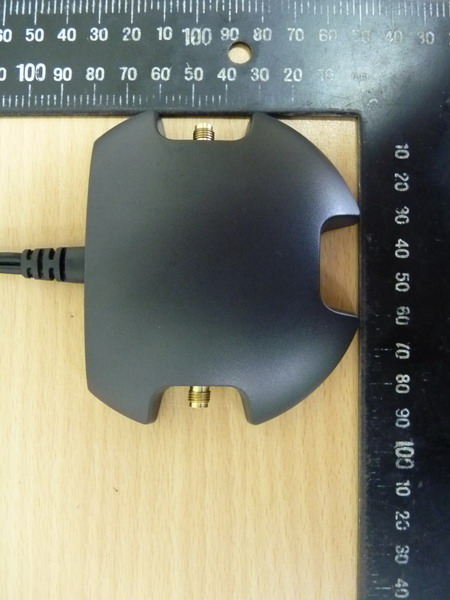

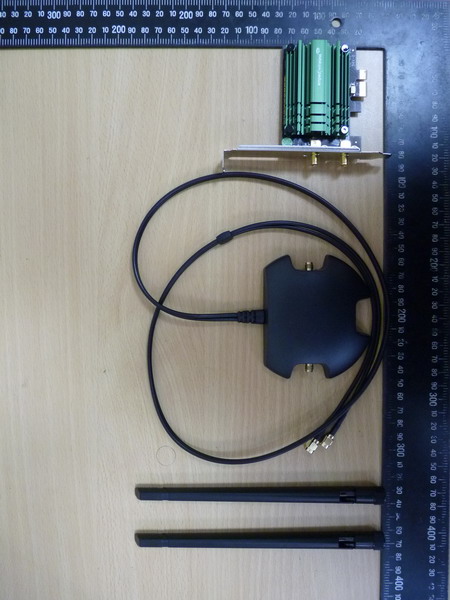

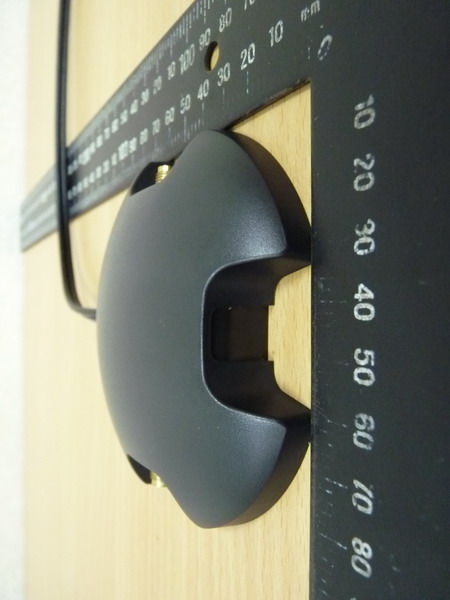

Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 25 External Photos Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 25

Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 25 Internal Photos Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 25 Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 25

Registration number: W6M21401-13806-C-1 FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Page 38 of 129 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain 5.8GHz:802.11a EIRP = 21.02 dBm + 7.01 dBi = 28.03 dBm 5.8GHz:802.11n(20MHz), 802.11n(40MHz) EIRP = 24.12 dBm + 7.01 dBi = 31.13 dBm 5.8GHz:802.11ac EIRP = 23.26 dBm + 7.01 dBi = 30.27 dBm 2.4GHz:802.11b/g EIRP = 23.28 dBm + 5.01 dBi = 28.29 dBm 2.4GHz: 802.11n(20MHz), 802.11n(40MHz) EIRP = 24.13 dBm + 5.01 dBi = 29.14 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain 5.8GHz:802.11a Item Unit Value Remarks P mW 126.4736 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm2 0.1264 Calculated value Registration number: W6M21401-13806-C-1 FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Page 39 of 129 5.8GHz:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 258.2260 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm2 0.2581 Calculated value 5.8GHz:802.11ac Item Unit Value Remarks P mW 211.8361 Peak value D dB AG dBi 7.01 G 5.0234 Calculated Value R cm 20 Assumed value S mW/cm2 0.2117 Calculated value 802.11b/g Item Unit Value Remarks P mW 212.8139 Peak value D dB AG dBi 5.01 G 3.1696 Calculated Value R cm 20 Assumed value S mW/cm2 0.1342 Calculated value 2.4G:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 258.8213 Peak value D dB AG dBi 5.01 G 3.1696 Calculated Value R cm 20 Assumed value S mW/cm2 0.1632 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21401-13806-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for High Power AC1200 Wi-Fi PCI-E Adapter Model No.: PCI20E FCC ID: ZTT-PCI20E Registration number: W6M21401-13806-C-1 FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 129 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 8 2 TECHNICAL TEST ..................................................................................................................9 2.1 SUMMARY OF TEST RESULTS................................................................................................. 9 2.2 T EST ENVIRONMENT............................................................................................................. 9 2.3 TEST EQUIPMENT LIST........................................................................................................ 10 2.4 GENERAL TEST PROCEDURE............................................................................................... 12 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 14 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 15 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 38 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 38 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 40 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 41 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 63 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 80 3.8 PEAK POWER SPECTRAL DENSITY.................................................................................... 102 3.9 R ADIATED EMISSION FROM DIGITAL PART....................................................................... 125 3.10 POWER LINE CONDUCTED EMISSION................................................................................ 126 APPENDIX............................................................................................................................ 129 Registration number: W6M21401-13806-C-1 FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 129 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 a/b/g/n/ac. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: February 25, 2014 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 25, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21401-13806-C-1 FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 129 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lis…

Text truncated - open the document above for the full version.

Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 25 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 23 of 25 Above 1GHz Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 24 of 25 RF Registration number: W6M21401-13806-FCC FCC ID: ZTT-PCI20E Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 25 of 25 Set Up Photo of Conducted Emission
