ZTT-R10000-2High Power Wireless-N 600mW Smart Router

Amped Wireless
High Power Wireless-N 600mW Smart Router - FCC ID ZTT-R10000-2 - Amped Wireless
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 21, 2013
Application Purpose
Original Equipment
Date of Application
Nov 18, 2013
Equipment Note
High Power Wireless-N 600mW Smart Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Amped Wireless
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SR10000-CA High Power Wireless-N 600mW Range Extender Rev 1.1 User’s Guide SR10000 USER’S GUIDE 1 CONTENTS INTRODUCTION ........................................................... 2 GETTING STARTED ....................................................... 3 Package Contents ........................................................... 3 LED Indicators ................................................................. 4 Back Panel Description ................................................... 5 SETUP GUIDE .................................................................. 6 Welcome to the Dashboard ............................................ 9 Scan for a Home Network to Extend............................. 10 Connecting to a Secure Network .................................. 11 Extended Network Settings .......................................... 12 Connect to the new Extended Network........................ 14 Setup Summary ............................................................. 15 WI-FI SETTINGS.......................................................... 17 Home Network Settings ................................................ 17 Extended Network Settings .......................................... 19 Security ......................................................................... 21 Advanced Settings ......................................................... 23 SMART FEATURES ......................................................25 Access Schedule ............................................................ 26 User Access Control ...................................................... 27 Wi-Fi Coverage Controls ............................................... 28 IP SETTINGS ...............................................................29 MANAGEMENT FEATURES .........................................31 Device Status................................................................. 32 Statistics ........................................................................ 34 System Clock ................................................................. 35 System Logs .................................................................. 36 Upgrade Firmware ........................................................ 37 Save and Reload Settings .............................................. 38 Password Settings ......................................................... 39 TECHNICAL SPECIFICATIONS .......................................40 DEFAULT SETTINGS ....................................................41 TROUBLESHOOTING ...................................................42 WARRANTY / REGULATORY INFORMATION ...............51 SR10000 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com SR10000 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power 600mW Wi-Fi Range Extender  Two Detachable 5dBi High Gain Antennas  Setup Guide  CD: User’s Manual, Installation Video  Vertical Mounting Base SR10000 USER’S GUIDE 4 LED Indicators (From Top to Bottom) Power: Indicates when the High Power Range Extender is powered on. The LED will stay lit when power adapter is plugged into Range Extender. Wireless Activity: Blinks rapidly when wireless data traffic is passing through the Range Extender. When there is a problem with the Wi-Fi connection this LED will remain off or blink steadily. Wired Devices (1-5): Indicates when a networking device is connected to a wired port on the back of the High Power Range Extender. The LED blinks rapidly when wired data traffic is transmitted or received. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. SR10000 USER’S GUIDE 5 Back Panel Description Antenna Connectors (1-2): RJ-SMA antenna connectors. Compatible with all antennas that have RP-SMA connectors. Upgradable to high gain antennas for more range. Reset: Push down once to reboot the High Power Range Extender. Hold down for 5-10 seconds to reset the Range Extender back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Devices: RJ-45 ports for connecting wired computers or network devices. Power: Power adapter port. DC 12V 1A. SR10000 USER’S GUIDE 6 6 SETUP GUIDE Find a Setup Location The location of where you install the Range Extender is very important to how it will function. The optimal setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead zone. SR10000 USER’S GUIDE 7 7 Connect your PC or Tablet to the Range Extender a. Attach the two included antennas. b. Attach the Power Adapter to the Range Extender’s PWR Port and an available power outlet. c. Connect your PC or Tablet to the Range Extender’s Wi-Fi network: Amped_SR SR10000 USER’S GUIDE 8 8 Open your Web Browser to Access the Setup Wizard a. Open your web browser. b. Type in: http://setup.ampedwireless.com into the web address bar c. If the web menu fails to open, type in the following IP address into your web address bar: http://192.168.1.240 a. Disconnect your PC from all Wi-Fi networks b. Attach an Ethernet cable between the PC and the Range Extender c. Open your web browser and go to http://setup.ampedwireless.com again. SR10000 USER’S GUIDE 9 9 Welcome to the Dashboard The Dashboard will provide you with the current status of the Range Extender. Click SCAN to find an available network to extend. The diagram on this page displays the terms used to describe: 1) The network you are trying to exten…

Text truncated - open the document above for the full version.

Cover Letter(s)

Return Loss Frequency (GHz) 2.30 2.35 2.40 2.45 2.50 2.55 2.60 -30-25-20-15-10 -5 0 sleeve dipole Phi 0 ° -30 -25 -20 -15 -10 -5 0 5 10 -30 -25 -20-15-10 -5 05 10 -30 -25 -20-15 -10 -5 05 10 -30 -25-20 -15 -10 -5 05 10 -90 -60 -30 0 30 60 90 120 150 180 210 240 sleeve dipole3 -25 -20 -15 -10 -5 0 5 10 15 -25 -20 -15-10 -5 0 5 10 15 -25 -20 -15-10 -5 0 5 10 15 -25 -20-15 -10 -5 0 5 10 15 -90 -60 -30 0 30 60 90 120 150 180 210 240 sleeve dipole3 Theta 90 ° Efficiency Peak Gain Frequency (GHz) 2.30 2.35 2.40 2.45 2.50 2.55 2.60 Efficiency 0.00.20.40.60.81.0 sleeve dipole5 Frequency (GHz) 2.30 2.35 2.40 2.45 2.50 2.55 2.60 Peak Gain(dBi) -1 012345 sleeve dipole5

External Photos

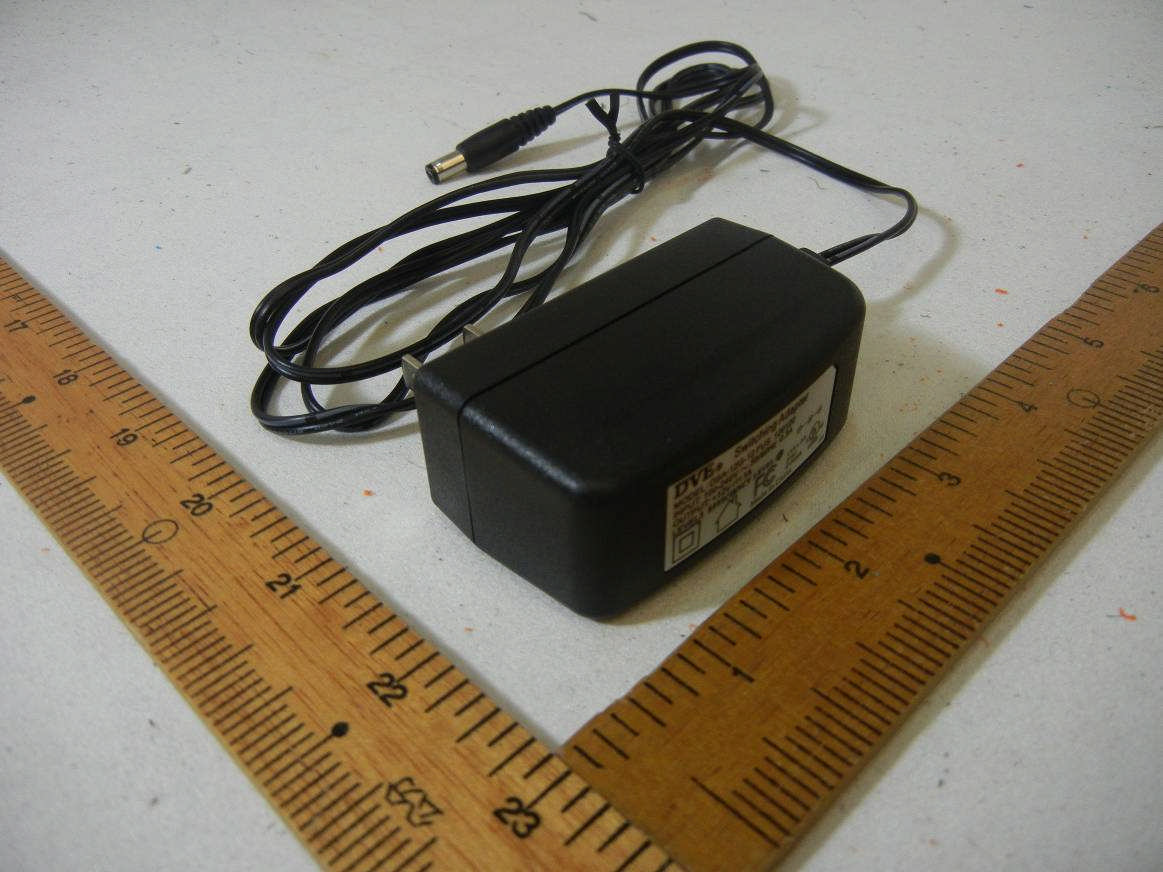

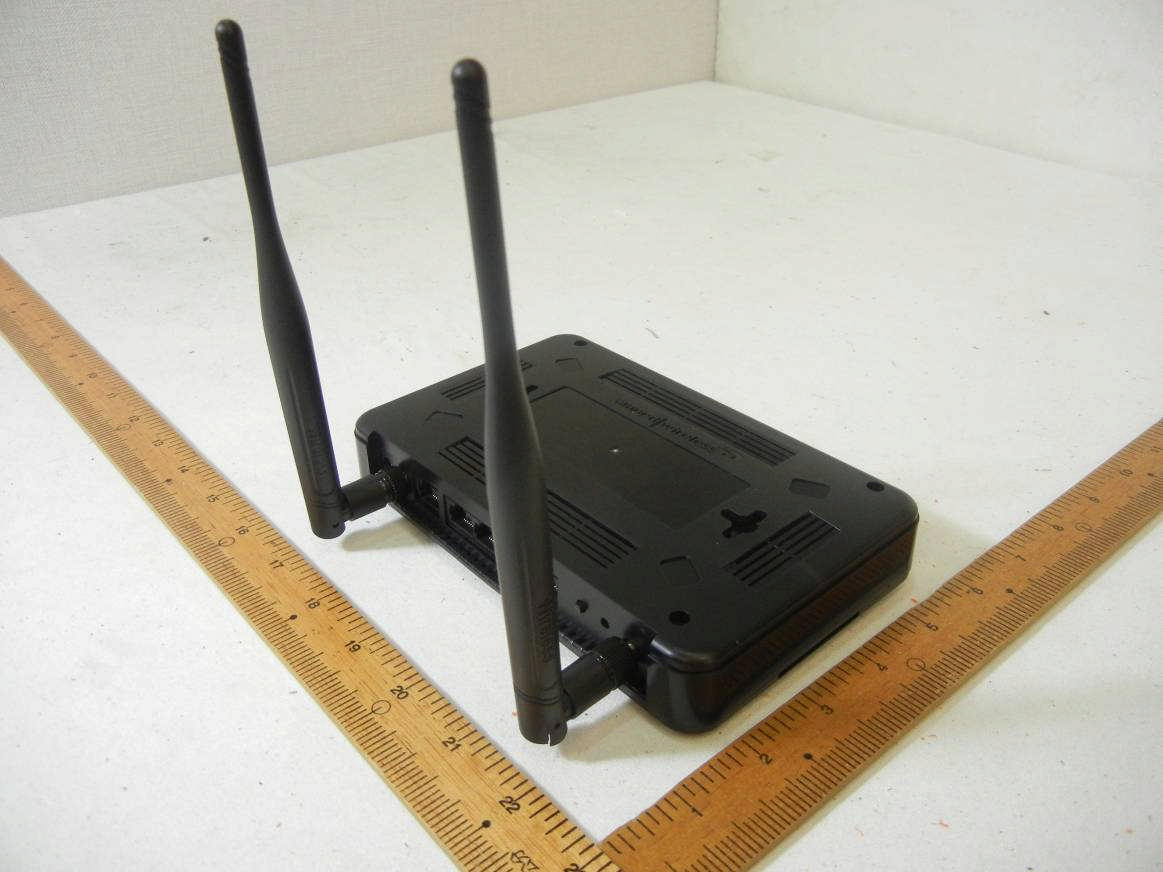

CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A6 FCC ID:ZTT-R10000-2 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A6 FCC ID:ZTT-R10000-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A6 FCC ID:ZTT-R10000-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6 of A6 FCC ID:ZTT-R10000-2

ID Label/Location Info

Label & Location

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1309134 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A6 FCC ID:ZTT-SR10000-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309134 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A6 FCC ID:ZTT-SR10000-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309134 Cerpass Technology Corp.Issued Date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A6 FCC ID:ZTT-SR10000-2

Test Report

CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 108 FCC ID:ZTT-R10000-2 According to FCC Rules and Regulations Part 15 Subpart C Applicant:Amped Wireless Address:13089 Peyton Dr. #C307 Chino Hills CA 91709 Equipment:High Power Wireless-N 600mW Smart Router Model No.:R10000 Trade Name:Amped Wireless FCC ID:ZTT-R10000-2 The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 108 FCC ID:ZTT-R10000-2 Contents 1.Report of Measurements and Examinations ...................................................................................6 1.1List of Measurements and Examinations ..................................................................................6 2.Test Configuration of Equipment under Test ..................................................................................7 2.1Feature of Equipment under Test..............................................................................................7 2.2Carrier Frequency of Channels .................................................................................................7 2.3Test Mode and Test Software....................................................................................................8 2.4Description of Test System .......................................................................................................8 2.5General Information of Test.......................................................................................................9 2.6Measurement Uncertainty .........................................................................................................9 3.Antenna Requirements ...................................................................................................................10 3.1Standard Applicable ................................................................................................................10 3.2Antenna Construction and Directional Gain ............................................................................10 4.Test of Conducted Emission .......................................................................................................... 11 4.1Test Limit................................................................................................................................. 11 4.2Test Procedures ...................................................................................................................... 11 4.3Typical Test Setup ...................................................................................................................12 4.4Measurement Equipment........................................................................................................12 4.5Test Result and Data...............................................................................................................13 4.6Test Photographs ....................................................................................................................19 5.Test of Radiated Emission ..............................................................................................................20 5.1Test Limit.................................................................................................................................20 5.2Test Procedures ......................................................................................................................20 5.3Typical Test Setup ...................................................................................................................21 5.4Measurement Equipment........................................................................................................21 5.5Test Result and Data...............................................................................................................22 5.6Test Photographs (30MHz~1000MHz)....................................................................................58 5.7Test Photographs (1000MHz~25000MHz)..............................................................................59 6.6dB Bandwidth Measurement Data ................................................................................................60 6.1Test Limit.................................................................................................................................60 6.2Test Procedures ......................................................................................................................60 6.3Test Setup Layout ...................................................................................................................60 6.4Measurement Equipment........................................................................................................60 6.5Test Result and Data...............................................................................................................60 7.Maximum Peak and Average Output Power ..................................................................................73 7.1Test Limit.................................................................................................................................73 7.2Test Procedures ......................................................................................................................73 7.3Test Setup Layout ...................................................…

Text truncated - open the document above for the full version.

Test Report

CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:60 of 108 FCC ID:ZTT-R10000-2 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a.The transmitter output was connected to the spectrum analyzer. b.Set RBW of spectrum analyzer to 100 KHz and VBW to 100 KHz. c.The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/AncillaryManufacturerModel No.Serial No.Calibration DateValid Date Spectrum AnalyzerR&SFSP401000472013/03/152014/03/14 6.5 Test Result and Data Test Date: Oct. 01, 2013 Temperature: 25°C Atmospheric pressure: 1020 hPaHumidity: 42% Modulation StandardChannel Frequency (MHz) 6dB Bandwidth (MHz) ANT AANT B 802.11b (11Mbps) 01241210.210.2 06243710.110.1 11246210.210.1 802.11g (54Mbps) 01241216.716.7 06243716.716.6 11246216.616.6 802.11n HT20 (130Mbps) 01241217.917.8 06243717.917.8 11246217.917.9 802.11n HT40 (270Mbps) 03242236.436.4 06243736.636.6 09245236.436.4 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:61 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11b (11Mbps), ANT A Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT A Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:62 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11b (11Mbps), ANT A Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT A Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:63 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11g (54Mbps), ANT A Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT A Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:64 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT20 (130Mbps), ANT A Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT A Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:65 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT20 (130Mbps), ANT A Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT A Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:66 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT40 (270Mbps), ANT A Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT A Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:67 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11b (11Mbps), ANT B Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT B Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:68 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11b (11Mbps), ANT B Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT B Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:69 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11g (54Mbps), ANT B Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT B Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:70 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT20 (130Mbps), ANT B Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT B Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:71 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT20 (130Mbps), ANT B Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT B Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:72 of 108 FCC ID:ZTT-R10000-2 Modulation Standard: 802.11n HT40 (270Mbps), ANT B Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT B Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:73 of 108 FCC ID:ZTT-R10000-2 7. Maximum Peak and Average Output Power 7.1 Test Limit The Maximum Peak Output Power Measurement is25.99dBm. 7.2 Test Procedures The antenna port (RF output) of the EUT was connected to the input (RF input) of a power meter. Power was read directly from the meter and cable loss connection was added to the reading to obtain power at the EUT antenna terminal. The EUT Output Power was set to maximum to produce the worse case test result. 7.3 Test Setup Layout 7.4 Measurement Equipment Instrument/AncillaryManufacturerModel No.Serial No.Calibration DateValid Date Spectrum Analyzer R&SFSP401000472013/03/152014/03/14 SERIES POWER METER ANRITSUML2495A12240052013/03/212014/03/20 POWER SENSOR ANRITSUMA2411B12072952013/03/212014/03/20 CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:74 of 108 FCC ID:ZTT-R10000-2 7.5 Test Result and Data Test Date: Sep. 27, 2013 Temperature: 26°C Atmospheric pressure: 1018 hPaHumidity: 43% Modulation Standard Channel Frequency (MHz) PeakPower Output (dBm) PeakPow…

Text truncated - open the document above for the full version.

Test Setup Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:19 of 108 FCC ID:ZTT-R10000-2 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:58 of 108 FCC ID:ZTT-R10000-2 5.6 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1309132 Cerpass Technology Corp.Issued date:Oct. 17, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:59 of 108 FCC ID:ZTT-R10000-2 5.7 Test Photographs (1000MHz~25000MHz) Front View Rear View

Contact Information

Applicant

Paul Green(CFO of DPI Inc Parent of Newo Corp dba Amped Wirel)
[email protected]3146572330Fax: 3146210869

Technical Contact

Amped WirelessJason Owen
909-217-3229

United States

Non-Technical Contact

Cerpass Technology CorporationDelia Feng

Test Firm

Cerpass Technology CorporationHill Chen
[email protected]886-2-2655-8100Fax: 886-2-2655-8200

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz620.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz frequency bandwidth.
