ZTT-REA20V2High Power AC1200 Wi-Fi Range Extender

User’s Guide REA20v2 HIGHPOWER TM AC1200 WI-FI ® RANGE EXTENDER REA20v2 USER’S GUIDE 1 CONTENTS INTRODUCTION .......................................................................... 2 GETTING STARTED ...................................................................... 3 Package Contents ............................................................................. 3 LED Indicators, Ports and Buttons .................................................... 4 Back Panel Description ..................................................................... 5 SETUP GUIDE .............................................................................. 6 Find a Setup Location ....................................................................... 6 Connect your PC or Tablet to the Range Extender ............................ 7 Welcome to the Dashboard .............................................................. 9 Scan for a Wireless Network........................................................... 10 Connecting to a Secure Network .................................................... 11 Extended Network Settings (SSID and Security) .............................. 12 Connect to the new Extended Network .......................................... 14 Setup Summary .............................................................................. 15 5.0GHz WI-FI SETTINGS .............................................................. 18 Home Network Settings (5.0GHz) ................................................... 18 Extended Network Settings (5.0GHz) .............................................. 19 Security (5.0GHz) ............................................................................ 21 Wi-Fi Protected Setup – WPS (5.0GHz) ........................................... 22 User Access (5.0GHz) ...................................................................... 23 Wireless Coverage Controls (5.0GHz) ............................................. 24 Access Schedule (5.0GHz) ............................................................... 25 Advanced Settings (5.0GHz) ........................................................... 26 2.4GHz WI-FI SETTINGS .............................................................. 28 Home Network Settings (2.4GHz) ................................................... 28 Extended Network Settings (2.4GHz) .............................................. 29 Security (2.4GHz) ............................................................................ 31 Wi-Fi Protected Setup – WPS (2.4GHz) ........................................... 32 User Access (2.4GHz) ...................................................................... 33 Wireless Coverage Controls (2.4GHz) ............................................. 34 Access Schedule (2.4GHz) ............................................................... 34 Advanced Settings (2.4GHz) ........................................................... 36 BOOSTBAND™ TECHNOLOGY ..................................................... 38 NETWORK SETTINGS.................................................................. 39 IP Settings ....................................................................................... 39 Wired Port Routing ......................................................................... 41 MANAGEMENT FEATURES ......................................................... 42 Device Status .................................................................................. 43 Network Statistics........................................................................... 45 System Clock ................................................................................... 46 System Logs .................................................................................... 47 Upgrade Firmware ......................................................................... 48 Save/Reload Settings ...................................................................... 50 Password Settings .......................................................................... 51 TECHNICAL SPECIFICATIONS....................................................... 51 DEFAULT SETTINGS .................................................................... 53 TROUBLESHOOTING AND SUPPORT INFORMATION .................... 54 WARRANTY AND REGULARTORY INFORMATION ........................ 68 LEGAL NOTICES & DISCLAIMERS ................................................. 76 REA20v2 USER’S GUIDE 2 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com REA20v2 USER’S GUIDE 3 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power AC1200 Wi-Fi Range Extender  2 x Detachable High Gain Antennas  Power Adapter  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android App REA20v2 USER’S GUIDE 4 4 LED Indicators, Ports & Buttons Power: Indicates when the Range Extender is powered on. The LED will remain on. WPS: Blinks when Wi-Fi Protected Setup (WPS) is activated and the Range Extender awaits a connection. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 5GHz wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 2.4GHz wireless network. Internet Connection: Indicates when the Range Extender is connected to the Internet. The LED will blink rapidly when Internet traffic is transmitted or received. Gigabit Wired Ports 1-4: Indicates when a networking device is connec…

Text truncated - open the document above for the full version.

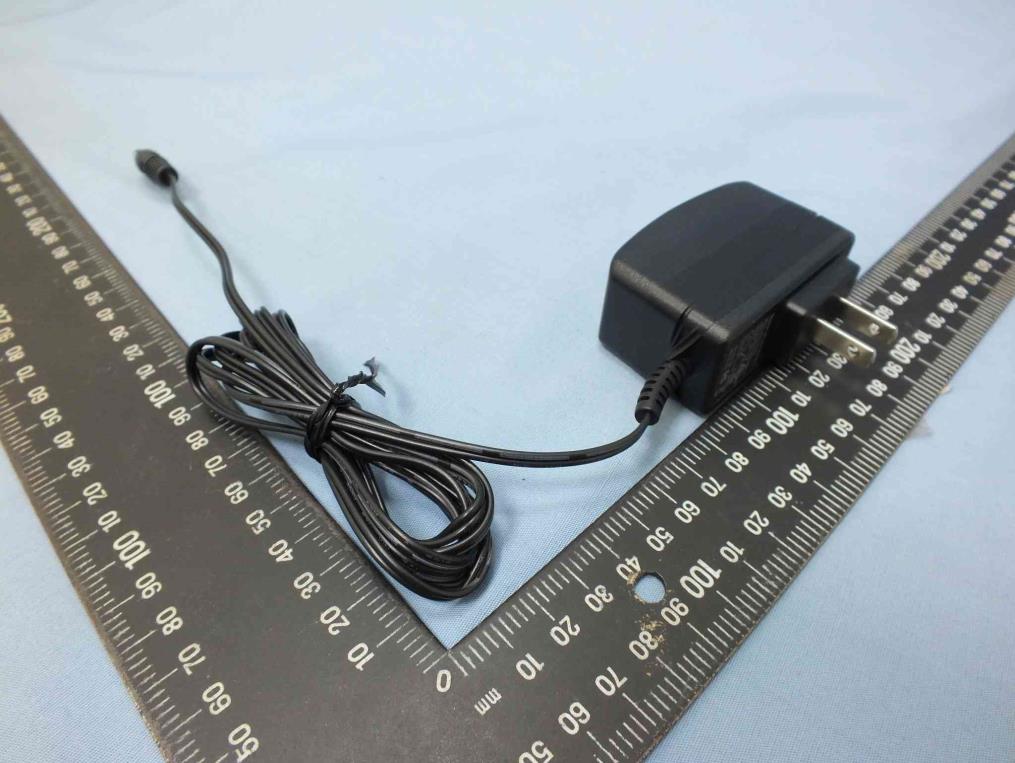

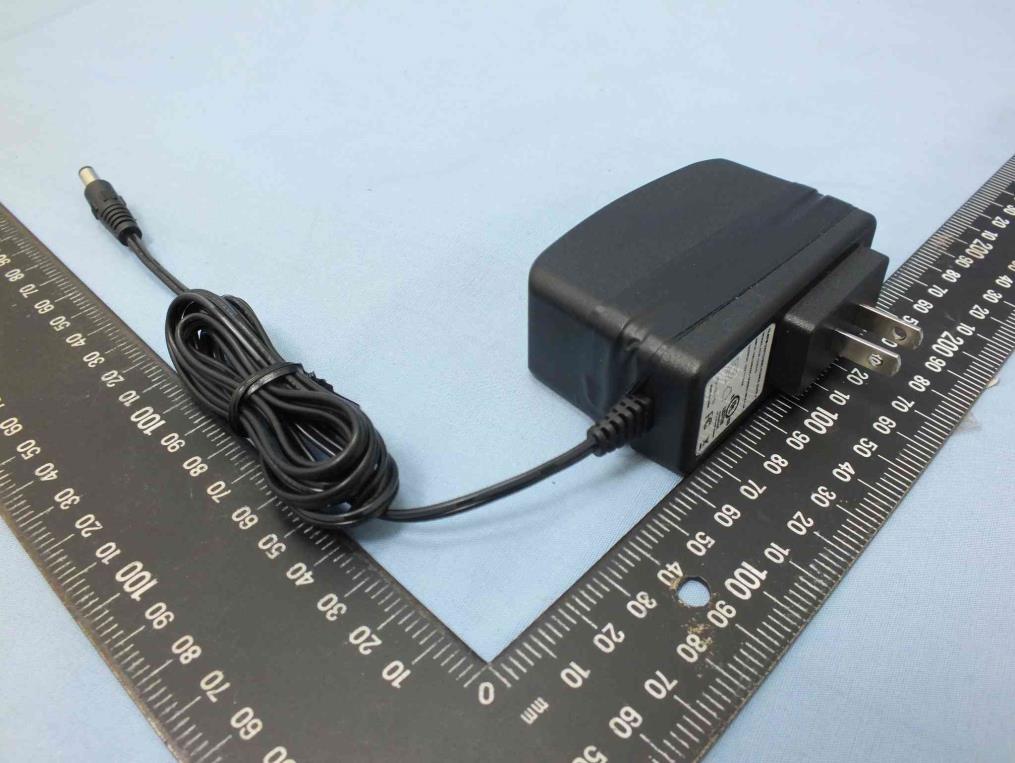

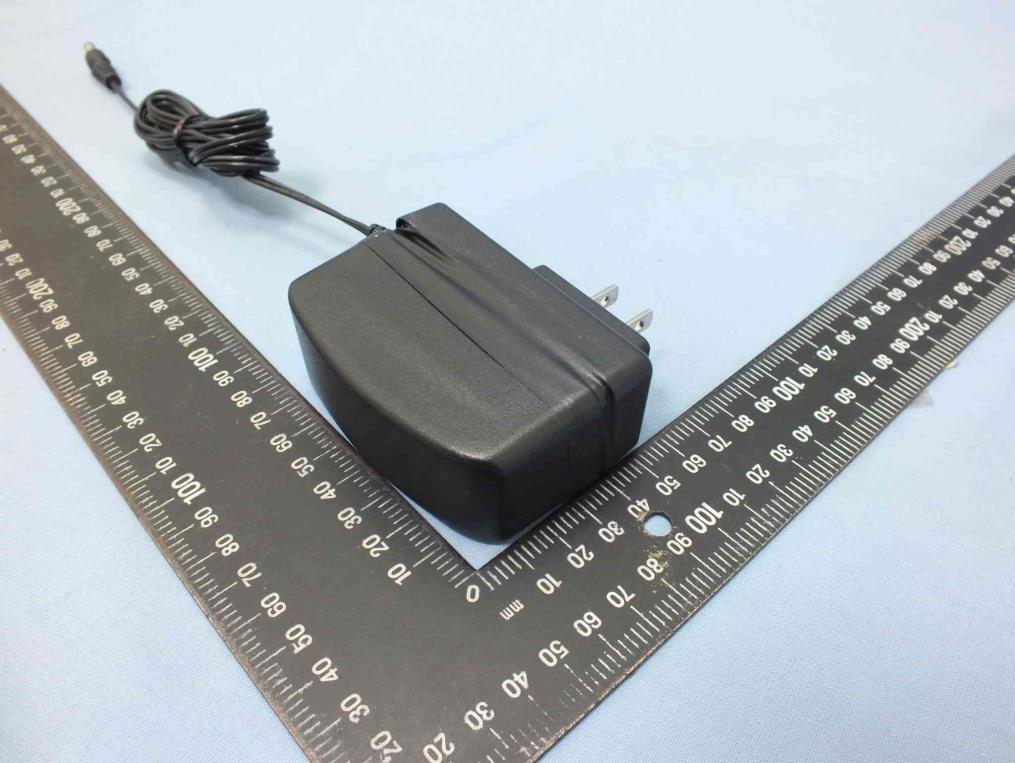

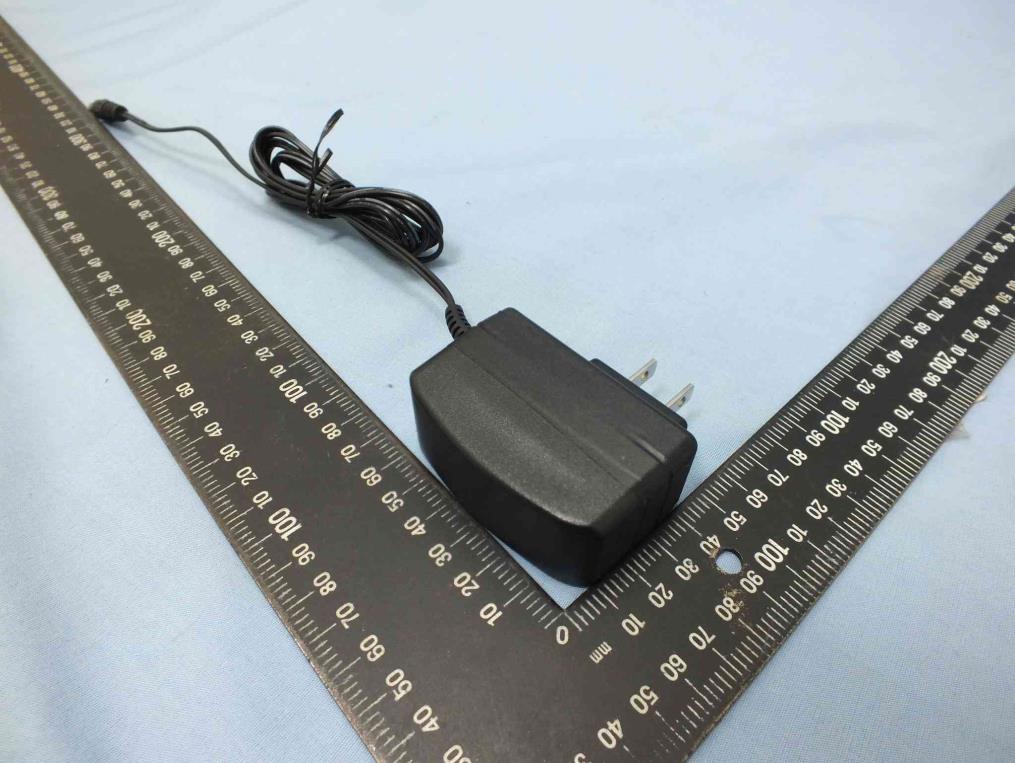

Project No.: EP530604-02 Page No. : 1 of 10 Photographs of EUT Project No.: EP530604-02 Page No. : 2 of 10 Project No.: EP530604-02 Page No. : 3 of 10 Project No.: EP530604-02 Page No. : 4 of 10 Project No.: EP530604-02 Page No. : 5 of 10 Project No.: EP530604-02 Page No. : 6 of 10

Label Location

Project No.: EP530604-02 Page No. : 7 of 10 Project No.: EP530604-02 Page No. : 8 of 10 Project No.: EP530604-02 Page No. : 9 of 10 Project No.: EP530604-02 Page No. : 10 of 10

Report No.: FA530604-02 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : ZTT-REA20V2 Equipment : High Power AC1200 Wi-Fi Range Extender Model No. : REA20v2 Brand Name : Amped Wireless Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307 Chino Hills,California 91709 United State Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 06, 2015 Tested Date : Mar. 26 ~ Apr. 10, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA530604-02 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA530604-02 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA530604-02 Rev. 01 Initial issue Apr. 17, 2015 Report No.: FA530604-02 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA530604-02 Page : 5 of 6 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 21.10 2 20 0.041 1 5180~5240 22.54 3 20 0.071 1 5745~5825 20.21 3 20 0.042 1 MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.041 / 1 +0.071 / 1 = 0.112 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA530604-02 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-3-271-8666 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR530604-02AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : ZTT-REA20V2 Equipment : High Power AC1200 Wi-Fi Range Extender Model No. : REA20v2 Brand Name : Amped Wireless Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307 Chino Hills,California 91709 United State Standard : 47 CFR FCC Part 15.247 Received Date : Mar. 06, 2015 Tested Date : Mar. 26 ~ Apr. 10, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR530604-02AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR530604-02AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR530604-02AC Rev. 01 Initial issue Apr. 17, 2015 Report No.: FR530604-02AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.150MHz 64.85 (Margin -1.15dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 45.35MHz 39.69 (Margin -0.31dB) - QP Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 29.79 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR530604-02AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Connector Antenna Gain (dBi) 2400~2483.5MHz 5150~5250 MHz 5725~5850 MHz 1 Dipole R-SMA 2 3 3 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from AC adapter Report No.: FR530604-02AC Page : 6 of 63 Report Version: Rev. 01 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter 1 Brand Name: ATW Model Name: ATW-1225US Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 2.5A Power Line: 1.73m non-shielded cable w/o core 2 AC Adapter 2 Brand Name: ATW Model Name: ATW-1215AUS Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 1.5A Power Line: 1.73m non-shielded cable w/o core 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- Report No.: FR5306…

Text truncated - open the document above for the full version.

Report No.: FR530604-02CO Page : 1 of 16 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : ZTT-REA20V2 Equipment : High Power AC1200 Wi-Fi Range Extender Model No. : REA20v2 Brand Name : Amped Wireless Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307 Chino Hills,California 91709 United State Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Mar. 06, 2015 Tested Date : Mar. 30 ~ Apr. 07, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR530604-02CO Page : 2 of 16 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Condition ................................................................................................................................... 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS .......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 16 Report No.: FR530604-02CO Page : 3 of 16 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR530604-02CO Rev. 01 Initial issue Apr. 17, 2015 Report No.: FR530604-02CO Page : 4 of 16 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 48.56MHz 39.75 (Margin -0.25dB) – QP Pass Report No.: FR530604-02CO Page : 5 of 16 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency 802.11b/g/n: 2412 MHz ~ 2462 MHz 802.11a/n/ac: 5180 MHz ~ 5240 MHz, 5745 ~ 5825 MHz Modulaton Type 802.11b : DSSS (DBPSK / DQPSK / CCK) 802.11a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 1.1.2 Antenna Details Ant. No. Type Connector Antenna Gain (dBi) 2400~2483.5MHz 5150~5250 MHz 5725~5850 MHz 1 Dipole R-SMA 2 3 3 1.1.3 Accessories Accessories No. Equipment Description 1 AC Adapter 1 Brand Name: ATW Model Name: ATW-1225US Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 2.5A Power Line: 1.73m non-shielded cable w/o core 2 AC Adapter 2 Brand Name: ATW Model Name: ATW-1215AUS Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 1.5A Power Line: 1.73m non-shielded cable w/o core Report No.: FR530604-02CO Page : 6 of 16 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber 2 / (03CH02-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101499 Dec. 31, 2014 Dec. 30, 2015 Receiver R&S ESR3 101657 Jan. 15, 2015 Jan. 14, 2016 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-524 Oct. 16, 2014 Oct. 15, 2015 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1095 Oct. 14, 2014 Oct. 13, 2015 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170517 Nov. 10, 2014 Nov. 09, 2015 Loop Antenna R&S HFH2-Z2 11900 Nov. 10, 2014 Nov. 09, 2015 Preamplifier Burgeon BPA-530 100218 Nov. 10, 2014 Nov. 09, 2015 Preamplifier Agilent 83017A MY39501309 Sep. 29, 2014 Sep. 28, 2015 Preamplifier EMC EMC184045B 980192 Aug. 26, 2014 Aug. 25, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16140/4 Dec. 16, 2014 Dec. 15, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16018/4 Dec. 16, 2014 Dec. 15, 2015 RF Cable HUBER+SUHNER SUCOFLEX104 MY16015/4 Dec. 16, 2014 Dec. 15, 2015 LF cable 3M Woken CFD400NL-LW CFD400NL-003 Dec. 16, 2014 Dec. 15, 2015 LF cable 10M Woken CFD400NL-LW CFD400NL-004 Dec. 16, 2014 Dec. 15, 2015 Measurement Software AUDIX e3 6.120210g NA NA Note: Calibration Interval of instruments listed above is one year. Test Item RF Conducted Test Site (TH01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101063 Feb. 03, 2015 Feb. 02, 2016 Note: Calibration Interval of instruments listed above is one year. Report No.: FR530604-02CO Page : 7 of 16 Report Version: Rev. 01 1.3 Test Standards According to the specification of EUT, the EUT must comply with following standards and KDB documents. 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01 FCC KDB 644545 D03 Guidance for IEEE 802 11ac New Rules v01 FCC KDB 558074 D01 DTS Meas Guidance v03r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 FCC KDB 412172 D01 Determining ERP and EIRP v01 1.4 Measurement Uncertainty ISO/IEC …

Text truncated - open the document above for the full version.

Report No.: FR530604-02 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR530604-02 Page: : 2 of 4 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR530604-02 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR530604-02 Page: : 4 of 4 Report Version: Rev. 01
