ZTT-REC10High Power Compact Wi-Fi Range Extender

REC10 High Power Compact Wi-Fi Range Extender User’s Guide REC10 USER’S GUIDE 1 CONTENTS INTRODUCTION ........................................................... 2 GETTING STARTED ....................................................... 3 Package Contents ........................................................... 3 LED Indicators ................................................................. 4 Back Panel Description ................................................... 6 SETUP GUIDE ............................................................... 7 Welcome to the Dashboard .......................................... 10 Scan for a Home Network ............................................. 11 Connecting to a Secure Network .................................. 12 Range Extender Settings ............................................... 13 Connect to the New Extended Network ..................... 134 Setup Summary ............................................................. 15 WI-FI SETTINGS.......................................................... 18 Home Network Settings ................................................ 18 Extended Network Settings .......................................... 19 Wi-Fi Protected Setup (WPS) ........................................ 23 Advanced Settings ........................................................ 24 SMART FEATURES ......................................................26 Access Schedule ............................................................ 27 User Access Control ...................................................... 28 Wi-Fi Coverage Controls ............................................... 29 IP SETTINGS ...............................................................30 MANAGEMENT FEATURES .........................................33 System Status ................................................................ 34 Statistics ........................................................................ 36 System Clock ................................................................. 37 System Logs .................................................................. 38 Upgrade Firmware ........................................................ 39 Save and Reload Settings .............................................. 40 Password Settings ......................................................... 41 TECHNICAL SPECIFICATIONS .......................................42 DEFAULT SETTINGS ....................................................43 TROUBLESHOOTING ...................................................44 WARRANTY INFORMATION ........................................53 REGULATORY INFORMATION..........................................53 REC10 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com REC10 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Compact Wi-Fi Range Extender  Detachable 2dBi High Gain Antennas  Setup Guide  CD: User’s Manual, Installation Video REC10 USER’S GUIDE 4 LED Indicators (From Top to Bottom) Power/Logo LED: Indicates when the Range Extender is powered on. The LED will stay lit when the Range Extender is plugged into a power outlet. When the WPS or Reset buttons are pressed, the LED will begin to blink. REC10 USER’S GUIDE 5 Wired Port LED: Indicates when a networking device is connected to a wired port on the bottom of the Range Extender. The LED blinks rapidly when wired data traffic is transmitted or received. REC10 USER’S GUIDE 6 Top and Bottom Panel Description Top Antenna Connector: RJ-SMA antenna connector. Compatible with all antennas that have RP-SMA connectors. Upgradable to a high gain antenna for more range. Bottom Reset: Push down once to reboot the Range Extender. Hold down for 5-10 seconds to reset the Range Extender back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired: RJ-45 port for connecting wired computers or network devices. REC10 USER’S GUIDE 7 7 SETUP GUIDE Find a Setup Location The location of where you install the Range Extender is very important to how it will function. The optimal setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead zone. REC10 USER’S GUIDE 8 8 Connect your PC or Tablet to the Range Extender a. Connect the included high gain antenna by screwing it into the antenna connector. b. Plug the Range Extender into an available power outlet. c. Connect your PC or Tablet to the Range Extender’s Wi-Fi network: Amped_REC10 REC10 USER’S GUIDE 9 9 Open your Web Browser to Access the Setup Wizard a. Open your web browser. b. Type in: http://setup.ampedwireless.com into the web address bar c. If the web menu fails to open, type in the following IP address into your web address bar: http://192.168.1.240 a. Disconnect your PC from all Wi-Fi networks b. Attach an Ethernet cable between the PC and the Range Extender c. Open your web browser and go to http://setup.ampedwireless.com again. REC10 USER’S GUIDE 10 10 Welcome to the Dashboard The Dashboard will provide you with the current status of the Range Extender. Click SCAN to find an available network to extend. The diagram on this page displays the terms used to describe: 1) The network you are trying to extend (Home Network). 2) The network that is rebroadcasted and extended (Extended Network). Study this diagram carefully as the terms used in the following instructions will refer to these names. REC10 USER’S GUIDE 11 11 Scan for a Home Network t…

Text truncated - open the document above for the full version.

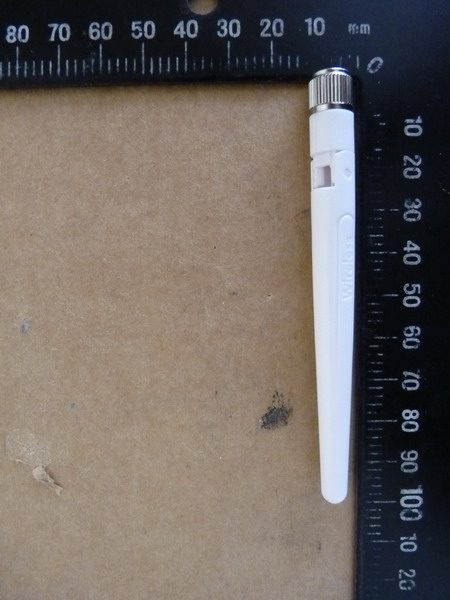

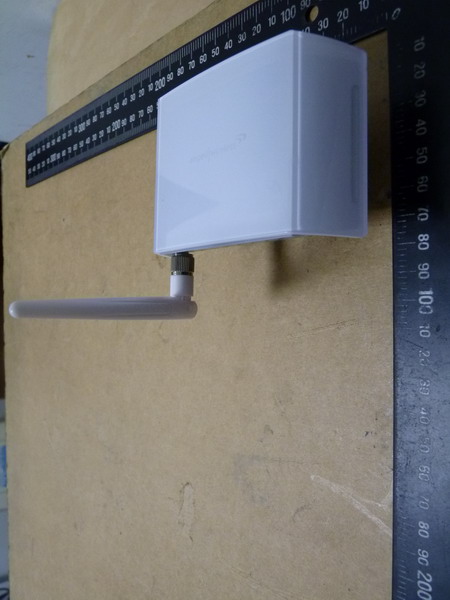

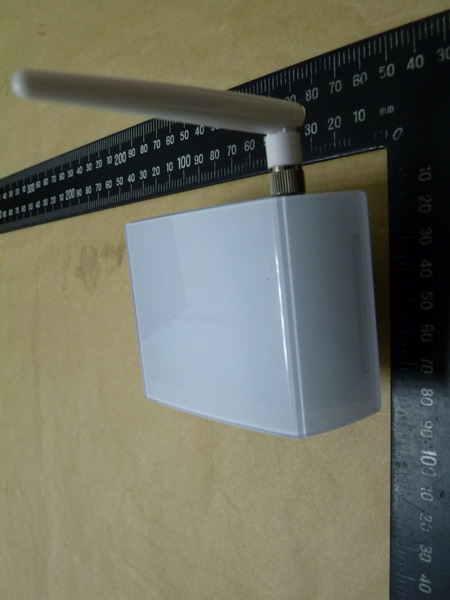

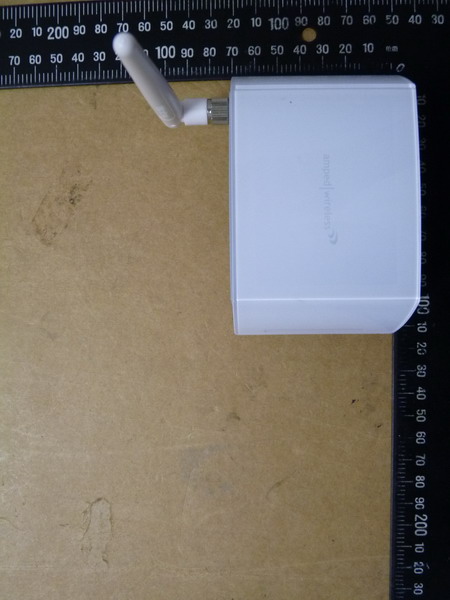

Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 19 External Photos Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 19

Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 19 Internal Photos Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 19 Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 19

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 802.11b/g: 20.98 (dBm) 802.11n(20MHz), 802.11n(40MHz): 22.72 (dBm) Maximum peak output power at antenna input terminal: 802.11b/g: 125.3141 (mW) 802.11n(20MHz), 802.11n(40MHz): 187.0682 (mW) Antenna gain(maximal): 5.26 (dBi) Prediction distance: 20 (cm) Prediction frequency: 802.11b/g 2412 (MHz) 802.11n(20MHz), 802.11n(40MHz) 2422 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 802.11b/g: 0.0837 (mW/cm²) 802.11n(20MHz), 802.11n(40MHz): 0.1249(mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21305-13182-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for High Power Compact Wi-Fi Range Extender Model No.: REC10 FCC ID: ZTT-REC10 Registration number: W6M21305-13182-C-1 FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 84 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 NOTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 7 2 TECHNICAL TEST ..................................................................................................................8 2.1 SUMMARY OF TEST RESULTS................................................................................................. 8 2.2 T EST ENVIRONMENT............................................................................................................. 8 2.3 TEST EQUIPMENT LIST.......................................................................................................... 9 2.4 GENERAL TEST PROCEDURE............................................................................................... 11 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 13 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 28 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 28 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 29 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 30 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 44 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 53 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 66 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 80 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 81 APPENDIX.............................................................................................................................. 84 Registration number: W6M21305-13182-C-1 FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 84 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: May 23, 2013 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 23, 2013 Danny Sung Date WTS Name Signature Registration number: W6M21305-13182-C-1 FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 84 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Vi…

Text truncated - open the document above for the full version.

Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 19 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 19 Above 1GHz Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 19 RF Registration number: W6M21305-13182-FCC FCC ID: ZTT-REC10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 19 Set Up Photo of Conducted Emission
