ZTT-REC15AHigh Power Compact AC Wi-Fi Range Extender

REC15A High Power Compact AC Wi-Fi Range Extender User’s Guide REC15A USER’S GUIDE 1 CONTENTS INTRODUCTION ..................................................................... 2 GETTING STARTED ................................................................. 3 Package Contents ...................................................................... 3 LED Indicators, Ports and Buttons ............................................ 4 SETUP GUIDE............................................................................. 6 Find a Setup Location ................................................................ 6 Connect your PC or Tablet to the Range Extender .................... 7 Welcome to the Dashboard ...................................................... 9 Scan for a Wireless Network ................................................... 10 Connecting to a Secure Network ............................................. 11 Extended Network Settings (SSID and Security) ...................... 12 Connect to the new Extended Network .................................. 14 Setup Summary ....................................................................... 15 5.0GHz WI-FI SETTINGS ........................................................ 18 Home Network Settings (5.0GHz) ............................................ 18 Extended Network Settings (5.0GHz) ...................................... 19 Security (5.0GHz) ..................................................................... 21 Wi-Fi Protected Setup – WPS (5.0GHz).................................... 22 User Access (5.0GHz) ............................................................... 23 Wireless Coverage Controls (5.0GHz) ...................................... 24 Access Schedule (5.0GHz) ........................................................ 25 Advanced Settings (5.0GHz) .................................................... 26 2.4GHz WI-FI SETTINGS ........................................................ 28 Home Network Settings (2.4GHz) ............................................ 28 Extended Network Settings (2.4GHz) ....................................... 29 Wi-Fi Protected Setup – WPS (2.4GHz) .................................... 32 User Access (2.4GHz) ............................................................... 33 Wireless Coverage Controls (2.4GHz) ...................................... 34 Access Schedule (2.4GHz) ........................................................ 35 Advanced Settings (2.4GHz) ..................................................... 36 NETWORK SETTINGS ............................................................ 38 IP Settings ................................................................................ 38 Wired Port Routing .................................................................. 40 MANAGEMENT FEATURES ................................................... 41 Device Status ........................................................................... 42 Network Statistics .................................................................... 44 System Clock ............................................................................ 45 System Logs ............................................................................. 46 Upgrade Firmware ................................................................... 47 Save/Reload Settings ............................................................... 48 TECHNICAL SPECIFICATIONS ................................................. 49 DEFAULT SETTINGS .............................................................. 51 TROUBLESHOOTING AND SUPPORT INFORMATION .............. 52 REC15A USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com REC15A USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Compact AC Wi-Fi Range Extender  Detachable High Gain Antenna  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android App REC15A USER’S GUIDE 4 LED Indicators Link LED: Indicates when the Range Extender is powered on. The LED will flash rapidly when there is active Wi-Fi data traffic. When the WPS or Reset buttons are pressed, the LED will begin to flash steadily. Wired Port LED: Indicates when a networking device is connected to a wired port on the bottom of the Range Extender. The LED flashes rapidly when wired data traffic is transmitted or received. REC15A USER’S GUIDE 5 Top and Bottom Panel Description Top Antenna Connector: Dual Band RJ-SMA antenna connector. Compatible with all dual band antennas that have RP-SMA connectors. Reset: Push down once to reboot the Range Extender. Hold down for 5-10 seconds to reset the Range Extender back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Bottom Wired: RJ-45 port for connecting wired computers or network devices REC15A USER’S GUIDE 6 6 SETUP GUIDE Find a Setup Location The location of where you install the Range Extender is very important to how it will function. The optimal setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead zone. REC15A USER’S GUIDE 7 7 Connect your PC or Tablet to the Range Extender a) Connect the included high gain antenna by screwing it into the antenna connector. b) Plug the Range Extender into an available power outlet. c) Connect your PC or Tablet to the Range Extender’s Wi-Fi network: Amped_REC15A_2.4 or Amped_REC15A_5.0 REC15A USER’S GUIDE 8 8 Open your Web Browser to Access the…

Text truncated - open the document above for the full version.

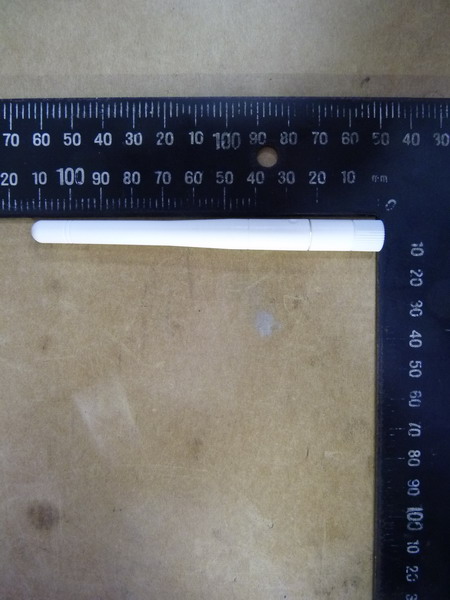

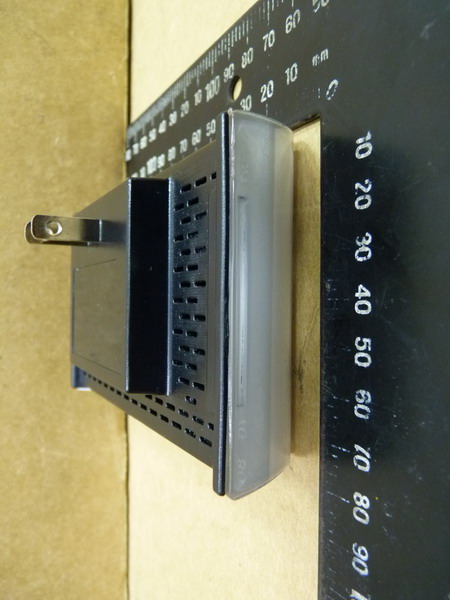

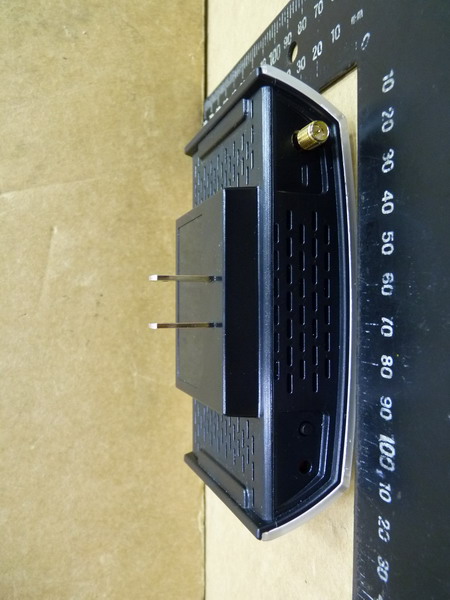

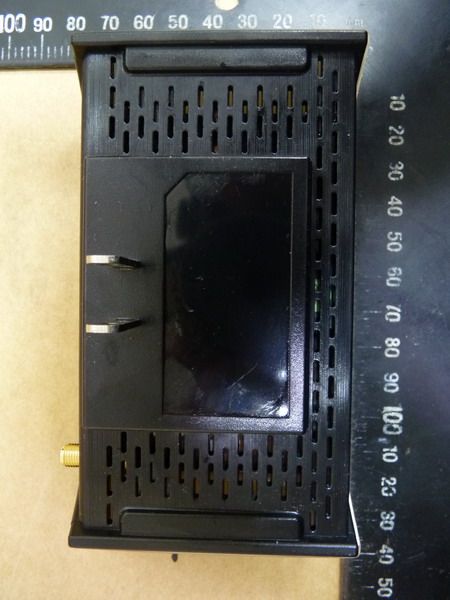

Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 22 External Photos Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 22

Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 22 Internal Photos Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 22 Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 22

Registration number: W6M21401-13774-C-1 FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Page 25 of 83 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain 5.8GHz:802.11a EIRP = 22.78 dBm + 2 dBi = 24.78 dBm 5.8GHz:802.11n(20MHz), 802.11n(40MHz) EIRP = 22.71 dBm + 2 dBi = 24.71 dBm 5.8GHz:802.11ac EIRP = 23.23 dBm + 2 dBi = 25.23 dBm 2.4GHz:802.11b/g EIRP = 25.62 dBm + 2 dBi = 27.62 dBm 2.4GHz: 802.11n(20MHz), 802.11n(40MHz) EIRP = 21.41 dBm + 2 dBi = 23.41 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain 5.8GHz:802.11a Item Unit Value Remarks P mW 189.6706 Peak value D dB AG dBi 2 G 1.5849 Calculated Value R cm 20 Assumed value S mW/cm2 0.0598 Calculated value Registration number: W6M21401-13774-C-1 FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Page 26 of 83 5.8GHz:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 186.6380 Peak value D dB AG dBi 2 G 1.5849 Calculated Value R cm 20 Assumed value S mW/cm2 0.0588 Calculated value 5.8GHz:802.11ac Item Unit Value Remarks P mW 210.3778 Peak value D dB AG dBi 2 G 1.5849 Calculated Value R cm 20 Assumed value S mW/cm2 0.0663 Calculated value 802.11b/g Item Unit Value Remarks P mW 364.7539 Peak value D dB AG dBi 2 G 1.5849 Calculated Value R cm 20 Assumed value S mW/cm2 0.1150 Calculated value 2.4G:802.11n(20MHz), 802.11n(40MHz) Item Unit Value Remarks P mW 138.3566 Peak value D dB AG dBi 2 G 1.5849 Calculated Value R cm 20 Assumed value S mW/cm2 0.0436 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21401-13774-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for High Power Compact AC Wi-Fi Range Extender Model No.: REC15A FCC ID: ZTT-REC15A Registration number: W6M21401-13774-C-1 FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 83 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 SUMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT............................................................................................................. 7 2.3 TEST EQUIPMENT LIST.......................................................................................................... 8 2.4 GENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 25 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 25 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 27 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 28 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 46 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 55 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 67 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 79 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 80 APPENDIX.............................................................................................................................. 83 Registration number: W6M21401-13774-C-1 FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 83 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 a/b/g/n/ac. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: February 12, 2014 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 12, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21401-13774-C-1 FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 83 1.2 Testing laboratory 1.2.1 Location OATS No.5…

Text truncated - open the document above for the full version.

Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 22 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 22 Above 1GHz Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 22 RF Registration number: W6M21401-13774-FCC FCC ID: ZTT-REC15A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 22 Set Up Photo of Conducted Emission
