ZTT-REC22AHigh Power AC1200 Plug-In Wi-Fi Range Extender

User’s Guide REC22A HIGHPOWER TM AC1200 WI-FI ® RANGE EXTENDER REC22A USER’S GUIDE 1 CONTENTS INTRODUCTION .......................................................................... 2 GETTING STARTED ...................................................................... 3 Package Contents ............................................................................. 3 LED Indicators, Ports and Buttons .................................................... 4 SETUP GUIDE ................................................................................... 5 Find a Setup Location ....................................................................... 5 Connect your PC or Tablet to the Range Extender ............................ 6 Welcome to the Dashboard .............................................................. 8 Scan for a Wireless Network............................................................. 9 Connecting to a Secure Network .................................................... 10 Extended Network Settings (SSID and Security) .............................. 11 Connect to the new Extended Network .......................................... 13 Setup Summary .............................................................................. 14 5.0GHz WI-FI SETTINGS .............................................................. 18 Home Network Settings (5.0GHz) ................................................... 18 Extended Network Settings (5.0GHz) .............................................. 19 Security (5.0GHz) ............................................................................ 21 Wi-Fi Protected Setup – WPS (5.0GHz) ........................................... 22 User Access (5.0GHz) ...................................................................... 23 Wireless Coverage Controls (5.0GHz) ............................................. 24 Access Schedule (5.0GHz) ............................................................... 25 Advanced Settings (5.0GHz) ........................................................... 26 2.4GHz WI-FI SETTINGS .............................................................. 28 Home Network Settings (2.4GHz) ................................................... 28 Extended Network Settings (2.4GHz) .............................................. 29 Wi-Fi Protected Setup – WPS (2.4GHz) ........................................... 32 User Access (2.4GHz) ...................................................................... 33 Wireless Coverage Controls (2.4GHz) ............................................. 34 Access Schedule (2.4GHz) ............................................................... 35 Advanced Settings (2.4GHz) ........................................................... 36 BOOSTBAND™ TECHNOLOGY ..................................................... 38 NETWORK SETTINGS ................................................................. 39 IP Settings ....................................................................................... 39 Wired Port Routing ......................................................................... 41 MANAGEMENT FEATURES ......................................................... 42 Device Status .................................................................................. 43 Network Statistics........................................................................... 45 System Clock ................................................................................... 46 System Logs .................................................................................... 47 Upgrade Firmware ......................................................................... 48 Save/Reload Settings ...................................................................... 50 Password Settings .......................................................................... 51 TECHNICAL SPECIFICATIONS ...................................................... 51 DEFAULT SETTINGS.................................................................... 53 TROUBLESHOOTING AND SUPPORT INFORMATION ................... 54 REGULATORY AND WARRANTY INFORMATION.......................... 68 LEGAL NOTICES AND DISCLAIMERS............................................... 76 REC22A USER’S GUIDE 2 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com REC22A USER’S GUIDE 3 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power AC1200 Plug-In Wi-Fi Range Extender  Detachable High Gain Antenna  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android App REC22A USER’S GUIDE 4 4 LED Indicators, Ports and Buttons Link LED: Indicates when the Range Extender is powered on. The LED will flash rapidly when there is active Wi-Fi data traffic. Signal Strength LED: Indicates when the Range Extender. Antenna Connector: Dual Band RJ-SMA antenna connector. Compatible with all dual band antennas that have RP-SMA connectors. Reset: Push down once to reboot the Range Extender. Hold down for 5-10 seconds to reset the Range Extender back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Port: RJ45 10/100/1000M Gigabit Port for connecting wired devices such as PCs, TVs, game consoles and more. Wired Port LEDs: Indicates when a networking device is connected to the wired port. The LED flashes rapidly when wired data traffic is transmitted or received. Gigabit connections will have a green LED. REC22A USER’S GUIDE 5 5 SETUP GUIDE Find a Setup …

Text truncated - open the document above for the full version.

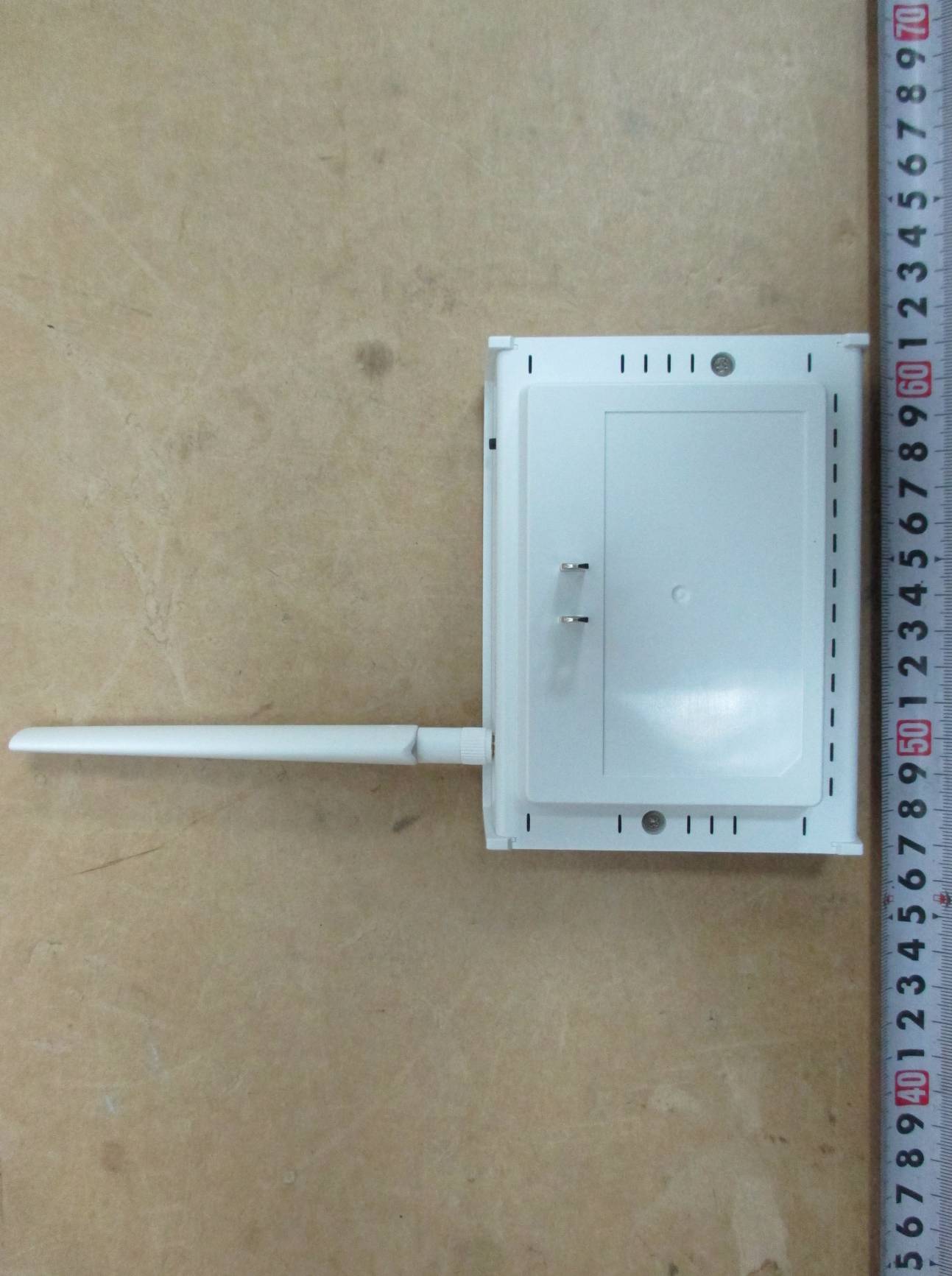

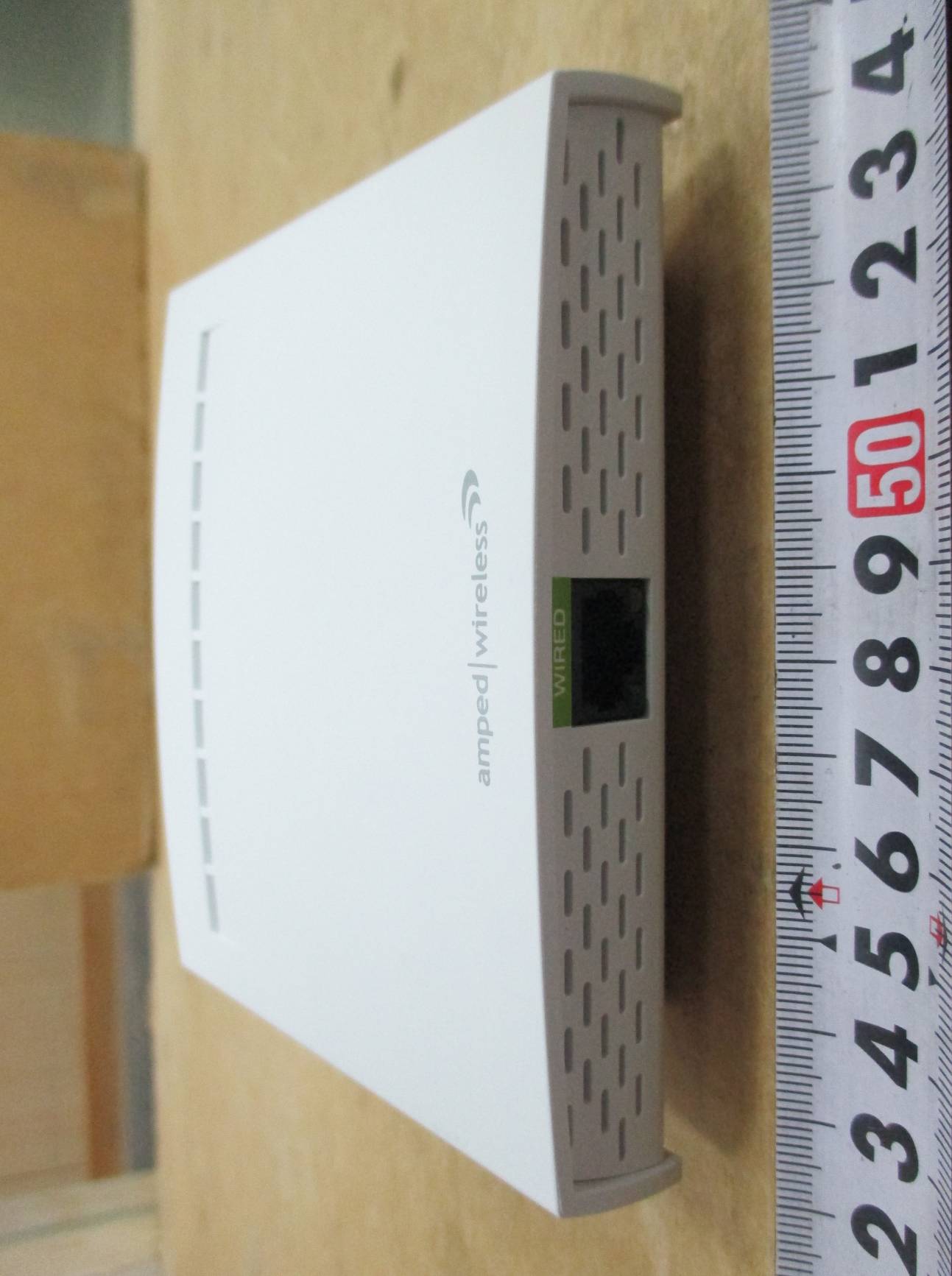

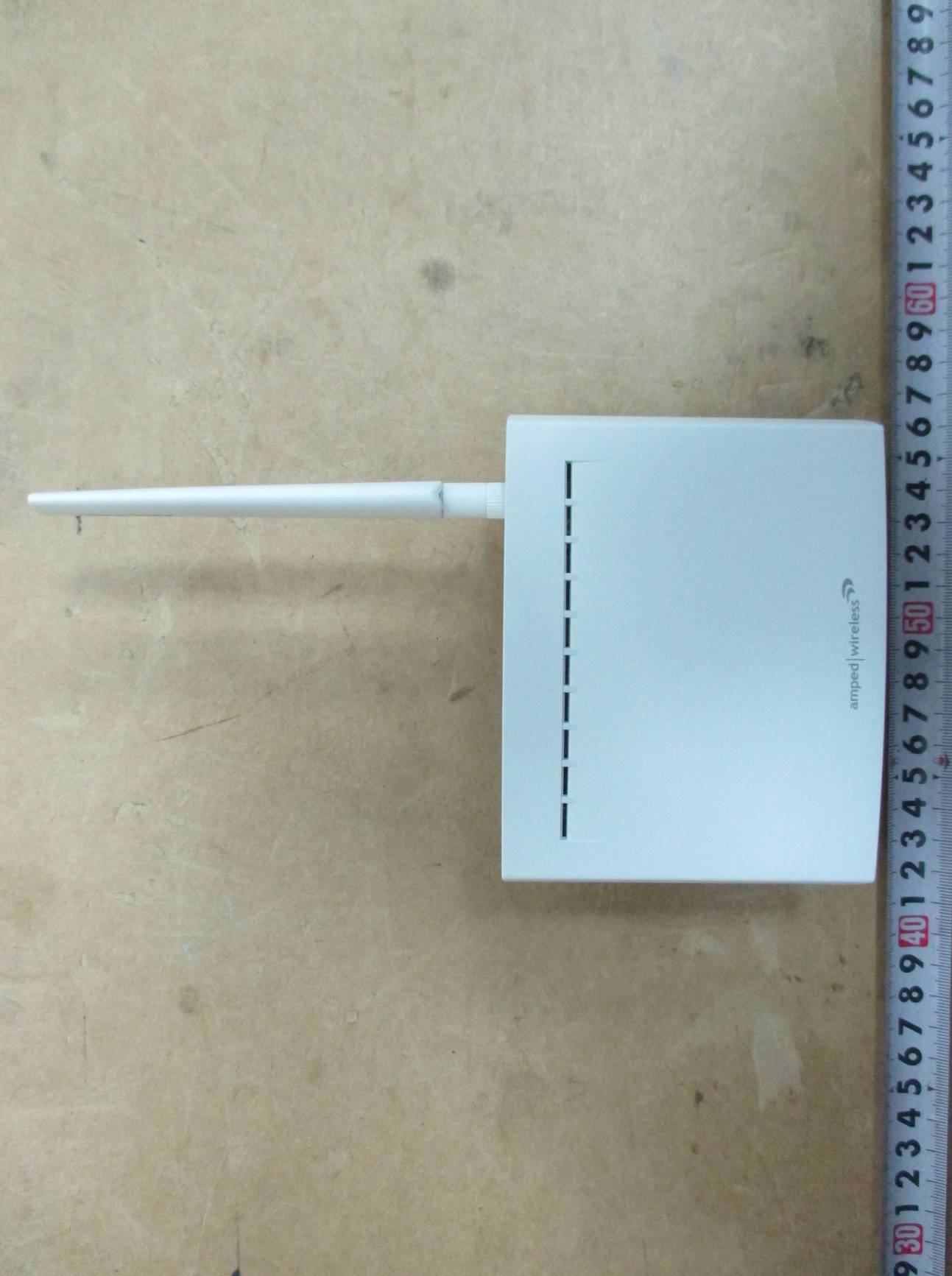

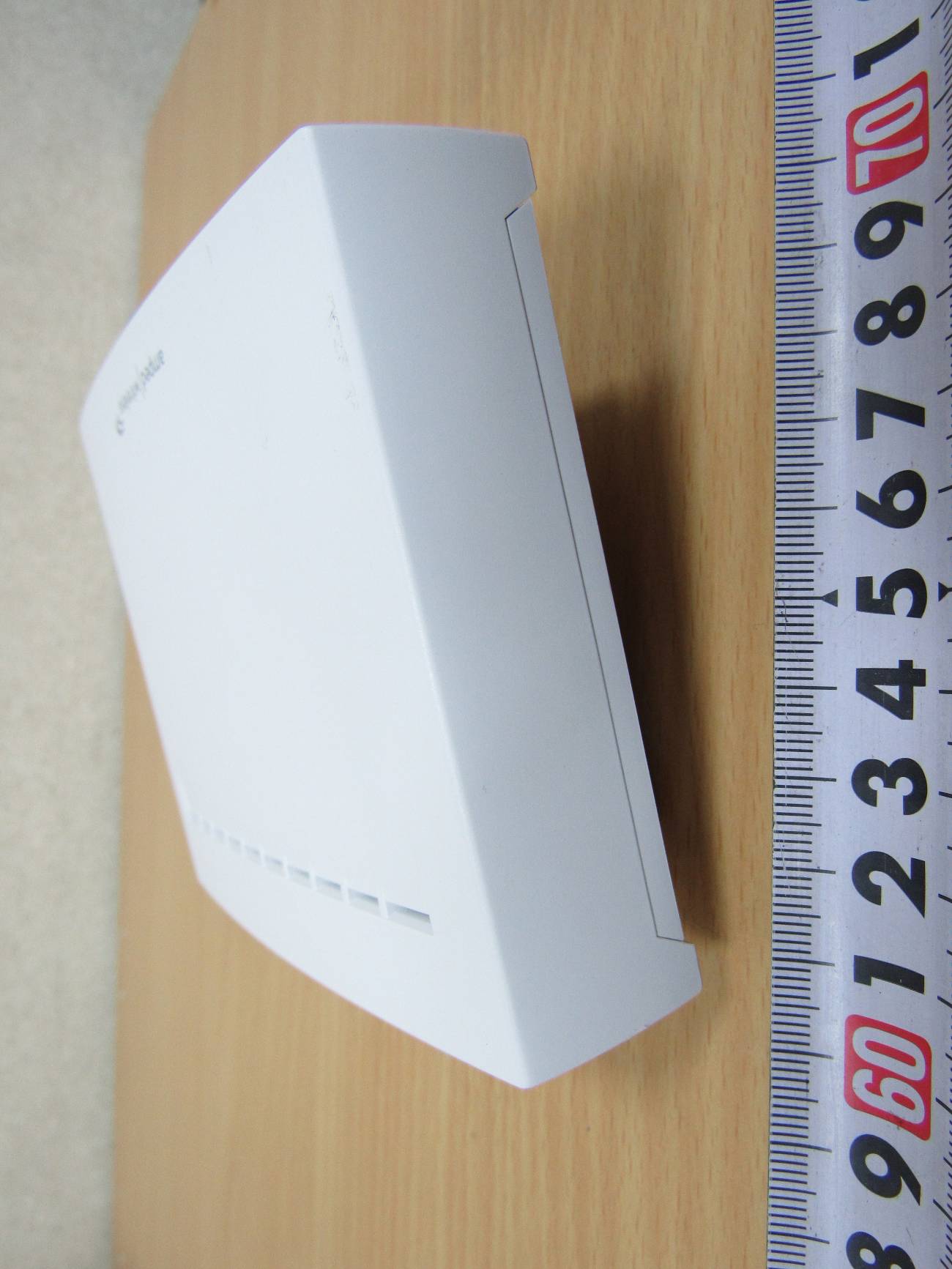

Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 21 External Photos Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 21

Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 21 Internal Photos Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 21 Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 21 2.4 G + 5 G Omni Antenna (ANT2) 2.4 G Embedded Antenna (ANT1) 5 G Embedded Antenna (ANT1) Registration number: W6M21501-14799-FCC FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 21

Registration number: W6M21501-14799-C-1 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 27 of 70 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) For systems using digital modulation in the 2.4 GHz – 2.4835 GHz bands: 1 Watt. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Item Unit Value Remarks P mW 917.07 Peak value D dB AG dBi 5.78 G 3.7844 Calculated Value R cm 20 Assumed value S mW/cm 2 0.6898 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 79 of 84 3.9 Equivalent isotropic radiated power, FCC 15.407 (f) FCC Rule: 15.407(b)(3) For systems using digital modulation in the 5.150 GHz-5.250 GHz and 5.725 GHz-5.850GHz bands: 1 Watt. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Test equipment used: ETSTW-RE 055 3.10 RF Exposure Compliance Requirements ystems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Band 1 Item Unit Value Remarks P mW 314.0509 Peak value D dB - - - - AG dBi 6.83 - - G - - 4.8195 Calculated Value R cm 20 Assumed value S mW/cm2 0.3011 Calculated value Band 4 Item Unit Value Remarks P mW 253.513 Peak value D dB - - - - AG dBi 6.83 - - G - - 4.8195 Calculated Value R cm 20 Assumed value S mW/cm2 0.2431 Calculated value

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21501-14799-C-54 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART E TEST REPORT For High Power AC1200 Plug-In Wi-Fi Range Extender Model No.: REC22A Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 84 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 TESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................8 2 TECHNICAL TEST .........................................................................................................................9 2.1 SUMMARY OF TEST RESULTS........................................................................................................9 2.2 TEST ENVIRONMENT....................................................................................................................9 2.3 TEST EQUIPMENT LIST...............................................................................................................10 2.4 TEST PROCEDURE......................................................................................................................12 3 TEST RESULTS (ENCLOSURE) ................................................................................................15 3.1 P EAK TRANSMIT POWER, FCC 15.407 (A) .................................................................................16 3.2 26DB EMISSION BANDWIDTH, 99% OCCUPIED BANDWIDTH, FCC 15.407 (A) ...........................36 3.3 6DB EMISSION BANDWIDTH, 99% OCCUPIED BANDWIDTH, FCC 15.407 (A) .............................46 3.4 PEAK POWER SPECTRAL DENSITY, FCC 15.407 (A) ..................................................................56 3.5 UNDESIRABLE EMISSION LIMITS, FCC 15.407 (B) ......................................................................76 3.6 A UTOMATIC DISCONTINUATION OF TRANSMISSION, FCC 15.407 (C).........................................78 3.7 R ESERVED, FCC 15.407 (D).......................................................................................................78 3.8 INDOOR OPERATION RESTRICTION, FCC 15.407 (E) ..................................................................78 3.9 E QUIVALENT ISOTROPIC RADIATED POWER, FCC 15.407 (F) .....................................................79 3.10 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................79 3.11 T RANSMIT POWER CONTROL (TPC) ..........................................................................................80 3.12 RADIATED EMISSIONS FROM RECEIVER PART............................................................................81 3.13 POWER LINE CONDUCTED EMISSION.........................................................................................82 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 84 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: March 25, 2015 Mark Cheng Date WTS-Lab. Name Signature Technical responsibility for area of testing: March 25, 2015 Kevin Wang Date WTS Name Signature Registrat…

Text truncated - open the document above for the full version.

Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 51 of 84 ANT2 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 52 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 53 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 54 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 55 of 84 Test equipment used: ETSTW-RE 055, ETSTW-RE 050 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 56 of 84 3.4 Peak Power Spectral Density, FCC 15.407 (a) According to §15.407(a) 1. For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 17 dBm/MHz for master device and 11 dBm/MHz for mobile/portable client device. 2. For the band 5.25-5.35 GHz and 5.47-5.725 GHz, the peak power spectral density shall not exceed 11 dBm/MHz. 3. For the band 5.725-5.850 GHz, the peak power spectral density shall not exceed 30 dBm/500kHz. Band 1 ANT1 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 57 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 58 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 59 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 60 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 61 of 84 ANT2 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 62 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 63 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 64 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 65 of 84 Band 4 ANT1 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 66 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 67 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 68 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 69 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 70 of 84 ANT2 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 71 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 72 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 73 of 84 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 74 of 84 Band 1 mW dBm ANT1 Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 6.61 6.43 7.70 8.20 8.08 8.86 802.11n 40MHz 2.21 - - 1.54 3.44 - - 1.87 802.11ac 0.82 - - - - -0.89 - - - - mW dBm ANT2 Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 9.23 8.79 7.31 9.65 9.44 8.64 802.11n 40MHz 2.99 - - 3.42 4.75 - - 5.34 802.11ac 1.31 - - - - 1.16 - - - - mW dBm Combine Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 15.83 15.22 15.00 12.00 11.82 11.76 802.11n 40MHz 5.19 - - 4.96 7.15 - - 6.95 802.11ac 2.12 - - - - 3.27 - - - - Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 75 of 84 Band 4 mW dBm ANT1 Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 4.79 4.53 5.43 6.80 6.56 7.35 802.11n 40MHz 2.98 - - 3.66 4.74 - - 5.63 802.11ac 1.82 - - - - 2.59 - - - - mW dBm ANT2 Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 3.60 4.73 4.99 5.56 6.75 6.98 802.11n 40MHz 2.11 - - 3.37 3.25 - - 5.27 802.11ac 1.32 - - - - 1.22 - - - - mW dBm Combine Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz 8.38 9.26 10.42 9.23 9.67 10.18 802.11n 40MHz 5.09 - - 7.02 7.07 - - 8.46 802.11ac 3.14 - - - - 4.97 - - - - Test equipment used: ETSTW-RE 055, ETSTW-RE 050 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 76 of 84 3.5 Undesirable emission limits, FCC 15.407 (b) 1. For transmitters operating in the 5.15–5.25 GHz band: all emissions out-side of the 5.15–5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. 2. For transmitters operating in the 5.25–5.35 GHz band: all emissions out-side of the 5.15–5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. De-vices operating in the 5.25–5.35 GHz band that generate emissions in the 5.15–5.25 GHz band must meet all appli-cable technical requirements for operation in the 5.15–5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of -27 dBm/MHz in the 5.15–5.25 GHz band. 3. For transmitters operating in the 5.47–5.725 GHz band: all emissions out-side of the 5.47–5.725 GHz band shall not exceed an EIRP of -27 dBm/MHz. 4. For transmitters operating in the 5.725–5.850 GHz band: all emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an EIRP of -17 dBm/MHz; for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an EIRP of -27 dBm/MHz. 5. The emission measurements shall be performed using a minimum resolution bandwidth of 1 MHz. A lower resolution bandwidth may be…

Text truncated - open the document above for the full version.

Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 83 of 84 Note: 1. The formula of measured value as: Test Result = Reading + Correction Factor 2. The Correction Factor = Cable Loss + LISN Insertion Loss + Pulse Limit Loss 3. Detector function in the form : PK = Peak, QP = Quasi Peak, AV = Average 4. All not in the table noted test results are more than 20 dB below the relevant limits. 5. Measurement uncertainty = ±1.67 dB; Reported uncertainties represent expanded uncertainties expressed at approximately the 95% confidence level using a coverage factor of k = 2. 6. Up Line: QP Limit Line, Down Line: Ave Limit Line. Limits: Frequency of Emission (MHz) Conducted Limit (dBuV) Quasi Peak Average 0.15-0.5 66 to 56 56 to 46 0.5-5 56 46 5-30 60 50 Test equipment used: ETSTW-CE 001, ETSTW-CE 016, ETSTW-RE 045 Registration number: W6M21501-14799-C-54 FCC ID: ZTT-REC22A Worldwide Testing Services(Taiwan) Co., Ltd. Page 84 of 84 Appendix Measurement diagrams Spurious Emissions radiated BAND 1 ANT1 Operator: Temperature:24 °C File :1Data :#1Date: 2015/3/8 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 上午 06:34:53 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15 RE-Class E_30-1000MHz W6M21501-14799 Test Mode : Polarization: Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment *53.326731.0816.9640.00-8.92peak14.12100105 140.801526.0910.6843.50-17.41peak15.4110095 164.128227.6612.3443.50-15.84peak15.32100235 274.929723.127.7746.00-22.88peak15.35100140 *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :1Data :#2Date: 2015/3/8 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 上午 06:35:38 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15 RE-Class E_30-1000MHz W6M21501-14799 Test Mode : Polarization: Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment *53.326738.1824.0640.00-1.82peak14.1210010 140.801524.939.5243.50-18.57peak15.41100155 168.016028.2913.1243.50-15.21peak15.17100120 203.006028.9116.5543.50-14.59peak12.3610090 *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#1Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 下午 03:27:00 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15E RE_Above 1GHz_PK W6M21501-14799 Test Mode : Polarization: Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#7Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 下午 03:30:56 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15E RE_Above 1GHz_PK W6M21501-14799 Test Mode : Polarization: Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#2Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 下午 03:27:53 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15E RE_Above 1GHz_PK W6M21501-14799 Test Mode : Polarization: Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#8Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 下午 03:31:42 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15E RE_Above 1GHz_PK W6M21501-14799 Test Mode : Polarization: Vertical Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment 5072.56558.3757.3274.00-15.63peak1.05100220 5072.56553.4052.3554.00-0.60AVG1.05100220 5408.01662.2060.3274.00-11.80peak1.88100165 *5408.01653.7351.8554.00-0.27AVG1.88100165 *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#3Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Tel:+886-2-6606-8877 Fax:+886-2-6606-8875 Humidity:60 % Time: 下午 03:28:43 Condition : EUT : M/N: Note : TX 802.11a CH36 FCC_part 15E RE_Above 1GHz_PK W6M21501-14799 Test Mode : Polarization: Horizontal Distance: 3m 120 Va.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site :Chamber Comment 10379.76054.5145.7374.00-19.49peak8.78100213 *10379.76053.5144.7354.00-0.49AVG8.78100213 *:Maximum data x:Over limit !:over margin Operator: Temperature:24 °C File :3Data :#9Date: 2015/3/6 Radiated Emission Measurement Address:6F.,No.58,Ln 188,Ruey Kuang Rd,Neihu,Taipei Leon Te…

Text truncated - open the document above for the full version.
