ZTT-RTA1750High Power AC1750 Wi-Fi Router

User’s Guide RTA1750 HIGHPOWER TM AC1750 WI-FI ® ROUTER RTA1750 USER’S GUIDE 1 CONTENTS INTRODUCTION ........................................................... 3 GETTING STARTED ....................................................... 4 Package Contents ........................................................... 4 LED Indicators ................................................................. 5 Back Panel Description ................................................... 6 BASIC SETUP GUIDE ..................................................... 7 5.0GHz WI-FI SETTINGS .............................................. 18 Basic Settings (5.0GHz) ................................................. 18 Basic Settings: Guest Networks (5.0GHz) ...................... 20 Security Settings (5.0GHz)............................................. 21 Advanced Settings (5.0GHz) .......................................... 22 Wi-Fi Protected Setup – WPS (5.0GHz) ......................... 23 Wireless Coverage Controls (5.0GHz) ........................... 24 Access Schedule (5.0GHz) ............................................. 25 2.4GHz WI-FI SETTINGS .............................................. 26 Basic Settings (2.4GHz) ................................................. 26 Basic Settings: Guest Networks (2.4GHz) ...................... 28 Security Settings (2.4GHz)............................................. 29 Advanced Settings (2.4GHz) .......................................... 30 Wi-Fi Protected Setup – WPS (2.4GHz) ......................... 31 Wireless Coverage Controls (2.4GHz) ........................... 32 Access Schedule (2.4GHz) ............................................. 33 NETWORK SETTINGS ..................................................34 Local Network (LAN) ..................................................... 34 IPv6 Local Network (LAN) .............................................. 36 Internet Network (WAN) ............................................... 38 IPv6 Internet Network (WAN) ....................................... 40 Advanced Settings ......................................................... 42 SMART FEATURES ......................................................44 Block Websites .............................................................. 45 User Access (MAC Address Filtering) ............................ 46 User Access (IP Address Filtering) ................................. 47 USB STORAGE ............................................................48 USB Storage: Local Sharing ........................................... 48 USB Storage: FTP Server................................................ 52 FIREWALL SETTINGS ...................................................53 Port Filtering ................................................................. 54 Port Forwarding ............................................................ 55 DMZ (Demilitarized Zone) ............................................. 56 Virtual LAN .................................................................... 57 RTA1750 USER’S GUIDE 2 Denial of Service ........................................................... 58 QUALITY OF SERVICE ................................................. 59 ROUTING SETUP ........................................................ 60 MANAGEMENT FEATURES ......................................... 61 System Status................................................................ 62 Network Statistics ......................................................... 63 Dynamic DNS Settings ................................................... 64 System Clock ................................................................. 65 System Logs .................................................................. 66 Upgrade Firmware ........................................................ 67 Save and Reload Settings .............................................. 69 Password Settings ......................................................... 70 TECHNICAL SPECIFICATION .........................................71 DEFAULT SETTINGS ....................................................72 TROUBLESHOOTING AND SUPPORT INFORMATION ...73 WARRANTY AND REGULATORY INFORMATION ..........90 LEGAL NOTICES AND DISCLAIMERS................................97 RTA1750 USER’S GUIDE 3 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com RTA1750 USER’S GUIDE 4 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power AC1750 Wi-Fi Router  Three Detachable High Gain Antennas  RJ-45 Ethernet Cable  Power Adapter  Setup Guide  CD: User’s Guide, Installation Video, Setup Guide, Wi-Fi Analytics Android App RTA1750 USER’S GUIDE 5 LED Indicators Power: Indicates when the Router is powered on. The LED will remain on. WPS: Blinks when Wi-Fi Protected Setup (WPS) is activated and the Router awaits a connection. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 5GHz wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 2.4GHz wireless network. Internet Connection: Indicates when the Router is connected to a broadband modem. The LED will blink rapidly when Internet traffic is transmitted or received. Gigabit Wired Ports 1-4: Indicates when a networking device is connected to a wired port on the back of the Router. The LED will blink rapidly when wired data traffic is transmitted or received. USB Connection: Indicates when a USB storage device is…

Text truncated - open the document above for the full version.

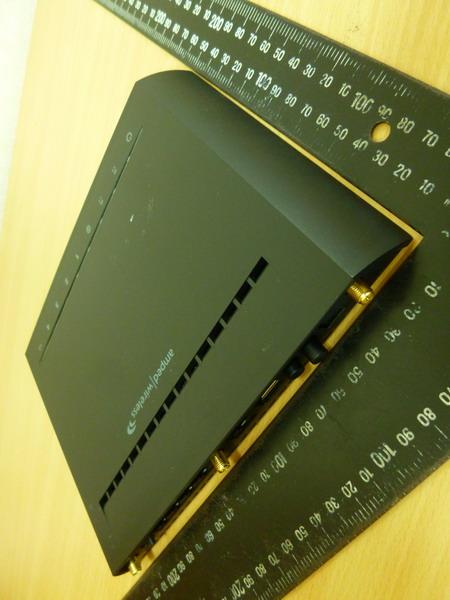

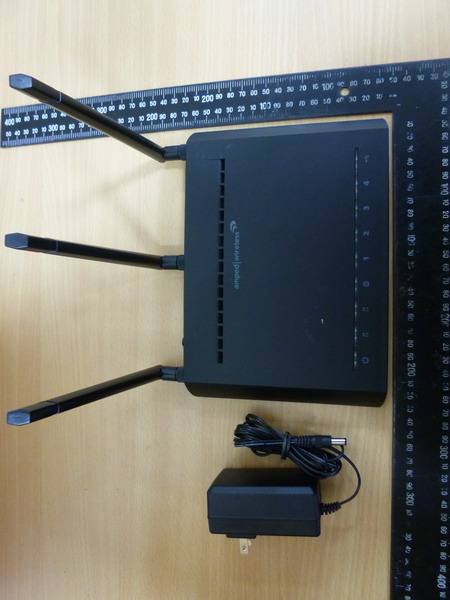

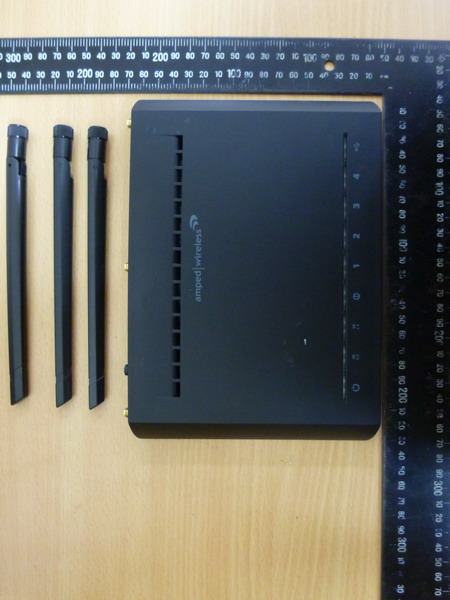

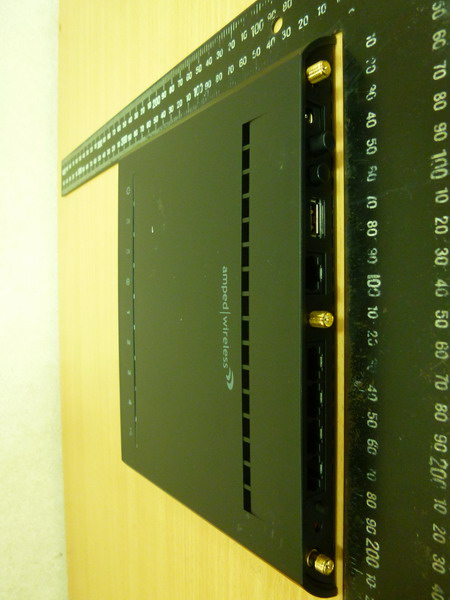

Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 16 External Photos Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 16

Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 16 Internal Photos Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 16 Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 16

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: High Power AC1750 Wi-Fi Router Model No: RTA1750 The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : High Power AC1750 Wi-Fi Router will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M21410-14564-C-1-R1 an d W6M21410-14564-C-54-R1 and the accompanying calculatio ns. Company: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Registration number: W6M21410-14564-C-1-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 34 of 96 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) For systems using digital modulation in the 2.4 GHz – 2.4835 GHz bands: 1 Watt. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Item Unit Value Remarks P mW 429.53 Peak value D dB AG dBi 9.77 G 9.4842 Calculated Value R cm 20 Assumed value S mW/cm 2 0.8104 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0 Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 61 of 67 3.8 Equivalent isotropic radiated power, FCC 15.407 (f) FCC Rule: 15.407(b)(3) For systems using digital modulation in the 5.725 GHz-5.850 GHz bands: 1 Watt. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Test equipment used: ETSTW-RE 055 3.9 RF Exposure Compliance Requirements ystems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain ItemUnitValueRemarks PmW100Peak value DdB AGdBi9.77 G9.4842 Calculated Value Rcm20 Assumed value SmW/cm20.1887 Calculated value

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills, California 91709 United State Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21410-14564-C-54-R1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART E TEST REPORT For High Power AC1750 Wi-Fi Router Model No.: RTA1750 FCC ID: ZTT-RTA1750 Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 67 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 TESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................6 2 TECHNICAL TEST .........................................................................................................................7 2.1 SUMMARY OF TEST RESULTS........................................................................................................7 2.2 TEST ENVIRONMENT....................................................................................................................7 2.3 TEST EQUIPMENT LIST.................................................................................................................8 2.4 TEST PROCEDURE......................................................................................................................10 3 TEST RESULTS (ENCLOSURE) ................................................................................................13 3.1 P EAK TRANSMIT POWER, FCC 15.407 (A) .................................................................................14 3.2 6DB EMISSION BANDWIDTH, 99% OCCUPIED BANDWIDTH, FCC 15.407 (A) .............................29 3.3 PEAK POWER SPECTRAL DENSITY, FCC 15.407 (A) ..................................................................43 3.4 UNDESIRABLE EMISSION LIMITS, FCC 15.407 (B) ......................................................................58 3.5 AUTOMATIC DISCONTINUATION OF TRANSMISSION, FCC 15.407 (C).........................................60 3.6 R ESERVED, FCC 15.407 (D).......................................................................................................60 3.7 I NDOOR OPERATION RESTRICTION, FCC 15.407 (E) ..................................................................60 3.8 EQUIVALENT ISOTROPIC RADIATED POWER, FCC 15.407 (F) .....................................................61 3.9 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................61 3.10 T RANSMIT POWER CONTROL (TPC) ..........................................................................................62 3.11 R ADIATED EMISSIONS FROM RECEIVER PART............................................................................63 3.12 POWER LINE CONDUCTED EMISSION.........................................................................................64 Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 67 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: January 30, 2015 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: January 30, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Servic…

Text truncated - open the document above for the full version.

Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 58 of 67 3.4 Undesirable emission limits, FCC 15.407 (b) 1. For transmitters operating in the 5.15–5.25 GHz band: all emissions out-side of the 5.15–5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. 2. For transmitters operating in the 5.25–5.35 GHz band: all emissions out-side of the 5.15–5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. De-vices operating in the 5.25–5.35 GHz band that generate emissions in the 5.15–5.25 GHz band must meet all appli-cable technical requirements for operation in the 5.15–5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of -27 dBm/MHz in the 5.15–5.25 GHz band. 3. For transmitters operating in the 5.47–5.725 GHz band: all emissions out-side of the 5.47–5.725 GHz band shall not exceed an EIRP of -27 dBm/MHz. 4. For transmitters operating in the 5.725–5.825 GHz band: all emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an EIRP of -17 dBm/MHz; for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an EIRP of -27 dBm/MHz. 5. The emission measurements shall be performed using a minimum resolution bandwidth of 1 MHz. A lower resolution bandwidth may be employed near the band edge, when necessary, provided the measured energy is integrated to show the total power over 1 MHz. 6. Unwanted emissions below 1 GHz must comply with the general field strength limits set forth in § 15.209. 7. According to According to KDB 789033 D01 General UNII Test Procedures v01r03, as specified in 15.407(b), emissions above 1000 MHz that are outside of the restricted bands are subject to a peak emission limit of -27 dBm/MHz (or -17 dBm/MHz as specified in 15.407(b)(4)). However, an out-of-band emission that complies with both the average and peak limits of 15.209 is not required to satisfy the -27 dBm/MHz or -17 dBm/MHz peak emission limit. 8. If radiated measurements are performed, field strength is then converted to EIRP as follows: (i) EIRP = ((E*d)^2) / 30, where: E is the field strength in V/m; d is the measurement distance in meters. Applicable to Limit FIELD STRENGTH at 3m (dBμV/m) PK AV 74 54 EIRP LIMIT (dBm) EQUIVALENT FIELD STRENGTH at 3m (dBμV/m) PK PK -27 68.3 Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 59 of 67 Model: RTA1750 Date: -- Mode: Temperature:-- °C Engineer: -- Polarization: Horizontal Humidity: -- % Frequency (MHz) Reading (dBuV) Detector Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Table Degree (Deg.) Ant. High (cm) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Frequency (MHz) Reading (dBuV) Peak Ave. Factor (dB) Corr. Result (dBuV/m) Peak Ave. Limit (dBuV/m) Peak Ave. Margin (dB) Table Degree (Deg.) Ant. High (cm) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Polarization: Vertical Frequency (MHz) Reading (dBuV) Detector Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Table Degree (Deg.) Ant. High (cm) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Frequency (MHz) Reading (dBuV) Peak Ave. Factor (dB) Corr. Result (dBuV/m) Peak Ave. Limit (dBuV/m) Peak Ave. Margin (dB) Table Degree (Deg.) Ant. High (cm) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Test equipment used: ETSTW-RE 004, ETSTW-RE 030, ETSTW-RE 111, ETSTW-RE 088, ETSTW-RE 018 Explanation: See attached diagrams in appendix. Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 60 of 67 3.5 Automatic Discontinuation of transmission, FCC 15.407 (c) The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. This function will be declared by manufacturer. 3.6 Reserved, FCC 15.407 (d) 3.7 Indoor Operation Restriction, FCC 15.407 (e) Within the 5.15–5.25 GHz band, U- NII devices will be restricted to indoor operations to reduce any potential for harmful interference to co-channel MSS operations. This equipment has to be declared by manufacturer of the final product as content of the user manual. Registration number: W6M21410-14564-C-54-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Page 61 of 67 3.8 Equivalent isotropic radiated power, FCC 15.407 (f) FCC Rule: 15.407(b)(3) For systems using digital modulation in the 5.725 GHz-5.850 GHz bands: 1 Watt. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Test equipment used: ETSTW-RE 055 3.9 RF Exposure Compliance Requirements ystems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Dist…

Text truncated - open the document above for the full version.

Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 16 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 16 Above 1GHz Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 16 RF Registration number: W6M21410-14564-FCC-R1 FCC ID: ZTT-RTA1750 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 16 Set Up Photo of Conducted Emission
