ZTT-SR20000GHigh Power Wireless-N 600mW Gigabit Dual Band Repeater

SR20000G High Power Wireless-N 600mW Gigabit Dual Band Repeater User’s Guide SR20000G USER’S GUIDE 1 CONTENTS INTRODUCTION ..................................................................... 2 GETTING STARTED ................................................................. 3 Package Contents ...................................................................... 3 LED Indicators............................................................................ 4 Back Panel Description .............................................................. 5 SETUP GUIDE ......................................................................... 6 Welcome to the Smart Setup Wizard ........................................ 9 Scan for a Wireless Network ................................................... 10 Connecting to a Secure Network ............................................. 12 Extended Network Settings (SSID and Security) ...................... 13 Setup Summary ....................................................................... 15 5.0GHz WI-FI SETTINGS ........................................................ 18 Home Network Settings (5.0GHz) ............................................ 18 Extended Network Settings (5.0GHz) ...................................... 19 Security (5.0GHz) ..................................................................... 21 Wi-Fi Protected Setup – WPS (5.0GHz).................................... 22 User Access (5.0GHz) ............................................................... 22 Access Schedule (5.0GHz) ........................................................ 25 Advanced Settings (5.0GHz) .................................................... 26 2.4GHz WI-FI SETTINGS ........................................................ 28 Home Network Settings (2.4GHz) ............................................ 28 Extended Network Settings (2.4GHz) ....................................... 29 Wi-Fi Protected Setup – WPS (2.4GHz) .................................... 32 User Access (2.4GHz) ............................................................... 32 Wireless Coverage Controls(2.4GHz) ....................................... 33 Access Schedule (2.4GHz) ........................................................ 35 Advanced Settings (2.4GHz) ..................................................... 36 USB STORAGE ...................................................................... 38 USB Storage: Local Sharing ...................................................... 38 NETWORK SETTINGS ............................................................ 42 IP Settings ................................................................................ 42 Wired Port Routing .................................................................. 44 MANAGEMENT FEATURES ................................................... 45 Repeater Status ....................................................................... 46 Network Statistics .................................................................... 48 System Clock ............................................................................ 49 System Logs ............................................................................. 50 Upgrade Firmware ................................................................... 51 Save/Reload Settings ............................................................... 52 TECHNICAL SPECIFICATIONS ................................................. 53 DEFAULT SETTINGS .............................................................. 55 TROUBLESHOOTING AND SUPPORT INFORMATION .............. 56 SR20000G USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com SR20000G USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package: • High Power Wireless-N 600mW Gigabit Dual Band Repeater • Two Detachable 5dBi High Gain Antennas • Power Adapter (100-240v) • RJ-45 Ethernet Cable • Setup Guide • CD: User’s Guide, Installation Video • Stand for Vertical Mounting SR20000G USER’S GUIDE 4 LED Indicators Power: Indicates when the Dual Band Repeater is powered on. The LED will remain on. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 5.0GHz wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the2.4GHz wireless network. Gigabit Wired Ports 1-5: Indicates when a networking device is connected to a wired port on the back of the Dual Band Repeater. The LED blinks rapidly when wired data traffic is transmitted or received. USB Connection: Indicates when a USB storage device is connected to the USB port for local sharing. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. SR20000G USER’S GUIDE 5 Back Panel Description Antenna Connectors (1-2): RJ-SMA antenna connectors. Attach the included high gain dual band antennas to these connectors USB Port: Attach USB storage devices, such as USB flash drives and external hard drives, for file sharing. Reset: Push down once to reboot the Dual Band Repeater. Hold down for 5-10 seconds to reset the Dual Band Repeater back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Devices: Gigabit RJ-45 ports for connecting to wired computers or network devices. Power: Power adapter port. Output: 12V 1A, Input: 100-240v SR20000G USER’S GUIDE 6 SETUP GUIDE Find a Setup Location The location of where you install…

Text truncated - open the document above for the full version.

Amped Wireless 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Amped Wireless FCC ID: ZTT-SR20000G FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Jason Owen Position CEO Company Name Amped Wireless Address 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States Tel 9092173229 E-Mail [email protected]

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A. Declaration of Authorization We Name: Amped Wireless Address: 13089 Peyton Dr. #C307, Chino Hills CA 91709 Declare that: Name Representative of agent: Clio Hu Agent Company name: Cerpass Technology Corp. Address: 2F-11, No. 3, Yuan Qu St., (Nankang Software Park), Taipei, Taiwan 115, R.O.C. is authorized to apply for Certification of the following product(s): Product description: High Power Wireless-N 600mW Gigabit Dual Band Repeater Type designation: SR20000G Trademark: Amped Wireless on our behalf. Date: Jul. 26, 2012 Sincerely, ________________________ Jason Owen, CEO Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills CA 91709 Tel: 909-217-3229 Fax: 909-580-8883 E-mail: [email protected]

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A. Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:Jul. 26, 2012 FCC ID: ZTT-SR20000G Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely,

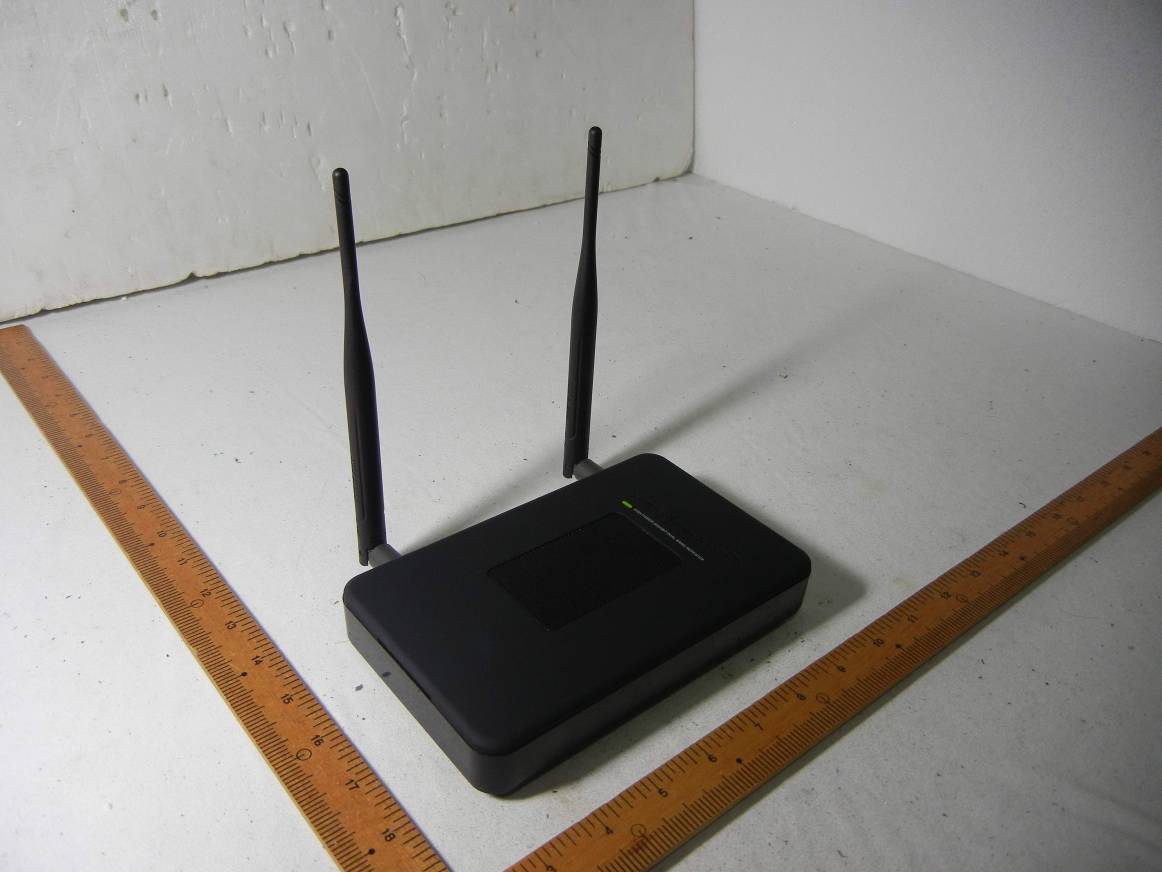

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued Date : Jun. 29, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A8 FCC ID : ZTT-SR20000G Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued Date : Jun. 29, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A8 FCC ID : ZTT-SR20000G

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued Date : Jun. 29, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A8 FCC ID : ZTT-SR20000G CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued Date : Jun. 29, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A8 FCC ID : ZTT-SR20000G CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued Date : Jun. 29, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A8 FCC ID : ZTT-SR20000G

Dual Band Omni-Antenna

Test Result of RF Exposure Evaluation . Product: High Power Wireless-N 600mW Gigabit Dual Band Repeater . Test Item: RF Exposure Evaluation Data . Test site: OATS2-SD Antenna Gain Frequency Range: 2412MHz~2462MHz, 5725MHz~5850MHz 802.11b/g/n: ANT R, ANT L Antenna Type: Dipole Antenna Antenna Gain: 2 dBi 802.11a, an: ANT R, ANT L Antenna Type: Dipole Antenna Antenna Gain: 4 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Jun. 07, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPa Humidity: 65% ANT R Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 20.42 0.035 06 2437 20.40 0.035 11 2462 19.20 0.026 802.11g (54Mbps) 01 2412 24.50 0.089 06 2437 25.76 0.119 11 2462 25.41 0.110 802.11n HT20 (130Mbps) 01 2412 20.45 0.035 06 2437 25.60 0.114 11 2462 23.36 0.068 802.11n HT40 (270Mbps) 03 2422 18.05 0.020 06 2437 25.60 0.114 09 2452 22.33 0.054 ANT L Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 20.12 0.032 06 2437 20.49 0.035 11 2462 19.35 0.027 802.11g (54Mbps) 01 2412 24.88 0.097 06 2437 25.80 0.120 11 2462 25.35 0.108 802.11n HT20 (130Mbps) 01 2412 22.84 0.061 06 2437 25.59 0.114 11 2462 25.25 0.106 802.11n HT40 (270Mbps) 03 2422 20.42 0.035 06 2437 25.86 0.122 09 2452 24.61 0.091 ANT R + ANT L Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 --- --- 06 2437 --- --- 11 2462 --- --- 802.11g (54Mbps) 01 2412 --- --- 06 2437 --- --- 11 2462 --- --- 802.11n HT20 (130Mbps) 01 2412 24.82 0.096 06 2437 24.78 0.095 11 2462 24.62 0.091 802.11n HT40 (270Mbps) 03 2422 22.41 0.055 06 2437 24.64 0.092 09 2452 24.82 0.096 Test Date: Jun. 19, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPa Humidity: 65% 802.11a, ANT R Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (54Mbps) 36 5180 7.57 0.003 44 5220 7.95 0.003 48 5240 8.06 0.003 5.725 ~ 5.825 GHz (54Mbps) 149 5745 23.43 0.110 157 5785 23.87 0.122 165 5825 23.32 0.107 802.11an HT20 ANT R Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (130Mbps) 36 5180 7.54 0.003 44 5220 7.88 0.003 48 5240 8.11 0.003 5.725 ~ 5.825 GHz (130Mbps) 149 5745 23.53 0.113 157 5785 23.70 0.117 165 5825 23.25 0.106 802.11an HT40 ANT R Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (270Mbps) 38 5190 9.09 0.004 42 5210 8.85 0.004 46 5230 8.81 0.004 5.725 ~ 5.825 GHz (270Mbps) 151 5755 23.29 0.107 155 5775 23.65 0.116 159 5795 23.32 0.107 802.11a, ANT L Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (54Mbps) 36 5180 7.56 0.003 44 5220 7.57 0.003 48 5240 7.64 0.003 5.725 ~ 5.825 GHz (54Mbps) 149 5745 23.58 0.114 157 5785 23.89 0.122 165 5825 23.74 0.118 802.11an HT20 ANT L Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (130Mbps) 36 5180 7.09 0.003 44 5220 6.75 0.002 48 5240 6.82 0.002 5.725 ~ 5.825 GHz (130Mbps) 149 5745 23.61 0.115 157 5785 23.82 0.120 165 5825 23.78 0.119 802.11an HT40 ANT L Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (270Mbps) 38 5190 8.15 0.003 42 5210 7.99 0.003 46 5230 7.97 0.003 5.725 ~ 5.825 GHz (270Mbps) 151 5755 23.36 0.108 155 5775 23.71 0.117 159 5795 23.50 0.112 802.11an HT20 ANT R+L Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (270Mbps) 36 5180 10.33 0.011 44 5220 10.36 0.011 48 5240 10.52 0.011 5.725 ~ 5.825 GHz (270Mbps) 149 5745 26.54 0.451 157 5785 26.71 0.469 165 5825 26.26 0.422 802.11an HT40 ANT R+L Frequency Range Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density(S) (mW/Cm2) 5.15 ~ 5.25 GHz (270Mbps) 38 5190 11.66 0.015 42 5210 11.45 0.014 46 5230 11.42 0.014 5.725 ~ 5.825 GHz (270Mbps) 151 5755 26.30 0.426 155 5775 26.66 0.463 159 5795 26.33 0.429 The MPE is calculated as 0.469 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 102 FCC ID : ZTT-SR20000G FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart E Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment : High Power Wireless-N 600mW Gigabit Dual Band Repeater Model No. : SR20000G Trade Name : Amped Wireless FCC ID : ZTT-SR20000G ‚ The test result refers exclusively to the test presented test model / sample., ‚ The test result does not include DFS test for 5250 ~ 5350 MHz. ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 102 FCC ID : ZTT-SR20000G CONTENTS 1. Report of Measurements and Examinations ......................................................................................... 6 1.1. List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ......................................................................................... 7 2.1. Feature of Equipment under Test ............................................................................................... 7 2.2. Carrier Frequency of Channels .................................................................................................. 7 2.3. Test Mode and Test Software ..................................................................................................... 8 2.4. Description of Test System ......................................................................................................... 8 2.5. General Information of Test ........................................................................................................ 9 2.6. Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ....................................................................................................................... 10 3.1. Standard Applicable ................................................................................................................. 10 3.2. Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................... 11 4.1. Test Procedures ....................................................................................................................... 11 4.2. Typical Test Setup Layout of Conducted Emission .................................................................. 11 4.3. Conducted Emission Requirement .......................................................................................... 12 4.4. Measurement Equipment ......................................................................................................... 12 4.5. Test Result and Data ................................................................................................................ 13 4.6. Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission .................................................................................................................. 20 5.1. Test Procedures ....................................................................................................................... 20 5.2. Typical Test Setup Layout of Radiated Emission ..................................................................... 21 5.3. Measurement Equipment ......................................................................................................... 21 5.4. Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 22 5.5. Test Result of Radiated Emission ............................................................................................ 22 5.6. Photographs of Radiated Emission Test (30MHz-1000MHz) .................................................. 52 5.7. Photographs of Radiated Emission Test (1000MHz-40000MHz) ............................................ 53 6. Peak Transmit Power .......................................................................................................................... 54 6.1. Test Procedure ......................................................................................................................... 54 6.2. Test Setup Layout .................................................................................................................... 54 6.3. Measurement Equipment ......................................................................................................... 54 6.4. Test Result and Data ................................................................................................................ 55 7. Peak Power Excursion ........................................................................................................................ 74 7.1. Test Procedure ......................................................................................................................... 74 7.2. Test Setup Layout .................................................................................................................... 74 7.3. Me…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 41 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 2 : 802.11an HT20, CH48 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 42 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 2 : 802.11an HT40, CH38 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 43 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 2 : 802.11an HT40, CH38 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 44 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 2 : 802.11an HT40, CH38 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 45 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 2 : 802.11an HT40, CH38 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 46 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11an HT40, CH38 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 47 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11an HT40, CH38 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 48 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11an HT40, CH42 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 49 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11an HT40, CH42 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 50 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11an HT40, CH46 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 51 of 102 FCC ID : ZTT-SR20000G Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11an HT40, CH46 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 52 of 102 FCC ID : ZTT-SR20000G 5.6. Photographs of Radiated Emission Test (30MHz-1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 53 of 102 FCC ID : ZTT-SR20000G 5.7. Photographs of Radiated Emission Test (1000MHz-40000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 54 of 102 FCC ID : ZTT-SR20000G 6. Peak Transmit Power 6.1. Test Procedure 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW of spectrum analyzer to 1MHz and VBW to 3MHz. 3. Set detector mode to RMS, trace average 100 traces in power averaging mode. 4. Use the spectrum analyzer’s integrated band power measurement function with band limits set equal to the EBW band edges. 5. The peak transmit power was measured and recorded. 6.2. Test Setup Layout 6.3. Measurement Equipment Instrument/Ancillary Manufacturer Model No. Serial No. Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100219 2011/11/24 2012/11/23 EUT Spectrum Analyzer CERPASS TECHNOLOGY CORP. Report No.: TEFE1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 55 of 102 FCC ID : ZTT-SR20000G 6.4. Test Result and Data Test Date: Jun. 19, 2012 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard: IEEE 802.11a (54Mbps) Channel Frequency (MHz) Peak Power Output (dBm) 26dB Occupied Bandwidth (MHz) Peak Power Output (mW) ANT R ANT L ANT R ANT L ANT R ANT L 36 5180 7.57 7.56 22.3 22.3 5.7 5.7 44 5220 7.95 7.57 22.0 22.3 6.2 5.7 48 5240 8.06 7.64 22.1 22.0 6.4 5.8 Modulation Standard: IEEE 802.11an, HT20 (130Mbps) Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 26dB Occupied Bandwidth (MHz) ANT R ANT L R + L R + L ANT R ANT L 36 5180 7.54 7.09 10.3310.8 22.8 22.8 44 5220 7.88 6.75 10.3610.9 22.7 22.7 48 5240 8.11 6.82 10.5211.3 22.8 22.5 Modulation Standard: IEEE 802.11an, HT40 (270Mbps) Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 26dB Occupied Bandwidth (MHz) ANT R ANT L R + L R + L ANT R ANT L 38 5190 9.09 8.15 11.6614.7 39.8 39.6 42 5210 8.85 7.99 11.4514.0 39.8 39.8 46 5230 8.81 7.97 11.4213.9 39.6 39.8 Limit: Frequency Band Limit 5.15 – 5.25 GHz The lesser of 50mW(17dBm) or 4dBm + 10logB B is the 26dB emission ban…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 219 FCC ID : ZTT-SR20000G FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment : High Power Wireless-N 600mW Gigabit Dual Band Repeater Model No. : SR20000G Trade Name : Amped Wireless FCC ID : ZTT-SR20000G ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206135 Cerpass Technology Corp. Issued date : Jun. 26, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 219 FCC ID : ZTT-SR20000G Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .....................................................................…

Text truncated - open the document above for the full version.
