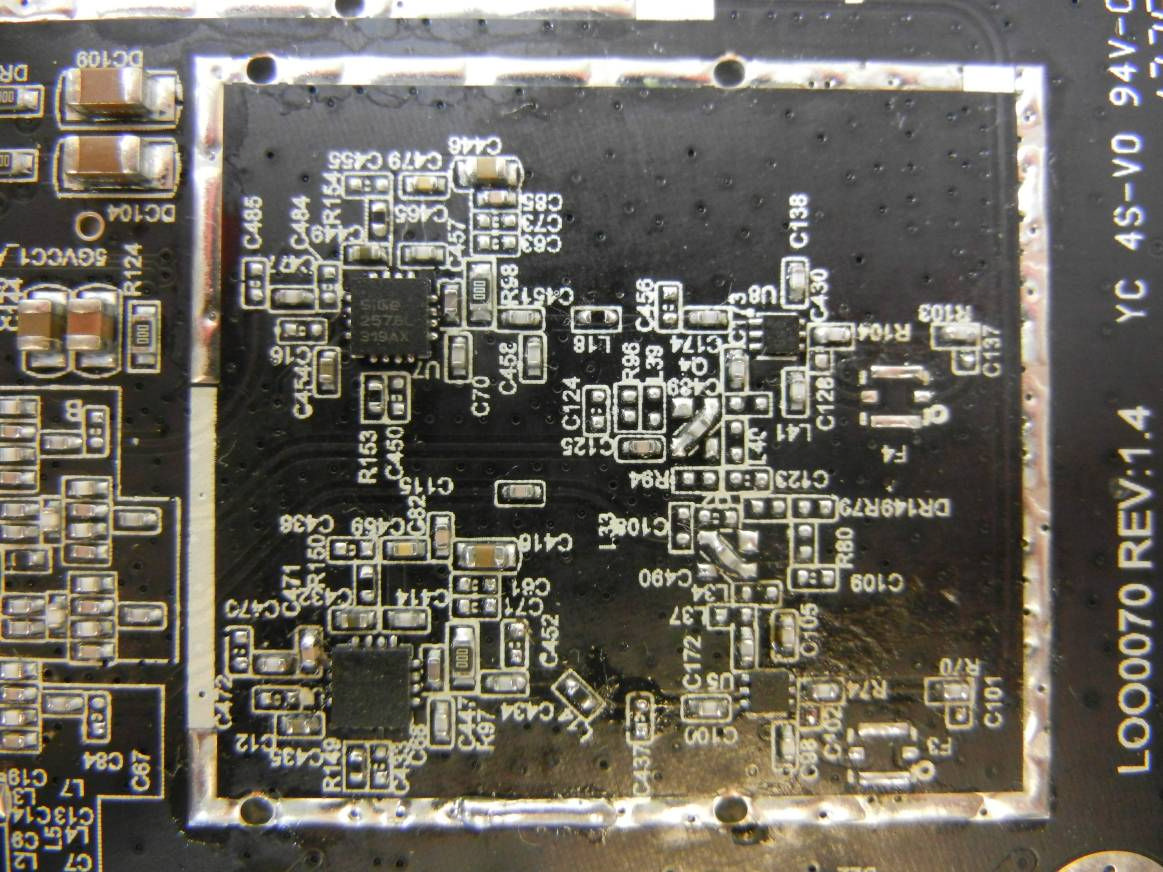

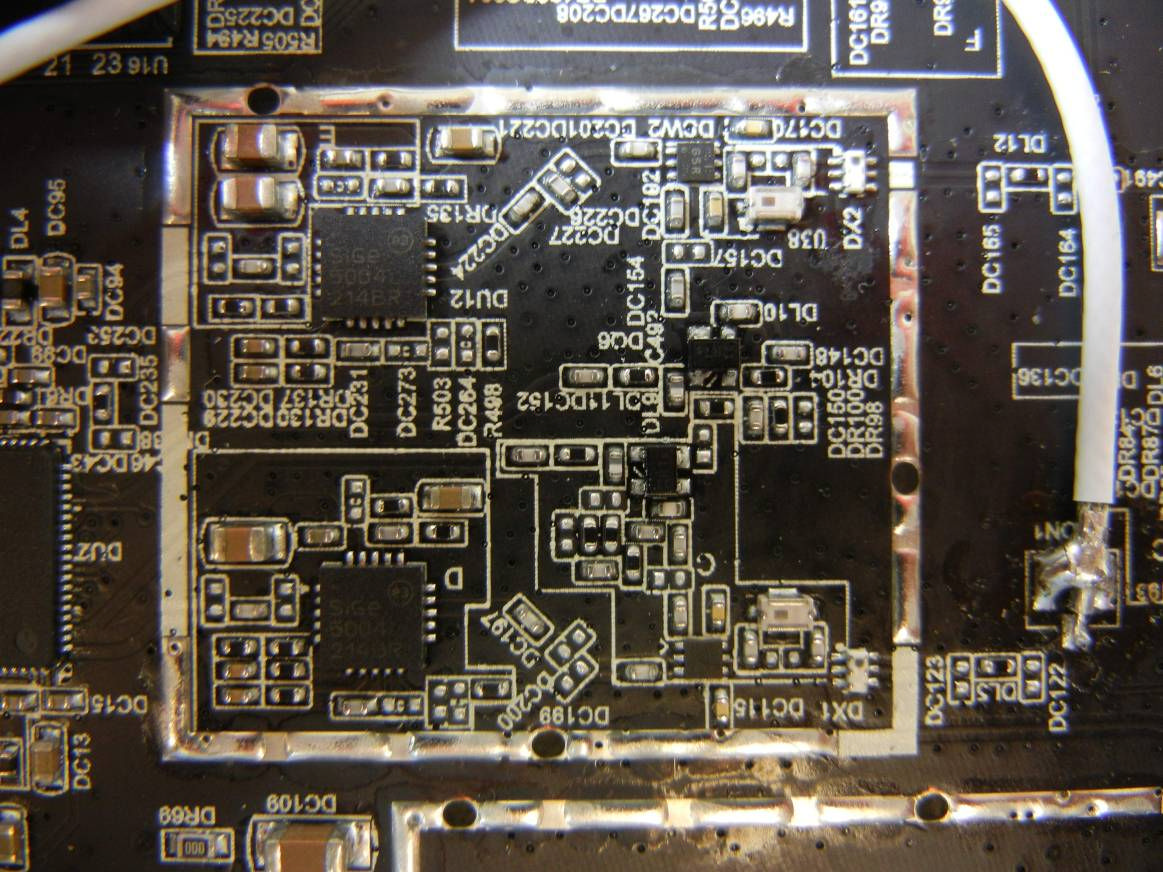

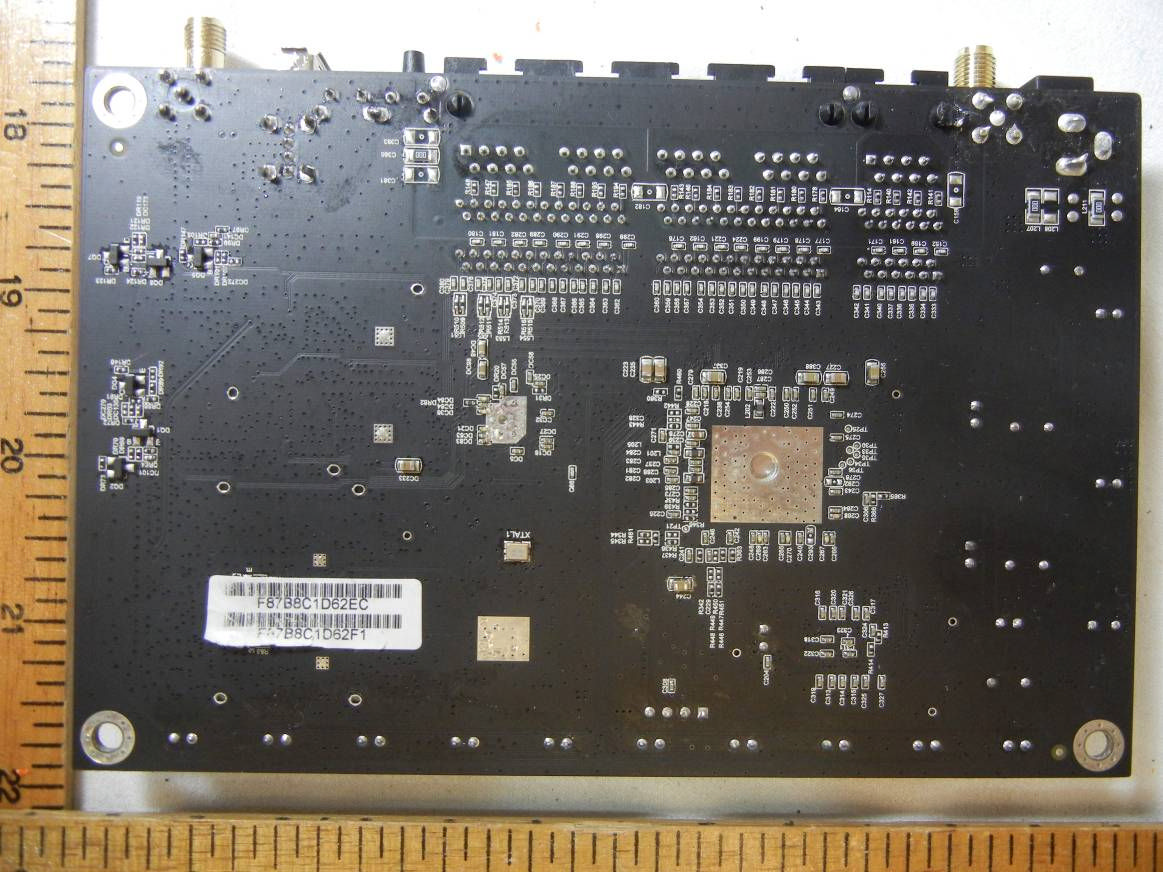

ZTT-SR20000G-2High Power Wireless-N 600mW Gigabit Dual Band Range Extender

SR20000G High Power Wireless-N 600mW Gigabit Dual Band Range Extender User’s Guide Rev 1.1 SR20000G USER’S GUIDE 1 CONTENTS INTRODUCTION ..................................................................... 2 GETTING STARTED ................................................................. 3 LED Indicators............................................................................ 4 Back Panel Description .............................................................. 5 SETUP GUIDE ......................................................................... 6 Welcome to the Dashboard ...................................................... 9 Scan for a Wireless Network ................................................... 10 Connecting to a Secure Network ............................................. 11 Extended Network Settings (SSID and Security) ...................... 12 Connect to the new Extended Network .................................. 14 Setup Summary ....................................................................... 15 5.0GHz WI-FI SETTINGS ........................................................ 18 Home Network Settings (5.0GHz) ........................................... 18 Extended Network Settings (5.0GHz) ..................................... 19 Security (5.0GHz) .................................................................... 21 Wi-Fi Protected Setup – WPS (5.0GHz) ................................... 22 User Access (5.0GHz) .............................................................. 23 Wireless Coverage Controls (5.0GHz) ..................................... 24 Access Schedule (5.0GHz) ....................................................... 25 Advanced Settings (5.0GHz) ................................................... 26 2.4GHz WI-FI SETTINGS ........................................................ 28 Home Network Settings (2.4GHz) ........................................... 28 Extended Network Settings (2.4GHz) ...................................... 29 Wi-Fi Protected Setup – WPS (2.4GHz) ................................... 32 User Access (2.4GHz) .............................................................. 33 Wireless Coverage Controls (2.4GHz)...................................... 34 Access Schedule (2.4GHz) ....................................................... 35 Advanced Settings (2.4GHz) .................................................... 36 USB STORAGE ...................................................................... 38 Local Sharing ........................................................................... 38 NETWORK SETTINGS ............................................................ 42 IP Settings ............................................................................... 42 Wired Port Routing ................................................................. 44 MANAGEMENT FEATURES ................................................... 45 Device Status........................................................................... 46 Network Statistics ................................................................... 48 System Clock ........................................................................... 49 System Logs ............................................................................ 50 Upgrade Firmware .................................................................. 51 Save/Reload Settings .............................................................. 52 TECHNICAL SPECIFICATIONS ................................................. 53 DEFAULT SETTINGS .............................................................. 55 TROUBLESHOOTING AND SUPPORT ..................................... 56 SR20000G USER’S GUIDE 2 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com SR20000G USER’S GUIDE 3 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless-N 600mW Gigabit Dual Band Range Extender  Two Detachable 5dBi High Gain Antennas  Power Adapter (100-240v)  Setup Guide  CD: User’s Guide, Installation Video  Stand for Vertical Mounting SR20000G USER’S GUIDE 4 4 LED Indicators Power: Indicates when the Range Extender is powered on. The LED will remain on. 5.0GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the 5.0GHz wireless network. 2.4GHz Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received over the2.4GHz wireless network. Gigabit Wired Ports 1-5: Indicates when a networking device is connected to a wired port on the back of the Range Extender. The LED blinks rapidly when wired data traffic is transmitted or received. USB Connection: Indicates when a USB storage device is connected to the USB port for local sharing. WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. SR20000G USER’S GUIDE 5 5 Back Panel Description Antenna Connectors (1-2): RJ-SMA antenna connectors. Attach the included high gain dual band antennas to these connectors USB Port: Attach USB storage devices, such as USB flash drives and external hard drives, for file sharing. Reset: Push down once to reboot the Range Extender. Hold down for 5-10 seconds to reset the Range Extender back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Devices: Gigabit RJ-45 ports for connecting to wired computers or network devices. Power: Power adapter port. Output: 12V 1A, Input: 100-240v SR20000G USER’S GUIDE 6 6 SETUP GUID…

Text truncated - open the document above for the full version.

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued Date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A11 FCC ID:ZTT-SR20000G-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued Date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A11 FCC ID:ZTT-SR20000G-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued Date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A11 FCC ID:ZTT-SR20000G-2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued Date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6 of A11 FCC ID:ZTT-SR20000G-2

CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 17, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:1 of 4 FCC ID:ZTT-SR20000G-2 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTHigh Power Wireless-N 600mW Gigabit Dual Band Range Extender Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 27.26 dBm (531.54 mW) 802.11g: 29.26 dBm (843.83 mW) 802.11n (20MHz): 27.31 dBm (537.80 mW) 802.11n (40MHz): 27.34 dBm (542.20 mW) 802.11a: 26.27 dBm (424.00 mW) 802.11an (20MHz): 26.28 dBm (424.43 mW) 802.11an (40MHz): 26.32 dBm (428.60 mW) Antenna gain (Max)802.11b/g/n: 2 dBi ; 802.11a, an: 4 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 29.26 dBm (843.83 mW)at 2462MHz(withnumeric 2.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 17, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:2 of 4 FCC ID:ZTT-SR20000G-2 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 17, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:3 of 4 FCC ID:ZTT-SR20000G-2 Maximum Permissible Exposure ANT R Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246224.322.0200.0851 802.11g2412-246226.392.0200.1371 802.11n (20MHz)2412-246224.382.0200.0861 802.11n (40MHz)2422-245224.432.0200.0871 802.11a5150-52508.064.0200.0031 802.11a5725-585023.374.0200.1091 802.11an (20MHz)5150-52508.114.0200.0031 802.11an (20MHz)5725-585023.294.0200.1071 802.11an (40MHz)5190-52309.094.0200.0041 802.11an (40MHz)5755-579523.354.0200.1081 ANT L Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246224.222.0200.0831 802.11g2412-246226.232.0200.1321 802.11n (20MHz)2412-246224.262.0200.0841 802.11n (40MHz)2422-245224.432.0200.0871 802.11a5150-52507.644.0200.0031 802.11a5725-585023.434.0200.1101 802.11an (20MHz)5150-52507.094.0200.0031 802.11an (20MHz)5725-585023.424.0200.1101 802.11an (40MHz)5190-52308.154.0200.0031 802.11an (40MHz)5755-579523.354.0200.1081 CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 17, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:4 of 4 FCC ID:ZTT-SR20000G-2 ANT R+L Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246227.262.0200.3361 802.11g2412-246229.262.0200.5321 802.11n (20MHz)2412-246227.315.01200.3391 802.11n (40MHz)2422-245227.345.01200.3421 802.11an (20MHz)5150-525010.877.01200.0121 802.11an (20MHz)5725-585026.287.01200.4241 802.11an (40MHz)5150-525010.527.01200.0111 802.11an (40MHz)5725-585026.287.01200.4241 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 93 FCC ID:ZTT-SR20000G-2 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart E Applicant:Amped Wireless Address:13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment: High Power Wireless-N 600mW Gigabit Dual Band Range Extender Model No.:SR20000G FCC ID:ZTT-SR20000G-2 Trade Name :Amped Wireless The test result refers exclusively to the test presented test model / sample., The test result does not include DFS test for 5250 ~ 5350 MHz. Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 93 FCC ID:ZTT-SR20000G-2 CONTENTS 1.Report of Measurements and Examinations..............................................................................................6 1.1.List of Measurements and Examinations ........................................................................................6 2.Test Configuration of Equipment under Test ..............................................................................................7 2.1.Feature of Equipment under Test....................................................................................................7 2.2.Carrier Frequency of Channels .......................................................................................................7 2.3.Test Mode and Test Software..........................................................................................................8 2.4.Description of Test System..............................................................................................................8 2.5.General Information of Test.............................................................................................................9 2.6.Measurement Uncertainty ...............................................................................................................9 3.Antenna Requirements ............................................................................................................................10 3.1.Standard Applicable ......................................................................................................................10 3.2.Antenna Construction and Directional Gain..................................................................................10 4.Test of Conducted Emission .................................................................................................................... 11 4.1.Test Limit ....................................................................................................................................... 11 4.2.Test Procedures ............................................................................................................................ 11 4.3.Typical Test Setup .........................................................................................................................12 4.4.Measurement Equipment ..............................................................................................................12 4.5.Test Result and Data .....................................................................................................................13 4.6.Test Photographs ..........................................................................................................................19 5.Test of Radiated Emission .......................................................................................................................20 5.1.Test Limit .......................................................................................................................................20 5.2.Test Procedures ............................................................................................................................20 5.3.Typical Test Setup .........................................................................................................................21 5.4.Measurement Equipment ..............................................................................................................21 5.5.Test Result and Data (9kHz ~ 30MHz)..........................................................................................22 5.6.Test Result and Data (30MHz ~ 1GHz).........................................................................................22 5.7.Test Result and Data (1GHz ~ 40GHz).........................................................................................34 5.8.Test Photographs (30MHz~1GHz) ................................................................................................52 5.9.Test Photographs (Above 1GHz) ..................................................................................................53 6.Peak Transmit Power ...............................................................................................................................54 6.1.Test Procedure ..............................................................................................................................54 6.2.Test Setup Layout .........................................................................................................................54 6.3.Measurement Equipment ..............................................................................................................54 6.4.Test Result and Data ....................................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:36 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 1:802.11a, CH44Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:37 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH44Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:38 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 1:802.11a, CH48Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:39 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH48Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:40 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 2:802.11an HT20, CH36Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:41 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 2:802.11an HT20, CH36Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:42 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 2:802.11an HT20, CH44Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:43 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 2:802.11an HT20, CH44Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:44 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 2:802.11an HT20, CH48Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:45 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 2:802.11an HT20, CH48Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:46 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 3:802.11an HT40, CH38Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:47 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 3:802.11an HT40, CH38Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:48 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 3:802.11an HT40, CH42Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:49 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 3:802.11an HT40, CH42Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:50 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:VERTICAL Test Mode 3:802.11an HT40, CH46Temperature:26 °C Memo:Humidity:48 % CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:51 of 93 FCC ID:ZTT-SR20000G-2 Power:AC 120VPol/Phase:HORIZONTAL Test Mode 3:802.11an HT40, CH46Temperature:26 °C Memo:Humidity:48 %

CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:54 of 93 FCC ID:ZTT-SR20000G-2 6. Peak Transmit Power 6.1. Test Procedure The antenna port (RF output) of the EUT was connected to the input (RF input) of a power meter. Power was read directly from the meter and cable loss connection was added to the reading to obtain power at the EUT antenna terminal. The EUT Output Power was set to maximum to produce the worse case test result. 6.2. Test Setup Layout 6.3. Measurement Equipment Instrument/Ancillary ManufacturerModel No.Serial No. Calibration Date Valid Date Spectrum Analyzer R&SFSP401000472013/03/152014/03/14 SERIES POWER METER ANRITSUML2495A12240052013/03/212014/03/20 POWER SENSOR ANRITSUMA2411B12072952013/03/212014/03/20 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:55 of 93 FCC ID:ZTT-SR20000G-2 6.4. Test Result and Data Test Date: Aug. 28, 2013 Temperature: 26°C Atmospheric pressure: 1019 hPaHumidity: 45% Modulation Standard: IEEE 802.11a (54Mbps) Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 26dB Occupied Bandwidth (MHz) ANT RANT LANT R+LANT R+LANT RANT L 3651807.577.5610.5811.4222.322.3 4452207.957.5710.7711.9522.022.3 4852408.067.6410.8712.2022.122.0 Modulation Standard: IEEE 802.11an, HT20 (130Mbps) Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 26dB Occupied Bandwidth (MHz) ANT R ANT LANT R+L ANT R+LANT RANT L 3651807.547.0910.3310.7922.822.8 4452207.886.7510.3610.8722.722.7 4852408.116.8210.5211.2822.822.5 Modulation Standard: IEEE 802.11an, HT40 (270Mbps) Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 26dB Occupied Bandwidth (MHz) ANT RANT LANT R+LANT R+LANT RANT L 3851909.098.1511.6614.6439.839.6 4252108.857.9911.4513.9739.839.8 4652308.817.9711.4213.8739.639.8 Limit: Frequency BandLimit 5.15 – 5.25 GHzThe lesser of 50mW(17dBm) or 4dBm + 10logB B is the 26dB emission bandwidth in MHz. CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:56 of 93 FCC ID:ZTT-SR20000G-2 26dB Occupied Bandwidth Modulation Standard: 802.11a (54Mbps), ANT R Channel: 36 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 44 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:57 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 48 Modulation Standard: 802.11an, HT20 (130Mbps), ANT R Channel: 36 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:58 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an, HT20 (130Mbps), ANT R Channel: 44 Modulation Standard: 802.11an, HT20 (130Mbps), ANT R Channel: 48 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:59 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 38 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 42 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:60 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 46 Modulation Standard: 802.11a (54Mbps), ANT L Channel: 36 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:61 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11a (54Mbps), ANT L Channel: 44 Modulation Standard: 802.11a (54Mbps), ANT L Channel: 48 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:62 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an, HT20 (130Mbps), ANT L Channel: 36 Modulation Standard: 802.11an, HT20 (130Mbps), ANT L Channel: 44 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:63 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an, HT20 (130Mbps), ANT L Channel: 48 Modulation Standard: 802.11an HT40 (270Mbps), ANT L Channel: 38 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:64 of 93 FCC ID:ZTT-SR20000G-2 Modulation Standard: 802.11an HT40 (270Mbps), ANT L Channel: 42 Modulation Standard: 802.11an HT40 (270Mbps), ANT L Channel: 46 CERPASS TECHNOLOGY CORP. Report No.: TEFE1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:65 of 93 FCC ID:ZTT-SR20000G-2 7. Peak Power Excursion 7.1. Test Procedure 1. The transmitter output was connected to the spectrum analyzer 2. Using Peak detector and max-hold function for Trace 1. 3. Set RBW of spectrum analyzer to 1 MHz and VBW to 3 MHz for Trace 1. 4. Set RBW of spectrum analyzer to 1 MHz and VBW to 3 MHz for Trace 2, Set detector mode to RMS, trace average 100 traces in power averaging mode. 5. The largest difference between Trace 1 and Trace 2 in any 1 MHz band on any frequency was recorded. 7.2. Test Setup Layout 7.3. Measurement Equipment Instrument/Ancillary ManufacturerModel No.Serial No. Calibration Date Valid Date Spectrum AnalyzerR&SFSP40 1000472013/03/152014/03/14 7.4. Test Result and Data Test Date: Aug. 28, 2013 Temperature: 26°C Atmospheric pressure: 1019 hPaHumidity: 45% Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Limit (dB) ANT RANT L 802.11a (54Mbps) 3651808.728.5813 4452208.708.5413 4852408.758.8213 802.11an HT20 (130Mbps) 3651808.388.2…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:27 of 182 FCC ID:ZTT-SR20000G-2 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:96 of 182 FCC ID:ZTT-SR20000G-2 5.8 Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1308095 Cerpass Technology Corp.Issued date:Sep. 13, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:97 of 182 FCC ID:ZTT-SR20000G-2 5.9 Test Photographs (Above 1GHz) Front View Rear View
