ZTT-SR300ROUTER

SR300 High Power Wireless-300N Smart Repeater User’s Guide SR300 USER’S GUIDE 1 CONTENTS INTRODUCTION ........................................................... 2 GETTING STARTED ....................................................... 3 Package Contents ........................................................... 3 LED Indicators ................................................................. 4 Back Panel Description ................................................... 5 SETUP GUIDE ............................................................... 6 Find a Setup Location ...................................................... 6 Connect to the Smart Repeater ...................................... 6 Open your Web Browser .............................................. 8 Welcome to the Smart Setup Wizard ........................... 9 Scan for a Wireless Network ...................................... 10 Connecting to a Secure Network................................ 11 Repeater Settings (SSID)............................................. 12 Repeater Settings (Security) ....................................... 12 Setup Summary .......................................................... 14 WIRELESS SETTINGS................................................... 16 Home Network Settings ............................................. 16 Extended Network Settings ........................................ 17 Wireless Security ........................................................ 21 Wi-Fi Protected Setup (WPS) ...................................... 20 Advanced Settings ...................................................... 21 SMART FEATURES ......................................................22 Wireless Settings: Access Schedule ............................ 23 User Access Control:................................................... 24 Wireless Coverage Controls: ...................................... 25 IP SETTINGS ...............................................................26 MANAGEMENT FEATURES .........................................28 Management: System Clock ....................................... 29 Management: Upgrade Firmware .............................. 29 Management: Save and Reload Settings .................... 31 Management: Password Settings ............................... 32 TECHNICAL SPECIFICATIONS .......................................33 DEFAULT SETTINGS ....................................................34 TROUBLESHOOTING AND SUPPORT INFORMATION ...35 WARRANTY INFORMATION ........................................44 SR300 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com SR300 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless Smart Repeater  Ethernet Cable  Power Supply  Repeater Stand  CD with User’s Guide  Two High Gain 3dBi Antennas  Setup Guide SR300 USER’S GUIDE 4 LED Indicators WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED blinks as it awaits a connection. Wired Connections: Shows the connection status and data activity of each wired LAN port. Wireless Activity: Blinks rapidly when wireless data traffic is passing through the Smart Repeater. When there is a problem with the Wi-Fi connection this LED will remain off or blink steadily. Power: When lit, the power is on. SR300 USER’S GUIDE 5 Back Panel Description Antenna Connectors: RJ-SMA antenna connectors. Compatible with all antennas with RP-SMA connectors. Upgradable to high gain antennas for more range. Reset: Push down once to reboot the Smart Repeater. Hold down for 5-10 seconds to reset the device back to factory settings. WPS: Hold down for 3 seconds to enable WPS push button configuration. Wired Connections: RJ-45 ports for connecting to wired computers or network devices. Supports up to 5 connections. Power: Power adapter port. DC 12V 1A. SR300 USER’S GUIDE 6 SETUP GUIDE Find a Setup Location The location of where you install the Smart Repeater is very important to how it will function. The optimal setup location should be halfway between your wireless router and your wireless dead zone. SR300 USER’S GUIDE 7 Connect your PC to the Smart Repeater a. Connect the power adapter to the power port on the back of the Smart Repeater b. Connect the two included high gain antennas by screwing them into the antenna connectors c. Use the included Ethernet cable to connect one end into any LAN port on the Smart Repeater and use the other end to connect to the network port on your laptop or desktop computer. Do NOT attempt to connect to the Smart Repeater with a wireless connection at this time. SR300 USER’S GUIDE 8 Open your Web Browser to Access the Setup Wizard a. Open your web browser b. Type in: http://setup.ampedwireless.com into the web address bar c. If the web menu fails to open type in the following IP address into your web address bar: http://192.168.1.240 SR300 USER’S GUIDE 9 Welcome to the Smart Setup Wizard When the web menu appears, click Next to continue to the next page. The diagram on this page displays the terms used to describe: 1) The network you are trying to repeat (Home Network) 2) The network that is rebroadcasted and extended (Extended Network) Study this diagram carefully as the terms used in the following instructions will refer to these names. SR300 USER’S GUIDE 10 Scan for a Wireless Network Click SCAN to begin searching for available wireless networks to repeat. Highlight your network and click Next to continue. If you fail to find a…

Text truncated - open the document above for the full version.

Request for Confidentiality Applicant Name: Amped Wireless. Address: 13089 Peyton Dr. #C307 Chino Hills, CA91709 To: Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: ZTT-SP300 Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Long term ‹ Block diagram ‹ Schematics Diagram ‹ Operational description We are aware that the documents that we are asking to be made confidential have been available to the public since they were certified. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jason Owen

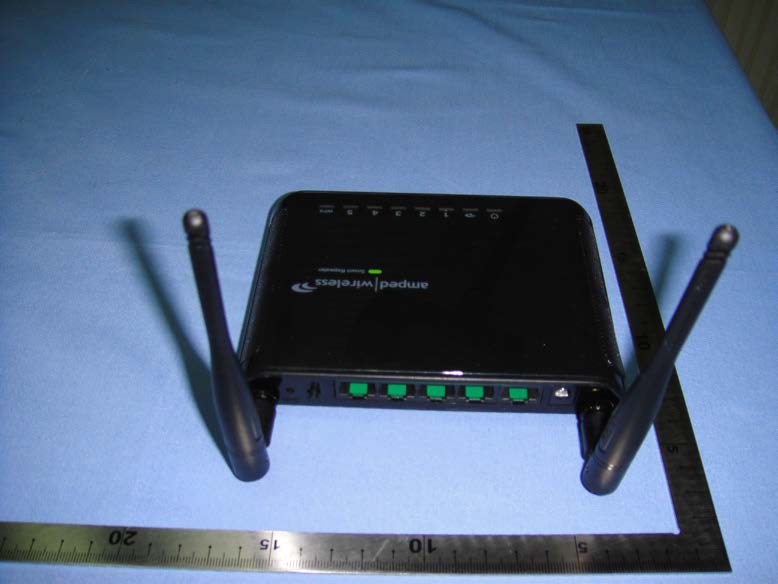

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 1 of 1 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Sample of FCC Label Model:AP300 FCC ID:ZTT-AP300 Model:SR300 FCC ID:ZTT-SR300 IC:10233A-SR300 Model: SR300 FCC ID: ZTT-SR300 IC:10233A-SR300

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 1 of 5 TOP INSIDE TOP INSIDE Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 2 of 5 PCB Main Board PCB Main Board Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 3 of 5 RJ45 Cable Antenna Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 4 of 5 Adapter Adapter Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 5 of 5 Case Case

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.: CANA12021309-01 IC: 10233A-SR300 Page:1 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT Product Name: Router Model Number: SR300 Applicant: Amped Wireless 13089 Peyton Dr. #C307 Chino Hills, CA91709 Date of Receipt: Feb. 13, 2012 Finished date of Test: Mar. 01, 2012 Applicable Standards: RSS-GEN RSS-210 RSS-102 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Te s ted By: , Date: Approved By: (Jeff Lo) Date: (Johnson Ho, Director) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.: CANA12021309-01 IC: 10233A-SR300 Page:2 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT RF POWER EXPOSURE EVALUATION TEST 1 LIMIT According to the requirement of IC Safety Code 6, Section 2.2.1 (a) Table 5. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.: CANA12021309-01 IC: 10233A-SR300 Page:3 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT 1.2 TEST PROCEDURE 1. The EUT was operating in transmitter mode and could be controlled its channel. The power instrument read power value. 2. The EUT uses a chip antenna and the antenna gain is 0dBi declared by manufacturer. 3. As discussed in FCC OET Bulletin 65, calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a non-directional antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations (1) or (2) below [for conversion to electric or magnetic field strength see Equation (3) above]. These equations are generally accurate in the far-field of an antenna but will over-predict power density in the near field, where it could be used for making a" worst case" or conservative prediction. S=PG/4πR² (Eq.1) S=connect power/4πR² (Eq. 2) S=E²/3770=37.7H² (Eq. 3) where: S = power density (mW/cm 2 ) E = electric field strength (V/m) H = magnetic field strength (A/m) S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator (dBi) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) where: connect power = equivalent (or effective) isotropically radiated power. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.: CANA12021309-01 IC: 10233A-SR300 Page:4 of 4 Date: Mar. 07, 2012 FMNG-059.10 REPORT 1.3 CONNECT POWER AT THE ANTENNA CONNECTOR RESULT Temperature: 24°C Humidity: 52%RH Spectrum Detector: PK. Tested Mode: 802.11b/g/n Tested By: Jeff Lo Modulation Type: QPSK Tested Date: Feb. 06, 2012 CHANNEL NUMBER 802.11b CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 1 2412 20 2 22.24 0.265 0.527 10 6 2437 20 2 23.33 0.341 0.678 10 11 2462 20 2 21.17 0.207 0.412 10 CHANNEL NUMBER 802.11g CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 1 2412 20 2 22.18 0.261 0.519 10 6 2437 20 2 22.30 0.269 0.535 10 11 2462 20 2 23.17 0.328 0.653 10 CHANNEL NUMBER 802.11n CHANNEL FREQUENCY (MHz) MPE Distance (cm) Antenna Gain (dBi) PEAK POWER OUTPUT Calculated RF Exposure (W/m²) LIMIT (W/m²) dBm W 5 2422 20 2 23.42 0.348 0.692 10 8 2437 20 2 23.46 0.351 0.698 10 11 2452 20 2 23.89 0.388 0.772 10 NOTE 1: The values of PEAK POWER OUT same as 4.4 test results.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.:FCCA12021309-01 FCC ID: ZTT-SR300 Page:1 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT Product Name: Router Model No.: SR300 Applicant: Amped Wireless 13089 Peyton Dr. #C307 Chino Hills, CA91709 Date of Receipt: Feb. 13, 2012 Finished date of Test: Mar. 01, 2012 Applicable Standards: 47 CFR Part 15, Subpart C ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Jeff Lo) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.:FCCA12021309-01 FCC ID: ZTT-SR300 Page:2 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................. 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION.......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................. 6 2.5 EUT OPERATING CONDITION.......................................................................... 7 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 7 3.1 SUMMARY OF TEST RESULTS ..................................................................... 8 4 . TECHNICAL CHARACTERISTICS TEST .......................................................... 9 4.1 CONDUCTED EMISSION TEST ........................................................................ 9 4.1.1 LIMIT ............................................................................................................... 9 4.1.2 TEST EQUIPMENT ......................................................................................... 9 4.1.3 TEST SETUP................................................................................................. 10 4.1.4 TEST PROCEDURE...................................................................................... 10 4.1.5 TEST RESULT............................................................................................... 11 4.2 RADIATED EMISSION TEST ......................................................................... 20 4.2.1 LIMIT ............................................................................................................. 20 4.2.2 TEST EQUIPMENT ....................................................................................... 21 4.2.3 TEST SET-UP................................................................................................ 22 4.2.4 TEST PROCEDURE...................................................................................... 24 4.2.5 TEST RESULT............................................................................................... 25 4.3 BANDWIDTH TEST ........................................................................................ 43 4.3.1 LIMIT ............................................................................................................. 43 4.3.2 TEST EQUIPMENT ....................................................................................... 43 4.3.3 TEST SET-UP................................................................................................ 43 4.3.4 TEST PROCEDURE...................................................................................... 43 4.3.5 EUT OPERATING CONDITION..................................................................... 43 4.3.6 TEST RESULT............................................................................................... 44 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12021309-01 Report No.:FCCA12021309-01 FCC ID: ZTT-SR300 Page:3 of 81 Date: Mar. 05, 2012 FMNG-059.10 REPORT 4.4 PEAK POWER TEST ....................................................................................... 50 4.4.1 LIMIT ............................................................................................................. 50 4.4.2 TEST EQUIPMENT ....................................................................................... 50 4.4.3 TEST SET-UP................................................................................................ 50 4.4.4 TEST PROCEDURE...................................................................................... 50 4.4.5 EUT OPERATING CONDITION..................................................................... 50 4.4.6 TEST RESULT............................................................................................... 51 4.5 BAND EDGE TEST .......................................................................................... 57 4.5.1 LIMIT ...........................................................................................................…
