ZTT-TAN1High Power Wi-Fi Adapter for Windows 8

— R E A D F I R S T — SETUP GUIDE Need Help? Give us a call. Phone: 888-573-8820 Email: [email protected] Web: www.ampedwireless.com/support ? TAN1 High Power Wi-Fi Adapter for Windows 8 Attach the Adapter to your Windows 8 PC, Tablet or Ultrabook 1 Connect to a Wi-Fi Network 2 Disconnect your original Wi-Fi adapter from any Wi-Fi networks 3 Optional: Disable the Embedded Wi-Fi Adapter (Wi-Fi 1) 4 Amped_Network Network 1 Network 2 Network 3 Wi-Fi 2 Amped Wirelss Wi-Fi Adapter Wi-Fi Original Wi-Fi Adapter Network 1 Amped_Network Amped_Network a Power on your Windows 8 PC. Connect the Micro USB side of the USB cable to the Wi-Fi Adapter. Use the tablet/monitor clip and fasten the Adapter to your screen. Connect the other end to an available USB Port on your PC. b d c a Windows 8 will automatically install the software needed to operate the Wi-Fi adapter. Go to "Settings" and access "Available Networks" Your new Wi-Fi adapter should show up under the Networks tab as "Wi-Fi 2". Your original, embedded Wi-Fi adapter is listed as "Wi-Fi". Choose any network under "Wi-Fi 2" to connect to and enter the security key if prompted. b c a Go to the Windows 8 desktop and find the Wi-Fi icon. Right click on the Wi-Fi icon in the taskbar and select "Open Network and Sharing Center". b Find your Wi-Fi icon (Not Wi-Fi 2), right-click it and "Disable" from the dropdown menu. d To re-enable your original Wi-Fi adapter, follow the same steps above and click "Enable" at Step D instead of "Disable". e Select "Change Adapter Settings" from left side. c If your PC is connected to a Wi-Fi network using the original embedded Wi-Fi adapter, you will need to disconnect it. In the Networks tab, disconnect from any networks listed under the embedded Wi-Fi adapter ("Wi-Fi", not "Wi-Fi 2"). Wi-Fi Protected Setup (One-Touch Setup or Push Button Configuration) If your Wi-Fi network (router) supports WPS one-touch setup you can use the WPS button on the Adapter to connect to your network. Initiate WPS setup by pressing the WPS button on your router for 3 seconds. The WPS LED should begin to blink. As it blinks, push the WPS button on the TAN1 Wi-Fi Adapter. WPS will automatically configure the connection settings for the TAN1 to connect to your Wi-Fi network. A. B. a b a b Activity LED WPS Button BACK VIEW Indicators and Buttons Disabling Wi-Fi 1 will stop it from showing up in your Wi-Fi available network list. This is not permanent. You can re-enable it by following Step E below. Amped Wireless A Division of Newo Corporation Copyright © 2013 Amped Wireless / Newo Corporation. All rights reserved. Amped Wireless, Newo Corporation, the Amped Wireless Logo are registered trademarks or trademarks of Newo Corporation. Warranty Information Regulatory Information The Amped Wireless (A division of Newo Corporation, Inc.) Limited Warranty Warranty Period: The Amped Wireless Limited Warranty is for one (1) year from the date of purchase for new products. Refurbished products carry the Limited Warranty for thirty (30) days after the date of purchase. Guarantee: Amped Wireless warrants to the original purchaser that the hardware of this Amped Wireless product shall be free of defects in design, assembly, material, or workmanship. Conditions: The Amped Wireless Limited Warranty is for repair or replacement only at the sole discretion of Amped Wireless. Amped Wireless does not issue any refunds for purchased product. In the event that Amped Wireless is unable to repair or replace a product (i.e. discontinued product), Amped Wireless will offer a credit toward the purchase of a similar product of equal or lesser value direct from Amped Wireless. Any repaired or replacement products will be warranted for the remainder of the original Warranty Period or thirty (30) days, whichever is longer. Amped Wireless reserves the right to discontinue any of its products without notice, and disclaims any limited warranty to repair or replace any such discontinued product. Amped Wireless reserves the right to revise or make changes to this product, its documentation, packaging, specifications, hardware, and software without notice. If any portion of the Amped Wireless Limited Warranty is found to be unenforceable, its remaining provisions shall remain in effect. All costs of shipping the product to Amped Wireless shall be borne solely by the purchaser. Limitations: IN NO EVENT SHALL AMPED WIRELESS’ (NEWO CORPORATION’S) LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, ACCESSORIES OR ITS DOCUMENTATION. The Amped Wireless Limited Warranty does not apply if: (a) the product assembly has been opened or damaged, (b) the product or its software or firmware has been altered or modified, (c) the product has not been used and installed in accordance to Amped Wireless’ instructions, (d) the product has been subjected to misuse, or negligence. Amped Wireless does not guarantee the continued availability of a third party’s service for which this product’s use or operation may require. The Amped Wireless Limited Warranty does not protect against acts of God, vandalism, theft, normal wear and tear, obsolescence and environmental damages such as, but not limited to, weather and electrical disturbances. The Amped Wireless Limited Warranty is the sole warranty for this product. There are no other warran- ties, expressed or, except required by law, implied, including the implied warranty or condition of quality, performance merchantability, or fitness for any particular purpose. How to Claim Warranty: In the event that you have a problem with this product, please go to www.ampedwireless.com/support to find help on solving your problem. In the event that you cannot and need to file a warranty claim, please call Amped Wireless’ Customer Service or visit www.ampedwirleess.com/support to fill out a Return Authorization (RM…

Text truncated - open the document above for the full version.

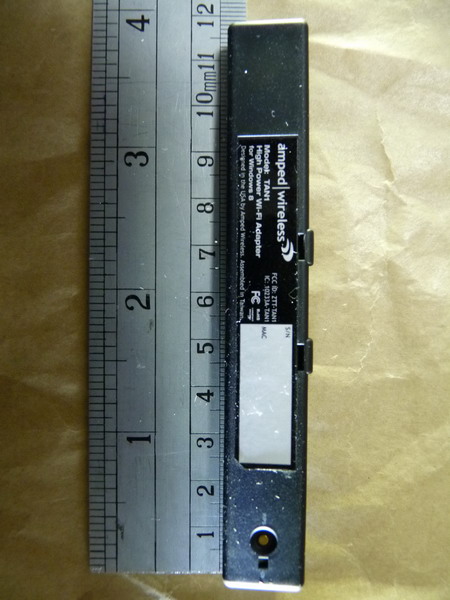

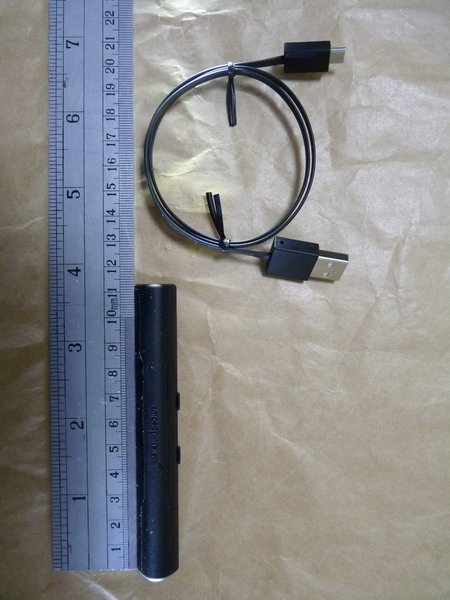

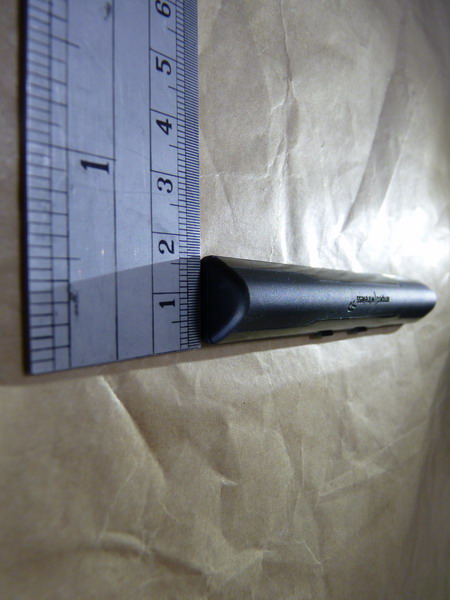

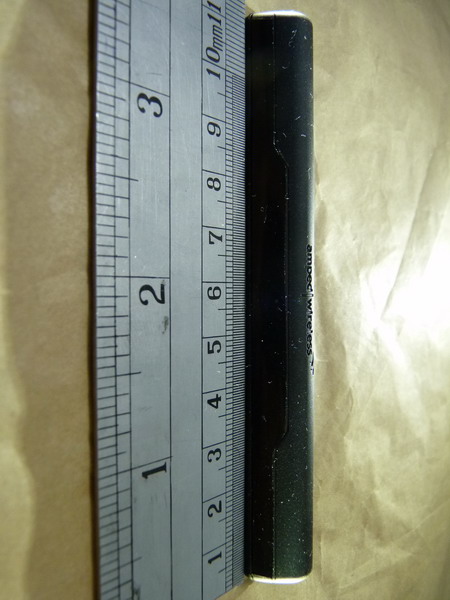

Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 16 External Photos Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 16

Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 16 Internal Photos Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 16 Registration number: W6M21305-13196-FCC FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 16

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 802.11b/g/n(20MHz): 26.08 (dBm) 802.11n(40MHz): 23.20 (dBm) Maximum peak output power at antenna input terminal: 802.11b/g/n(20MHz): 405.5085(mW) 802.11n(40MHz): 208.9296(mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 802.11b/g/n(20MHz) 2462 (MHz) 802.11n(40MHz) 2452 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 802.11b/g/n(20MHz): 0.1279(mW/cm²) 802.11n(40MHz): 0.0659(mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: Amped Wireless Address: 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21305-13196-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for High Power Wi-Fi Adapter for Windows 8 Model No.: TAN1 FCC ID: ZTT-TAN1 Registration number: W6M21305-13196-C-1 FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 55 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 19 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 19 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 20 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 21 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 31 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 36 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 43 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 50 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 51 APPENDIX.............................................................................................................................. 55 Registration number: W6M21305-13196-C-1 FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 55 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: May 29, 2013 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 29, 2013 Danny Sung Date WTS Name Signature Registration number: W6M21305-13196-C-1 FCC ID: ZTT-TAN1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 55 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Vill…
