ZTT-TAPEXHigh Power Touch Screen Wi-Fi Range Extender

User’s Guide TAP-EX HIGHPOWER TM TOUCH SCREEN WI-FI ® RANGE EXTENDER TAP-EX USER’S GUIDE 1 CONTENTS INTRODUCTION ..................................................................... 3 GETTING STARTED ................................................................. 4 Package Contents ...................................................................... 4 Product Description ................................................................... 5 SETUP GUIDE (TOUCH) ........................................................... 6 Find a Setup Location ................................................................ 6 Navigating the Touch Screen Menu .......................................... 8 Welcome to the Dashboard ...................................................... 9 Select a Home Network to Extend........................................... 10 Connecting to a Secure Network ............................................. 11 Extended Network Settings ..................................................... 12 Setup Summary ....................................................................... 14 MORE SETTINGS (TOUCH) .................................................... 16 Home Network Settings .......................................................... 17 Extended Network Settings ..................................................... 18 Guest Networks. ...................................................................... 19 Connected Devices .................................................................. 20 Wi-Fi Coverage Controls .......................................................... 21 Access Schedule ...................................................................... 22 User Access ............................................................................. 24 MANAGEMENT SETTINGS (TOUCH) ...................................... 25 Screen Settings ........................................................................ 25 Clock / Date ............................................................................. 26 System Details ......................................................................... 27 Statistics ................................................................................... 29 USB Storage ............................................................................. 30 System Logs ............................................................................. 34 Upgrade Firmware ................................................................... 35 ACCESSING THE WEB MENU ................................................. 36 SETUP GUIDE (WEB MENU) .................................................. 37 Find a Setup Location ............................................................... 37 Connect your PC or Tablet to the Range Extender ................... 38 Open your Web Browser to Access the Setup Wizard ............. 39 Welcome to the Dashboard ..................................................... 40 Scan for a Home Network to Extend ........................................ 41 Connecting to a Secure Network ............................................. 42 Extended Network Settings ..................................................... 43 Setup Summary ........................................................................ 46 TAP-EX USER’S GUIDE 2 WI-FI SETTINGS (WEB MENU) .............................................. 48 Home Network Settings .......................................................... 48 Extended Network Settings ..................................................... 49 Security ................................................................................... 51 User Access ............................................................................. 53 Wi-Fi Coverage Controls ......................................................... 54 Access Schedule ...................................................................... 55 Advanced Settings .................................................................. 56 NETWORK SETTINGS (WEB MENU)....................................... 58 USB STORAGE (WEB MENU) ................................................ 60 MANAGEMENT FEATURES (WEB MENU) .............................. 64 Device Status ........................................................................... 65 Statistics ................................................................................... 67 System Clock ............................................................................ 68 System Logs ............................................................................. 69 Upgrade Firmware ................................................................... 70 Save and Reload Settings ......................................................... 72 Password Settings .................................................................... 73 TECHNICAL SPECIFICATIONS ................................................. 74 DEFAULT SETTINGS .............................................................. 75 TROUBLESHOOTING AND SUPPORT INFORMATION .............. 76 WARRANTY AND REGULATORY INFORMATION .................... 92 TAP-EX USER’S GUIDE 3 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com TAP-EX USER’S GUIDE 4 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Touch Screen Wi-Fi Range Extender  Detachable High Gain Antenna  Stylus  Setup Guide  CD: User’s Manual & Installation Video  Product Stand  Power Adapter TAP-EX USER’S GUIDE 5 Product Des…

Text truncated - open the document above for the full version.

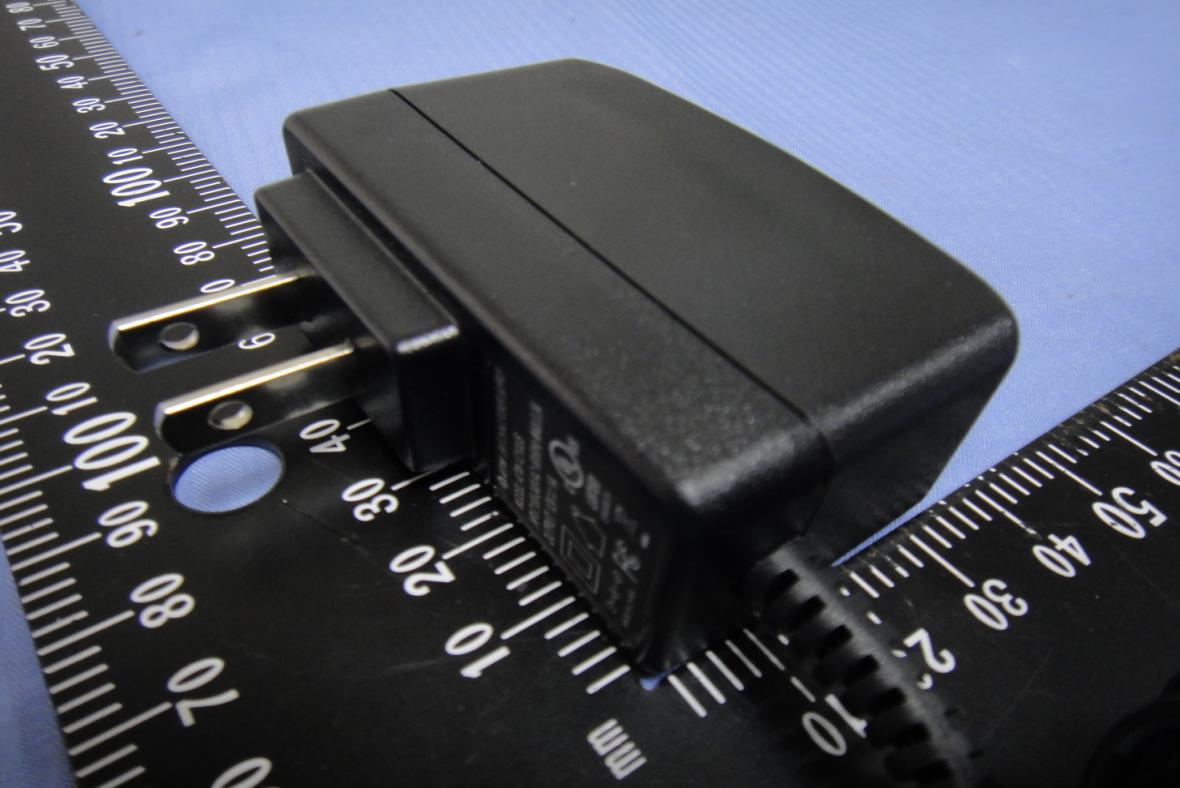

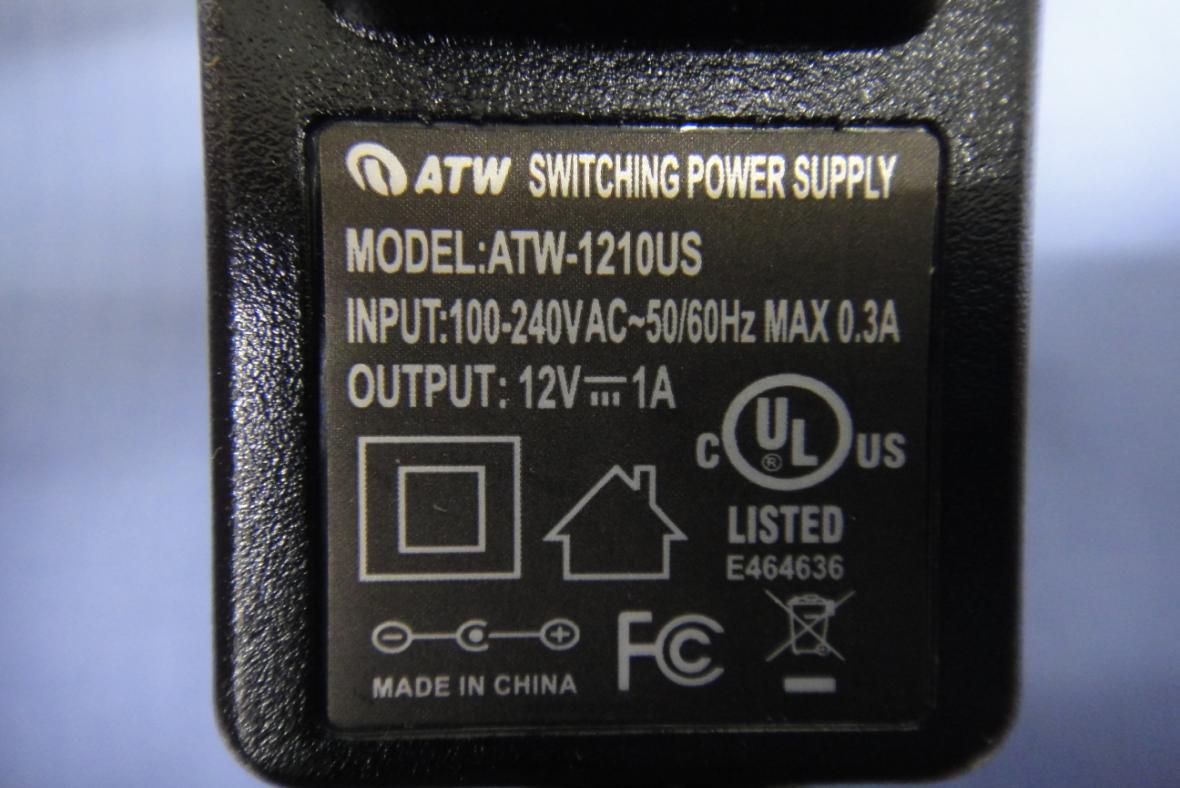

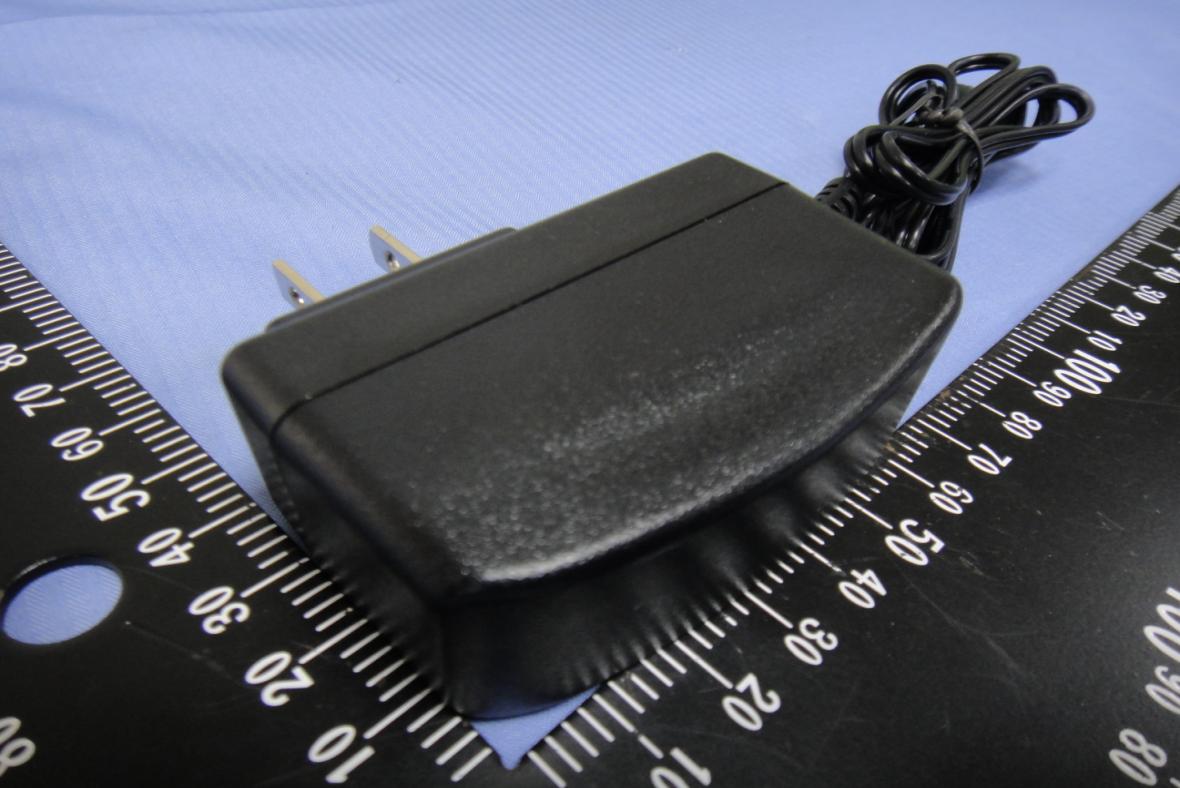

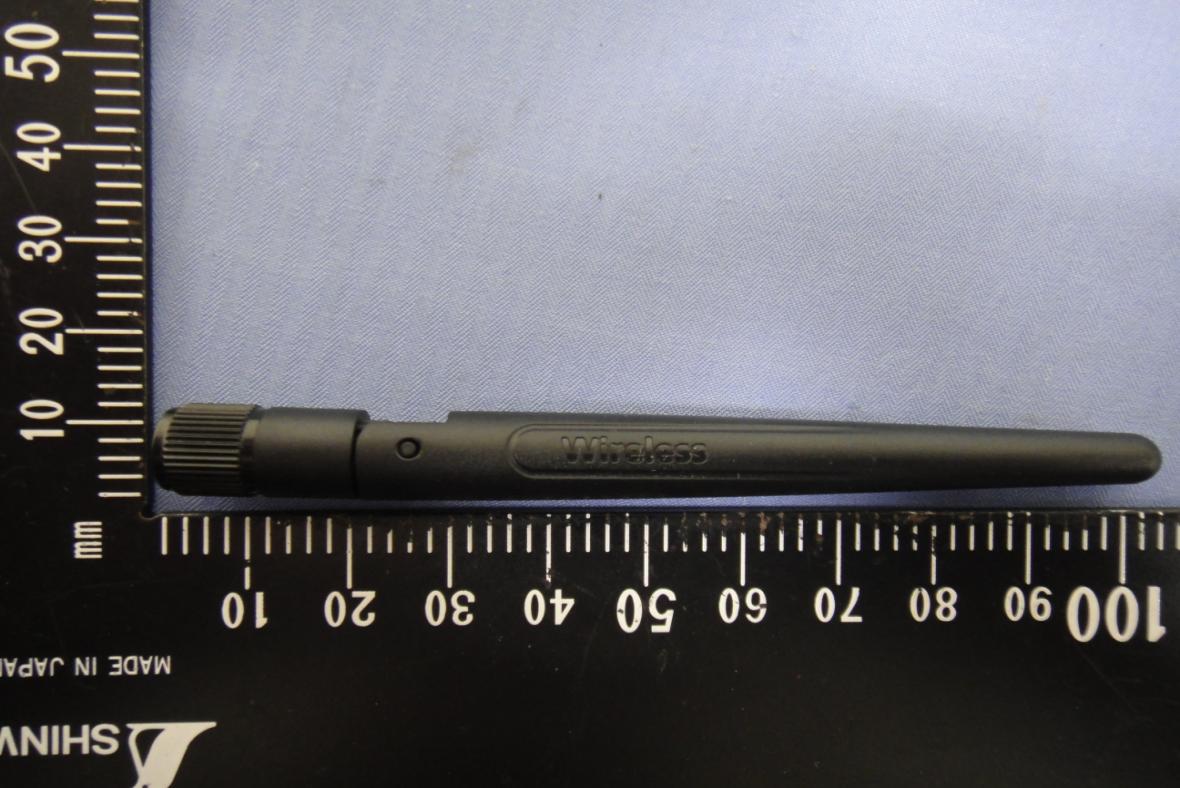

Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 1 / 9 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 4 Rev. 00 Adapter： Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 5 Rev. 00 Dipole Antenna

Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 7 Rev. 00 Multilayer Chip Antenna Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 8 Rev. 00 Module Compliance Certification Services Inc. Reference No.: T140916J02-RP Report No.: T141031J02-RP-1 Date of Issue: November 13, 2014 A1 - 9 Rev. 00

Compliance Certification Services Inc. Reference No.: T140916J02-MF Report No.: T141031J02-MF-1 Date of Issue: November 13, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT High Power Touch Screen Wi-Fi Range Extender Model TAP-EX RF Module Realtek Model: RTL8192ER Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :2.50 dBi (Numeric gain:1.78) Maximum Average output power IEEE 802.11b Mode: 25.49 dBm(353.997 mW) IEEE 802.11g Mode: 18.32 dBm(67.920 mW) IEEE 802.11n HT 20 Mode: 20.37 dBm(108.893 mW) IEEE 802.11n HT 40 Mode: 19.90 dBm(97.724 mW) Maximum Tune up Power IEEE 802.11b Mode: 27.00 dBm(501.187 mW) IEEE 802.11g Mode: 19.00 dBm(79.433 mW) IEEE 802.11n HT 20 Mode: 21.00 dBm(125.893 mW) IEEE 802.11n HT 40 Mode: 21.00 dBm(125.893 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Reference No.: T140916J02-MF Report No.: T141031J02-MF-1 Date of Issue: November 13, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/11/13 Initial Issue ALL Becca Chen Compliance Certification Services Inc. Reference No.: T140916J02-MF Report No.: T141031J02-MF-1 Date of Issue: November 13, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Reference No.: T140916J02-MF Report No.: T141031J02-MF-1 Date of Issue: November 13, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 12412501.1872.5200.24931 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241279.4332.5200.03951 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 12412125.8932.5200.06261 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 32422125.8932.5200.06261

Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Power Touch Screen Wi-Fi Range Extender Model: TAP-EX Trade Name: Amped Wireless Issued to Amped Wireless 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: November 13, 2014 Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 13, 2014 Initial Issue ALL Becca Chen Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ................................................................................................................. 6 3.2 EUT EXERCISE ............................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES .................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................................... 7 3.5 DESCRIPTION OF TEST MODES ................................................................................................. 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................................ 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ................................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................................. 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ............................................................................................ 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ....................................................................................................................... 14 7.2 PEAK POWER ............................................................................................................................... 34 7.3 AVERAGE POWER ...................................................................................................................... 36 7.4 BAND EDGES MEASUREMENT ................................................................................................ 38 7.5 PEAK POWER SPECTRAL DENSITY ........................................................................................ 68 7.6 SPURIOUS EMISSIONS ............................................................................................................... 88 7.7 RADIATED EMISSIONS ............................................................................................................ 107 7.8 POWERLINE CONDUCTED EMISSIONS ................................................................................ 124 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 127 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Amped Wireless 13089 Peyton Dr. #C307 Chino Hills California 91709 United States Equipment Under Test: High Power Touch Screen Wi-Fi Range Extender Trade Name: Amped Wireless Model Number: TAP-EX Date of Test: October 30 ~ October 31, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 127 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 128 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Reference No.: T140916J02-RP FCC ID: ZTT-TAPEX Report No.: T141031J02-RP-1 Page 129 Rev. 00 Powerline Conducted Emissions Setup Photos
