ZTT-UA1000High Power Wireless-N 500mW Directional USB Adapter

UA1000 High Power Wireless-N 500mW Directional USB Adapter User’s Guide UA1000 USER’S GUIDE 1 CONTENTS INTRODUCTION ............................................................................................................................... 2 GETTING STARTED ........................................................................................................................... 3 Package Contents ......................................................................................................................... 3 Connectors and LED Indicators .................................................................................................... 4 SETUP GUIDE ................................................................................................................................... 5 Windows 7 and Vista Installation ................................................................................................ 5 Windows XP and 2000 Installation ............................................................................................ 13 Using the Amped Wireless Utility (Windows) ....................................................................... 22 Mac OS X Installation ................................................................................................................. 26 Using the Amped Wireless Utility (Mac) ............................................................................... 39 TECHNICAL SPECIFICATIONS ......................................................................................................... 42 TROUBLESHOOTING AND SUPPORT INFORMATION ................................................................... 43 WARRANTY AND REGULATORY INFORMATION .......................................................................... 52 UA1000 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com UA1000 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless-N 500mW Directional USB Adapter  Dual USB 2.0 Cable  Setup CD (Driver, Software and User’s Guide)  Setup Guide UA1000 USER’S GUIDE 4 Connectors and LED Indicators Mini USB: The included Dual USB 2.0 cable attaches to the Mini USB connector on the Adapter. The other end connects to USB ports on your PC. Do not attach the cable until after you have installed the software. Activity LED: Blinks rapidly when wireless data traffic is passing through the High Power Adapter. WPS Button: The Wi-Fi Protected Setup Button enables one touch setup of the High Power Adapter with compatible wireless routers. UA1000 USER’S GUIDE 5 SETUP GUIDE Windows 7 and Vista Installation a) Power on your PC and Insert the CD. Locate the Setup CD and insert it into your CD drive. UA1000 USER’S GUIDE 6 b) When the Menu page appears click on Install software to begin the installation process. If the Menu page does not appear, select Run Autoload.exe if prompted or browse your CD drive and double-click the Autoload.exe file. c) If prompted, click Yes to allow the program to make changes and continue with the installation. UA1000 USER’S GUIDE 7 d) Continue with the Installation Click Next to proceed with the installation. e) Continue with the Installation UA1000 USER’S GUIDE 8 f) Restart your Computer A prompt will appear asking you to restart your computer. Select Yes and click Finish to restart your computer. Be sure to save any unsaved work before clicking Finish to avoid losing any unsaved data. g) Plug in the High Power USB Adapter After the computer has fully rebooted, locate two available USB ports and insert the USB Adapter. Windows should automatically begin installing the driver for use with the USB Adapter. If only one USB port is available, insert the USB connector labeled Primary. UA1000 USER’S GUIDE 9 h) Open the Amped Wireless Utility Locate the Amped Wireless Utility icon on the windows desktop and double-click it to open. i) Connect to a Wireless Network With the Utility open, click on the Available Networks tab to begin scanning for available wireless networks. Note: Before continuing, make sure the following checkboxes on the bottom of the Utility are NOT checked: Disable Adapter, Radio Off and Windows Zero Config. UA1000 USER’S GUIDE 10 j) Connect to a Wireless Network Click Refresh to rescan for networks. Once the Utility has finished scanning for wireless networks, highlight your network and double-click it to join the network. k) Connect to a Wireless Network If the network you are attempting to connect to is secured, you will need to enter the security key here. Under Network Key, enter the key and then confirm the key again and click OK. UA1000 USER’S GUIDE 11 l) Connect to a Wireless Network Congratulations, you are now successfully connected to your wireless network. The General tab will show your connection status and connection quality. On the bottom right corner of your desktop the Utility will also display your link quality so you can easily view it at any time. UA1000 USER’S GUIDE 12 m) Position the Directional Antenna To optimize the performance of your High Power USB Adapter, position the antenna towards the source of your wireless network. Check the signal strength of your wireless connection as you adjust the direction of the antenna to find the optimal location with the best signal strength. UA1000 USER’S GUIDE 13 Windows XP and 2000 Installation a) Power on your PC and Insert the CD. Locate the Setup CD and insert it into your CD drive. UA1000 USER’S GUIDE 14 b) When …

Text truncated - open the document above for the full version.

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A. Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:Jul. 26, 2012 FCC ID: ZTT-UA1000 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely,

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A . PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 29.07.2012 Authority to Act as an Agent We declare that the following representative (agent) Name Clio Hu Position Specialist Company Name Cerpass Technology Corporation Address 2F-11, No.3, YuanQu St.,NanKang Dis., Taipei City, Taiwan, R.O.C. Tel / Fax +886-2-2655-8100/ +886-2-2655-8200 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name High Power Wireless-N 500mW Directional USB Adapter Model Name UA1000 Brand Name Amped Wireless Yours sincerely, Signatory Name Jason Owen Position CEO Company Name Amped Wireless Address 13089 Peyton Dr. #C307 Chino Hills CA 91709 Tel 909-217-3229 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Amped Wireless 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Amped Wireless FCC ID: ZTT-UA1000 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Jason Owen Position CEO Company Name Amped Wireless Address 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States Tel 9092173229 E-Mail [email protected]

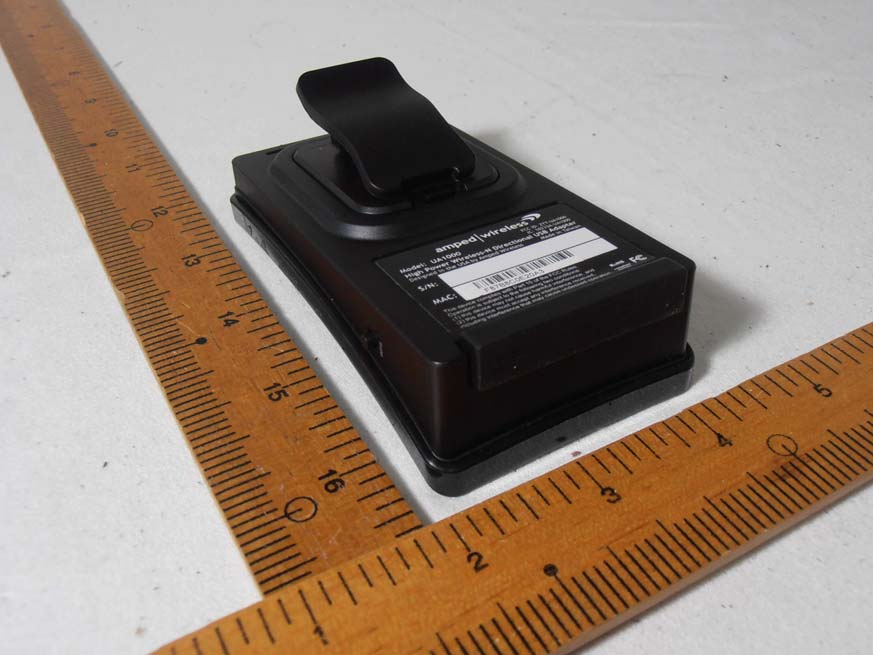

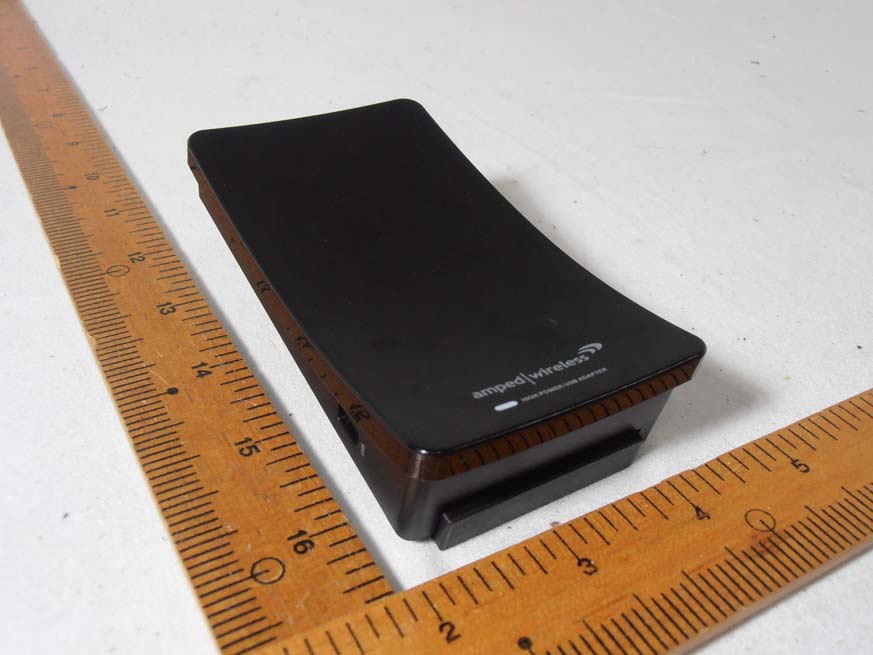

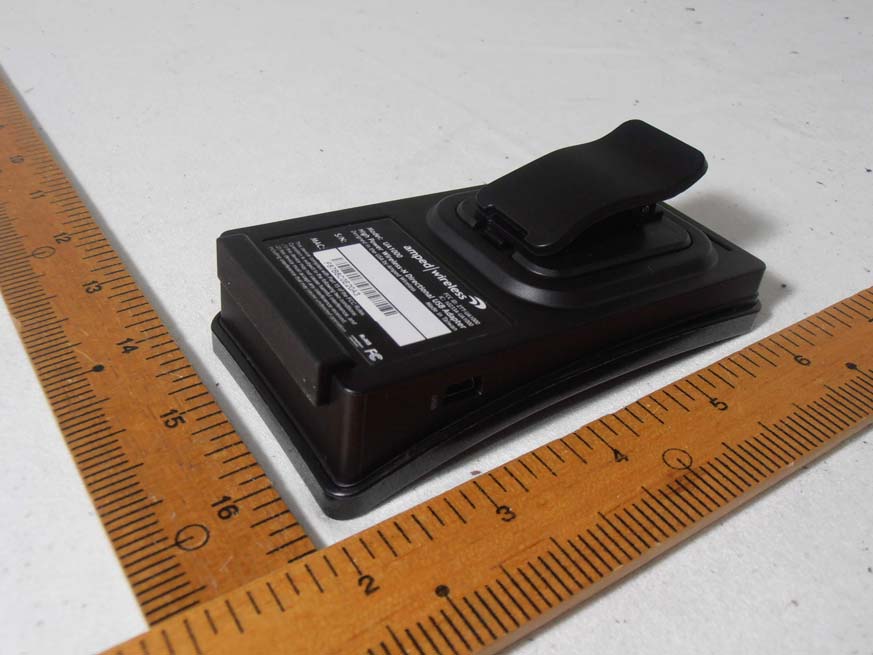

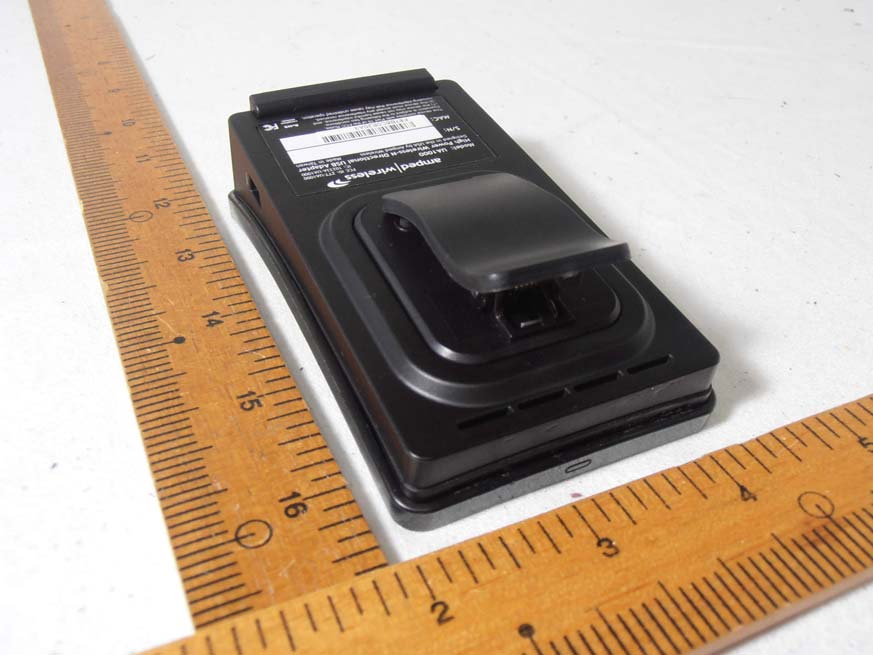

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : ZTT-UA1000 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : ZTT-UA1000 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : ZTT-UA1000 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : ZTT-UA1000 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : ZTT-UA1000

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : ZTT-UA1000 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : ZTT-UA1000 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued Date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : ZTT-UA1000

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw RFA-02-P185-UA1000 Specifications Frequency (MHz) 2400 ~ 2500 MHz Antenna gain(dBi) 5.4 VSWR 3.0：1 max. Polarization Linear, vertical Impedance 50 Ω Temperature - 10°C to +55°C Humidity 95％ @ 25°C PORT 1 PORT 2

Test Result of RF Exposure Evaluation . Product: High Power Wireless-N 500mW Directional USB Adapter . Test Item: RF Exposure Evaluation Data . Test site: OATS2-SD Antenna Gain Frequency Range: 2.412-2.462 GHz ANT R Antenna Type: PCB Antenna Antenna Gain: 5.4 dBi ANT L Antenna Type: PCB Antenna Antenna Gain: 5.4 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Jun. 01, 2012 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% ANT R Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 23.54 0.156 06 2437 23.62 0.159 11 2462 23.66 0.160 802.11g (54Mbps) 01 2412 23.32 0.148 06 2437 23.31 0.148 11 2462 23.35 0.149 802.11n HT20 (130Mbps) 01 2412 23.35 0.149 06 2437 23.42 0.152 11 2462 23.28 0.147 802.11n HT40 (270Mbps) 03 2422 23.35 0.149 06 2437 23.41 0.151 09 2452 23.40 0.151 ANT L Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 23.27 0.146 06 2437 23.61 0.158 11 2462 23.32 0.148 802.11g (54Mbps) 01 2412 23.42 0.152 06 2437 23.60 0.158 11 2462 23.48 0.154 802.11n HT20 (130Mbps) 01 2412 23.40 0.151 06 2437 23.64 0.159 11 2462 23.46 0.153 802.11n HT40 (270Mbps) 03 2422 23.49 0.154 06 2437 23.65 0.160 09 2452 23.46 0.153 ANT R + L Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm2) 802.11b (11Mbps) 01 2412 --- --- 06 2437 --- --- 11 2462 --- --- 802.11g (54Mbps) 01 2412 --- --- 06 2437 --- --- 11 2462 --- --- 802.11n HT20 (130Mbps) 01 2412 26.39 0.601 06 2437 26.54 0.622 11 2462 26.38 0.599 802.11n HT40 (270Mbps) 03 2422 26.43 0.606 06 2437 26.54 0.622 09 2452 26.44 0.608 The MPE is calculated as 0.622 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 132 FCC ID : FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment : High Power Wireless-N 500mW Directional USB Adapter Model No. : UA1000 Trade Name : Amped Wireless FCC ID : ZTT-UA1000 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 132 FCC ID : Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement Equipment ......................................................................................................... 21 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 22 5.6 Test Result and Data (30MHz ~ 25GHz) .................................................................................. 22 5.7 Test Photographs (30MHz~1000MHz) ..................................................................................... 58 5.8 Test Photographs (1000MHz~25000MHz) ............................................................................... 59 6. 6dB Bandwidth Measurement Data ................................................................................................. 60 6.1 Test Limit .................................................................................................................................. 60 6.2 Test Procedures ....................................................................................................................... 60 6.3 Test Setup Layout .................................................................................................................... 60 6.4 Measurement Equipment ......................................................................................................... 60 6.5 Test Result and Data ................................................................................................................ 60 7. Maximum Peak and Average Output Power ................................................................................... 73 7.1 Test Limit ..............................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 51 of 132 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 52 of 132 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH3 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 53 of 132 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3 Temperature: 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 54 of 132 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH6 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 55 of 132 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH6 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 56 of 132 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH9 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 57 of 132 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH9 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 60 of 132 FCC ID : 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d. The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100219 2011/11/24 2012/11/23 6.5 Test Result and Data Test Date: Jun. 01, 2012 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) ANT R ANT L 802.11b (11Mbps) 01 2412 10.4 10.8 06 2437 10.2 10.3 11 2462 10.2 10.4 802.11g (54Mbps) 01 2412 16.6 16.6 06 2437 16.7 16.8 11 2462 16.7 16.8 802.11n HT20 (130Mbps) 01 2412 17.7 18.0 06 2437 17.6 17.7 11 2462 17.7 18.1 802.11n HT40 (270Mbps) 03 2422 36.2 36.0 06 2437 36.6 36.6 09 2452 36.4 36.6 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 61 of 132 FCC ID : Modulation Standard: 802.11b (11Mbps), ANT R Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 62 of 132 FCC ID : Modulation Standard: 802.11b (11Mbps), ANT R Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 63 of 132 FCC ID : Modulation Standard: 802.11g (54Mbps), ANT R Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 64 of 132 FCC ID : Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 65 of 132 FCC ID : Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 66 of 132 FCC ID : Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 67 of 132 FCC ID : Modulation Standard: 802.11b (11Mbps), ANT L Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT L Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 68 of 132 FCC ID : Modulation Standard: 802.11b (11Mbps), ANT L Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT L Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 69 of 132 FCC ID : Modulation Standard: 802.11g (54Mbps), ANT L Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT L Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 …

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 132 FCC ID : 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 132 FCC ID : 5.6 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1205090 Cerpass Technology Corp. Issued date : Jun. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 59 of 132 FCC ID : 5.7 Test Photographs (1000MHz~25000MHz) Front View Rear View
