ZTT-UA2000High Power Wireless-N Dual Band Directional USB Adapter

UA2000 High Power Wireless-N Directional Dual Band USB Adapter User’s Guide UA2000 USER’S GUIDE 1 CONTENTS INTRODUCTION .................................................................................................................................. 2 GETTING STARTED .............................................................................................................................. 3 Package Contents ........................................................................................................................... 3 Connectors and LED Indicators ........................................................................................................ 4 SETUP GUIDE ..................................................................................................................................... 5 Windows 7 and Vista Installation ..................................................................................................... 5 Windows XP and 2000 Installation ................................................................................................. 10 Using the Amped Wireless Utility (Windows) .............................................................................. 16 Mac OS X Installation .................................................................................................................... 21 Using the Amped Wireless Utility (Mac) ..................................................................................... 35 TECHNICAL SPECIFICATIONS.............................................................................................................. 38 TROUBLESHOOTING AND SUPPORT .................................................................................................. 39 WARRANTY AND REGULATORY INFORMATION ................................................................................. 49 UA2000 USER’S GUIDE 2 INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Email: [email protected] Call: 888-573-8830 Web: www.ampedwireless.com UA2000 USER’S GUIDE 3 GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Wireless-N Directional Dual Band USB Adapter  Dual USB 2.0 Cable  Setup CD (Driver, Software and User’s Guide)  Setup Guide UA2000 USER’S GUIDE 4 Connectors and LED Indicators Mini USB: The included Dual USB 2.0 cable attaches to the Mini USB connector on the Adapter. The other end connects to USB ports on your PC. Do not attach the cable until after you have installed the software. Activity LED: Blinks rapidly when wireless data traffic is passing through the High Power Adapter. WPS Button: The Wi-Fi Protected Setup Button enables one touch setup of the High Power Adapter with compatible wireless routers. UA2000 USER’S GUIDE 5 SETUP GUIDE Windows 7 and Vista Installation a) Power on your PC and Insert the CD Locate the Setup CD and insert it into your CD drive. UA2000 USER’S GUIDE 6 b) When the menu page appears click on Install Software to begin the installation process. If the menu page does not appear, select Run Autoload.exe if prompted, or browse your CD drive and double-click the Autoload.exe file. c) If prompted, click Yes to continue with the installation. UA2000 USER’S GUIDE 7 d) Amped Wireless Utility – License Agreement Read the End-User License Agreement and select Accept. Click Next to begin the installation. e) Continue with the Installation Click Install to begin the installation. UA2000 USER’S GUIDE 8 f) Continue with the Installation g) Complete the Installation Once the installation has completed, click Finish If prompted to restart, please restart your PC at this time. UA2000 USER’S GUIDE 9 h) Plug in the High Power USB Adapter Locate two available USB ports and insert the USB Adapter. Windows should automatically begin installing the driver for use with the USB Adapter. If only one USB port is available, insert the USB connector labeled Primary. i) Connect to a Wireless Network Locate the Wireless Icon on your Windows desktop (located on the bottom right corner) and click it to open the Amped Wireless Utility. From the Home Window (on right) click Scan to view available wireless networks. UA2000 USER’S GUIDE 10 j) Connect to a Wireless Network Select your network from the list and click Connect, or Add to Profile, to have your PC automatically connect to this network when it is available. k) Connect to a Wireless Network If the network you are attempting to connect to has security enabled, you will need to enter the security key here. Under Network Key, enter the key and then confirm the key again and click OK. UA2000 USER’S GUIDE 11 l) Connect to a Wireless Network Congratulations, you are now successfully connected to your wireless network. The Utility’s Home Window (to the right) displays your connection details and link details. The Link Info tab provides you with information regarding your current connection’s signal strength. m) Position the Directional Antenna To optimize the performance of your High Power USB Adapter, position the antenna towards the source of your wireless network. UA2000 USER’S GUIDE 12 Windows XP and 2000 Installation a) Power on your PC and Insert the CD Locate the Setup CD and insert it into your CD drive. UA2000 USER’S GUIDE 13 b) When the Menu page appears click on Install Software to begin the installation process. If the Menu page does not appear, select Run Autoload.exe if prompted or browse your Cd drive and double-click the Autoload.exe file. c) License Agreement Read the End-User License Agreement and select Accept. Click Next to begin the installati…

Text truncated - open the document above for the full version.

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A. Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:Jul. 26, 2012 FCC ID: ZTT-UA2000 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely,

Amped Wireless 13089 Peyton Dr. #C307 Chino Hills CA 91709, U.S.A . PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 27.07.2012 Authority to Act as an Agent We declare that the following representative (agent) Name Delia Feng Position Specialist Company Name Cerpass Technology Corporation Address 2F-11, No.3, YuanQu St.,NanKang Dis., Taipei City, Taiwan, R.O.C. Tel / Fax +886-2-2655-8100/ +886-2-2655-8200 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name High Power Wireless-N Dual Band Directional USB Adapter Model Name UA2000 Brand Name Amped Wireless Yours sincerely, Signatory Name Jason Owen Position CEO Company Name Amped Wireless Address 13089 Peyton Dr. #C307 Chino Hills CA 91709 Tel 909-217-3229 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Amped Wireless 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Amped Wireless FCC ID: ZTT-UA2000 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Jason Owen Position CEO Company Name Amped Wireless Address 13089 Peyton Dr. #C307, Chino Hills, California, 91709, United States Tel 9092173229 E-Mail [email protected]

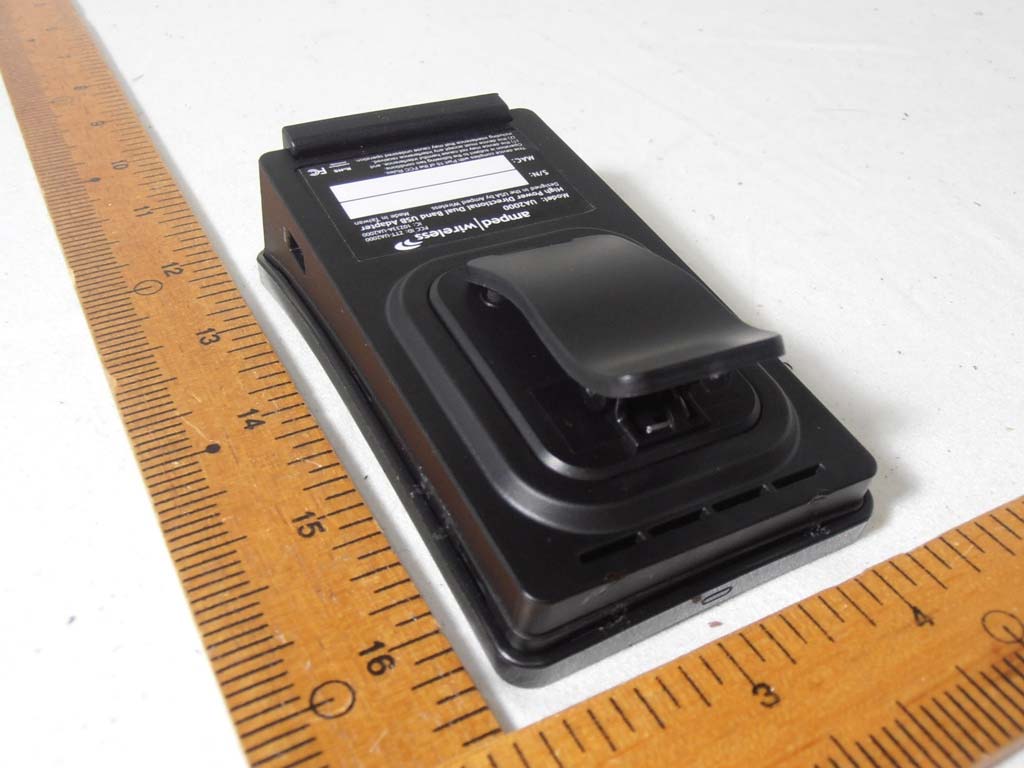

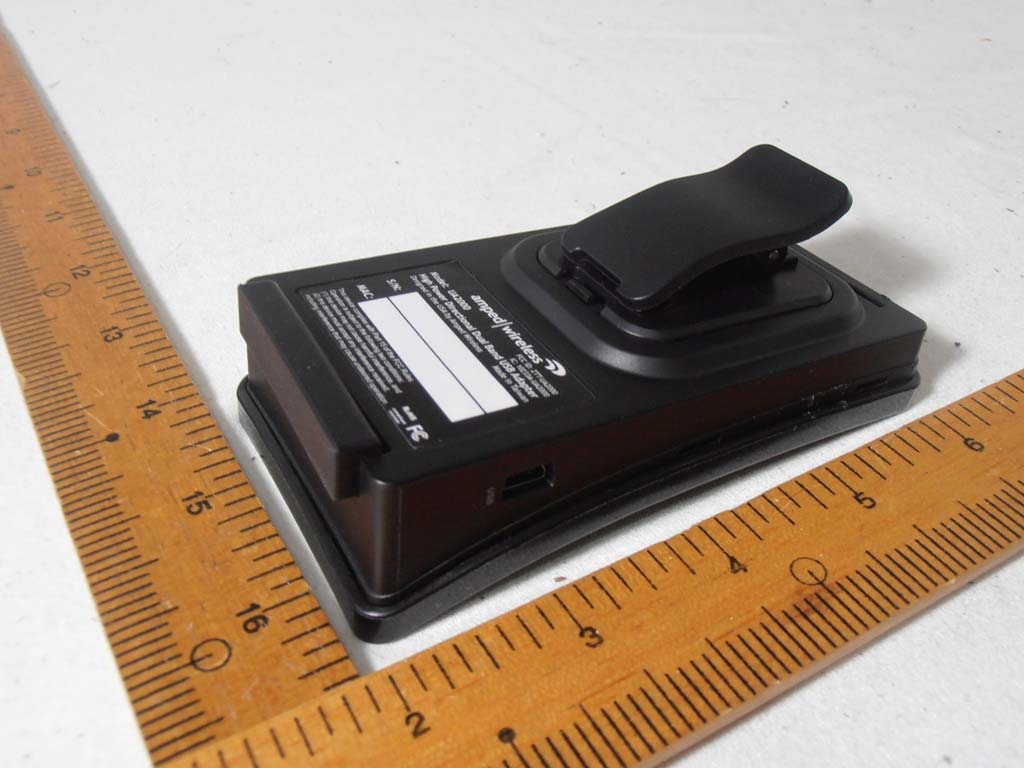

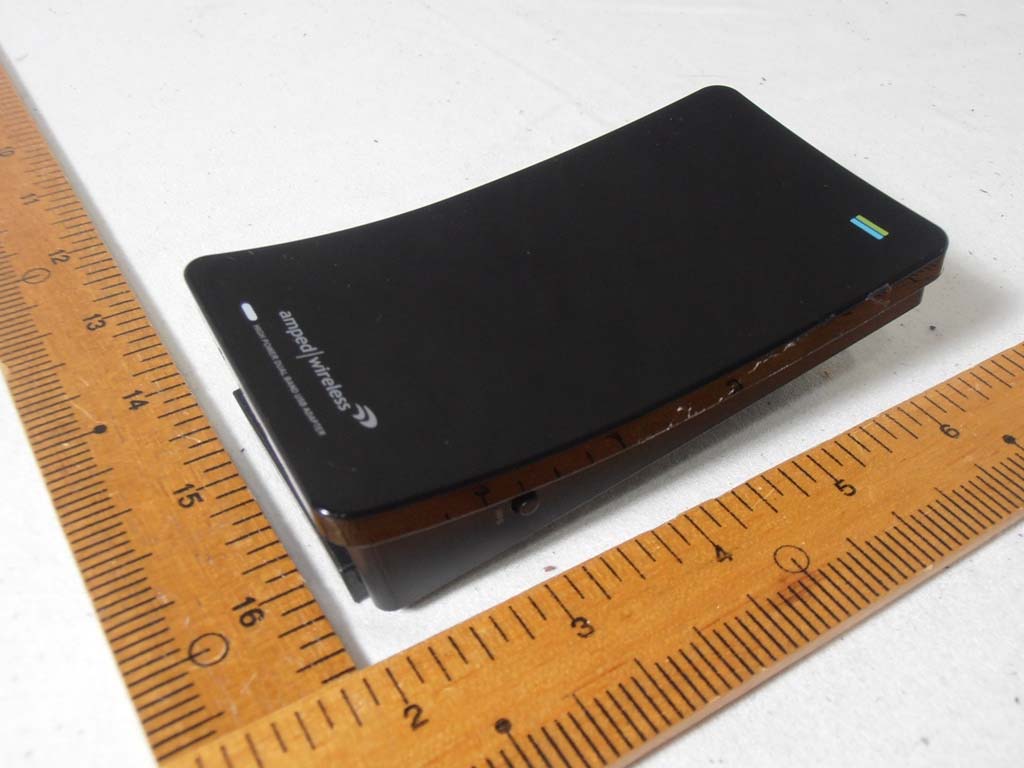

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A8 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A8

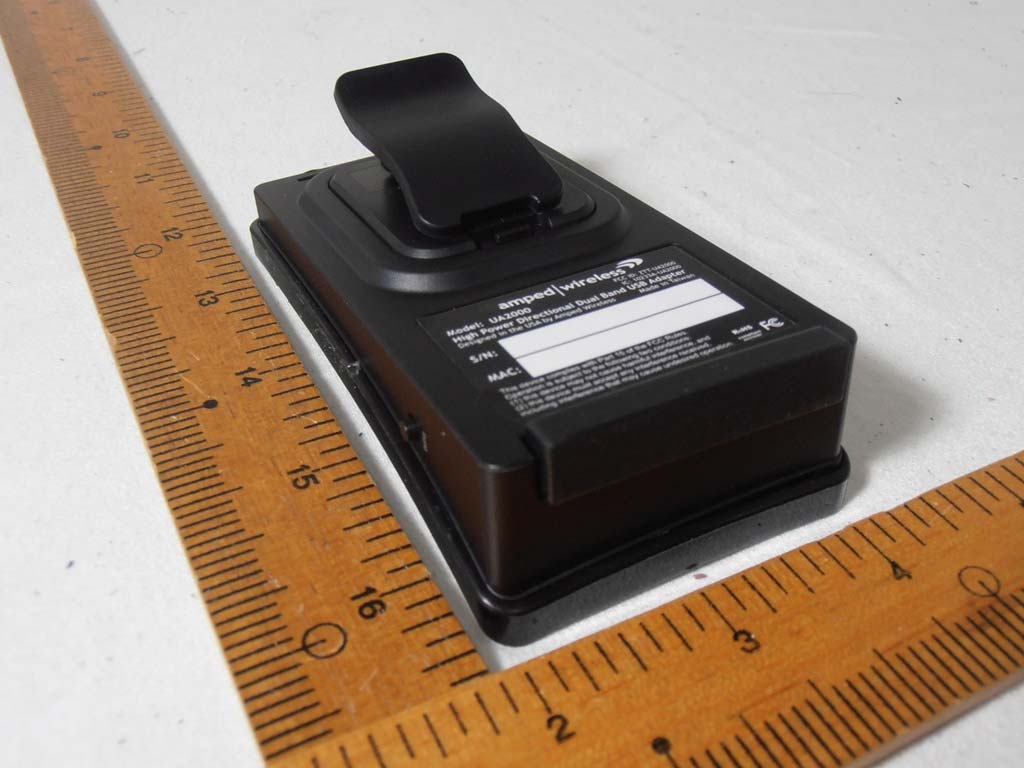

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued Date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A8

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw RFA-25-AP09-UA2000 Specifications Frequency (MHz) 2400 ~ 2500 MHz, 4900~5875MHz Antenna gain(dBi) <4 <6 VSWR 3.0：1 max. 5.0：1 max. Polarization Linear, vertical Impedance 50 Ω Temperature - 10°C to +55°C Humidity 95％ @ 25°C PORT 1 PORT 2

1.1. Test Result of RF Exposure Evaluation . Product: High Power Wireless-N Dual Band Directional USB Adapter . Test Item: RF Exposure Evaluation Data . Test site: OATS2-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain 802.11b/g/n: ANT R: Dipole antenna, 4 dBi ANT L: Dipole antenna, 4 dBi 802.11a/n: ANT R: Dipole antenna, 6 dBi ANT L: Dipole antenna, 6 dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Jun. 01, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) ANT R ANT L ANT R ANT L 802.11b (11Mbps) 01 2403 22.50 22.60 0.089 0.091 06 2438 22.86 22.78 0.097 0.095 11 2478 22.48 22.44 0.088 0.088 802.11g (54Mbps) 01 2412 22.36 22.59 0.086 0.091 06 2437 22.86 22.86 0.097 0.097 11 2462 22.24 22.32 0.084 0.085 Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) ANT R ANT LR+L ANT R ANT L R+L 802.11n HT20 (130Mbps) 01 2412 22.3522.4225.400.086 0.087 0.347 06 2437 22.8522.87 25.870.096 0.097 0.386 11 2462 22.2722.4725.380.084 0.088 0.345 802.11n HT40 (270Mbps) 03 2422 22.3522.4425.410.086 0.088 0.347 06 2437 22.8822.84 25.870.097 0.096 0.386 09 2452 22.2122.4225.330.083 0.087 0.341 Test Date: Jun. 06, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) ANT R ANT L ANT R ANT L 802.11a (54Mbps) 36 5180 9.22 8.14 0.007 0.005 44 5220 8.34 8.83 0.005 0.006 48 5240 8.50 8.90 0.006 0.006 149 5745 19.66 20.41 0.073 0.087 157 5785 14.90 19.96 0.024 0.078 165 5825 14.02 20.05 0.020 0.080 Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) ANT R ANT LR+L ANT R ANT L R+L 802.11n HT20 (130Mbps) 36 5180 9.24 8.98 12.12 0.007 0.006 0.026 44 5220 8.31 8.43 11.38 0.005 0.006 0.022 48 5240 8.20 8.79 11.52 0.005 0.006 0.022 149 5745 19.6120.32 22.99 0.072 0.085 0.315 157 5785 14.8719.75 20.97 0.024 0.075 0.198 165 5825 13.9019.84 20.83 0.019 0.076 0.192 Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) ANT R ANT LR+L ANT R ANT L R+L 802.11n HT40 (270Mbps) 38 5190 10.2910.9013.62 0.008 0.010 0.036 46 5230 10.729.59 13.20 0.009 0.007 0.033 151 5755 19.0220.2322.68 0.063 0.084 0.294 159 5795 14.0719.6820.73 0.020 0.074 0.187 The MPE is calculated as 0.386mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, 5150-5250 MHz, and 5725-5825 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b).

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 214 FCC ID : ZTT-UA2000 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Amped Wireless Address : 13089 Peyton Dr. #C307, Chino Hills CA 91709 Equipment : High Power Wireless-N Dual Band Directional USB Adapter Model No. : UA2000 Trade Name : Amped Wireless FCC ID : ZTT-UA2000  The test result refers exclusively to the test presented test model / sample.,  Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full.  The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 214 FCC ID : ZTT-UA2000 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 25 5. Test of Radiated Emission ............................................................................................................... 26 5.1 Test Limit .................................................................................................................................. 26 5.2 Test Procedures ....................................................................................................................... 26 5.3 Typical Test Setup .................................................................................................................... 27 5.4 Measurement Equipment ......................................................................................................... 27 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 28 5.6 Test Result and Data ................................................................................................................ 28 5.7 Test Photographs (30MHz~1000MHz) ..................................................................................... 92 5.8 Test Photographs (1000MHz~40000MHz) ............................................................................... 93 6. 6dB Bandwidth Measurement Data ................................................................................................. 94 6.1 Test Limit .................................................................................................................................. 94 6.2 Test Procedures ....................................................................................................................... 94 6.3 Test Setup Layout .................................................................................................................... 94 6.4 Measurement Equipment ......................................................................................................... 94 6.5 Test Result and Data ................................................................................................................ 95 7. Maximum Peak and Average Output Power ................................................................................. 116 7.1 Test Limit .......................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 56 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 57 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 58 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH3 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 59 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3 Temperature: 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 60 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH6 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 61 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH6 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 62 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH9 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 63 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH9 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 64 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 4 : 802.11a, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 65 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 4 : 802.11a, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 66 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 4 : 802.11a, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 67 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 4 : 802.11a, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 68 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 4 : 802.11a, CH149 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 69 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 4 : 802.11a, CH149 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 70 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 4 : 802.11a, CH157 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 71 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 4 : 802.11a, CH157 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 72 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : VERTICAL Test Mode 4 : 802.11a, CH165 Temperature : 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 73 of 214 FCC ID : ZTT-UA2000 Power : FROM SYSTEM Pol/Phase : HORIZONTAL Test Mode 4 : 802.11a, CH165 Temperature: 22 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 74 of 214 FCC ID : ZTT-UA2000 Power : From System Pol/Phase : VERTICAL Test Mode 5 : 802.11an HT20, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No. : 75 of 214 FCC ID : ZTT-UA2000 Power : From System Pol/Phase : VERTICAL Test Mode 5 : 802.11an HT20, CH149 Temperature : 25 °C Memo : Humidity : 65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI12051…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 124 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11n HT40 (270Mbps), ANT R, Peak Power Output Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT R, Peak Power Output Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 125 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11a (54Mbps), ANT R, Peak Power Output Channel: 149 Modulation Standard: 802.11a (54Mbps), ANT R, Peak Power Output Channel: 157 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 126 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11a (54Mbps), ANT R, Peak Power Output Channel: 165 Modulation Standard: 802.11an HT20 (130Mbps), ANT R, Peak Power Output Channel: 149 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 127 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11an HT20 (130Mbps), ANT R, Peak Power Output Channel: 157 Modulation Standard: 802.11an HT20 (130Mbps), ANT R, Peak Power Output Channel: 165 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 128 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11an HT40 (270Mbps), ANT R, Peak Power Output Channel: 151 Modulation Standard: 802.11an HT40 (270Mbps), ANT R, Peak Power Output Channel: 159 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 129 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11b (11Mbps), ANT L, Peak Power Output Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT L, Peak Power Output Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 130 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11b (11Mbps), ANT L, Peak Power Output Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT L, Peak Power Output Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 131 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11g (54Mbps), ANT L, Peak Power Output Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT L, Peak Power Output Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 132 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11n HT20 (130Mbps), ANT L, Peak Power Output Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT L, Peak Power Output Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 133 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 802.11n HT20 (130Mbps), ANT L, Peak Power Output Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT L, Peak Power Output Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205119 Cerpass Technology Corp. Issued date : Jun. 20, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 134 of 214 FCC ID : ZTT-UA2000 Modulation Standard: 8…
