ZVJVMT410V1Media Tablet

5 0Gm
DJBM
6TFS
(VJEF 2 Ê>>   WELCOME I. GET ACQUAINTED II. HAND GESTURES III. GETTING STARTED IV. YOUR HOME SCREEN V. CONNECTING TO WI-FI VI. EMAIL SET UP VII. SAVING BATTERY VIII. MICRO SD CARDS IX. DEVICE STORAGE X. TRANSFER FILES XI. FILE FORMATS XII. KINDLE FOR ANDROID XIII. READING EPUBS XIV. CAMERA XV. AMAZON APPSTORE XVI. INSTALLING APPS XVII. PREINSTALLED APPS XVIII. QUICK OFFICE XIX. OI FILE MANAGER XX. MULTIMEDIA XXI. SYSTEM REQUIREMENTS XXII. SUPPORT XXIII. CONTACT US XXIV. FCC INFORMATION XXV. WARRANTY INFORMATION 3 4-6 7-8 9-10 11-12 13-15 16-17 18 19 20 21-22 23 24-25 26 27 28-29 30-31 32-33 34 35 36-37 38 39 40 41 42-43 (%,>'+>'',$#>+.3 Thank you for purchasing a Velocity Micro CRUZ T410! We appreciate your business and know you’ll love your brand new multimedia device. This guide is intended to help you with initial setup of your device and to familiarize you with the Android operating system. -(2>)>-'>
(-" For the latest updates, news, giveaways, downloads, and support tips, be sure to follow CRUZ on facebook and twitter! Check out our homepage at www.cruztablet.com for details! "#$,-+(-$' Before we get started, we recommend that you register your CRUZ T410 if you did not do so already via the initial set up process. Registering your product allows you to get the most out of our CRUZ technical support. To register your product, please visit: www.cruztablet.com/support 3 4 "--$#> !*.($-" ?> >
F I JK ABC E H GD 5 ?>"()'">(!% Connect earbuds through this port for a personal media experience. Ê?>$!+'>Ê>'+- The Micro-USB port is used to tether your CRUZ T410 to a computer for file transfer as well as battery recharge. ?>&$!+'
>'- With the integrated microSD card slot, your CRUZ has up to 32 GB of expandable storage. Carry tons of photos, videos, eBooks, music, and more wherever you go.
?>(&"+( Forward-facing camera used for video-chat applications like Skype. ?>-(-.,>Ê(+ Located at the top of the screen, the status bar contains the four icons that will be your primary means of navigation. From left to right, you will find “Back,” “Home,” “Search,” and “Menu.” The status bar also displays wi-fi con- nectivity, battery life, and the time. ?> ))$!(-$', Your Home-screen is very much like the “desktop” on a computer. It is a place for app shortcuts. ?>(+#$#>$!(-'+>
When your Cruz is charging, this LED light will be on. ?> >
6 "--$#> !*.($-" ?> >
?>$#"-> +"( Widgets are small applications that have functionality and accessibility directly from your home-screen. ?>(/>Ê(+ The Nav Bar is a semi-transparent 3-button bar at the bottom of the home screen. From left to right, the buttons are: “Settings,” “App Panel,” and “Gallery.” ?> '.&">Ê.--', Exterior buttons that control the device’s volume (+/-) ?>'0"+>Ê.--' The power button is located on the top left-hand corner of the device. While running, this button is also used to send the CRUZ into “Sleep” mode, as well as waking the device up. 7 ?>
>  ())$# Touch your finger to the screen and remove immediately to select an item on the screen. This is the equivalent of a mouse “click” on a computer.
+(##$# Press and hold your finger on the screen, then slide in the desired direction. '#G+",,$# Press and hold your finger on the screen for 2-3 seconds. Oftentimes, this will open menu options or perform an app-specific function. 8 !+'$# Sliding your finger up and down in a vertical motion scrolls through menus, websites, and lists. The quicker you slide your finger, the greater the momentum and speed of the on-screen scrolling motion. 0$)$# Sliding your finger left and right scrolls horizontally. Some eReader apps are designed to turn the page in the direction you swipe. ?>
>  $!$# Positioning your thumb and index finger roughly 1-inch apart while “pinching” or “spreading” them typically zooms in or out, respectively. 9 To start your Cruz, press the on/off button located on the top left corner of the device. When you first turn on the Cruz, you will be greeted with a CRUZ logo, and then your Home screen. The display has a screen timeout by default set to 5 min. If the unit is left inactive for that period of time, the screen will go dark as if turned off. However, it is simply in standby mode. Tap the power button and a screen will appear with a green padlock button on the lower lefthand corner. This is your Lock Screen. Drag the padlock to the right to unlock. The battery should have a nominal charge on it out of the box and should charge fairly rapidly. Charge your T410 via micro-USB cable connected to your PC, or the included AC Adapter. Battery life will vary due to many conditions, especially when using Wi-Fi and maximum screen brightness. "")>'">(>'0"+$#>
'0 To save battery, you should put your Cruz in sleep mode by turning off the LCD display. To do this, tap (not hold) the power button. Tap again to bring up the lock screen. In standby mode, the battery still discharges as the device continues to run. To turn off your Cruz completely, press and hold the power button until the “Tablet options” dialog appears and tap “Power off.” You should then see a dialog box that reads: “Your tablet will shut down.” Tap “OK” and your device will proceed to shut down. "--$#>-(+-" ?> >
10 "--$#>-(+-" ?> >
-(-.,>Ê(+>!', There are four main buttons along the top of the touch screen. These are the Quick Launch buttons. They control the most frequently used functions in the Android platform. From left to right: BACK Returns to the previously viewed page or option screen. If you tap this button enough times, it will return to the Home Screen. HOME Returns to the home screen. Keep in mind hitting the Home button does not necessarily stop an application from running. Oftentimes apps will continue to run in the “background” and bog down memory and performance. SE…

Text truncated - open the document above for the full version.

Date: August 26, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: ZVJVMT410V1 To Whom it may concern, This device is able to be operated on both master and client mode. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

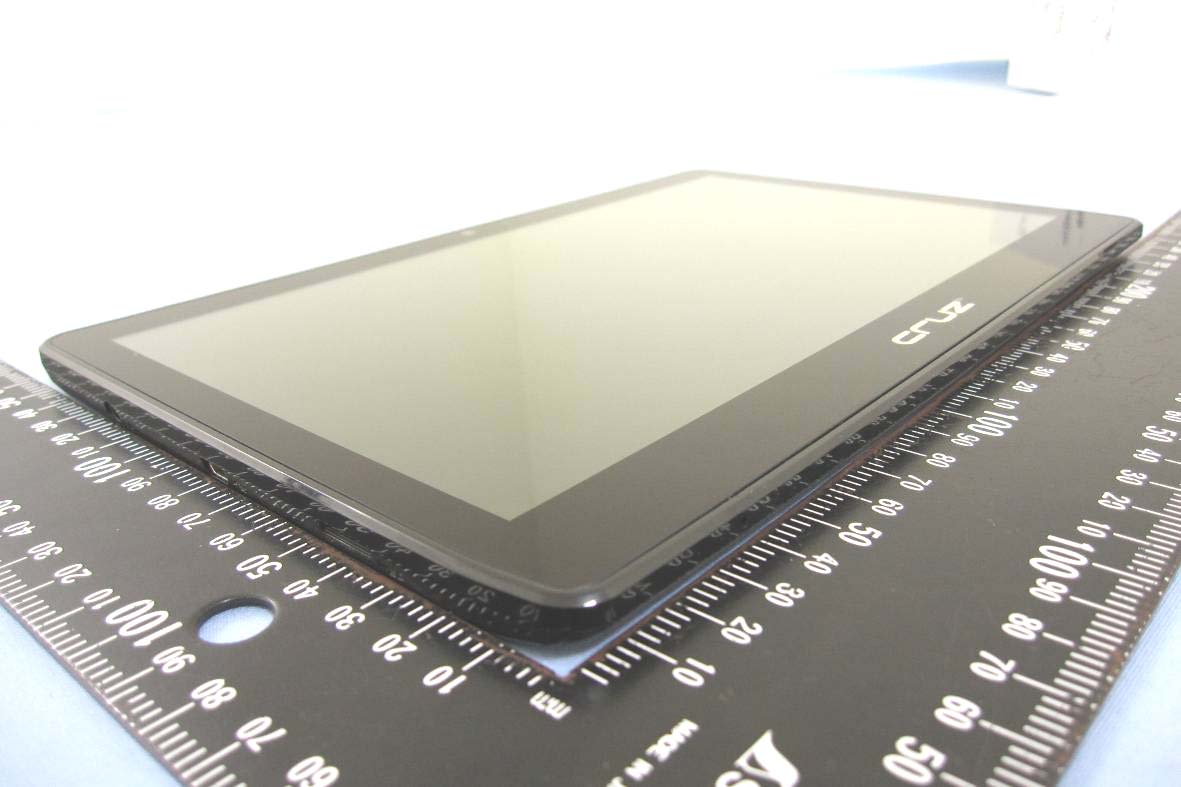

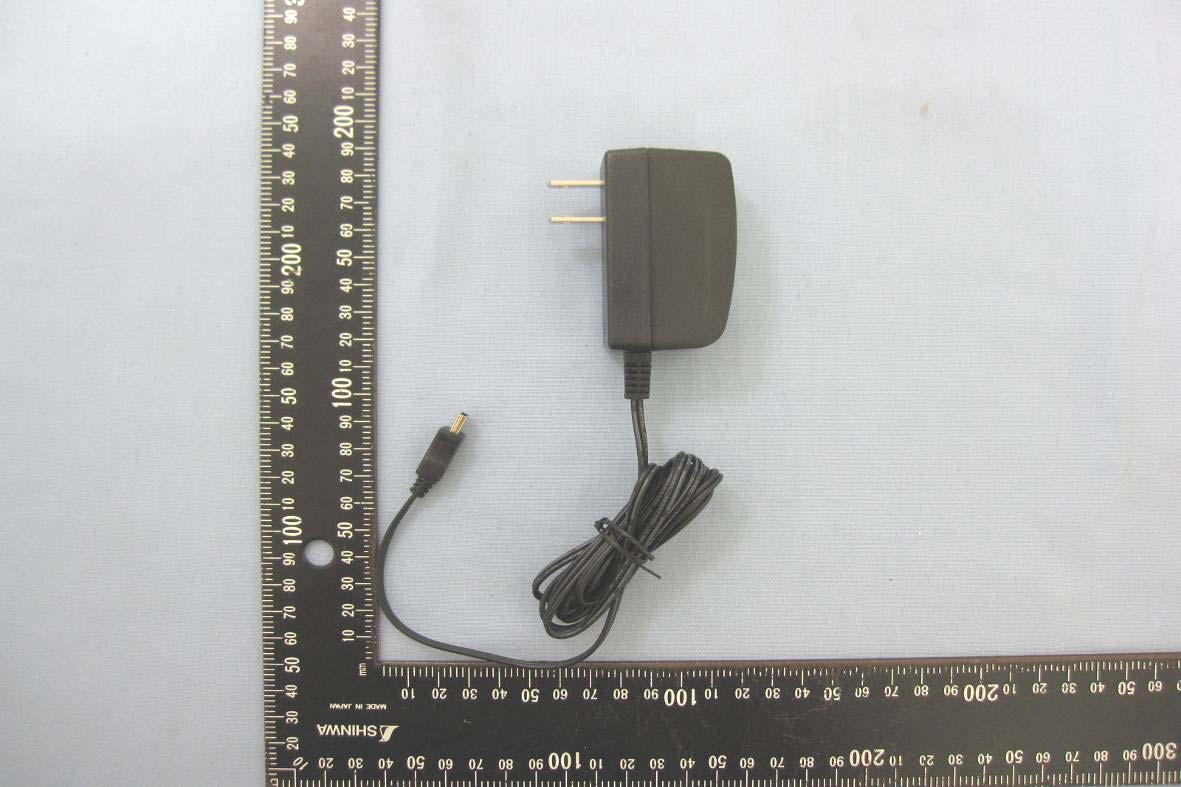

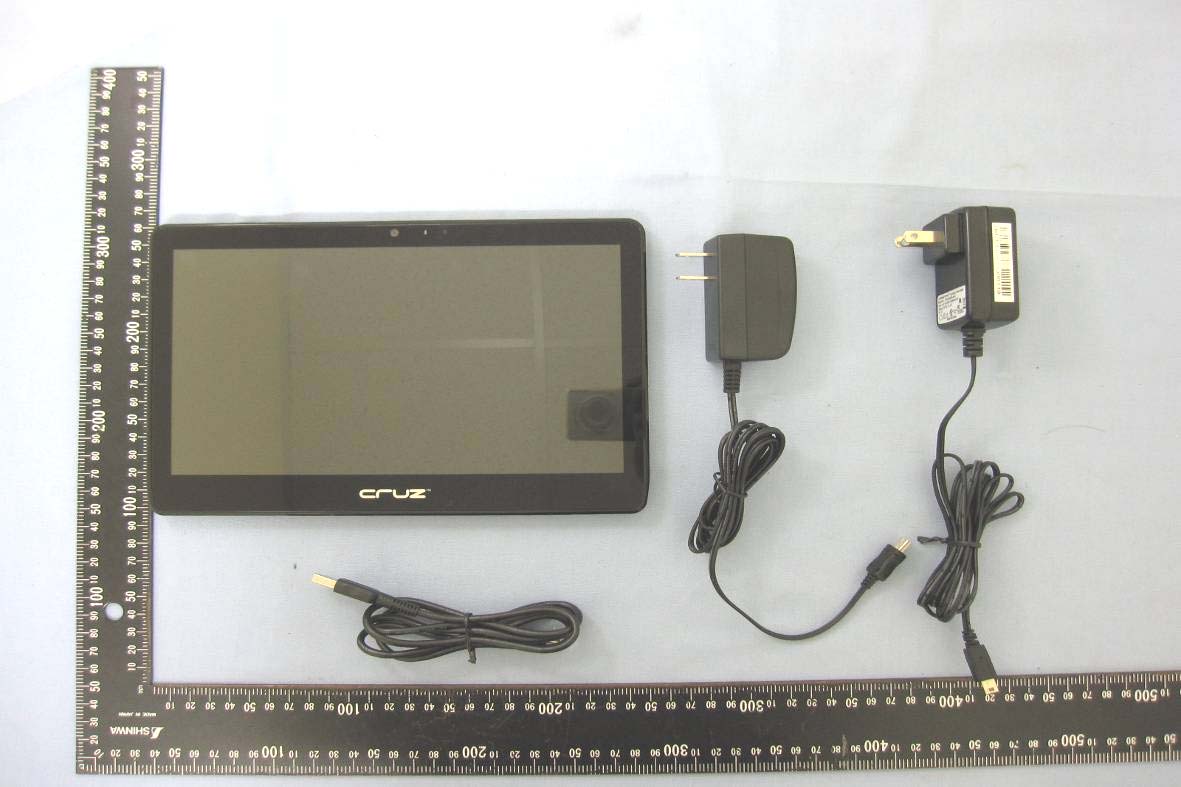

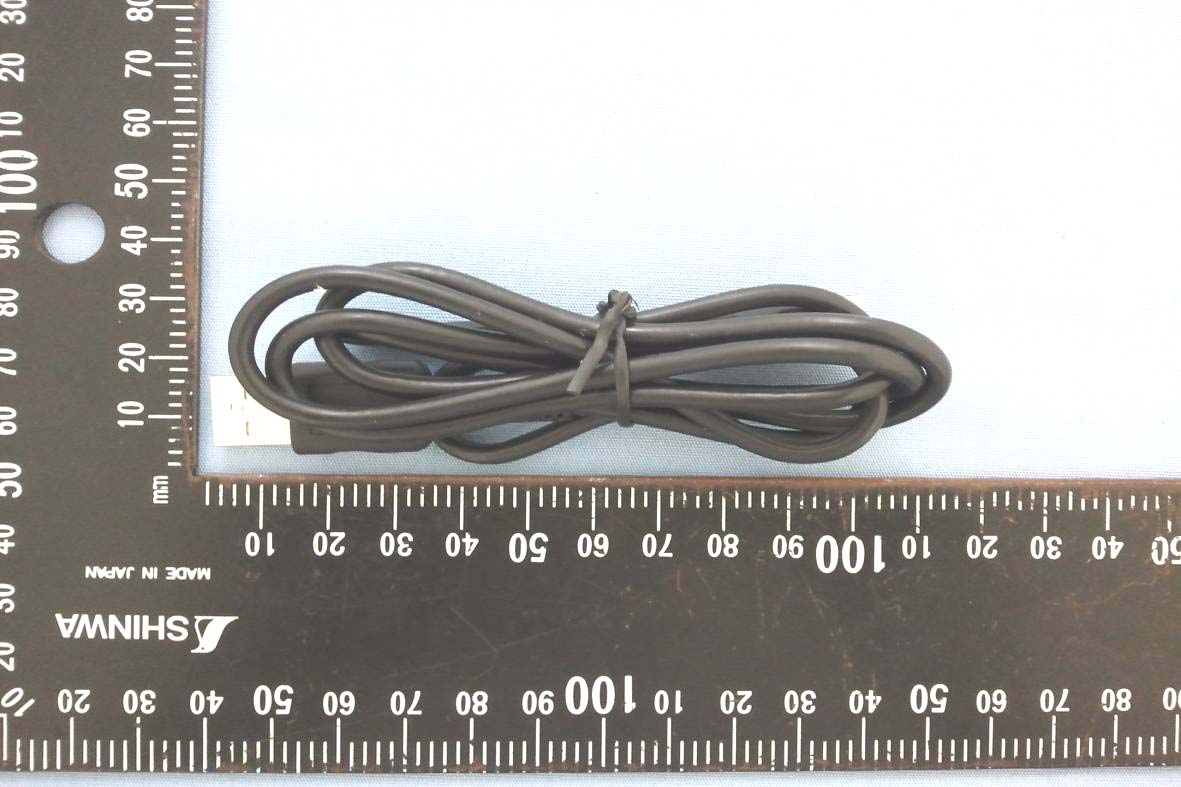

Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 1 Total Page: 12 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 2 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 3 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 4 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 5 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 6

Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 7 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 8 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 9 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 10 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 11 Compliance Certification Services Inc. Report No.: T110811011 Date of Issue: August 22, 2011 A1 - 12 Printed Antenna

Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 28 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC/IC TEST REPORT For Media Tablet Trade Name: Velocity Micro Model: T410 Issued to Velocity Micro, Inc. 7510 Whitepine Rd, Richmond, VA 23237 USA Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsrf.com [email protected]. Issued Date: June 1, 2011 Compliance Certification Services Inc. Report No.: T110811011-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 1, 2011 Initial Issue ALL Peach Chang Compliance Certification Services Inc. Report No.: T110811011-SF Page 3 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ............................................... 4 2. EUT DESCRIPTION .................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED ......................................... 6 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ...................... 6 4. DOSIMETRIC ASSESSMENT SYSTEM ............................................................................... 6 4.1 MEASUREMENT SYSTEM DIAGRAM ........................................................................ 7 4.2 SYSTEM COMPONENTS................................................................................................ 8 5. EVALUATION PROCEDURES ............................................................................................ 11 6. MEASUREMENT UNCERTAINTY ..................................................................................... 15 7. EXPOSURE LIMIT .................................................................................................................17 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS 18 9. MEASUREMENT RESULTS ................................................................................................. 19 9.1 TEST LIQUID CONFIRMATION ................................................................................. 19 9.2 SYSTEM PERFORMANCE CHECK............................................................................. 21 9.3 EUT TUNE-UP PROCEDURES AND TEST MODE.................................................... 22 9.4 SAR MEASUREMENTS RESULTS.............................................................................. 24 10. EUT PHOTOS .......................................................................................................................... 25 11. EQUIPMENT LIST & CALIBRATION STATUS ............................................................... 26 12. FACILITIES ............................................................................................................................. 27 13. REFERENCES ......................................................................................................................... 27 14. ATTACHMENTS.....................................................................................................................28 Compliance Certification Services Inc. Report No.: T110811011-SF Page 4 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Velocity Micro, Inc. 7510 Whitepine Rd, Richmond, VA 23237 USA Equipment Under Test: Media Tablet Trade Name: Velocity Micro Model Number: T410 Date of Test: August 16, 2011 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD FCC FCC OET 65 Supplement C Deviation from Applicable Standard None TEST RESULT No non-compliance noted The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T110811011-SF Page 5 Rev. 00 2. EUT DESCRIPTION Product Media Tablet Trade Name Velocity Micro Model Number T410 Model Discrepancy N/A Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz 802.11n HT20: 2412 ~ 2462 MHz Max. O/P Power: (Average) 802.11b: 14.10 dBm 802.11g: 12.33 dBm 802.11n HT20: 12.20 dBm Max. SAR (1g): 802.11b: 1.500 W/kg 802.11g: SAR test is not required, please refer to page 22. 802.11n HT20: SAR test is not required, please refer to page 22. Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: WLAN antenna: Printed antenna Battery Rating:3.7V 5000mAh, 18.5Wh Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: T110811011-SF Page 6 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization…

Text truncated - open the document above for the full version.

Date/Time: 2011/08/16 10:04:25 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-735 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:735 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.3 mW/g Pin=250mW,d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 95.7 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 25.8 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 16.6 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 16.6 mW/g

Date/Time: 2011/08/16 12:01:31 PM Test Laboratory: Compliance Certification Services Inc. 80211b Tablet Bottom Flat - T410 DUT: T410; Type: Media Tablet; Serial: n/a Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.88 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tablet Bottom Flat Low CH1/Area Scan (9x5x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.38 mW/g Tablet Bottom Flat Low CH1/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 0.345 V/m; Power Drift = -0.115 dB Peak SAR (extrapolated) = 4.40 W/kg SAR(1 g) = 1.440 mW/g; SAR(10 g) = 0.531 mW/g Maximum value of SAR (measured) = 2.23 mW/g Date/Time: 2011/08/16 11:27:51 AM Test Laboratory: Compliance Certification Services Inc. 80211b Tablet Bottom Flat - T410 DUT: T410; Type: Media Tablet; Serial: n/a Communication System: IEEE 802.11b WLAN; Frequency: 2442 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2442 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 2.5mm (Fix Surface) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tablet Bottom Flat Middle CH7/Area Scan (11x5x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.09 mW/g Tablet Bottom Flat Middle CH7/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 0.760 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 4.53 W/kg SAR(1 g) = 1.500 mW/g; SAR(10 g) = 0.538 mW/g Maximum value of SAR (measured) = 2.49 mW/g Tablet Bottom Flat Middle CH7/Z Scan (1x1x11): Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (measured) = 3.90 mW/g Date/Time: 2011/08/16 01:17:54 PM Test Laboratory: Compliance Certification Services Inc. 80211b Tablet Bottom Flat - T410 DUT: T410; Type: Media Tablets; Serial: n/a Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tablet Bottom Flat High CH11/Area Scan (9x5x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.36 mW/g Tablet Bottom Flat High CH11/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 0.621 V/m; Power Drift = -0.129 dB Peak SAR (extrapolated) = 4.35 W/kg SAR(1 g) = 1.390 mW/g; SAR(10 g) = 0.497 mW/g Maximum value of SAR (measured) = 2.30 mW/g Date/Time: 2011/08/16 10:55:47 AM Test Laboratory: Compliance Certification Services Inc. 80211b Tablet Top edge - T410 DUT: T410; Type: Media Tablet; Serial: n/a Communication System: IEEE 802.11b WLAN; Frequency: 2442 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2442 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tablet Top edge Middle CH7/Area Scan (5x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.032 mW/g Tablet Top edge Middle CH7/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 1.52 V/m; Power Drift = -0.116 dB Peak SAR (extrapolated) = 0.077 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.019 mW/g Maximum value of SAR (measured) = 0.042 mW/g Date/Time: 2011/08/16 02:34:26 PM Test Laboratory: Compliance Certification Services Inc. 80211b Tablet Left edge - T410 DUT: T410; Type: Media Tablet; Serial: n/a Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.88 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); Sensor-Surface: 2.5mm (Mechanical Surface Detection) Electronics: DAE4 Sn558; Calibrated: 2011/7/26 Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tablet Left edge Low CH1/Area Scan (5x9x1): Measureme…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 84 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Media Tablet Model: T410 Trade Name: Velocity Micro Issued to Velocity Micro, Inc. 7510 Whitepine Rd, Richmond, VA 23237 USA Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 22, 2011 Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 22, 2011 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................10 4.3 MEASUREMENT UNCERTAINTY .............................................................................................11 5. FACILITIES AND ACCREDITATIONS ........................................................................................12 5.1 FACILITIES .......................................................................................................................................12 5.2 EQUIPMENT......................................................................................................................................12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................13 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................14 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................14 6.2 SUPPORT EQUIPMENT ...............................................................................................................14 7. FCC PART 15.247 REQUIREMENTS.............................................................................................15 7.1 6DB BANDWIDTH.............................................................................................................................15 7.2 PEAK POWER....................................................................................................................................26 7.3 AVERAGE POWER............................................................................................................................28 7.4 BAND EDGES MEASUREMENT ................................................................................................30 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................43 7.6 SPURIOUS EMISSIONS.................................................................................................................54 7.7 RADIATED EMISSIONS ..............................................................................................................64 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................78 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................81 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................82 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 4 1. TEST RESULT CERTIFICATION Applicant: Velocity Micro, Inc. 7510 Whitepine Rd, Richmond, VA 23237 USA Equipment Under Test: Media Tablet Tr a d e N a m e : Velocity Micro Model: T410 Date of Test: August 15 ~ 16, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 82 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 83 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: ZVJVMT410V1 Report No.: T110811011-RP1 Page 84 Powerline Conducted Emissions Setup Photos
