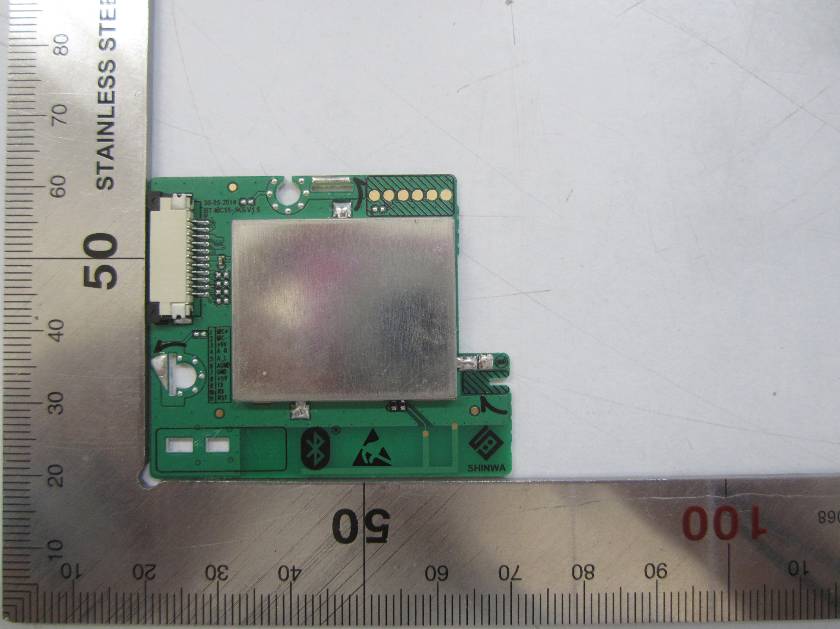

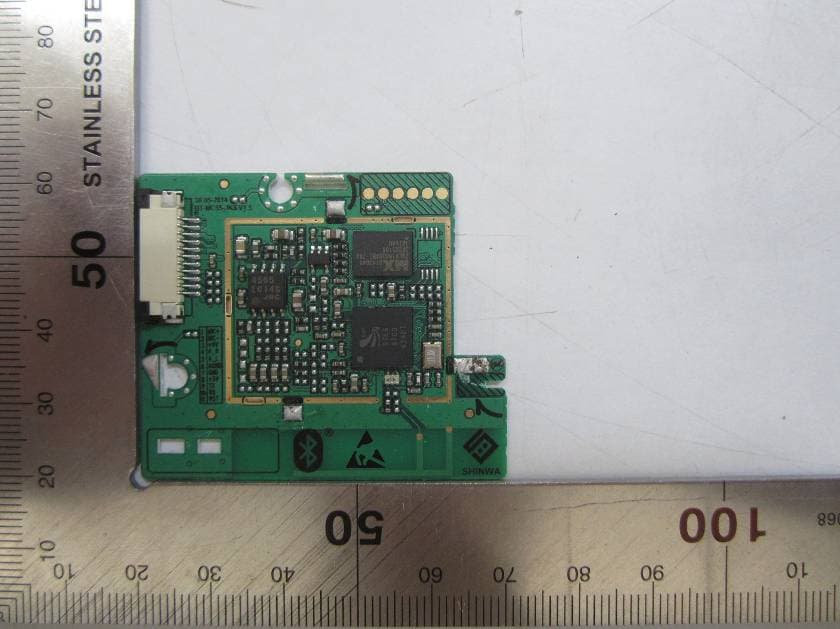

ZWYMC55SCar Kit Bluetooth Module

Product User Guide 产品名称：车载蓝牙模块 APPELLATION：Car Kit Bluetooth Module 产品型号：BT-MC55-JKX MODEL： BT-MC55-JKX 客户名称： CUSTOMER: 版 本：R1.0 VERSION：R1.0 客户承认 CUSTOMER APPROVED 信华精机有限公司 Shinwa Industries(China)Ltd. 制作部门 （Executed Dept.） 制作 Executed By 审核 Checked By 批准 Approved By 营业部 Sales Dept. 批准 Approved By BT-MC55-JKX规格书 1 产品规格书变更履历表 Revision History 序号 NO 版本 Version 变更内容 Change description 生效日期 Date 制作 Prepared by 确认 Confirmed by 批准 Approved by 1 1.0 首次发行 First Release 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 BT-MC55-JKX规格书 2 内容CONTENTS 1. 介绍INTRODUCTION 1.1 简要OVERVIEW..............................................................................4 1.2特征 FEATURES...............................................................................4 1.3 应用APPLICATION...........................................................................5 1.4 框图MODULE BLOCK......................................................................5 2. 规格SPECIFICATION 2.1 普通规格GENERAL SPECIFICATION....................................................6 2.2 温度规格TEMPERATURE SPECIFICATION............................................6 2.3 射频规格RF SPECIFICATIONS........................................................... 6 2.4 音频规格AUDIO SPECIFICATION......................................................... 7 2.5 电流规格CURRENT SPECIFICATION................................................... 8 3. 设计应用DESIGN APPLICATION 3.1 管脚外形PIN CONFIGURATION.........................................................8 3.2管脚定义 PIN DEFINITION................................................................9 3.3物理尺寸 PHYSICAL DIMENSION.......................................................9 BT-MC55-JKX规格书 3 3.4 PCB封装RECOMMENDED PCB MOUNTING PATTERN ........................ 10 3.5原理图应用 APPLICATION SCHEMATIC...............................................10 3.6注意事项 NOTICE PROCEEDING.........................................................11 4. 可靠性测试RELIABILITY TEST...............................................................12 5. 包装信息PACKING INFORMATION .......................................................13 1. 介绍 INTRODUCTION BT-MC55-JKX规格书 4 1.1 简要 OVERVIEW ★ BC5多媒体芯片是由一单芯片射频和基带IC组成的应运于蓝牙2.4G系统; The BlueCore™5-Multimedia External is a single-chip radio and baseband IC for Bluetooth 2.4GHz systems; ★ CSR BC5多媒体芯片支持高达32M的外部FLASH存储; BlueCore5-Multimedia External interfaces up to 32Mbits of external Flash memory. When used with the CSR; ★ 当用户采用CSR蓝牙协议栈时，它完整兼容蓝牙V3.0规格体系在数据和语音上 的应用. Bluetooth stack provides a fully compatibility with Bluetooth v3.0 specification system for data and voice use. 1.2 特征 FEATURES ★ ★ 频率范围在2.402GHz ～ 2.48 0GHz之间 Frequency Band 2.402GHz ～ 2.480GHz 蓝牙2.1+增强数率模式/蓝牙3.0 Bluetooth V2.1+ EDR/ Bluetooth 3.0 ★ 高级音频传输协议,音视频远程控制协议,耳机/免提协议，串口通信协议 A2DP, AVRCP, HS/HFP , SPP，PBAP Profiles ★ 状态指示（配对，铃音，拨号，通话） Status indication (Pairing, Ringing, Dialing, Talking ). ★ 模块和手机端音频相互转换 Audio transfer between car-kit and mobile phone. ★ 噪声抑制 Noise Reduction. ★ 回音消除 Acoustic Echo cancellation. ★ 内部16位立体声编解码 Build-in 16-bit stereo Audio Codec ★ 蓝牙有效自由空间连接距离长达10m Range up to ten meters cable free connection with Bluetooth devices ★ 立体声音乐播放，停止，暂停，前进，后退功能 Stereo audio play, stop, pause, forward, backward. ★ 电话本下载 Phonebook download BT-MC55-JKX规格书 5 1.3 应用 APPLICATIONS ★ 车载免提 Hands-Free Car Kits ★ 高音质单声道耳机 High Quality Mono Headsets ★ 高音质立体声无线耳机 High Quality Stereo Wireless Headsets ★ 无线通话 Wireless Speakers ★ USB端口多媒体传输 Analogue and USB Multimedia Dongles 1.4 模块框图 MODULE BLOCK 2. 规格 SPECIFICATION BT-MC55-JKX规格书 6 2.1普通规格 GENERAL SPECIFICATION 2.2温度规格TEMPERATURE SPECIFICATION ‣ 产品或项目名称 Product or Project Name : Car Kit Bluetooth Module ‣ 芯片类型 Chip set : CSR BC05 Multi-Media external ‣ 产品射频功率等级 Power class level : ■ Class 2 (-6dBm < P AV < 4dBm) ‣ 额定电压 Rated Voltage : 5V; 9V ‣ 波特率 Baud Rate : 115200 ‣ 工作电压范围 Operation Voltage range : 5.3~4.7V；9.3～8.5V ‣ 湿度 Humidity : 10% ~ 90% ‣ 工作范围 Operation Range : 10 meters (33 feet) ‣ 尺寸 Dimension : 42×51× 4.2mm ‣ 核心规格版本 Core Specification Version : 1.2 2.0 2.0+EDR 2.1 2.1+EDR 3.0 3.0+HS 4.0 ‣ 工作温度范围 Operation Temperature range : -40~85°C ‣ 储存温度范围 Storage Temperature range : -40~90°C BT-MC55-JKX规格书 7 2.3射频规格RF SPECIFICA TIONS 2.3.1发射射频规格 TX Radio Characteristics 项目 Items 条件 Conditio 最小 Min. 典型 Typ. 最大 Max 单位 Unit Delta-f1 avg NTC 140 175 kHz Delta-f2 max NTC 115 kHz 调制特性 Modulation characteristics Df2avg/Df1avg NTC 0.8 初始载波频率误差 Initial carrier-frequency tolerance NTC -7575 kHz DH1 NTC -25 25 kHz DH3 NTC -40 40 kHz DH5 NTC -40 40 kHz 载波频率 漂移 Carrier frequency drift Drift rata/50us -20 20 KHz ※ NTC:Normal Test Conditions +15 to +35°C, 2.3.2射频接收规格 RX Radio Characteristics 项目 Items 条件 Condition 最小 Min. 最大 Max 单位 Unit 单时隙灵敏度 (P=-70dBm) Single sensitivity (P=-70dBm) NTC <0.1% 多时隙灵敏度 (P=-70dBm) Multi Sensitivity(P=-70dBm) NTC <0.1% 最大输出电平（P=-20dBm） Maximum output Level(P=-20 dBm) NTC <0. 1% ※ NTC:Normal Test Conditions +15 to +35°C, 2.4音频规格AUDIO SPECIFICATION BT-MC55-JKX规格书 8 项目 Item 范围值 Range 典型值 Type 单位 unit 备注 Remark 电压伏值Vrms OUT-PUT LEVEL 1.0±0.1 1.0 V 音源1khz 频率响应 FREQUENCY RESPONSE -3~+3 DB 音源17~20000hz, 失真度 DISTORTION <-60 -65 DB 音源1khz 信噪比 S/N Ratio >80 85 DB 音源1khz/ZERO 通道分离度 CH SEPARATION >75 80 DB 音源1khz 通道不平衡度 Channel Unbanlance <1.5 0.05 DB 音源1khz 备注：音频指标测试规格是采用A2DP方式测量值定义 2.5 电流规格 CURRENT SPECIFICATION 模式 Mode 最大 Max 单位 Unit 电源开启（开启瞬间） Power on(split second) 83 mA 正在配对pairing 70 mA 配对成功Paired 50 mA 连接状态Connected 45 mA 呼叫In call 60 mA 3. 设计应用 DESIGN APPLICATION BT-MC55-JKX规格书 9 3.1 管脚配置 PIN CONFIGURATION 3.2 管脚定义 PIN DEFINITION PIN NAME DESCRIPTION 1 MIC+ 差动正极的MIC输入 Differential input (+) for MIC input 2 MIC- 差动负极的MIC输入 Differential input (-) for MIC input 3 +9V 电源供应 Power supply +9V 4 AUDIO_R 音频右声道输出 Audio SPK_R Channel Output 5 AUDIO_L 音频左声道输出 Audio SPK_L Channel Output 6 AGND 音频地 Audio Ground 7 GND Ground 地 8 +5V 电源供应 Power supply +5V 9 UART_TX 串口的输出 Serial data output 10 UART_RX 串口的输入 Serial data input 11 RESET 复位脚 Reset When low, must low for >5ms cause a reset 3.3物理尺寸 PHYSICAL DIMENSION BT-MC55-JKX规格书 10 TOP层 BOTTO…

Text truncated - open the document above for the full version.

Shinwa Industries (China) Ltd. No.26, Huifeng West 2 Road, Zhongkai High-tech Park, Huizhou, Guangdong, China DATE :2014-10-21 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank.Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shinwa Industries (China) Ltd. and No.26, Huifeng West 2 Road, Zhongkai High-tech Park, Huizhou, Guangdong, China Dated this / Day of 10/21/2014 / Agency agreement expiration date: 10/21/201 5 By: Penghui Zuo Signature Printed Title: PM On behalf of : Shinwa Industries (China) Ltd. Telephone: +86-0752-2602373

Modular approval Declaration letter We, Shinwa Industries (China) Ltd. apply single modular approval for Product Name: Car Kit Bluetooth Module Model: BT-MC55-JKS FCC ID: ZWYMC55S According to 996369 D01 Module Equip Auth Guide v01r04 and FCC part 15.212 requirements: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: YES, both side shielded. 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer: Yes. All inputs to the modules are buffered through logic or microprocessor inputs. 3) The modular transmitter must have its own power supply regulation. Answer: Yes. A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer: Yes. Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer: YES, thedistance between modular and all AEs are More than 10cm, refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer: Yes. The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCC ID of the module Contains FCC ID: ZWYMC55S (7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer: Yes. The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual. (8) The module must comply with RF exposure requirements Answer: Yes. Transmitter meets MPE calculation of 47 CFR 1.1307. Refer to MPE Reports and Refer to modular installation manual.

Shinwa Industries (China) Ltd. No.26, Huifeng West 2 Road, Zhongkai High-tech Park, Huizhou, Guangdong, China DATE 2014-10-21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZWYMC55S Product Name: Car Kit Bluetooth Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 10/21/2014 / By: Penghui Zuo Signature Printed Title: PM On behalf of : Shinwa Industries (China) Ltd. Telephone: +86-0752-2602373

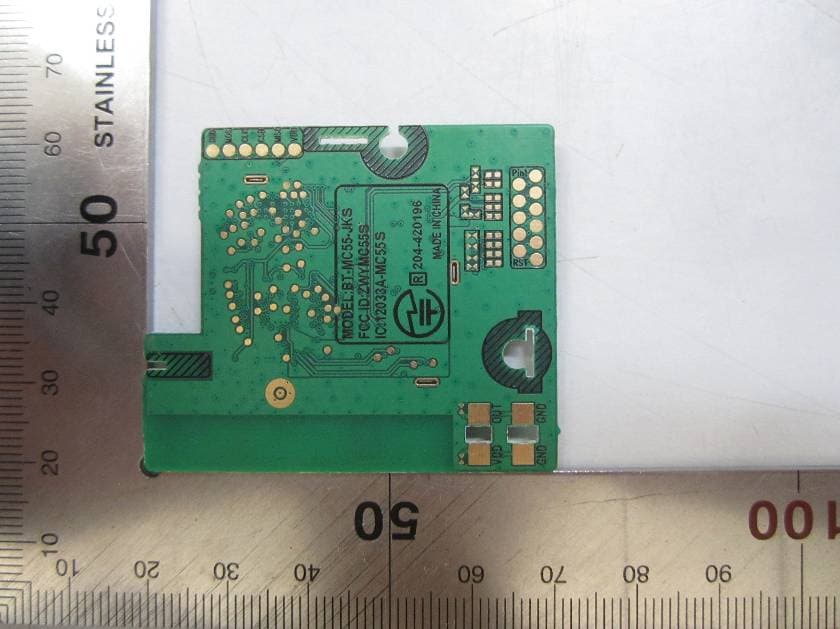

Label Location Label location

FCC ID:ZWYMC55S The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 0.5dBm(1.122mW) @ 2.402GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] =1.019≤ 3.0 So standalone SAR measurements are not required for both head and body.
