ZXX-WORLDRADIOPortable Radio

GENEVA WORLDRADIO WORLDRADIO DAB+ Manual – English ........................................................................................01 Bedienungsanleitung – Deutsch .............................................................05 Mode d’emploi – Français .......................................................................09 Manual del usuario – Español .................................................................13 Manuale dell’utente – Italiano .................................................................17 Handleiding – Nederlands .......................................................................21 Brugervejledning – Dansk ........................................................................25 Användar Manual – Svenska ...................................................................29 Bruksanvisning – Norsk ............................................................................33 Käyttöohje – Suomi ...................................................................................37 Manual do usuário – Português ..............................................................41 20121112_WR_manual_v1.3.indd 110.12.12 19:18 2 English 3 OVERVIEW USINGTHEWORLDRADIO FMRADIO 1. Touch the FM key. 2. Manually select an FM station by turning the right control dial. 3. Automatically select an FM station by pushing the right control dial. DABRADIO( availableonly for WorldRadioDAB+ ) 1. Touch the DAB key. 2. Select a DAB station by turning the right control dial. Then click the right control dial or wait for a few seconds. WorldRadio DAB+ is compatible with DAB, DAB+, DMR and DMB. UsingDABforthefirsttime( “Scan”function ) Initially the WorldRadio DAB+ Model has no DAB stations stored. Through the “Scan” function, the radio will find the available stations in your region. Afterwards the stations are automatically stored. The “Scan” function is also needed after traveling to a new location with different radio stations, or when you move the WorldRadio to a room with a different radio reception. 1. Touch the DAB key. 2. Turn the right control dial to select “Scan” on the menu. Then click the right control dial or wait for a few seconds. 3. Once all available stations have been found, you will see a radio station list. LINE-IN 1. Connect one end of a Line-In cable to the audio device ( headphone or Line-Out plug ). 2. Connect the other end of the cable to the Line-In plug on the back of the WorldRadio. 3. Touch the key. BLUETOOTH Mobile phones and computers with Bluetooth can connect to the WorldRadio and play music. The mobile phone or computer must support BluetoothA2DP. InitialSetup( “Pairing” )withiPhone ® 1. Touch the WorldRadio key. Wait for 20 seconds until the display shows “Pairing”. 2. Select “settings” on your iPhone ® . Select “General / Bluetooth”. Turn on Bluetooth. New Bluetooth devices are discovered automatically. After a few seconds “Geneva ... ( Not Paired )” will appear. 3. Select “Geneva ...”. The phone is now connecting ( “Pairing” ) to the WorldRadio. 4. If the phone asks for a PIN: enter “0000” ( four zeros ). 5. Now you can play music on an iPhone ® App “iPod” and listen to it on the WorldRadio. See BLUETOOTH SETUP on Page 2. BluetoothPairingguidesforotherdevicesand mobilephones Go to genevalab.com and select “Support”. PlayingMusic 1. Touch . The WorldRadio will initially search for previously paired devices. 2. When the WorldRadio connects, the display shows “Connected” for a few seconds. 3. Play music on the mobile phone. Music will start playing on the WorldRadio automatically after a few seconds. Most phones connect automatically to the WorldRadio after the initial setup (“Pairing”). ALARM The red alarm bell and red time on top of the display indicate that the alarm is enabled. If there is no alarm bell on the display, the alarm is disabled. SettingtheAlarm 1. Turn on the WorldRadio, then touch the key to set the desired alarm time. 2. To select the hour turn the right control dial, then push the right control dial. 3. To select the minutes turn the right control dial, then push the right control dial to confirm the alarm time. After setting the alarm time, the alarm is enabled. Enablinganddisablingthealarm The the alarm can be enabled and disabled by touch- ing the key. Alarmsound There are two alarm sounds ( radio or beep ) which are selected automatically. • Radio: If the radio is playing when turning the WorldRadio off, the radio will be used as the alarm sound. • Beep: If Bluetooth or Line-In are playing when turning the WorldRadio off, the beep will be used as the alarm sound. SETTINGTHETIME Setting the time works differently for the two WorldRadio models: WorldRadio 1. Touch key. 2. To select the hour turn the right control dial, then push the right control dial. 3. To select the minutes turn the right control dial, then push the right control dial to store the time. WorldRadioDAB+ Every time the WorldRadio gets a valid time signal from a DAB station, it will set the time automatically. If there are no DAB stations, it is possible to set the time manually: 1. Touch key. Push the right control dial for three seconds until the the time menu appears. 2. To select the hour turn the right control dial, then push the right control dial. 3. To select the minutes turn the right control dial, then push the right control dial to store the time. AUDIOSOURCES You can play music from the following audio sources: • FM Radio • DAB Radio ( available only for WorldRadio DAB+ ) • Mobile phone or computer via Bluetooth • Other devices with a Line-In cable GENEVA Bluetooth DAB Radio FM Radio Line-In CONTROLS Leftcontroldial • Push: Power on and off. • Turn: Volume up and down. Rightcontroldial • Change FM frequency, select DAB stations, set alarm, set time. Touchkeys • Audio source selection: FM, DAB, Line-In or Bluetooth. • Set time, alarm, audio settings. CONNECTORSONTHEBACk BATTERyCOVERONTHEBOTTOM …

Text truncated - open the document above for the full version.

Oct. 12 th 2012 To whom it may concern, Letter of Agency I, an officer of G-Lab GmbH do hereby a uthorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 74 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Fabian Meier Senior Vice President, Audio & Video Product Development

8 APPENDIX E Oct. 12 th 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: ZXX-WORLDRADIO Request is hereby submitted by G-Lab GmbH to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and G-Lab GmbH reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of G-Lab GmbH and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Fabian Meier Senior Vice President, Audio & Video Product Development

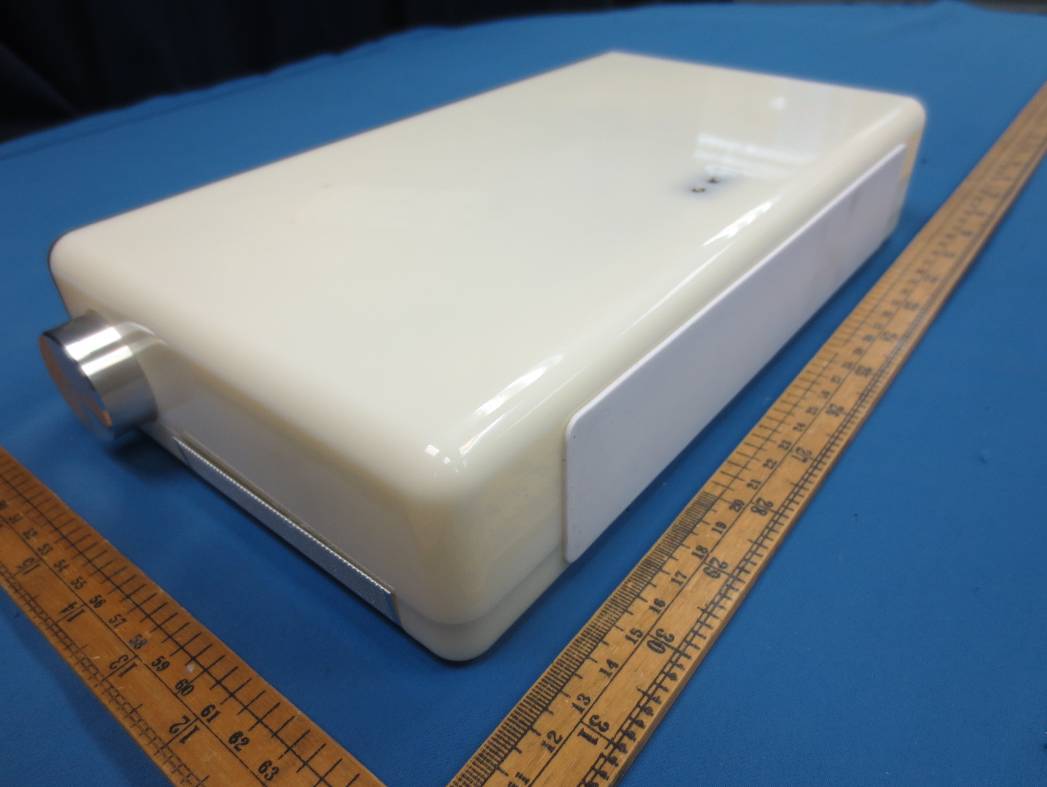

External Photos

Internal Photos FM Antenna

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable radio with Bluetooth function. The EUT can play music from mobile phone, computer or other devices through Bluetooth function or Audio Input. The EUT is operated from a rechargeable lithium battery which can be charged by AC/DC adapter. For more information, please refer to user manual. Antenna Type: Integral antenna Antenna Gain: 2dBi The nominal radiated output power (e.i.r.p.) specified: 2dBm (tolerance: +/- 3dB ) The nominal conducted output power specified: 0dBm (tolerance: +/- 3dB) Modulation Type: GFSK, ∏/4DQPSK, 8DPSK According to the KDB 447498: The worst-case radiated emission for the EUT is 98.5dBμV/m at 3m in the frequency 2.441GHz = [(FS*D) ^2 / 30] mW = 3.27dBm which is within the production variation. The maximun conducted output power specified is 3.0dBm = 2. 0mW The source- based time-averaging conducted output power = 2.0 * Duty Cycle mW= 1.7 mW The S AR Excl usion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1+EDR, without AFH function), transmitter duty cycle is dependent of packet type (DH1, DH3 and DH5). For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ZXX-WORLDRADIO

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com G-Lab GmbH Application For Certification FCC ID: ZXX-WORLDRADIO Portable Radio Model: Geneva WorldRadio 2.4GHz Transceiver Report No.: SZ12090533-1 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Robert Li Project Engineer Billy Li Supervisor Date: 11 April 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-WORLDRADIO i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-WORLDRADIO ii MEASUREMENT/TECHNICAL REPORT Model: Geneva WorldRadio FCC ID: ZXX-WORLDRADIO This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12Edition] provision. Report prepared by: Robert Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0657 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-WORLDRADIO iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions ......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs ................................................................................... 19 5.0 Product Labelling .............................................................................................. 21 6.0 Technical Specifications ...........................…

Text truncated - open the document above for the full version.

Radiated Emission

Conducted Emission
