2A2P9-EFHDP24GS1EcoFlow 4G Dongle PPS (NA)

折后尺寸： 50*85mm 展开尺寸： 350*85mm 纸张克重：太阳双胶纸80g 印刷色值： 单黑印刷 装订方式：六折-风琴折 封面：此页为封面 要求： ·模切走位≤±0.15mm ·色相正确、印迹牢固、 ·套印准确、各色套印 ·不露杂色，套印误差≤ 0.1mm ·符合环保标准，通过RoHS认证 *本品牌及其所使用的标 志、名称、图像以及所有 内容设计，其版权均为本 公司所有，未经授权任何 组织、个人、商业团体不 得擅自使用、翻印，本公 司保留追究其法律责任的 权利！ 1403010730V0.1/EcoFlow 4G Dongle ESS(EU)赖小波2023-10-17 产品料号版本号更新内容产品名称文案更新时间 Produkt Einführung Product Introduction Système communication System Communication 4G Dongle (kurz "Dongle") ist ein intelligentes Kommunikationserweiterungsmodul, das mit EcoFlow Wechselrichtern zusammenarbeitet, um eine drahtlose Kommunikation zwischen Wechselrichtern und dem EcoFlow Webportal über das 4G-Netzwerk zu ermöglichen. 4G Dongle ("the Dongle" for short ) is a smart communication expansion module that works with EcoFlow DELTA Pro Ultra to implement wireless communication between the inverter and EcoFlow Web portal through the 4G network. WWW INTERNETAPPWEB PORTAL EcoFlow DELTA Pro Ultra Inverter 4G Contenu de la boîte What's In The Box x1x1x1 Connecteur USB USB Connector Voyant LED LED Indicator Dongle Gehäuse Dongle Enclousure Product Installation Produkt Installation 1 Installieren Sie eine Nano SIM-Karte. A Installieren Sie die mitgelieferte Nano Data Prepaid SIM-Karte, mit Traffic: Lokales Datenpaket (monatlich) 1,90 €/1GB, prepaid mit der App. Die mitgelieferte SIM-Karte kann nur für diesen 4G-Dongle verwendet werden, nicht für andere 4G-Module oder Geräte von Drittanbietern. B Sie können auch eine Nano SIM-Karte installieren (Größe: 12 mm x 9 mm; Kapazität: ≥ 64 KB), die Sie selbst auf der Grundlage des Traffic- Bedarfs erstellen: monatlicher Traffic: ≥ 1GB 1 Install a nano SIM card. A Install the provided nano data prepaid SIM card, the traffic of which is : Local Data Package (monthly) €1.9/1GB, prepaid through App. The included SIM card can only be used for this 4G dongle, not for other 4G modules or third party devices. B You can also install a nano SIM card (size: 12 mm x 9 mm; capacity: ≥ 64 KB) that is prepared by yourself based on the traffic requirements: monthly traffic: ≥ 1GB 2 Stecken Sie den Dongle in den USB- Anschluss (4G) des Wechselrichters. 2 Install the dongle onto the 4G dongle port of the inverter. 3 Aktivieren Sie die SIM-Karte mit der App. Lesen Sie die Informationen auf Ihrer SIM-Karte und richten Sie den APN ein, tippen Sie dann auf „Speichern“, um Ihre SIM-Karte zu aktivieren. Ensure that the inverter has been powered on. Observe the LED indicator to check the operating status. Stellen Sie sicher, dass der Wechselrichter eingeschaltet ist. Beobachten Sie die LED, um den Betriebszustand zu prüfen. Voyant LED LED Indicator LED-AnzeigestatusBeschreibung Langsam weiß blinkend Anwählen/ Es gibt keine Kommunikation Schnell weiß blinkend Der Wechselrichter kommuniziert mit EcoFlow Web über den Dongle. LED indicator statusDescription Blinking white slowly Dialing / There is no communication Blinking white rapidly The inverter is communicating with EcoFlow Web through the Dongle. 3 Activate your SIM card through App. Refer to the information on your SIM card and setup APN, then tap “Save” to activate your SIM card. ❶ ❶ ❸ ❸ ❷ ❷ EcoFlow 4G Dongle PPS (NA) Benutzerhandbuch User Manual Click Click SIM-Karten Steckplatz SIM Card slot Specifications Technische Spezifikationen Um eine stabile Datenübertragung zu gewährleisten, empfiehlt EcoFlow, den 4G-Dongle in Gebieten mit stabilem Mobilfunksignal (2G-Signal ≥4 Balken, 3G/4G-Signal ≥3 Balken) zu installieren. Eine Liste der empfohlenen Netzbetreiber und Einzelheiten zu den unterstützten Frequenzen erhalten Sie bei den örtlichen Händlern. To ensure stable data transmission, EcoFlow suggests 4G dongle to be installed in areas with stable mobile signal (2G signal ≥4 bars, 3G/4G signal ≥3 bars). For recommended carriers list and details on supported frequencies, please contact local distributors. Grundlegende Parameter ModellEF HD-P2-4G-S1 InstallationPlug und Play Abmessungen (B x H x T)86,5 mm x 44,2 mm x 27,1 mm Nettogewicht ca. 36,3 g SCHUTZART: IP65 (nach Abschluss der Installation des 4G-Dongles am Wechsel- richter) VerbindungsschnittstelleUSB2.0 TypeA Eingang5V Drahtlose Parameter SIM-Karten TypNano SIM-Karte (12 mm x 9 mm) Unterstützte Standards und Frequenzen FDD-LTE Band 1: Tx: 1920-1980 MHz, Rx: 2110-2170 MHz FDD-LTE Band 3: Tx: 1710-1785 MHz, Rx: 1805-1880 MHz FDD-LTE Band 5: Tx: 824-849 MHz, Rx: 869-894 MHz FDD-LTE Band 7: Tx: 2500-2570 MHz, Rx: 2620-2690 MHz FDD-LTE Band 8: Tx: 880-915 MHz, Rx: 925-960 MHz FDD-LTE Band 20: Tx: 832-862 MHz, Rx: 791-821 MHz FDD-LTE Band 28: Tx: 703-748 MHz, Rx: 758-803 MHz Max. RF Ausgangsleistung FDD-LTE Band 1: 22,87dBm FDD-LTE Band 3: 23,51dBm FDD-LTE Band 5: 22,88dBm FDD-LTE Band 7: 23,23dBm FDD-LTE Band 8: 23,40dBm FDD-LTE Band 20: 23,35dBm FDD-LTE Band 28: 23,38dBm Umgebung Betriebstemperatur-20 °C bis 45 °C Lagertemperatur-30 °C bis 45 °C Max. Betriebshöhe3000 m Wechselrichter- Kompatibilität Wechselrichter ModellEFYJ751-PCS-US Basic Parameter ModelEF HD-P2-4G-S1 InstallationPlug-and-play Dimensions87.5 mm x 44.0 mm x 16.3 mm Weight Approximately 36.3 g IP ratingIP54 (After installed in the 4G dongle port of the inverter) Connection interfaceUSB2.0 Type-A Input5V Wireless Parameter SIM Card TypeNano SIM card (12 mm x 9 mm) Supported Standards and Frequencies FDD-LTE Band 2: Tx: 1850-1910MHz, Rx: 1930-1990MHz FDD-LTE Band 4: Tx: 1710-1755MHz, Rx: 2110-2155MHz FDD-LTE Band 5: Tx: 824-849MHz, Rx: 869-894MHz FDD-LTE Band 12: Tx: 699-716MHz, Rx: 729-746MHz FDD-LTE Band 13: Tx: 777-787MHz, Rx: 746-756MHz FDD-LTE Band 25: Tx: 1850-1915MHz, Rx: 1930-1995MHz FDD-LTE Band 26: Tx: 814-849MHz, Rx: 859-894MHz Max.RF Output Power FDD-LTE Band 2: 24.36dBm FDD-LTE Band 4: 23.81dBm FDD-LTE Band 5: 23.98dBm FDD-LTE Band 12: 23.71dBm FDD-LTE Band 13: 23.45dBm FDD-LTE Band 25: 23.99dBm FDD-LTE Band 26: 24.06dBm Environmental Temperature Operating Temperature–20°C to 45°C Storage Temperature–20°C to 45°C Max. operating altitude3,000 m Inverter Compatibility Inverter model…

Text truncated - open the document above for the full version.

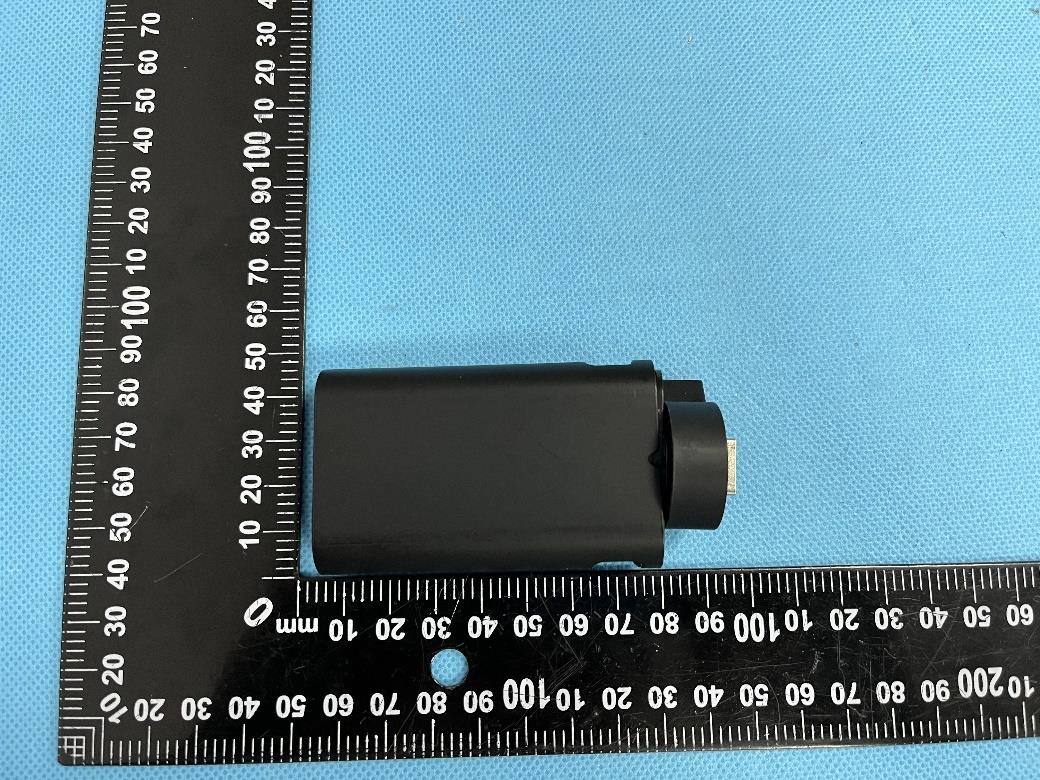

Reference No.: WTX23X10216333W001/002 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X10216333W001/002 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X10216333W001/002 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX23X10216333W001/002 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X10216333W001/002 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X10216333W001/002 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X10216333W001/002 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Antenna View LTE Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: EcoFlow Inc. Address of applicant: 1st Floor,Building 1,Plant E, Jiehe Industrial City,Shuitian Community, Shiyan Street, Bao'an District, Shenzhen City, Guangdong Province, P.R.China Manufacturer: The same as Applicant Address of manufacturer: The same as Applicant General Description of EUT: Product Name: EcoFlow 4G Dongle PPS (NA) Trade Name: Model No.: EF HD-P2-4G-S1 Adding Model(s): / Rated Voltage: DC 5V Battery Capacity: / Adapter Model: / FCC ID: 2A2P9-EFHDP24GS1 Equipment Type: Mobile device Technical Characteristics of EUT: 4G Support Networks: FDD-LTE Support Band: FDD-LTE Band 2, 4, 5, 12, 13, 25, 26 Uplink Frequency: FDD-LTE Band 2 Tx: 1850-1910MHz, FDD-LTE Band 4 Tx: 1710-1755MHz, FDD-LTE Band 5 Tx: 824-849MHz, FDD-LTE Band 12 Tx: 699-716MHz, FDD-LTE Band 13 Tx: 777-787MHz, FDD-LTE Band 25 Tx: 1850-1915MHz FDD-LTE Band 26 Tx: 814-849MHz Downlink Frequency: FDD-LTE Band 2 Rx: 1930-1990MHz, FDD-LTE Band 4 Rx: 2110-2155MHz, FDD-LTE Band 5 Rx: 869-894MHz, FDD-LTE Band 12 Rx: 729-746MHz, FDD-LTE Band 13 Rx: 746-756MHz, FDD-LTE Band 25 Rx: 1930-1995MHz FDD-LTE Band 26 Rx: 859-894MHz RF Output Power: FDD-LTE Band 2: 24.36dBm, FDD-LTE Band 4: 23.81dBm, FDD-LTE Band 5: 23.98dBm, FDD-LTE Band 12: 23.71dBm, FDD-LTE Band 13: 23.45dBm, FDD-LTE Band 25: 23.99dBm FDD-LTE Band 26: 24.06dBm Type of Emission: FDD-LTE Band 2: 18M0G7D, 4M93W7D FDD-LTE Band 4: 18M0G7D, 4M93W7D FDD-LTE Band 5: 8M99G7D, 4M56W7D FDD-LTE Band 12: 8M99G7D, 4M56W7D FDD-LTE Band13: 8M95G7D, 4M56W7D FDD-LTE Band 25: 18M0G7D, 4M93W7D FDD-LTE Band 26: 13M5G7D, 4M70W7D Type of Modulation: QPSK, 16QAM Antenna Type: PCB Antenna Antenna Gain: FDD-LTE Band 2: 0.20dBi, FDD-LTE Band 4: 1.84dBi, FDD-LTE Band 5: 3.66dBi, FDD-LTE Band 12: 2.51dBi, FDD-LTE Band 13: 3.59dBi, FDD-LTE Band 25: 0.20dBi FDD-LTE Band 26: 3.66dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Tune-up Power Antenna Gain Duty Cycle Factor Tune-up Time-Averaged Power ERP (MHz) (dBm) (dBi) (dB) (dBm) (dBm) LTE Band 2 1850 24.5 0.20 0 24.50 22.55 LTE Band 4 1710 24.0 1.84 0 24.00 23.69 LTE Band 5 824 24.0 3.66 0 24.00 25.51 LTE Band 12 699 24.0 2.51 0 24.00 24.36 LTE Band 13 777 23.5 3.59 0 23.50 24.94 LTE Band 25 1850 24.0 0.20 0 24.00 22.05 LTE Band 26 814 24.5 3.66 0 24.50 26.01 Radio Access Technology Option Min. Distance Max. Power Exposure Limit Ratio Result (cm) (dBm) (mW) (mW) Pass/Fail LTE Band 2 C 20.00 22.55 179.89 768.00 0.23 Pass LTE Band 4 C 20.00 23.69 233.88 768.00 0.30 Pass LTE Band 5 C 20.00 25.51 355.63 421.89 0.84 Pass LTE Band 12 C 20.00 24.36 272.90 357.89 0.76 Pass LTE Band 13 C 20.00 24.94 311.89 397.82 0.78 Pass LTE Band 25 C 20.00 22.05 160.32 768.00 0.21 Pass LTE Band 26 C 20.00 26.01 399.02 416.77 0.96 Pass Note: 1. For GSM, Duty cycle factor = 9 dB for 1 Tx slot, 6 dB for 2 Tx slots, 4.25 dB for 3 Tx slots, 3 dB for 4 Tx slots; 2. Tune-up time-average power = Tune-up Power - Duty cycle factor in dB 2. Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 3. Option A, B and C refers as clause 1.2. 4. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 5. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 6. Ratio= Tune-up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail / / / / / / Result: Pass

Reference No.: WTX23X10216333W001 Page 1 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 98 Appendix for LTE Band 12 Product Name: EcoFlow 4G Dongle PPS (NA) Model No: EF HD-P2-4G-S1 Reference No.: WTX23X10216333W001 Page 2 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 98 Appendix A: Average Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band12 1.4MHz QPSK 23017 1RB#0 23.34 PASS Band12 1.4MHz 16QAM 23017 1RB#0 22.53 PASS Band12 1.4MHz QPSK 23017 1RB#2 23.51 PASS Band12 1.4MHz 16QAM 23017 1RB#2 22.67 PASS Band12 1.4MHz QPSK 23017 1RB#5 23.33 PASS Band12 1.4MHz 16QAM 23017 1RB#5 22.54 PASS Band12 1.4MHz QPSK 23017 3RB#0 23.34 PASS Band12 1.4MHz 16QAM 23017 3RB#0 22.20 PASS Band12 1.4MHz QPSK 23017 3RB#1 23.40 PASS Band12 1.4MHz 16QAM 23017 3RB#1 22.36 PASS Band12 1.4MHz QPSK 23017 3RB#3 23.43 PASS Band12 1.4MHz 16QAM 23017 3RB#3 22.36 PASS Band12 1.4MHz QPSK 23017 6RB#0 22.33 PASS Band12 1.4MHz 16QAM 23017 6RB#0 21.44 PASS Band12 1.4MHz QPSK 23095 1RB#0 23.41 PASS Band12 1.4MHz 16QAM 23095 1RB#0 22.73 PASS Band12 1.4MHz QPSK 23095 1RB#2 23.68 PASS Band12 1.4MHz 16QAM 23095 1RB#2 22.76 PASS Band12 1.4MHz QPSK 23095 1RB#5 23.52 PASS Band12 1.4MHz 16QAM 23095 1RB#5 22.61 PASS Band12 1.4MHz QPSK 23095 3RB#0 23.43 PASS Band12 1.4MHz 16QAM 23095 3RB#0 22.33 PASS Band12 1.4MHz QPSK 23095 3RB#1 23.33 PASS Band12 1.4MHz 16QAM 23095 3RB#1 22.24 PASS Band12 1.4MHz QPSK 23095 3RB#3 23.38 PASS Band12 1.4MHz 16QAM 23095 3RB#3 21.98 PASS Band12 1.4MHz QPSK 23095 6RB#0 22.34 PASS Band12 1.4MHz 16QAM 23095 6RB#0 21.46 PASS Band12 1.4MHz QPSK 23173 1RB#0 23.52 PASS Band12 1.4MHz 16QAM 23173 1RB#0 22.72 PASS Band12 1.4MHz QPSK 23173 1RB#2 23.44 PASS Band12 1.4MHz 16QAM 23173 1RB#2 22.79 PASS Band12 1.4MHz QPSK 23173 1RB#5 23.71 PASS Band12 1.4MHz 16QAM 23173 1RB#5 22.31 PASS Band12 1.4MHz QPSK 23173 3RB#0 23.65 PASS Band12 1.4MHz 16QAM 23173 3RB#0 22.51 PASS Reference No.: WTX23X10216333W001 Page 3 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 3 of 98 Band12 1.4MHz QPSK 23173 3RB#1 23.48 PASS Band12 1.4MHz 16QAM 23173 3RB#1 22.43 PASS Band12 1.4MHz QPSK 23173 3RB#3 23.55 PASS Band12 1.4MHz 16QAM 23173 3RB#3 22.51 PASS Band12 1.4MHz QPSK 23173 6RB#0 22.51 PASS Band12 1.4MHz 16QAM 23173 6RB#0 21.53 PASS Band12 3MHz QPSK 23025 1RB#0 23.33 PASS Band12 3MHz 16QAM 23025 1RB#0 22.41 PASS Band12 3MHz QPSK 23025 1RB#8 23.38 PASS Band12 3MHz 16QAM 23025 1RB#8 22.30 PASS Band12 3MHz QPSK 23025 1RB#14 23.51 PASS Band12 3MHz 16QAM 23025 1RB#14 22.31 PASS Band12 3MHz QPSK 23025 8RB#0 22.37 PASS Band12 3MHz 16QAM 23025 8RB#0 21.51 PASS Band12 3MHz QPSK 23025 8RB#4 22.38 PASS Band12 3MHz 16QAM 23025 8RB#4 21.43 PASS Band12 3MHz QPSK 23025 8RB#7 22.44 PASS Band12 3MHz 16QAM 23025 8RB#7 21.37 PASS Band12 3MHz QPSK 23025 15RB#0 22.39 PASS Band12 3MHz 16QAM 23025 15RB#0 21.44 PASS Band12 3MHz QPSK 23095 1RB#0 23.50 PASS Band12 3MHz 16QAM 23095 1RB#0 22.56 PASS Band12 3MHz QPSK 23095 1RB#8 23.54 PASS Band12 3MHz 16QAM 23095 1RB#8 22.10 PASS Band12 3MHz QPSK 23095 1RB#14 23.19 PASS Band12 3MHz 16QAM 23095 1RB#14 22.23 PASS Band12 3MHz QPSK 23095 8RB#0 22.38 PASS Band12 3MHz 16QAM 23095 8RB#0 21.20 PASS Band12 3MHz QPSK 23095 8RB#4 22.39 PASS Band12 3MHz 16QAM 23095 8RB#4 21.30 PASS Band12 3MHz QPSK 23095 8RB#7 22.43 PASS Band12 3MHz 16QAM 23095 8RB#7 21.53 PASS Band12 3MHz QPSK 23095 15RB#0 22.39 PASS Band12 3MHz 16QAM 23095 15RB#0 21.39 PASS Band12 3MHz QPSK 23165 1RB#0 23.59 PASS Band12 3MHz 16QAM 23165 1RB#0 22.51 PASS Band12 3MHz QPSK 23165 1RB#8 23.52 PASS Band12 3MHz 16QAM 23165 1RB#8 22.84 PASS Band12 3MHz QPSK 23165 1RB#14 23.52 PASS Band12 3MHz 16QAM 23165 1RB#14 22.62 PASS Band12 3MHz QPSK 23165 8RB#0 22.68 PASS Band12 3MHz 16QAM 23165 8RB#0 21.80 PASS Reference No.: WTX23X10216333W001 Page 4 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 4 of 98 Band12 3MHz QPSK 23165 8RB#4 22.55 PASS Band12 3MHz 16QAM 23165 8RB#4 21.45 PASS Band12 3MHz QPSK 23165 8RB#7 22.49 PASS Band12 3MHz 16QAM 23165 8RB#7 21.32 PASS Band12 3MHz QPSK 23165 15RB#0 22.47 PASS Band12 3MHz 16QAM 23165 15RB#0 21.40 PASS Band12 5MHz QPSK 23035 1RB#0 23.28 PASS Band12 5MHz 16QAM 23035 1RB#0 22.15 PASS Band12 5MHz QPSK 23035 1RB#12 23.44 PASS Band12 5MHz 16QAM 23035 1RB#12 22.54 PASS Band12 5MHz QPSK 23035 1RB#24 23.32 PASS Band12 5MHz 16QAM 23035 1RB#24 22.28 PASS Band12 5MHz QPSK 23035 12RB#0 22.40 PASS Band12 5MHz 16QAM 23035 12RB#0 21.39 PASS Band12 5MHz QPSK 23035 12RB#6 22.41 PASS Band12 5MHz 16QAM 23035 12RB#6 21.40 PASS Band12 5MHz QPSK 23035 12RB#13 22.34 PASS Band12 5MHz 16QAM 23035 12RB#13 21.24 PASS Band12 5MHz QPSK 23035 25RB#0 22.34 PASS Band12 5MHz 16QAM 23035 25RB#0 21.52 PASS Band12 5MHz QPSK 23095 1RB#0 23.63 PASS Band12 5MHz 16QAM 23095 1RB#0 22.53 PASS Band12 5MHz QPSK 23095 1RB#12 23.56 PASS Band12 5MHz 16QAM 23095 1RB#12 22.82 PASS Band12 5MHz QPSK 23095 1RB#24 23.37 PASS Band12 5MHz 16QAM 23095 1RB#24 22.55 PASS Band12 5MHz QPSK 23095 12RB#0 22.47 PASS Band12 5MHz 16QAM 23095 12RB#0 21.33 PASS Band12 5MHz QPSK 23095 12RB#6 22.39 PASS Band12 5MHz 16QAM 23095 12RB#6 21.17 PASS Band12 5MHz QPSK 23095 12RB#13 22.37 PASS Band12 5MHz 16QAM 23095 12RB#13 21.31 PASS Band12 5MHz QPSK 23095 25RB#0 22.36 PASS Band12 5MHz 16QAM 23095 25RB#0 21.33 PASS Band12 5MHz QPSK 23155 1RB#0 23.44 PASS Band12 5MHz 16QAM 23155 1RB#0 22.46 PASS Band12 5MHz QPSK 23155 1RB#12 23.47 PASS Band12 5MHz 16QAM 23155 1RB#12 22.55 PASS Band12 5MHz QPSK 23155 1RB#24 23.40 PASS Band12 5MHz 16QAM 23155 1RB#24 22.57 PASS Band12 5MHz QPSK 23155 12RB#0 22.59 PASS Band12 5MHz 16QAM 23155 12RB#0 21.43 PASS Reference No.: WTX23X10216333W001 Page 5 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 5 of 98 Band12 5MHz QPSK 23155 12RB#6 22.43 PASS Band12 5MHz 16QAM 23155 12RB#6 21.44 PASS Band12 5MHz QPSK 23155 12RB#13 22.38 PASS Band12 5MHz 16QAM 23155 12RB#13 21.32 …

Text truncated - open the document above for the full version.

Reference No.: WTX23X10216333W001 Page 24 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 24 of 98 Band12-10MHz-16QAM-23095-1RB#0-PASS Band12-10MHz-16QAM-23095-25RB#0-PASS Band12-10MHz-16QAM-23130-1RB#0-PASS Reference No.: WTX23X10216333W001 Page 25 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 25 of 98 Band12-10MHz-16QAM-23130-25RB#0-PASS Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band12 1.4MHz QPSK 23017 6RB#0 1.088 1.21 PASS Band12 1.4MHz 16QAM 23017 6RB#0 1.088 1.23 PASS Band12 1.4MHz QPSK 23095 6RB#0 1.088 1.23 PASS Band12 1.4MHz 16QAM 23095 6RB#0 1.088 1.24 PASS Band12 1.4MHz QPSK 23173 6RB#0 1.088 1.24 PASS Band12 1.4MHz 16QAM 23173 6RB#0 1.088 1.24 PASS Band12 3MHz QPSK 23025 15RB#0 2.696 2.88 PASS Band12 3MHz 16QAM 23025 15RB#0 2.686 2.88 PASS Band12 3MHz QPSK 23095 15RB#0 2.696 2.88 PASS Band12 3MHz 16QAM 23095 15RB#0 2.696 2.89 PASS Band12 3MHz QPSK 23165 15RB#0 2.696 2.87 PASS Band12 3MHz 16QAM 23165 15RB#0 2.696 2.88 PASS Band12 5MHz QPSK 23035 25RB#0 4.496 4.79 PASS Band12 5MHz 16QAM 23035 25RB#0 4.505 4.78 PASS Band12 5MHz QPSK 23095 25RB#0 4.496 4.79 PASS Band12 5MHz 16QAM 23095 25RB#0 4.496 4.78 PASS Band12 5MHz QPSK 23155 25RB#0 4.496 4.79 PASS Band12 5MHz 16QAM 23155 25RB#0 4.505 4.77 PASS Reference No.: WTX23X10216333W001 Page 26 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 26 of 98 Band12 10MHz QPSK 23060 50RB#0 8.985 9.53 PASS Band12 10MHz QPSK 23095 50RB#0 8.952 9.53 PASS Band12 10MHz QPSK 23130 50RB#0 8.952 9.53 PASS Band12 10MHz 16QAM 23060 25RB#0 4.559 5.03 PASS Band12 10MHz 16QAM 23095 25RB#0 4.559 5.03 PASS Band12 10MHz 16QAM 23130 25RB#0 4.559 5.03 PASS Reference No.: WTX23X10216333W001 Page 27 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 27 of 98 Test Graphs Band12-1.4MHz-QPSK-23017-6RB#0-PASS Band12-1.4MHz-16QAM-23017-6RB#0-PASS Reference No.: WTX23X10216333W001 Page 28 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 28 of 98 Band12-1.4MHz-QPSK-23095-6RB#0-PASS Band12-1.4MHz-16QAM-23095-6RB#0-PASS Band12-1.4MHz-QPSK-23173-6RB#0-PASS Reference No.: WTX23X10216333W001 Page 29 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 29 of 98 Band12-1.4MHz-16QAM-23173-6RB#0-PASS Band12-3MHz-QPSK-23025-15RB#0-PASS Band12-3MHz-16QAM-23025-15RB#0-PASS Reference No.: WTX23X10216333W001 Page 30 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 30 of 98 Band12-3MHz-QPSK-23095-15RB#0-PASS Band12-3MHz-16QAM-23095-15RB#0-PASS Band12-3MHz-QPSK-23165-15RB#0-PASS Reference No.: WTX23X10216333W001 Page 31 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 31 of 98 Band12-3MHz-16QAM-23165-15RB#0-PASS Band12-5MHz-QPSK-23035-25RB#0-PASS Band12-5MHz-16QAM-23035-25RB#0-PASS Reference No.: WTX23X10216333W001 Page 32 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 32 of 98 Band12-5MHz-QPSK-23095-25RB#0-PASS Band12-5MHz-16QAM-23095-25RB#0-PASS Band12-5MHz-QPSK-23155-25RB#0-PASS Reference No.: WTX23X10216333W001 Page 33 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 33 of 98 Band12-5MHz-16QAM-23155-25RB#0-PASS Band12-10MHz-QPSK-23060-50RB#0-PASS Band12-10MHz-QPSK-23095-50RB#0-PASS Reference No.: WTX23X10216333W001 Page 34 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 34 of 98 Band12-10MHz-QPSK-23130-50RB#0-PASS Band12-10MHz-16QAM-23060-25RB#0-PASS Band12-10MHz-16QAM-23095-25RB#0-PASS Reference No.: WTX23X10216333W001 Page 35 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 35 of 98 Band12-10MHz-16QAM-23130-25RB#0-PASS Reference No.: WTX23X10216333W001 Page 36 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 36 of 98 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band12 1.4MHz QPSK 23017 1RB#0 -30.80,-19.47 PASS Band12 1.4MHz 16QAM 23017 1RB#0 -33.46,-22.94 PASS Band12 1.4MHz QPSK 23017 1RB#5 -44.70,-49.25 PASS Band12 1.4MHz 16QAM 23017 1RB#5 -46.25,-50.85 PASS Band12 1.4MHz QPSK 23017 6RB#0 -27.18,-24.48 PASS Band12 1.4MHz 16QAM 23017 6RB#0 -29.14,-25.39 PASS Band12 1.4MHz QPSK 23173 1RB#0 -49.35,-47.03 PASS Band12 1.4MHz 16QAM 23173 1RB#0 -50.91,-50.13 PASS Band12 1.4MHz QPSK 23173 1RB#5 -19.89,-30.42 PASS Band12 1.4MHz 16QAM 23173 1RB#5 -22.09,-31.65 PASS Band12 1.4MHz QPSK 23173 6RB#0 -24.09,-27.57 PASS Band12 1.4MHz 16QAM 23173 6RB#0 -25.53,-27.48 PASS Band12 3MHz QPSK 23025 1RB#0 -30.14,-17.17 PASS Band12 3MHz 16QAM 23025 1RB#0 -32.40,-20.29 PASS Band12 3MHz QPSK 23025 1RB#14 -44.35,-51.81 PASS Band12 3MHz 16QAM 23025 1RB#14 -45.05,-51.85 PASS Band12 3MHz QPSK 23025 15RB#0 -29.05,-24.51 PASS Band12 3MHz 16QAM 23025 15RB#0 -30.00,-25.87 PASS Band12 3MHz QPSK 23165 1RB#0 -51.24,-44.77 PASS Band12 3MHz 16QAM 23165 1RB#0 -52.67,-45.81 PASS Band12 3MHz QPSK 23165 1RB#14 -19.03,-32.48 PASS Band12 3MHz 16QAM 23165 1RB#14 -18.91,-31.71 PASS Band12 3MHz QPSK 23165 15RB#0 -25.24,-29.38 PASS Band12 3MHz 16QAM 23165 15RB#0 -26.93,-30.62 PASS Band12 5MHz QPSK 23035 1RB#0 -19.08 PASS Band12 5MHz 16QAM 23035 1RB#0 -23.03 PASS Band12 5MHz QPSK 23035 1RB#24 -53.12 PASS Band12 5MHz 16QAM 23035 1RB#24 -53.82 PASS Band12 5MHz QPSK 23035 25RB#0 -25.63 PASS Band12 5MHz 16QAM 23035 25RB#0 -27.14 PASS Band12 5MHz QPSK 23155 1RB#0 -53.01 PASS Band12 5MHz 16QAM 23155 1RB#0 -54.02 PASS Band12 5MHz QPSK 23155 1RB#24 -21.49 PASS Band12 5MHz 16QAM 23155 1RB#24 -21.76 PASS Band12 5MHz QPSK 23155 25RB#0 -26.16 PASS Band12 5MHz 16QAM 23155 25RB#0 -27.87 PASS Reference No.: WTX23X10216333W001 Page 37 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 37 of 98 Band12 10MHz QPSK 23060 1RB#0 -34.52,-30.87 PASS Band12 10MHz QPSK 230…

Text truncated - open the document above for the full version.

Reference No.: WTX23X10216333W001 Page 49 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 49 of 98 Band12-5MHz-16QAM-23155-25RB#0-PASS Band12-10MHz-QPSK-23060-1RB#0-PASS Band12-10MHz-QPSK-23060-1RB#49-PASS Reference No.: WTX23X10216333W001 Page 50 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 50 of 98 Band12-10MHz-QPSK-23060-50RB#0-PASS Band12-10MHz-QPSK-23130-1RB#0-PASS Band12-10MHz-QPSK-23130-1RB#49-PASS Reference No.: WTX23X10216333W001 Page 51 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 51 of 98 Band12-10MHz-QPSK-23130-50RB#0-PASS Band12-10MHz-16QAM-23060-1RB#0-PASS Band12-10MHz-16QAM-23060-1RB#49-PASS Reference No.: WTX23X10216333W001 Page 52 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 52 of 98 Band12-10MHz-16QAM-23130-1RB#0-PASS Band12-10MHz-16QAM-23130-1RB#49-PASS Reference No.: WTX23X10216333W001 Page 53 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 53 of 98 Appendix E: Conducted Spurious Emission Test Result Band Bandwidt h Modulatio n Channe l RB Configuratio n Frequency Range Resul t (dBm ) Verdic t Band1 2 1.4MHz QPSK 23017 1RB#0 Range1:0.009~0.15MH z -52.1 2 PASS Band1 2 1.4MHz QPSK 23017 1RB#0 Range2:0.15~30MHz -73.8 4 PASS Band1 2 1.4MHz QPSK 23017 1RB#0 Range3:30~1000MHz -67.0 8 PASS Band1 2 1.4MHz QPSK 23017 1RB#0 Range4:1000~10000M Hz -45.5 6 PASS Band1 2 1.4MHz 16QAM 23017 1RB#0 Range1:0.009~0.15MH z -53.2 4 PASS Band1 2 1.4MHz 16QAM 23017 1RB#0 Range2:0.15~30MHz -75.7 8 PASS Band1 2 1.4MHz 16QAM 23017 1RB#0 Range3:30~1000MHz -66.9 2 PASS Band1 2 1.4MHz 16QAM 23017 1RB#0 Range4:1000~10000M Hz -47.8 3 PASS Band1 2 1.4MHz QPSK 23095 1RB#0 Range1:0.009~0.15MH z -52.6 7 PASS Band1 2 1.4MHz QPSK 23095 1RB#0 Range2:0.15~30MHz -74.8 8 PASS Band1 2 1.4MHz QPSK 23095 1RB#0 Range3:30~1000MHz -67.0 2 PASS Band1 2 1.4MHz QPSK 23095 1RB#0 Range4:1000~10000M Hz -47.3 2 PASS Band1 2 1.4MHz 16QAM 23095 1RB#0 Range1:0.009~0.15MH z -55.3 1 PASS Band1 2 1.4MHz 16QAM 23095 1RB#0 Range2:0.15~30MHz -73.7 5 PASS Band1 2 1.4MHz 16QAM 23095 1RB#0 Range3:30~1000MHz -66.9 9 PASS Band1 2 1.4MHz 16QAM 23095 1RB#0 Range4:1000~10000M Hz -48.3 9 PASS Band1 2 1.4MHz QPSK 23173 1RB#0 Range1:0.009~0.15MH z -55.3 8 PASS Reference No.: WTX23X10216333W001 Page 54 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 54 of 98 Band1 2 1.4MHz QPSK 23173 1RB#0 Range2:0.15~30MHz -75.6 5 PASS Band1 2 1.4MHz QPSK 23173 1RB#0 Range3:30~1000MHz -66.8 7 PASS Band1 2 1.4MHz QPSK 23173 1RB#0 Range4:1000~10000M Hz -47.0 8 PASS Band1 2 1.4MHz 16QAM 23173 1RB#0 Range1:0.009~0.15MH z -58.8 7 PASS Band1 2 1.4MHz 16QAM 23173 1RB#0 Range2:0.15~30MHz -74.0 9 PASS Band1 2 1.4MHz 16QAM 23173 1RB#0 Range3:30~1000MHz -66.4 8 PASS Band1 2 1.4MHz 16QAM 23173 1RB#0 Range4:1000~10000M Hz -47.7 5 PASS Band1 2 3MHz QPSK 23025 1RB#0 Range1:0.009~0.15MH z -51.9 4 PASS Band1 2 3MHz QPSK 23025 1RB#0 Range2:0.15~30MHz -73.7 5 PASS Band1 2 3MHz QPSK 23025 1RB#0 Range3:30~1000MHz -66.9 6 PASS Band1 2 3MHz QPSK 23025 1RB#0 Range4:1000~10000M Hz -47.2 8 PASS Band1 2 3MHz 16QAM 23025 1RB#0 Range1:0.009~0.15MH z -56.6 9 PASS Band1 2 3MHz 16QAM 23025 1RB#0 Range2:0.15~30MHz -72.9 PASS Band1 2 3MHz 16QAM 23025 1RB#0 Range3:30~1000MHz -67.1 PASS Band1 2 3MHz 16QAM 23025 1RB#0 Range4:1000~10000M Hz -46.9 2 PASS Band1 2 3MHz QPSK 23095 1RB#0 Range1:0.009~0.15MH z -52.2 6 PASS Band1 2 3MHz QPSK 23095 1RB#0 Range2:0.15~30MHz -73.9 8 PASS Band1 2 3MHz QPSK 23095 1RB#0 Range3:30~1000MHz -66.8 7 PASS Band1 2 3MHz QPSK 23095 1RB#0 Range4:1000~10000M Hz -48.1 8 PASS Band1 2 3MHz 16QAM 23095 1RB#0 Range1:0.009~0.15MH z -56.5 8 PASS Band1 2 3MHz 16QAM 23095 1RB#0 Range2:0.15~30MHz -74.3 2 PASS Reference No.: WTX23X10216333W001 Page 55 of 98 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 55 of 98 Band1 2 3MHz 16QAM 23095 1RB#0 Range3:30~1000MHz -67.5 2 PASS Band1 2 3MHz 16QAM 23095 1RB#0 Range4:1000~10000M Hz -48.2 4 PASS Band1 2 3MHz QPSK 23165 1RB#0 Range1:0.009~0.15MH z -55.6 2 PASS Band1 2 3MHz QPSK 23165 1RB#0 Range2:0.15~30MHz -74.4 7 PASS Band1 2 3MHz QPSK 23165 1RB#0 Range3:30~1000MHz -67.3 4 PASS Band1 2 3MHz QPSK 23165 1RB#0 Range4:1000~10000M Hz -45.5 1 PASS Band1 2 3MHz 16QAM 23165 1RB#0 Range1:0.009~0.15MH z -60.1 8 PASS Band1 2 3MHz 16QAM 23165 1RB#0 Range2:0.15~30MHz -74.8 4 PASS Band1 2 3MHz 16QAM 23165 1RB#0 Range3:30~1000MHz -67.2 3 PASS Band1 2 3MHz 16QAM 23165 1RB#0 Range4:1000~10000M Hz -47.9 7 PASS Band1 2 5MHz QPSK 23035 1RB#0 Range1:0.009~0.15MH z -51.5 1 PASS Band1 2 5MHz QPSK 23035 1RB#0 Range2:0.15~30MHz -74.6 6 PASS Band1 2 5MHz QPSK 23035 1RB#0 Range3:30~1000MHz -67.0 6 PASS Band1…

Text truncated - open the document above for the full version.
