2A323-W113TEC 3 in 1 Wireless Charger

Overall Product Schematic Diagram Display Status IndicatorCooling Function Instructions Display screen status Magnetic Wireless Charging Area for Mobile Phones Wireless Charging Area for Watches Aluminium alloy cooling fan radiator Wireless Charging Area for Headphone Charging Cases Cooling switch button fan Type-C Port Display screen Zinc alloy support rod Angle adjustment diagram Adjustable angle: 90°, can be adjusted to horizontal Adapter Selection A PD adapter with power above 45W is required to enable the cooling function. Maximum power for mobile phone: 25W. ❶ ❶ Cooling indicator light ❸ ❸ Real-time total output power display ❹ ❹ Lightning & power icon ❼ ❼ Watch charging indicator ❺ ❺ Mobile phone charging indicator ❻ ❻ Earphone charging case indicator ❷ ❷ Mobile device temperature display Power-on All icons turn off after 30 seconds. Phone Charging Displays mobile phone icon + total power. Shows mobile phone icon when fully charged. FOD: mobile phone icon flashes until foreign object is removed. D isplays earphone icon + total power. Shows earphone icon when fully charged. FOD: e arphone icon flashes until foreign object is removed. Displays watch icon + total power. Shows watch icon when fully charged. Headphone Charging Case Charging Watch Charging Note: Cooling and fan cannot be activated when the output power of QC adapter and PD adapter is less than 30W. Mode Cooling Area for Mobile Phone Cooling Status Indicator Light Cooling switch button Cooling switch button Button control: On/Off (On by default when powered on) Power-on Cooling plate + fan operate for 5 seconds then stop. When a charging device is plaaced on the mobile phone area The cooling function can be turned on/off by single pressing the cooling button alternately.Wireless charging automatically adjusts power and displays in real time. Intelligent Temperature Control Real-time display surface temperature of phone charging area. Product Specifications 双面印刷，折页，128g铜版纸 When the device on the mobile phone area is fully charged Cooling will turn off automatically. TEC 3in1 Wireless Charger Instruction Manual Operating Instructions ❶This product can wirelessly charge three devices simultaneously: mobile phones, watches, and wireless headphone charging cases that support wireless charging. ❷Please connect this wireless charger to a power adapter using a Type-C fast charging cable and turn on the power. ❸Place your mobile phone on the mobile phone charging area, and it will start charging automatically. ❹Place your watch on the watch charging area, and it will start charging automatically. ❺Place your wireless headphone charging case on the headphone charging area, and the charging case will start charging automatically. Product Name: TEC 3in1 Wireless Charging Product Dimensions: ���mm*��mm*���mm USB-C Input: ��V⎓�A ��V⎓�.��~�.��A Operating Frequency: ���-���KHz Conversion Efficiency: ��%-��% Mobile Phone Output: 5W/7.5W/10W/15W/25W(Max) Watch Output: 2.5W(max) Headphone Outpu: 5W(max) Effective Wireless Charging Distance (for Mobile Phone): ≤�mm Material: ABS+Silicone + Zinc alloy Precautions Applicable Devices Please check if your mobile phone supports wireless charging. This product supports fast wireless charging, which realizes short-distance wireless power transmission through coil induction. Package List Wireless Charger × 1Charging Cable × 1User Manual × 1 Warning! Donot place metal debris or magnetic cards on the charging pad, as this may cause the charger to heat up! When a foreign object alarm is triggered, remove the foreign object immediately! Slight heating is a normal phenomenon; the mobile phone battery will generate heat during charging! Do not place the charger near fire sources or in corrosive environments! Note: The display screen will automatically turn off if no operation is performed after standing idle for 30 seconds in any state. Screen-off state: Press the cooling key briefly to wake up and light up the screen. Screen-on state: Press the cooling key briefly to switch the cooling on/off mode. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Meskey Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Meskey Technology Co., Ltd Address: Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen, China Product Name: TEC 3 in 1 Wireless Charger FCC ID: 2A323-W113 Model(s): W113, W113 Max, W113 PRO, W113S PRO 2.911(d)(5)(i) Equipment Type We, [Shenzhen Meskey Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Ivan Zhang Date: Jul. 28, 2026 Title and Company name: Manager; Shenzhen Meskey Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Meskey Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Meskey Technology Co., Ltd Address: Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen, China Product Name: TEC 3 in 1 Wireless Charger FCC ID: 2A323-W113 Model(s): W113, W113 Max, W113 PRO, W113S PRO 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Meskey Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Ivan Zhang Date: Jul. 28, 2026 Title and Company name: Manager; Shenzhen Meskey Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Meskey Technology Co., Ltd Agent Authorization Company: Shenzhen Meskey Technology Co., Ltd Address: Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen, China Product Name: TEC 3 in 1 Wireless Charger Model Number(s): W113, W113 Max, W113 PRO, W113S PRO Product Description: TEC 3 in 1 Wireless Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 28, 2026 Name: Ivan Zhang Title: Manager Company: Shenzhen Meskey Technology Co., Ltd

< Shenzhen Meskey Technology Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jul. 28, 2026 Subject; Request for Long Term Confidentiality FCC ID: 2A323-W113 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ivan Zhang Title: Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen Meskey Technology Co., Ltd Product name: TEC 3 in 1 Wireless Charger Trade name: meskey Model name: W113, W113 Max, W113 PRO, W113S PRO All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: W113. Please contact me if you have any question. Name: Ivan Zhang Date: Jul. 28, 2026 Title: Manager Signature of applicant:

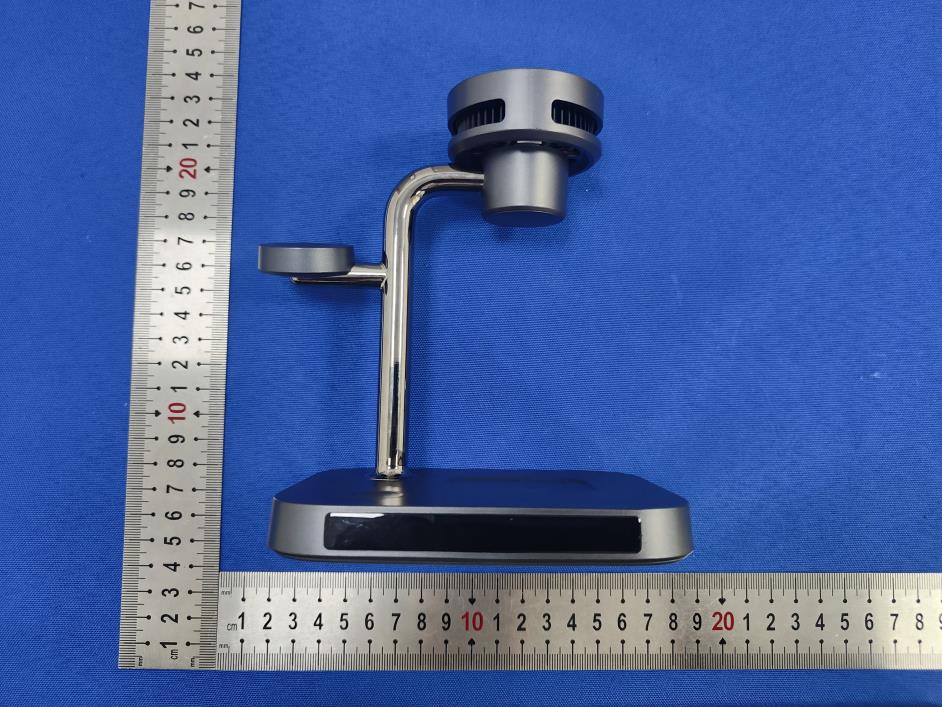

Model: W113 Model: W113 Model: W113 Model: W113

FCC ID LABEL: Label Location: FCC ID: 2A323-W113 0.5cm 2.8cm

Model: W113 Model: W113 Model: W113 Model: W113 Model: W113 Model: W113 Model: W113 Model: W113 Coil Antenna-Phone Model: W113 Coil Antenna-Earphone Model: W113 Coil Antenna-Watch

Page 1 of 18 Report No.: UNIA26071001ER-62 FCC MPE TEST REPORT FCC ID: 2A323-W113 Sample : TEC 3 in 1 Wireless Charger Trade Mark : meskey Main Model : W113 Additional Model : W113 Max, W113 PRO, W113S PRO Report No. : UNIA26071001ER-62 Prepared for Shenzhen Meskey Technology Co., Ltd Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 18 Report No.: UNIA26071001ER-62 TEST RESULT CERTIFICATION Applicant ................................... : Shenzhen Meskey Technology Co., Ltd Address ....................................... : Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Manufacturer ............................. : Shenzhen Meskey Technology Co., Ltd Address ....................................... : Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Product description Product ....................................... : TEC 3 in 1 Wireless Charger Trade Mark .................................. : meskey Model Name ............................... : W113, W113 Max, W113 PRO, W113S PRO Standards .................................. : FCC KDB680106 D01 Wireless Power Transfer v04 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ................... : Jul. 10, 2026 ~ Jul. 17, 2026 Date of Issue ................................................ : Jul. 17, 2026 Test Result .................................................... : Pass Edited by: Abe Yang Reviewed by: Kelly Cheng Approved by: Liuze Page 3 of 18 Report No.: UNIA26071001ER-62 Table of Contents Pages 1 TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 5 1.3 MEASUREMENT UNCERTAINTY 6 1.4 ENVIRONMENTAL CONDITIONS 6 2 GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 TEST MODE 8 2.3 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.4 TEST INSTRUMENTS 9 3 MAXIMUM PERMISSIBLE EXPOSURE 10 3.1 MAXIMUM PERMISSIBLE EXPOSURE 10 3.2 TEST PROCEDURE 11 3.3 TEST SETUP 11 3.4 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE 12 3.5 TEST PHOTO 15 Page 4 of 18 Report No.: UNIA26071001ER-62 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS FCC KDB680106 D01 Wireless Power Transfer v04 FCC CFR 47 Standard Section Test Item Result Remark FCC CFR 47 part1, 1.1310 KDB680106 D01 v04 Electric Field Strength (E) (V/m) N/A -- Magnetic Field Strength (H) (A/m) PASS -- Note: “N/A” denotes test is not applicable in this Test Report. Compliant with FCC KDB680106 D01 Wireless Power Transfer v04 section 5.2: 1) The power transfer frequency is below 1MHz. Yes, the working frequency is: 110-360kHz . 2) The output power from each transmitting element (e.g., coil) is less than or equal to 15 watts. No, the maximum output power is 25 watts. 3) A client device providing the maximum permitted load is placed in physical contact with the transmitter(i.e. , the surfaces of the transmitter and client device enclosures need to be in physical contact) Yes, the maximum permitted load is placed in physical contact with the transmitter. 4) Only $ 2.1091-Mobile exposure conditions apply (i.e., this provision does not cover $ 2.1093-Portable exposure conditions). Yes, this provision does not cover $ 2.1093-Portable exposure conditions. 5) The H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit, per KDB 447498, Table 1. These measurements shall be taken along the principal axes of the device, with one axis oriented along the direction of the estimated maximum field strength, and for three points per axis or until a 1/d (inverse distance from the emitter structure) field strength decay is observed. Symmetry considerations may be used for test reduction purposes. The device shall be operated in documented worst-case compliance scenarios(i.e. , the ones that lead to the maximum field components), and while all the radiating structures (e.g., coils or antennas) that by design can simultaneously transmit are energized at their nominal maximum power. Yes, The H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit ; coils or antennas) that by design can simultaneously transmit are energized at their nominal maximum power. Page 5 of 18 Report No.: UNIA26071001ER-62 6) For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. If the design allows one or more radiating structures to be powered at a higher level while other radiating structures are not powered, then those cases must be tested as well. For instance, a device may use three RF coils powered at 5 W, or one coil powered at 15 W: in this case, both scenarios shall be tested. Yes, For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e.,…

Text truncated - open the document above for the full version.

深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 1 页 产品规格书 PRODUCTSPECIFICATIONFORAPPROVAL 客户名称： CUSTOMER 产品名称： PRODUCTNAME A11 线圈 物料编码： PARTNo. 产品规格： PRODUCTSPEC 感量：6.3uH±10% 磁片规格：43.5*5.3*1双槽 线材规格：0.07*100*10Ts/出线15mm 贴背胶 日期： DATE 版本型号： VERSIO 2026年7月7日 N REV1.0 版本 Revision 变更内容 ModifiedContent 责任人 Principle 日期 Date 备注 Note REV1.0首次发布薛磊2026-7-7 制定/PREPAREDBY审核/CHECKEDBY核准/APPROVEDBY 客户认可签名及盖章 Authorizedsignature& companychop 附上的是产品规格书，有任何疑问，请及时反馈给我们，谢谢 ! 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 2 页 产品规格 SPECIFICATION 一、产品尺寸 磁片直径 A 43.5±0.5mm 线圈外径B42±1mm 线圈内径C20.5±0.5mm 产品厚度D<2.5mm 出线长度E 焊锡长度 15mm±3mm F2-5mm 磁片开孔直径G5±0.3mm 磁片厚度1±0.1mm 磁片形状圆形双槽 背胶厚度普通双面胶 防碎黑膜不 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 3 页 二、原理图 三、绕线参数 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection SF10T 丝包线 0.07*100P sCCW 四、电气特性： 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS IND.S-F 6.3uH±10% 100KHz/1.0VLCZMETER1062B 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 4 页 五、包装说明： 珍珠棉尺寸为35*24.5*6.2cm,每 个珍珠棉共有40个格子，每个格 子装6PCS产品，共240PCS产品 每箱装三层珍珠棉； 纸箱尺寸为：36.5*25.5*21CM， 每箱装720PCS产品。

产品承认书书 规格编号 HG2025041001 生效日期 客户名称 二维四象智能科技有限责任公司 产品类型QI2线圈 宏贵料号 43.5*0.6 开双槽带孔背白胶 /0.08*80 丝包线 客户料号 【 □ √√ 新版发行 ,□ 版本修订】【本规范含目录共 2 页】【 RoHSCompliantParts 】 编制审核批准 彭建基 安福宏贵电子有限公司 本承认书在客户收到一星期内，请务必签章返回，逾期视为生产时按此承认书的标准 执行。 【客户核准】日期: 承认状态：□完全承认□条件承认□拒绝承认 批准审核 复检检查 说明: 产品规格书 客户名称二维四象智能科技有限责任公司客户料号 宏贵料号 43.5*0.6开双槽带孔0.08*80股丝包线 规格编号 HG2025041001 版本 01 ♦、外形尺寸 ♦、电气特性: (单位:mm) A 43.5±0.5 B 40.0±1 C20.5±0.5 D2.1±0.2 E245±2 F2.0±1 G (1)线径:0.08*80P丝包自粘铜线 (2)绕线圈数:11TS (3)起尾线是否交叉:是 (4)线圈包6mm宽高温胶带 (5)线圈与磁片需粘贴居中 (6)线圈中间贴直径20MM厚度1.0MM圆片 (7)磁片背圆双面胶 参数规格测试条件测试仪器 L07.9±0.3μH 100KHz/1V ■TH1816B ■TH1816B ■CH-502BC Q>30min 100KHz/1V DCR<60mΩ @25°C 操作温度 -40°C~125°C ♦、材料清单: 序号 1 品名材料规格供应商备注 2 磁片20*1.0圆片PC95猛锌 3 磁片43.5*0.6开双槽带孔PC95猛锌 4 铜线0.08*80P丝包自粘铜线 5 高温胶带 6MM 环保胶带 6 锡高温锡条千岛环保锡 7 胶白胶环保胶水 8 白胶 42 圆双面胶 编制审核 批准 彭建基

承认书 客戶名称：深圳 客戶料号：25.25101-1 我司型号：RC-G25-7.6UH-3000GS-8MM 送样日期： 供应方： 2023年6月6日 东莞市捷瑞思科技有限公司 绘制审核批准 王莉芝邓祥桂陆如圣 客戶承认： 合格不合格承认 备注 东莞捷瑞思科技有限公司 Tel: Fax:86+13632701380 地址：东莞市大岭山镇太公岭村莞长路段152号 客戶名称客戶料号我司型号版本日期 佳宇创 25.25101-1RC-G25-7.6UH-3000GS-8MMA02023.6.6 一、平面结构图：单位:MM 二、产品参数： 脚位线径圈数备注 1-20.08*24P14 热风绞合线 三、技术要求： 1.固定好线头线尾，防止线松断线等现象 2．按客户要求把过长的线头剪，镀上锡，镀锡深度统一为2±1MM 3．在软磁片上点上适当的白胶，贴上线圈，过程中要保证产品表面干净整洁 4.所用软磁片为带圆孔,无破损 5.附加工序（按客户要求）：于成品中间圆孔装上7.65x2.0mm的磁铁并在成品 背后加贴13*13mm的方形双面胶，后包装 四、电性参数： 1.电感值，Q值： PIN1—2=7.6uH±0.2UH Q值≥35 以上电感值以铨华1062A仪器,以10KHZ/0.3Vrms为标准或等同仪器。 Q值以铨华1062A仪器，以100KHZ/0.3Vrms为标准或等同仪器 五、材料清单： 序号名称材质供应商备注 1 热风绞合线 0.08X24P 维汉或等同 2 磁片G25软基材天通或等同 3 锡高温环保千岛或等同 4 白胶 BY882 宝月或等同 5 强磁 7.65*2(强度大于 3000GS) 联胜或等同 附加工序,按 客户要求 6 双面胶 513-13*13mm 鸿辉或d方形

Page 1 of 29 Report No.: UNIA26071001ER-61 FCC RADIO TEST REPORT FCC ID: 2A323-W113 Sample : TEC 3 in 1 Wireless Charger Trade Mark : meskey Main Model : W113 Additional Model : W113 Max, W113 PRO, W113S PRO Report No. : UNIA26071001ER-61 Prepared for Shenzhen Meskey Technology Co., Ltd Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 29 Report No.: UNIA26071001ER-61 TEST RESULT CERTIFICATION Applicant ................................... : Shenzhen Meskey Technology Co., Ltd Address ...................................... : Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Manufacturer ............................. : Shenzhen Meskey Technology Co., Ltd Address ...................................... : Room 802, Building 1, West District, Honghu Science and Technology Park, No. 22, Ping 'an Road, Zhangxi Community, Guanhu Street, Longhua District, Shenzhen,China Product description Product ....................................... : TEC 3 in 1 Wireless Charger Trade Mark ................................. : meskey Model Name ............................... : W113, W113 Max, W113 PRO, W113S PRO Test Methods ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.209 ANSI C63.10: 2020 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests .................... : Jul. 10, 2026 ~ Jul. 17, 2026 Date of Issue ................................................. : Jul. 17, 2026 Test Result ..................................................... : Pass Edited by: Abe Yang Reviewed by: Kelly Cheng Approved by: Liuze Page 3 of 29 Report No.: UNIA26071001ER-61 Table of Contents Pages 1 TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 4 1.3 MEASUREMENT UNCERTAINTY 5 2 GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 TEST MODE 7 2.3 TEST SETUP 7 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 8 2.5 MEASUREMENT INSTRUMENTS LIST 9 3 CONDUCTED EMISSION 11 3.1 TEST LIMIT 11 3.2 TEST SETUP 11 3.3 TEST PROCEDURE 12 3.4 TEST RESULT 12 4 RADIATED EMISSION 15 4.1 TEST LIMIT 15 4.2 TEST SETUP 17 4.3 TEST PROCEDURE 18 4.4 TEST RESULT 18 5 ANTENNA REQUIREMENT 25 6 PHOTO OF TEST 27 6.1 RADIATED EMISSION 27 6.2 CONDUCTED EMISSION 28 7 EUT Constructional Details 28 Refer to the External Photos and Internal Photos for details. 28 Page 4 of 29 Report No.: UNIA26071001ER-61 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Item FCC Rules Description Of Test Result 1 FCC Part 15.207 Conducted Emission Pass 2 FCC Part 15.209(a) Radiated Emission Pass 3 FCC Part 15.203 Antenna Requirement Pass 1.2 TEST FACILITY Test Firm : Shenzhen United Testing Technology Co., Ltd. Address : D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19.The testing quality system of our laboratory meets with ISO/IEC-17025 requirements. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: A2LA Certificate Number: 4747.01 The EMC Laboratory has been accredited by A2LA, and in compliance with ISO/IEC 17025:2017 General Requirements for testing Laboratories. FCC Registration Number: 674885 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. IC Registration Number: 31584 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. Page 5 of 29 Report No.: UNIA26071001ER-61 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9KHz ~ 150KHz 2.96 150KHz ~ 30MHz 2.44 B. Radiated Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9KHz ~ 30MHz 2.50 30MHz ~ 1000MHz 4.80 1000MHz ~ 6000MHz 4.13 Page 6 of 29 Report No.: UNIA26071001ER-61 2 GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product: TEC 3 in 1 Wireless Charger Trade Mark: meskey Main Model: W113 Additional Model: W113 Max, W113 PRO, W113S PRO Model Difference: All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: W113 FCC ID: 2A323-W113 Operation Frequency: Phone: 110-360kHz TWS: 110-205kHz Watch: 326.5kHz Modulation Type: ASK Wireless Charging Output Power: Output1: Phone 25W (max) Output2: TWS 5W (max) Output3: Watch 2.5W (max) Antenna Type: Coil Antenna Antenna Gain: 0dBi Battery: N/A Adapter: N/A Power Source: DC 15V/20V by Adapter Page 7 of 29 Report No.: UNIA26071001ER-61 2.2 TEST MODE NO. TEST MODE DESCRIPTION 1 ANT 1(Phone coil) + Full load (25W Before Folding mode) 2 ANT 1(Phone coil) + Half load (7.5W Before Folding mode) 3 ANT 1(Phone coil) + Null load (0W B…

Text truncated - open the document above for the full version.

Model: W113 Radiated Emission test Model: W113 Conducted Emission test MPE Test: Model: W113 Model: W113
