2A3OORA86Mobile Radio

Mobile Radio USER’S MANUAL RA86 Contents ----------------------------------------------------------01 -------------------------------------------------------------------01 ------------------------------------------------------------------------01 -------------------------------------------------------------------01 ---------------------------------------------------------------02 ------------------------------------------------------------------02 -------------------------------------------------05 -------------------------------------------------------06 -----------------------------------------------------------------------09 --------------------------------------------------------09 ---------------------------------------------------10 -----------------------------------------------------------12 -----------------------------------------------------------------------------13 Users Safety Information Notice Before Use Main Features Package Includes Installing Your Radio Radio Introduction Keyboard Function Introduction Menu Function Introduction Reset Function Factory Frequency Setting CTCSS/DCS Frequency Table Technical Specifications WARNING For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it. Users Safety Information ▪ Do not attempt to configure your transceiver while driving. ▪ This transceiver is designed for a 13.8V DC power supply. Do not use a 24V battery to power on the transceiver. ▪ Please keep it away from interferential devices (Such as TVs, generators, etc.) ▪ Don not expose the transceiver to long periods of direct sunlight or place it close to heating appliances. ▪ If an abnormal odour or smoke is detected coming from the transceiver, turn off the power immediately and contact your dealer. ▪ Do not transmit with high power for extended periods or the transceiver may overheat. Notice Before Use Congratulations on your purchase of a high quality Retevis product. RA86 is designed for General Mobile Radio Service (GMRS) operation. All Retevis GMRS radios can communicate with each other freely. The frequency of GMRS is a shared frequency, and the possibility of interference is relatively high. So the RA86 factory frequency setting is with CTCSS/DCS. If you don’t want CTCSS/DCS in the factory setting, You can cancel the default CTCSS/DCS setting by doing the following. 1.Be sure the radio is turned off 2.Press and hold the PTT and the Scan button simultaneously, 3.With the buttons still held, turn on the radio. ▪ All default CTCSS/DCS settings will be cleared. (i.e. no CTCSS/DCS on all channels) Mani Features - 15 GMRS Channels - 8 Repeater Channels - 7 Receive Only Channels - 10 NOAA Weather Channels - 260 Privacy Codes (50 CTCSS, 105 DCS-N and 105 DCS-I ) - Monitor Function - Mic Gain - VOX - Squelch - Keypad Lock - LCD Brightness Settings - Bandwidth Settings - Power Hi/Lo Settings - Automatic Power On Function - External Speaker Jack Package Includes 01 Radio Base Handheld Speaker Mic Mobile Mounting Bracket Car Charger with Fuse Holder Screw Packs AntennaUser Manual Microphone Bracket Installing Your Radio To install the transceiver select a safe and convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion. Also take into consideration the routing and length of the lead wires and cables to the power source, antenna, and/or optional external speaker. Installing the Mounting Bracket 1.Using the mounting bracket as a template, mark the location of each screw hole. Use a nail or other sharp pointed object to mark the hole locations. 2.Attach the bracket with the Phillips head sheet metal screws provided. Tighten the screws securely. DO NOT OVER-TIGHTEN. 3.Slide the radio into the mounting bracket. BE SURE the mounting bracket retainers engage the slots in the sides of the radio to prevent movement while driving. Installing the Antenna The RA86 includes a ”magnetic mount” antenna, intended to be attached to the vehicle’s roof, trunk or similar location. Specific installation requirements vary between vehicles. The Antenna height is 0.54 feet (16.5cm) and the antenna cable is 16.4 feet (5 meters) long. Electrical and Rear Panel Connections The power cord supplied with the RA86 is equipped with a cigarette lighter adapter for easy installation. Simply plug the connector into the vehicle’s cigarette lighter. Connecting the Microphone Insert the RJ45 connector into the front of the RA86. The microphone mounting bracket can be attached to the vehicle dash or other convenient location in a manner similar to the radio’s mounting bracket. Using an External Speaker ▪The RA86 provides a rear-panel jack for connection of an optional external speaker (purchased separately). ▪ When selecting an external speaker, ensure the speaker has 8-ohm impedance and is rated for 4.0 watts. NOTE: When an external speaker is connected, the radio’s internal speaker is automatically disabled. Radio Introduction Speaker Mic 02 03 1 2 3 4 5 6 7 8 9 10 11 12 13 PTT LCD Speaker Speaker Microphone Menu Volume+ WX Call/Lock Volume- Scan/Mon Channel+ Power On/Off Button Channel- Enter menu, confirm selection and exit menu Raise volume during standby, Function selection during menu Enter weather mode Press to send a call signal Lower the volume during standby, Function selection during menu Enter/exit scan Increase the channel number Decrease the channel number Raise volume during standby, Function selection during menu Keypad Lock Lower the volume during standby, Function selection during menu Enable/disable monitor Rapidly increase the channel number Turn on/off the radio Rapidly decrease the channel number No. NameShort Press FunctionLong Press Function Rear panel LCD Display 04 Indicates when the radio is in the Weather Band mode Shows the selected transmit/receive repeater channel. Shows t…

Text truncated - open the document above for the full version.

Shenzhen Ysair Technology Co., LTD Address: 6/F, building 6, Yunli intelligent park, No. 3, Changfa, Middle Road, Yangmei community, Bantian street, Longgang District, Shenzhen, Guangdong China Email: [email protected] Tel: +86-755-23481953 QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-11-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Ysair Technology Co., LTD, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Weidong Shen Manager

Shenzhen Ysair Technology Co., LTD Address: 6/F, building 6, Yunli intelligent park, No. 3, Changfa, Middle Road, Yangmei community, Bantian street, Longgang District, Shenzhen, Guangdong China Email: [email protected] Tel: +86-755-23481953 FCC Confidential Authorization Date: 2022-11-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2A3OORA86 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Ysair Technology Co., LTD hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Weidong Shen Manager • Parts List/Tune up procedure (for licensed devices)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221031-50472E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

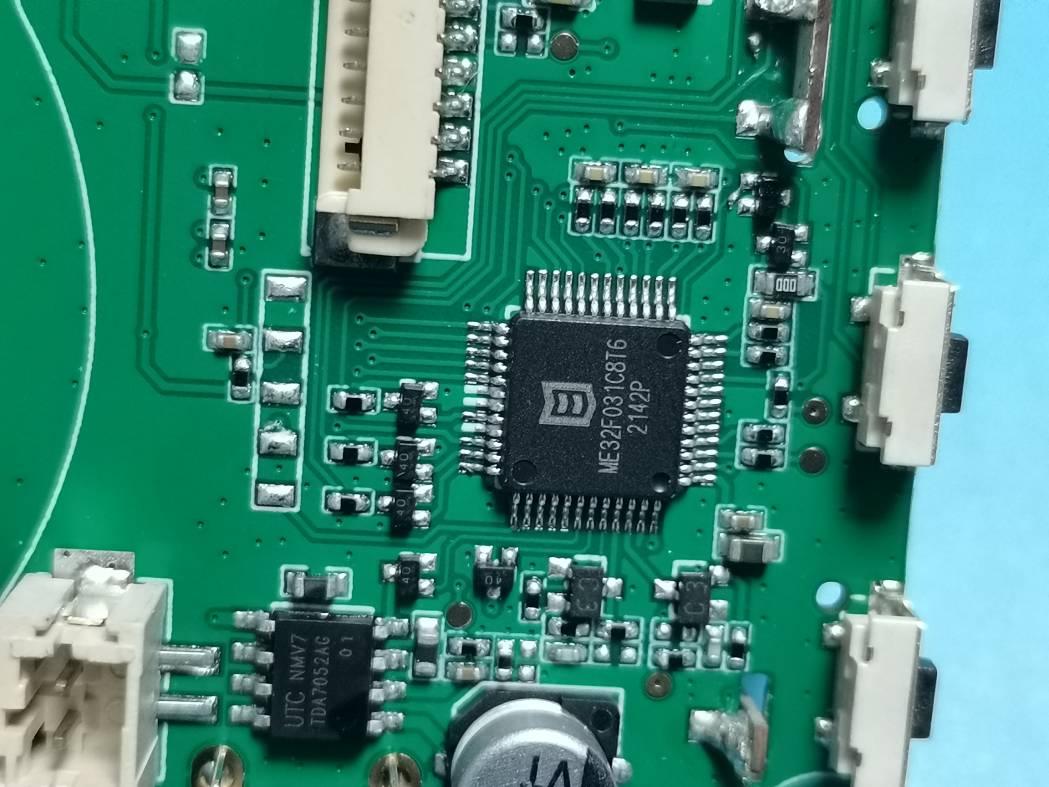

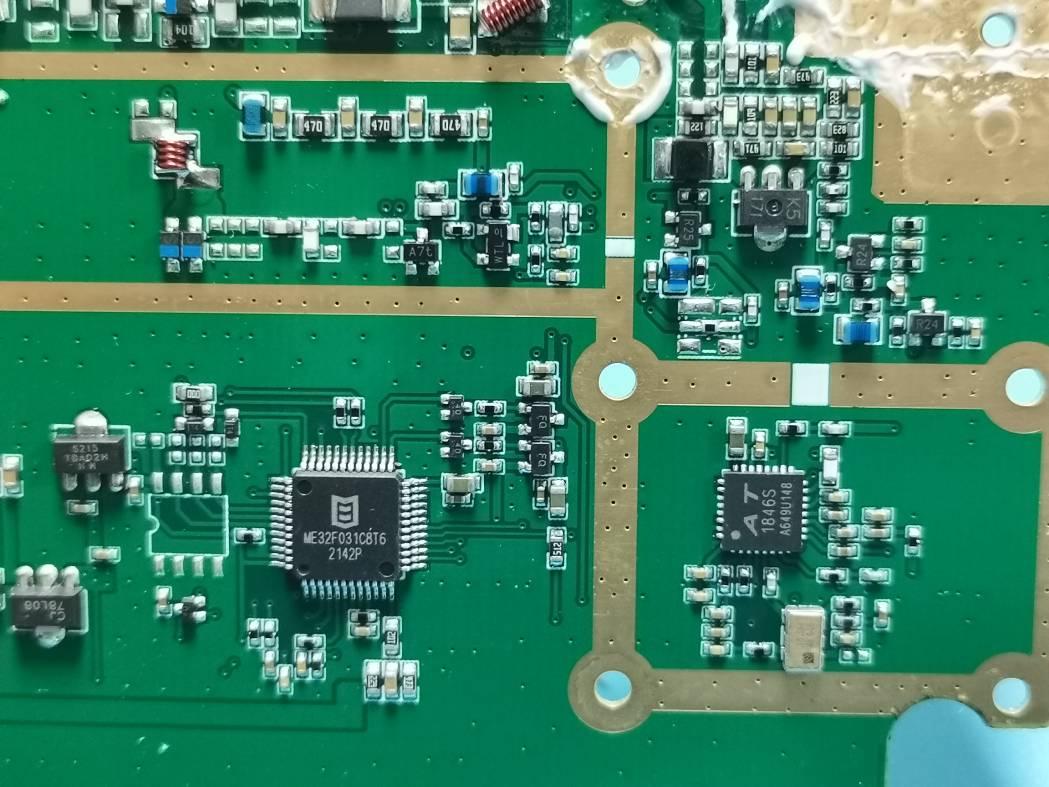

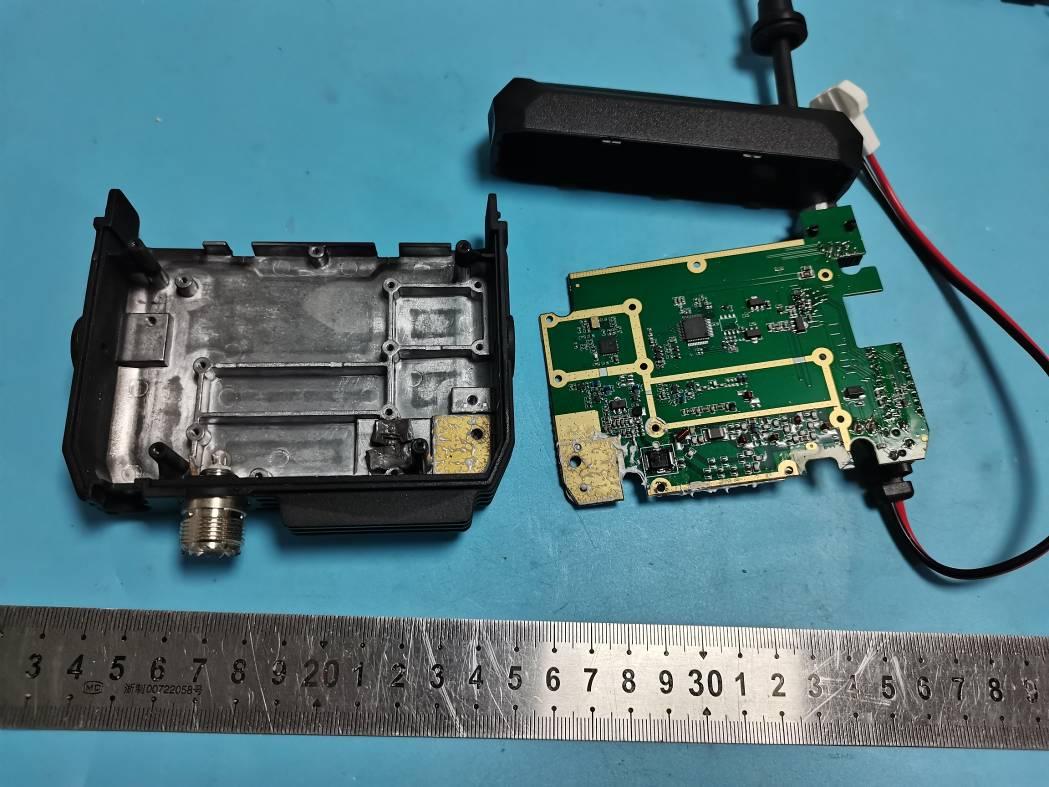

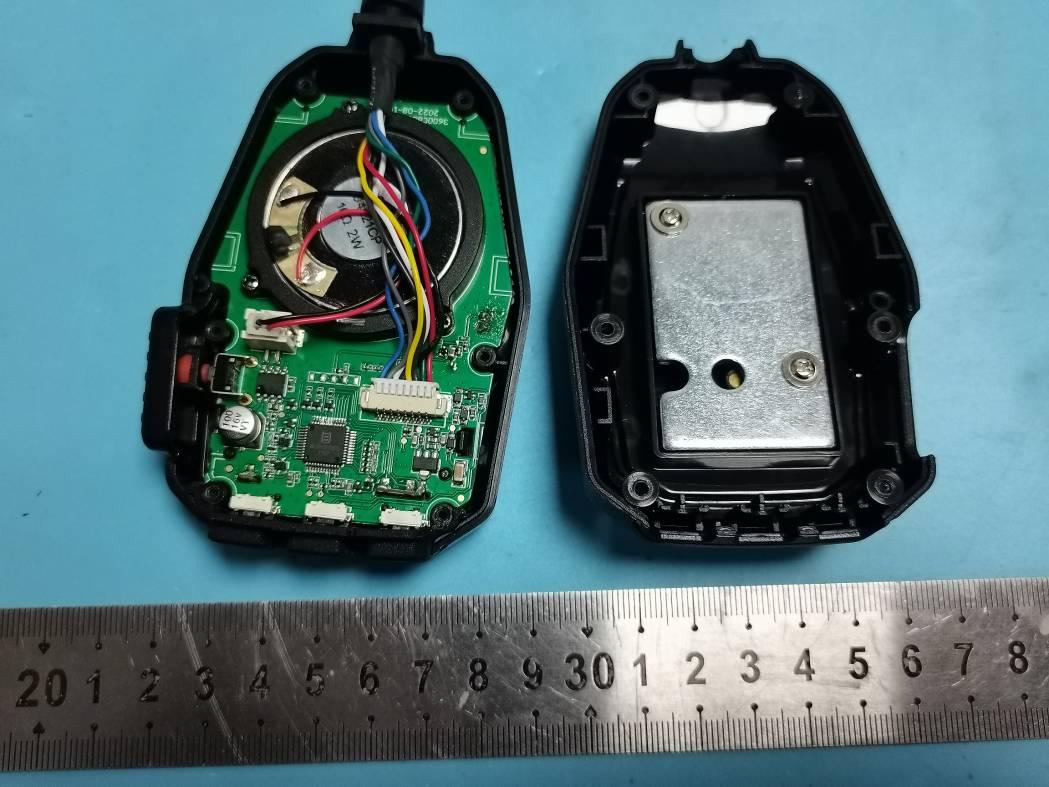

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 1 of 6 Internal photos Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2A3OORA86 Internal Photos Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221031-50472E-RF-00B Version 26: 2021-11-09 Page 10 of 63 FCC- RF FCC§2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) For worst case: Frequency (MHz) Tune up conducted power Maximum Antenna Gain Cable loss Duty cycle MPE Limit Minimum safty Distance (dBm) (W) (dBi)(numeric)(dB) (%) (mW/cm 2 ) (cm) 462.5500-467.7250 43 20 2 1.58 3 50 0.308 45.2 Note: For PTT function, 50% duty cycle was used. The tune up power, antenna gain and cable loss was provided by applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 45.2cm from nearby persons. Result: Compliance
