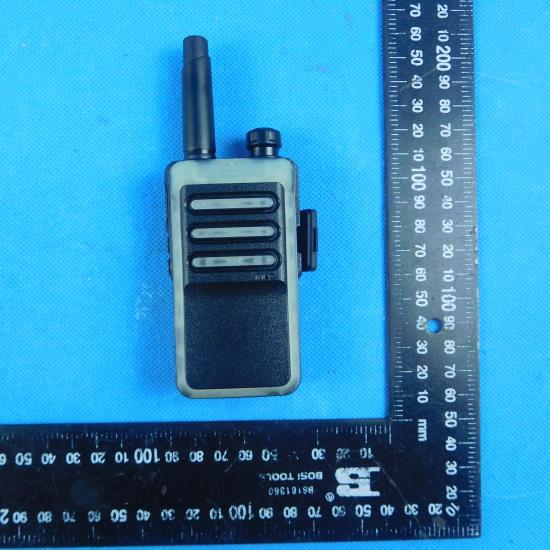

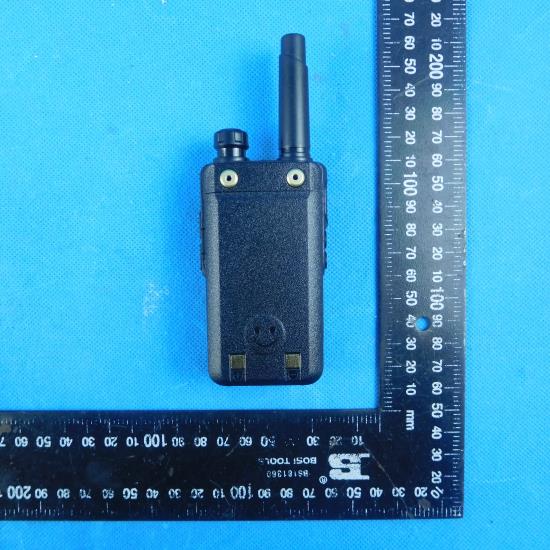

2A3OORB66Two Way Radio

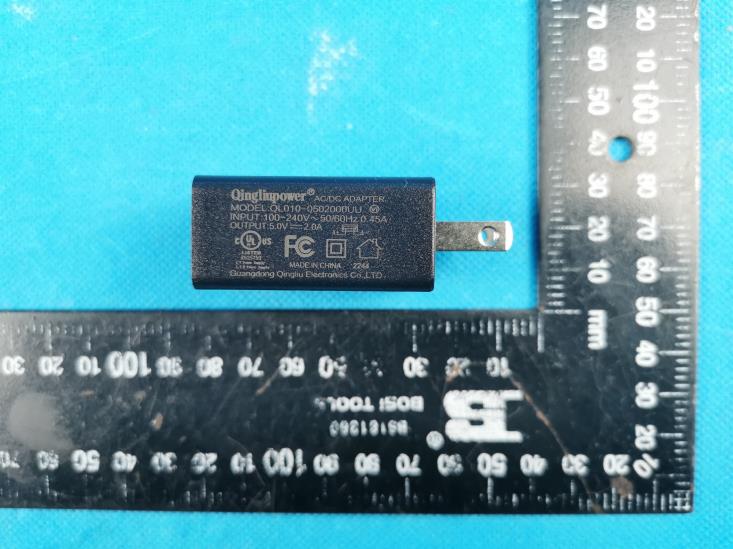

Mobile Radio USER’S MANUAL RB66 Contents --------------------------------------------------------------------------------01 --------------------------------------------------------------------02 -------------------------------------------------------------------03 ------------------------------------------------------------------04 ----------------------------------------------------------------------------08 Warning Notes of charging Radio introduction Function operation WARNING For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it. Warning Please read this manual carefully before using this radio. Please do not communicate or charge this radio in flammable, explosive and area which radio communication is prohibited (such as oil station, gas station, airport etc.) Please do not operate this radio without license in govemment laws banned areas Please make sure this radio avoids the sunshine, and avoids to put it near any heating device. Please make sure this radio avoids any dusty, humid and water splashed place, and also to put it near any heating device. If radio smells or smokes, please remove the battery pack from radio at once, and then please contact your nearest distributor. The repair job of this radio is in the charge of professionals & technical's, self-disassembly is prohibited. 01 Notes of charging Please use the charger matching this model to charge. When charging, it is recommended to turn off the radio first. In order to get the best battery performance, please charge for at least 5 hours for the first time. Please do not charge the battery for a long time, otherwise the service life of the battery will be shortened. When the battery is fully charged, please stop charging in time. The charger is only charged for this radio battery, please do not charge other battery, otherwise it will cause damage to the charger and battery. After the battery is fully charged, please place it in a cool, dry place. Please do not get close to fire or expose to sunlight, otherwise there will be a safety hazard. During the radio charging, it is not recommended to transmit. During the radio charging , the battery will be slightly hot, which is normal. 02 Radio introduction Charging mode When the radio is used the Type-C charging cable to charge, the radio indicator is red, and green when fully charged. When the radio is charged by charging base, the red light on the charging base means charging, and the green light means the battery is fully charged. Antenna Flashlight Power/Volumn Type-C MIC Indicate Light PTT Battery PF1/PF2 1 2 3 4 5 6 7 8 Antenna Indicator light Power Knob Flashlight Mic PTT PF1/PF2 Type-c Interface Transmit/Receive Wireless Signals Indicate Working Status Power Switch/Volume Adjustment Lighting“PF2”press 3 seconds Voice Input Transmit Channel Switch Earpiece/Programming/Charge Inteface No.NameApplication 03 Function operation 1. Function and operation 1.1Turn on/off Rotate the volume switch clockwise and hear a "click" to indicate that the radio is turned on; turn the volume switch counterclockwise, and hear a "click" sound to indicate that the radio is turned off. 1.2Programming Programming needs to pass through the Type-C charging port. 1.3One-click copy CTC/DCS Switch radio A to channel 1, turn off the radio, press and hold the channel + button to turn on the one-click copy function, the blue light will flash slowly when entering the pairing; press radio B PTT to transmit, the radio A will make a beep when the signal is paired, the blue light flashes quickly, indicating that the copy CTC/DCS is successful, and the current CTC/DCS will be saved, switch the channel, then radio A will copy the next CTC/DCS. Note: This function is the function of intercommunication with other brand radios of same frequency. After the copy CTC/DCS is completed, please restart the radio, otherwise it will consume power quickly. 1.4Wireless copy CTC/DCS If you want to copy all the parameters of the radio A to multiple radios, turn all the radios (including the radio A) to channel 2 first, turn off these radios, then press and hold the channel "+" to power on, the blue light flashes slowly (indicates that the wireless copy function is turned on), Press and hold the radio A PPT to transmit, after releasing, the red light is on, and when the red light is off, it indicates that the copy is successful (restart the radios and the copy is successful). Note: Wireless copy CTC/DCS is only possible when the radio has the same model and software version as the radio A. 1.5Alarm Set the side button " + / - " of the radio as the remote alarm function in the software. Press and hold the side button " + / - " on the radio for three seconds to turn on the emergency alarm function, and press the PTT button to turn off the alarm function during alarm. Local alarm + remote alarm 04 1.6Chinese/English voice broadcast channel function The voice broadcast column of the software reads: None, Chinese, and English. 1.7VOX The side button " + / - " of the radio is set to VOX in the software, long press and hold the side button " + / - " on the radio for three seconds to turn on the VOX function, and long press the side button " + / - " again to turn off the VOX function. Note: The higher the gain level of the VOX, the lower the volume required for VOX (the gain level can be selected from 0-9) The longer the VOX delay, the longer the VOX exit time, (VOX delay is divided into 0.5/1/1.5/2/2.5/3s) 1.8 Scan Set the side key " + / - " of the radio as the scan function in the software, long press the side key " + / - " on the radio for three seconds to turn on the scan function, and long press the side key " + / - " again to close the Scan function. 1.9 Non-standard CTC/DCS Non-standard CTC/DCS include analog sub-tone CT and digital sub-tone DCS Analog sub-tone CT can input any…
