2A46G-SUPERX5ULTRASuper X5 Ultra Intelligent Control System

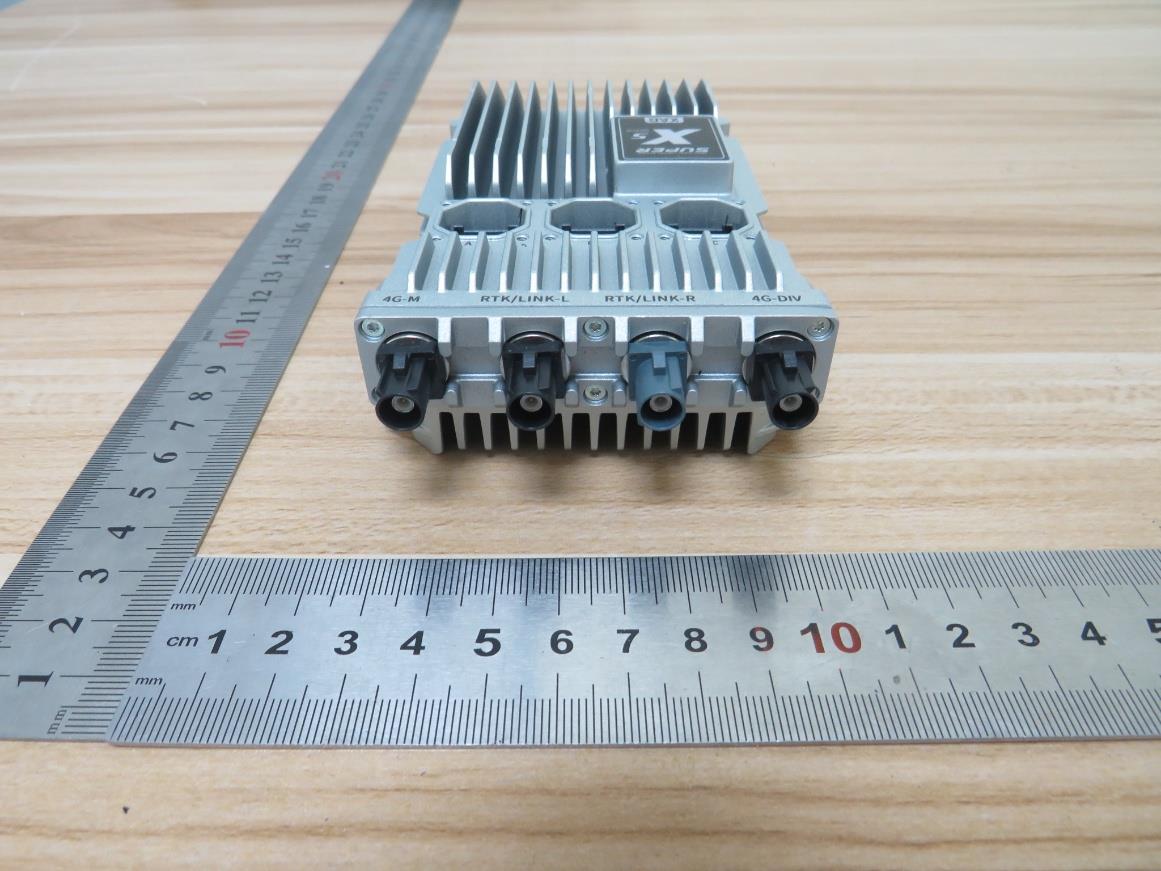

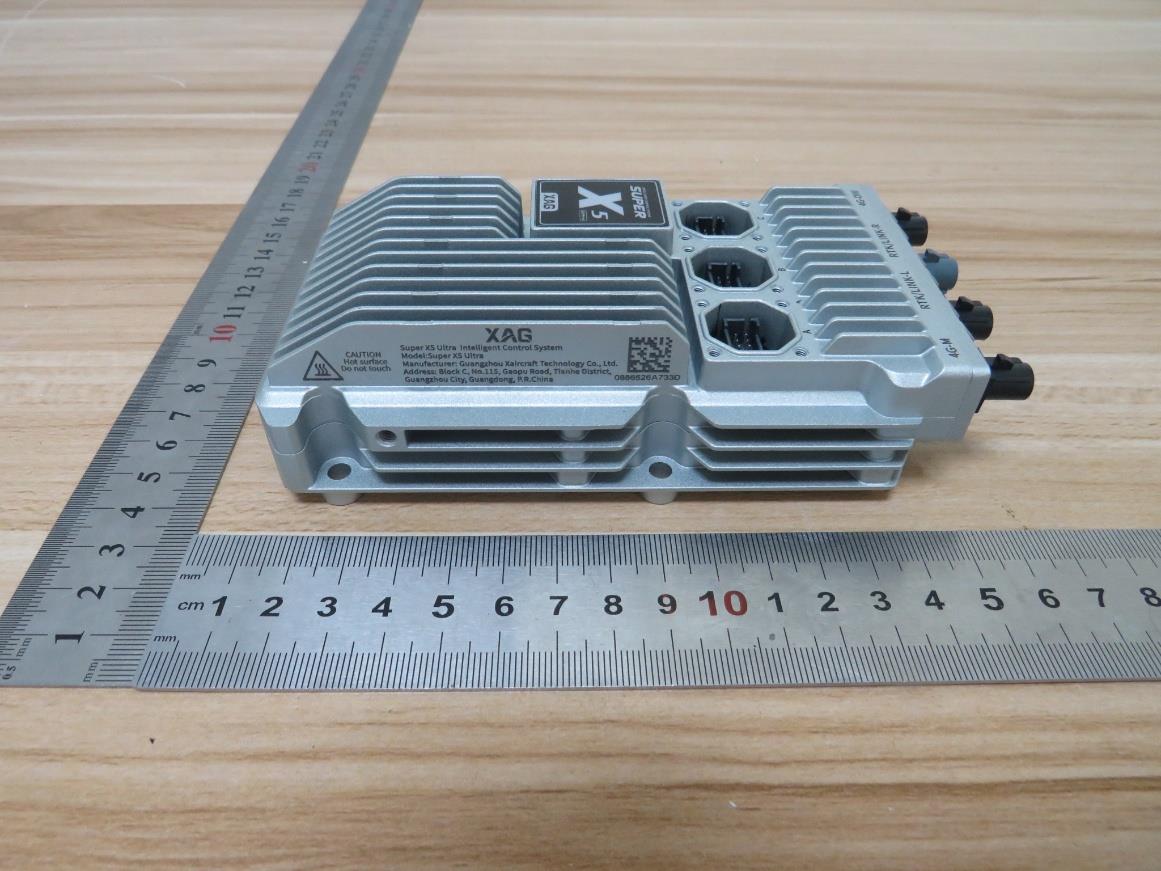

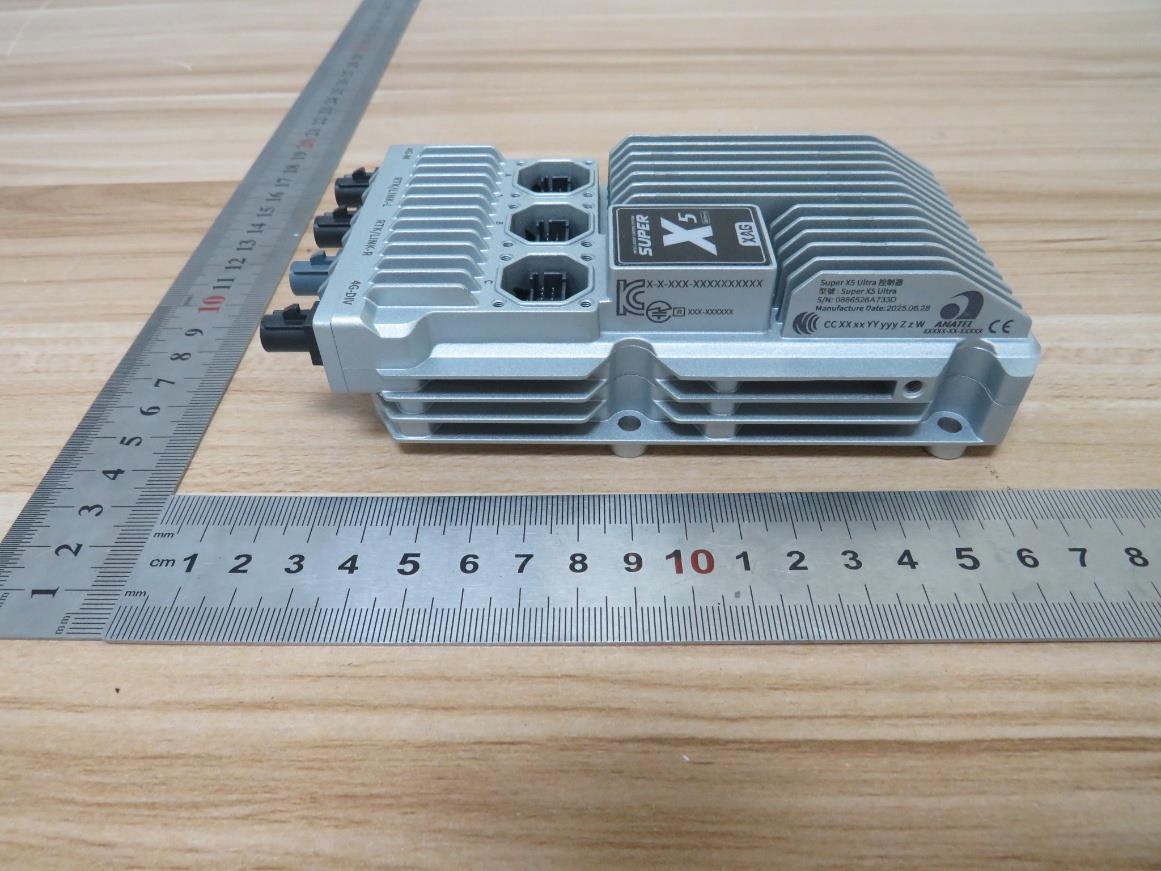

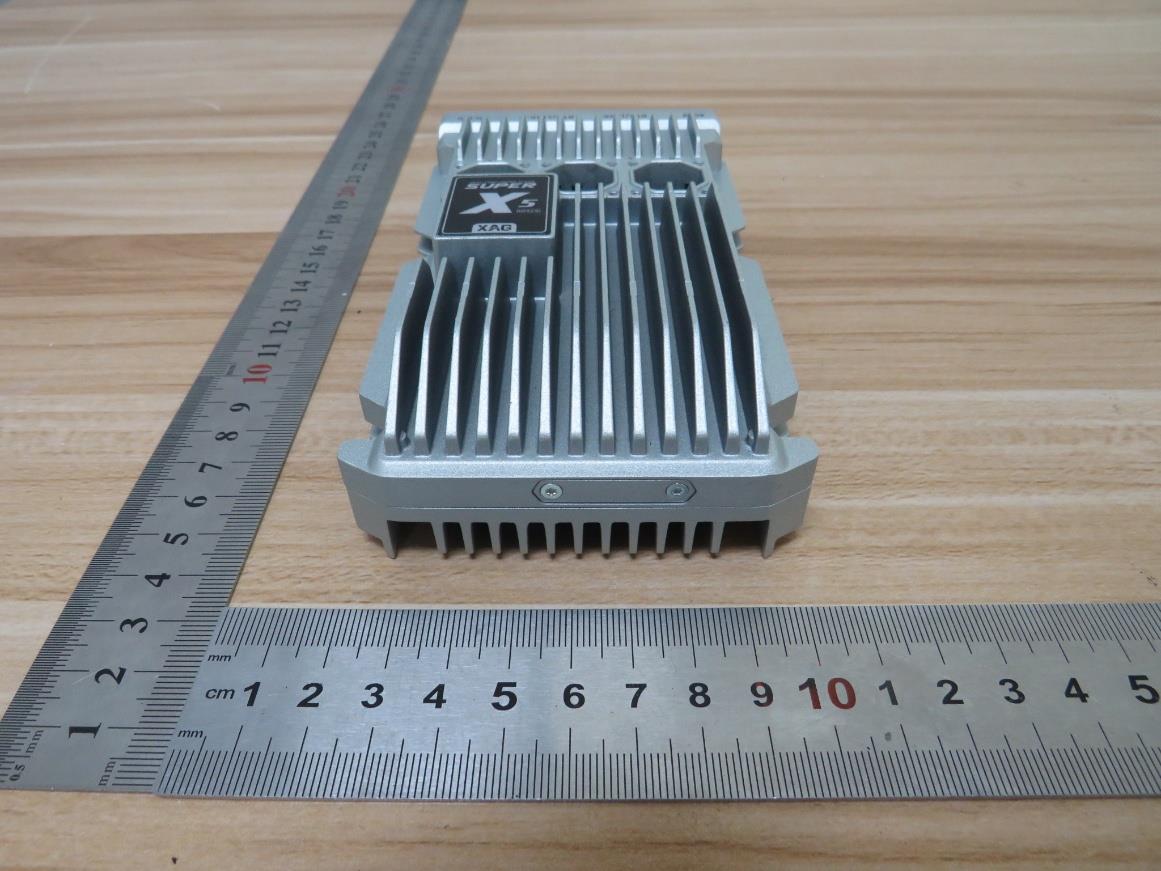

SuperX 5 Ultra User Manual 1. Product Overview Super X5 Ultra is a self-contained control-and-communication device that establishes a wireless data link between an upper computer and a controller for agricultural unmanned vehicles and similar equipment. The unit is powered through a dedicated 24 V DC connector and integrates a 4 G module, a WLAN/BLE combo module, and a Gateway C12 SIM-card slot. Power Architecture • The incoming 24 V rail is stepped down to 3.93 V to supply the Wi-Fi / BLE combo chip and the 4 G module. • A further 3.3 V rail derived from 24 V powers the RTK module. Clocking • The Wi-Fi/BLE combo uses a 32.768 kHz crystal. • The 4 G and RTK modules are standard cellular/RTK units and do not require external crystals. 2. Interfaces & Indicators Antenna Connectors – 4 total • 4 G: ×2 (dedicated to the 4 G module) • WLAN + GNSS shared: ×2 (serving both the WLAN module and the positioning module) Cable Sets – 3 integrated harnesses • Power + CAN • Power + CAN + Ethernet • CAN + Ethernet + Serial + Peripheral power Status LEDs – 4 indicators 3. Functional Modules 4 G Module • Provides cloud connectivity • Uses SIM slot 1 (built-in eSIM) and 4 G antenna connectors ×2 WLAN Module • Communicates with remote controllers or other devices • Supports 802.11 b/g/n HT20 • Operating mode: Master (Access Point) • Dual antennas, mapped to WLAN ×2 FCC Compliance Notice: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. FCC Supplier's Declaration of Conformity Brand name / model number：Super X5 Ultra This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Suppliers Name(FCC): Pegasus Spray LLC Suppliers Address (FCC): 2265 116th Ave NE Suite 110 Bellevue, WA 98004 United States Suppliers phone number and / or internet contact information: +1 (503) 866-1228 SuperX 5 Ultra 用户手册 一、产品简介 SuperX 5 Ultra 是一款可独立运行的控制通信设备，能够为农业无人车等 装备提供“上位机—控制器”之间的无线数据链路。整机由 24 V DC 专用连 接器供电，内部集成 4G 模块、WLAN 模块以及网关 C12 SIM 卡槽。 整机由外部24V直流电压转换到3.93V后，给WiFi/BLE模块（WiFi和蓝 牙是同一个芯片）和4G模块供电；外部24V直流电压转换到3.3V后个RTK模 块供电。 WiFi/BLE的晶振频率是32.768KHz。4G和RTK是标准模组，无需外 部额外加晶振。 二、接口与指示 1. 天线连接器：共 4 个 • 4G：×2（对应 4G 模块） • WLAN及GNSS定位导航共用连接器：×2（对应 WLAN 模块及定 位模块） 2. 信号线缆：共 3 组 • 电源 + CAN（集成） • 电源 + CAN + 网口（集成） • CAN + 网口 + 串口 + 外设电源（集成） 三、功能模块 1. 4G 模块 • 用于连接云平台 • 对应 SIM 1 插槽，内置 eSIM，天线接口为 4G×2 2. WLAN 模块 • 用于与遥控器或其他设备通信 • 支持 802.11 b/g/n HT20 • 工作模式：Master（AP 模式） • 双天线，对应 WLAN×2

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For Super X5 Ultra Intelligent Control System MODEL NUMBER: Super X5 Ultra REPORT NUMBER: 4791826590-5-RF-7 ISSUE DATE: August 26, 2025 FCC ID: 2A46G-SUPERX5ULTRA Prepared for Guangzhou Xaircraft Technology CO.,LTD Building 1, No. 9 Xinrui Road, Huangpu District, Guangzhou, P.R.China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791826590-5-RF-7 Page 2 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 August 26, 2025 Initial Issue REPORT NO.: 4791826590-5-RF-7 Page 3 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4791826590-5-RF-7 Page 4 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Xaircraft Technology CO.,LTD Address: Building 1, No. 9 Xinrui Road, Huangpu District, Guangzhou, P.R.China Manufacturer Information Company Name: Guangzhou Xaircraft Technology CO.,LTD Address: Building 1, No. 9 Xinrui Road, Huangpu District, Guangzhou, P.R.China EUT Information EUT Name: Super X5 Ultra Intelligent Control System Model: Super X5 Ultra Sample Received Date: June 11, 2025 Sample Status: Normal Sample ID: 8564579 Date of Tested: June 12, 2025 to August 25, 2025 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS KDB 447498 D01 PASS Prepared By: Checked By: Daniel Zhang Kebo Zhang Project Engineer Operations Leader Approved By: Stephen Guo Operations Manager REPORT NO.: 4791826590-5-RF-7 Page 5 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB447498 D01 v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: C-20202, G-20240, R-20248 and T-20202) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber E, the VCCI registration No. is G-20240 and R-20248 Shielding Room F, the VCCI registration No. is C-20202 and T-20202 Note 1: All tests measurement facilities use to collect the measurement data are located at Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China. Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30 MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30 MHz had been correlated to measurements performed on an OFS. REPORT NO.: 4791826590-5-RF-7 Page 6 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device ha…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs Project No.:4791826590-5 Page 2 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Radiated Emissions and Band Edge Measurement RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) Page 3 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) Page 4 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz)

PFP25-WG-210G 广州极飞科技股份有限公司 202 5 年 6 月 9 日 DrawnerCheckerApprover Yao XiangxiWangKeqiaoDengHaibo an tenna specification m odel: m anufacture c ompany name:Guangzhou Xaircraft Technology CO.,LTD Address:Block C, No.115, Gaopu Road, Tianhe District, GuangzhouCity, Guangdong, P.R. 510663 China 1.Specifications 1.1GNSSAntenna ElectricalSpecifications Frequency(MHz) GPSL1/L2/L5/L-band BDSB1I/B2I/B3I/B1C/B2a/B2b GLONASSL1/L2/L3 GALILEOE1/E5a/E5b/E6 QZSSL1/L2/L5/L6 IRNSSL5 VSWR≤2 PolarizationRHCP PeakGain(dBi)2.5 AxialRatio(dB)≤3 AzimuthCoverage(°) 360 Impedance(Ohm)50 LNASpecifications LNAGain(dB) 21±2 NoiseFigure(dB)≤2 PassbandRipple(dB) ±2 VSWR≤2 OperationVoltage(V)+3.3~+6DC OperationCurrent(mA)≤20 1.2BluetoothAntenna ElectricalSpecifications Frequency(MHz)2400~2500 VSWR≤3 PeakGain(dBi)0.8 Efficiency50% PolarizationVerical Impedance(Ohm)50 1.3WIFIAntenna ElectricalSpecifications Frequency(MHz) 2400~25005700~5850 VSWR≤3≤2 PeakGain(dBi)0.85.19 Efficiency50%60% PolarizationVerical Impedance(Ohm)50 2.MechanicalSpecifications ConnectorTypeMCX(Male) AntennaDimension(mm×mm)140.7×56.9×φ56.9 3.EnvironmentalSpecifications StorageTemperature-40 ̊C~+80 ̊C OperationTemperature-40 ̊C~+80 ̊C 4.TestConditionandProcedure V.S.W.R SetDUTonNetworkAnalyzer,make individualcalibrationtotest Gain SetDUTonChamber,makeindividual calibrationtotest 5.AntennaDimensionsDiagram 2.BluetoothAntennaandWIFIAntennaSParameterTestData 3.BluetoothAntennaandWIFIAntennaRadiationParameterTestData Frequency(MHz)3DPatternVerticalPatternHorizontalPattern 2400 2440 2500 5700 5800 5850 FrequencyID12345678 Frequency(MHz)24002440248025005700575058005850 Gain(dBi)0.550.710.690.85.065.194.694.29 Efficiency(%)55.1958.2757.5260.2662.7866.4662.8562.91

model:PFP25-WG-210A 广州极飞科技股份有限公司 2025 年 5 月 26 日 DrawnerCheckerApprover Yao XiangxiWang KeqiaoDeng Haibo manufacture company name:Guangzhou Xaircraft Technology CO.,LTD A ddress:Block C, No.115, Gaopu Road, Tianhe District, GuangzhouCity, Guangdong, P.R. 510663 China antenna specification 1.Specifications 1.1GNSSAntenna ElectricalSpecifications Frequency(MHz) GPSL1/L2/L5/L-band BDSB1I/B2I/B3I/B1C/B2a/B2b GLONASSL1/L2/L3 GALILEOE1/E5a/E5b/E6 QZSSL1/L2/L5/L6 IRNSSL5 VSWR≤2 PolarizationRHCP PeakGain(dBi)2.5 AxialRatio(dB)≤3 AzimuthCoverage(°) 360 Impedance(Ohm)50 LNASpecifications LNAGain(dB) 21±2 NoiseFigure(dB)≤2 PassbandRipple(dB) ±2 VSWR≤2 OperationVoltage(V)+3.3~+6DC OperationCurrent(mA)≤20 1.2BluetoothAntenna ElectricalSpecifications Frequency(MHz)2400~2500 VSWR≤3 PeakGain(dBi)0.8 Efficiency50% PolarizationVerical Impedance(Ohm)50 1.3WIFIAntenna ElectricalSpecifications Frequency(MHz) 2400~25005700~5850 VSWR≤3≤2 PeakGain(dBi)0.85.19 Efficiency50%60% PolarizationVerical Impedance(Ohm)50 2.MechanicalSpecifications ConnectorTypeMCX(Male) AntennaDimension(mm×mm)140.7×56.9×φ56.9 3.EnvironmentalSpecifications StorageTemperature-40 ̊C~+80 ̊C OperationTemperature-40 ̊C~+80 ̊C 4.TestConditionandProcedure V.S.W.R SetDUTonNetworkAnalyzer,make individualcalibrationtotest Gain SetDUTonChamber,makeindividual calibrationtotest 5.AntennaDimensionsDiagram 2.BluetoothAntennaandWIFIAntennaSParameterTestData 3. BluetoothAntennaand WIFI AntennaRadiationParameterTest Data Frequency(MHz)3D PatternVerticalPatternHorizontalPattern 2400 2440 2500 5700 5800 5850 FrequencyID12345678 Frequency(MHz)24002440248025005700575058005850 Gain(dBi)0.550.710.690.85.065.194.694.29 Efficiency(% )55.1958.2757.5260.2662.7866.4662.8562.91

REPORT NO.: 4791826590-5-RF-5 Page 121 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission Tx. Spurious NVNT g 2437MHz Ant1 Ref REPORT NO.: 4791826590-5-RF-5 Page 122 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT g 2437MHz Ant1 Emission Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission REPORT NO.: 4791826590-5-RF-5 Page 123 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT n20 2412MHz Ant0 Ref Tx. Spurious NVNT n20 2412MHz Ant0 Emission Tx. Spurious NVNT n20 2412MHz Ant1 Ref REPORT NO.: 4791826590-5-RF-5 Page 124 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT n20 2412MHz Ant1 Emission Tx. Spurious NVNT n20 2437MHz Ant0 Ref Tx. Spurious NVNT n20 2437MHz Ant0 Emission REPORT NO.: 4791826590-5-RF-5 Page 125 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission Tx. Spurious NVNT n20 2462MHz Ant0 Ref REPORT NO.: 4791826590-5-RF-5 Page 126 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Tx. Spurious NVNT n20 2462MHz Ant0 Emission Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission END OF REPORT

REPORT NO.: 4791826590-5-RF-5 Page 99 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Test Graphs PSD NVNT b 2412MHz Ant0 PSD NVNT b 2437MHz Ant0 PSD NVNT b 2462MHz Ant0 REPORT NO.: 4791826590-5-RF-5 Page 100 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 PSD NVNT b 2462MHz Ant1 REPORT NO.: 4791826590-5-RF-5 Page 101 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. PSD NVNT g 2412MHz Ant0 PSD NVNT g 2437MHz Ant0 PSD NVNT g 2462MHz Ant0 REPORT NO.: 4791826590-5-RF-5 Page 102 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. PSD NVNT g 2412MHz Ant1 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 REPORT NO.: 4791826590-5-RF-5 Page 103 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. PSD NVNT n20 2412MHz Ant0 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant0 REPORT NO.: 4791826590-5-RF-5 Page 104 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. PSD NVNT n20 2437MHz Ant1 PSD NVNT n20 2462MHz Ant0 PSD NVNT n20 2462MHz Ant1 REPORT NO.: 4791826590-5-RF-5 Page 105 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Appendix F:Band Edge Mode Frequency (MHz) Antenna Verdict b 2412 Ant0 Pass b 2462 Ant0 Pass b 2412 Ant1 Pass b 2462 Ant1 Pass g 2412 Ant0 Pass g 2462 Ant0 Pass g 2412 Ant1 Pass g 2462 Ant1 Pass n20 2412 Ant0 Pass n20 2412 Ant1 Pass n20 2462 Ant0 Pass n20 2462 Ant1 Pass REPORT NO.: 4791826590-5-RF-5 Page 106 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Test Graphs Band Edge NVNT b 2412MHz Ant0 Ref Band Edge NVNT b 2412MHz Ant0 Emission Band Edge NVNT b 2462MHz Ant0 Ref REPORT NO.: 4791826590-5-RF-5 Page 107 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT b 2462MHz Ant0 Emission Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission REPORT NO.: 4791826590-5-RF-5 Page 108 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission Band Edge NVNT g 2412MHz Ant0 Ref REPORT NO.: 4791826590-5-RF-5 Page 109 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT g 2412MHz Ant0 Emission Band Edge NVNT g 2462MHz Ant0 Ref Band Edge NVNT g 2462MHz Ant0 Emission REPORT NO.: 4791826590-5-RF-5 Page 110 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission Band Edge NVNT g 2462MHz Ant1 Ref REPORT NO.: 4791826590-5-RF-5 Page 111 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT g 2462MHz Ant1 Emission Band Edge NVNT n20 2412MHz Ant0 Ref Band Edge NVNT n20 2412MHz Ant0 Emission REPORT NO.: 4791826590-5-RF-5 Page 112 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission Band Edge NVNT n20 2462MHz Ant0 Ref REPORT NO.: 4791826590-5-RF-5 Page 113 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Band Edge NVNT n20 2462MHz Ant0 Emission Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission REPORT NO.: 479182659…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Super X5 Ultra Intelligent Control System MODEL NUMBER: Super X5 Ultra REPORT NUMBER: 4791826590-5-RF-5 ISSUE DATE: September 19, 2025 FCC ID: 2A46G-SUPERX5ULTRA Prepared for Guangzhou Xaircraft Technology CO.,LTD Building 1, No. 9 Xinrui Road, Huangpu District, Guangzhou, P.R.China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791826590-5-RF-5 Page 2 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 September 19, 2025 Initial Issue REPORT NO.: 4791826590-5-RF-5 Page 3 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 N/A Conducted Output Power ANSI C63.10-2020, Clause 11.9.2.3.1 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.5 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4791826590-5-RF-5 Page 4 of 126 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ...................................................................................................... 10 5.3. MAXIMUM POWER ................................................................................................ 10 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 12 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 13 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 14 7. ANTENNA PORT TEST RESULTS ..................................................................................... 16 7.1. CONDUCTED OUTPUT POWER ........................................................................... 16 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 17 7.3. POWER SPECTRAL DENSITY .............................................................................. 19 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION ..................................... 21 7.5. DUTY CYCLE ......................................................................................................... 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. RESTRICTED BANDEDGE .................................................................................... 31 8.2. SPURIOUS EMISSIONS(1 GHZ~3 GHZ) ............................................................... 45 8.3. SPURIOUS EMISSIONS(3 GHZ~18 GHZ) ............................................................. 51 8.4. SPURIOUS EMISSIONS(9 KHZ~30 MHZ) ............................................................. 69 8.5. SPURIOUS EMISSIONS(18 GHZ~26 GHZ) ........................................................... 72 8.6. SPURIOUS EMISSIONS(30 MHZ…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Super X5 Ultra Intelligent Control System MODEL NUMBER: Super X5 Ultra REPORT NUMBER: 4791826590-5-RF-4 ISSUE DATE: August 26, 2025 FCC ID: 2A46G-SUPERX5ULTRA Prepared for Guangzhou Xaircraft Technology CO.,LTD Building 1, No. 9 Xinrui Road, Huangpu District, Guangzhou, P.R.China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791826590-5-RF-4 Page 2 of 82 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 August 26, 2025 Initial Issue REPORT NO.: 4791826590-5-RF-4 Page 3 of 82 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conduct…

Text truncated - open the document above for the full version.
