2A4J2-EQMini PC

Beelink EQ12 七国语言说明书V1.0 1.折叠尺寸：109*122mm 2.双面彩色印刷，打钉 3.材质：128g双铜，封面防刮花 nnnnnnn p O C nnnnnnn p O C nnnnnnn p O C nnnnnnn p O C nnnnnnn p O C nnnnnnn p O C FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End- users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure com

ShenZhen AZW Technology CO.,LTD. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: ShenZhen AZW Technology CO.,LTD. Address: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park, Longhua New District,ShenZhen,China Product Name: mini PC FCC ID: 2A4J2-EQ Model(s): EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI 2.911(d)(5)(i) Equipment Type We, [ShenZhen AZW Technology CO.,LTD. ] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Jerry Huang Date: Apr.20,2023 Title and Company name: Manager / ShenZhen AZW Technology CO.,LTD. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenZhen AZW Technology CO.,LTD. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: ShenZhen AZW Technology CO.,LTD. Address: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park, Longhua New District,ShenZhen,China Product Name: mini PC FCC ID: 2A4J2-EQ Model(s): EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI 2.911(d)(5)(ii) Applicant filing We, [ShenZhen AZW Technology CO.,LTD. ] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Jerry Huang Date: Date: Apr.20,2023 Title and Company name: Manager / ShenZhen AZW Technology CO.,LTD. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenZhen AZW Technology CO.,LTD. 2.911 (d)(7)USA Agent v1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: ShenZhen AZW Technology CO.,LTD. Address: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park, Longhua New District,ShenZhen,China Product Name: mini PC FCC ID: 2A4J2-EQ Model(s): EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI 2.911(d)(7) USA Designated Agent for Service of Process We, [ShenZhen AZW Technology CO.,LTD.] (“the applicant”) designate [Electronic Mac, Inc. ] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Electronic Mac, Inc. Address: 6525 Crown Blvd, # 20805, San Jose, CA 95120 FRN: 0033414541 Contact Name: Ray Sia Telephone No: 408-332-2399 Email: [email protected] Applicant Company name: ShenZhen AZW Technology CO.,LTD. Address: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park, Longhua New District,ShenZhen,China FCC Grantee Code: 2A4J2 Contact Name: Jerry Huang Telephone No: 13528413123 Email: [email protected] Signature: Title: Manager Signature: Title: sales manager Date: 2023-04-20 Date: 2023-04-20 ShenZhen AZW Technology CO.,LTD. 2.911 (d)(7)USA Agent v1.3 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen AZW Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 21, 2023 Subject; Request for Confidentiality FCC ID: 2A4J2-EQ To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jerry Huang Title: manager

ShenZhen AZW Technology CO.,LTD. Agent Authorization Company: ShenZhen AZW Technology CO.,LTD. Address: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Product Name: mini PC Model Number(s): EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI Product Description: mini PC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr.20,2023 Name: Jerry Huang Title: Manager Company: ShenZhen AZW Technology CO.,LTD.

ShenZhen AZW Technology CO.,LTD. Family models declaration letter. Date: April 25, 2023 We ShenZhen AZW Technology CO.,LTD.Of 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Product: mini PC Model Name: EQ Serial Model: EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI Difference description of series models: All the model are the same circuit and RF module, except the model names and colors. Thanks Sincerely Signature Name: Jerry Huang Date: Apr.20,2023 Title: Manager

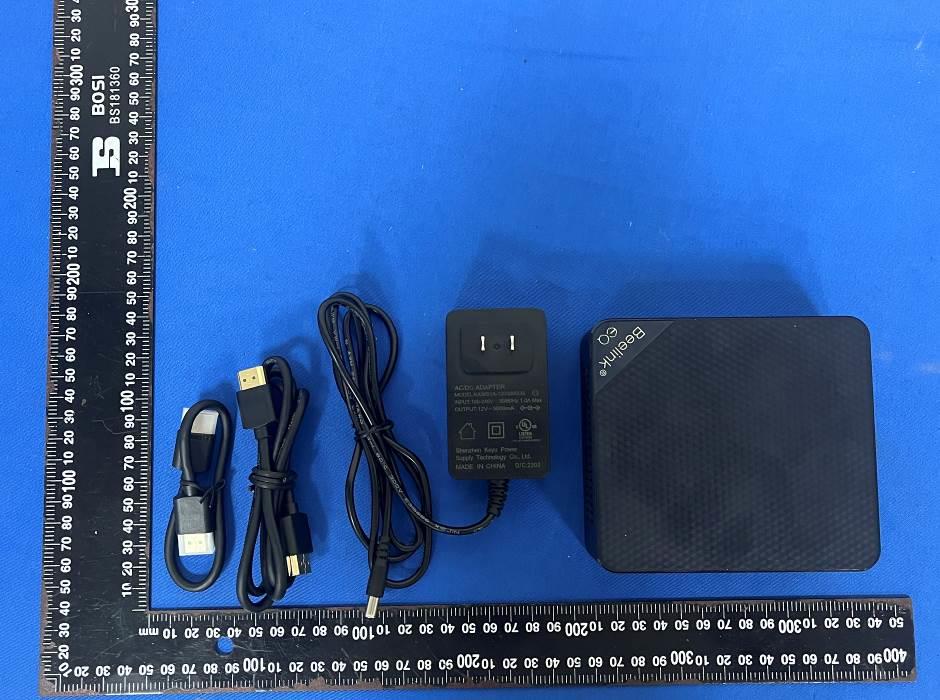

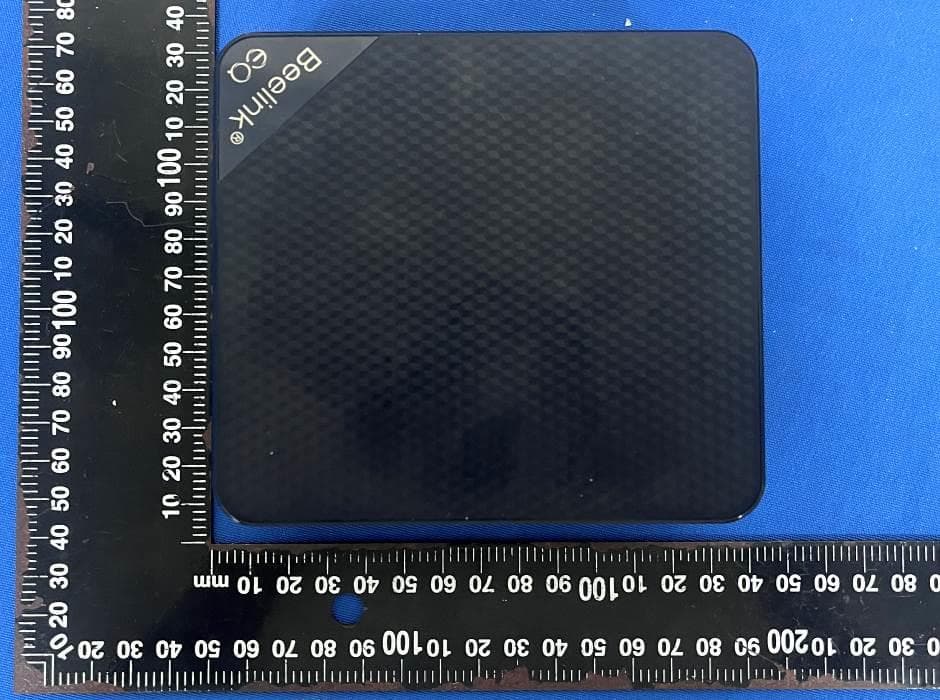

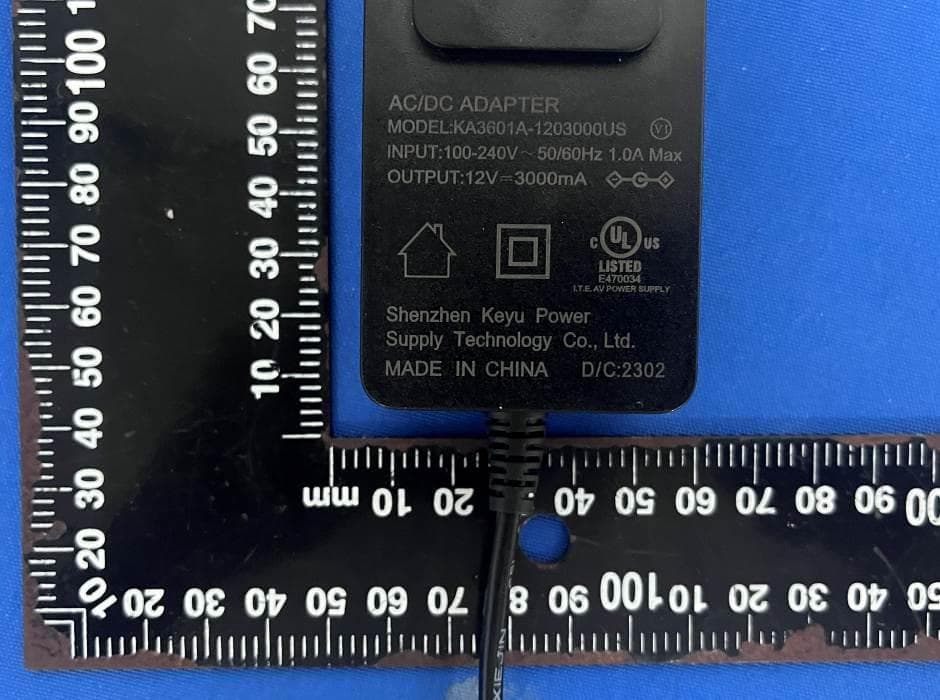

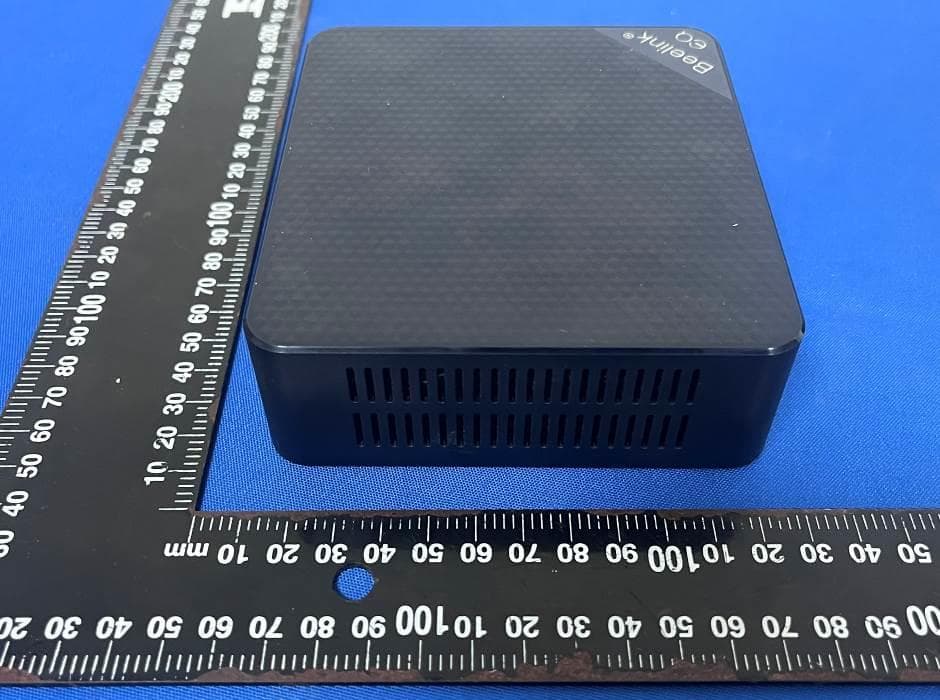

- Page 1 of 4 - ET-23030239 Product Name: Mini PC Model No.: EQ Ext Photos - Page 2 of 4 - ET-23030239 - Page 3 of 4 - ET-23030239 - Page 4 of 4 - ET-23030239 -----END-----

Product Name: Mini PC Model: EQ Input: 12V 3A Manufacturer: Shenzhen AZW Technology Co., Ltd. FCC ID: 2A4J2-EQ 210-210893

- Page 1 of 6 - ET-23030239 Product Name: Mini PC Model No.: EQ Internal photos - Page 2 of 6 - ET-23030239 BLE ANT WIFI ANT - Page 3 of 6 - ET-23030239 - Page 4 of 6 - ET-23030239 - Page 5 of 6 - ET-23030239 - Page 6 of 6 - ET-23030239 ------END-----

FCC ID: 2A4J2-EQ RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Antenna gain：For 2.4G band: 3.46dBi For 5G band: 5.26dBi FCC ID: 2A4J2-EQ BT Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 4.37 2.74 2.22 0.0012 1.0 PASS 2.4G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 13.56 22.70 2.22 0.0613 1.0 PASS 802.11g 16.74 47.21 2.22 0.1573 1.0 PASS 802.11n20 17.26 53.21 2.22 0.1828 1.0 PASS 802.11n40 16.21 41.78 2.22 0.1348 1.0 PASS 5.2G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result TX 802.11a 15.80 38.02 3.36 0.0254 1.0 PASS TX 802.11 n20 15.77 37.76 3.36 0.0252 1.0 PASS TX 802.11 ac20 15.76 37.67 3.36 0.0252 1.0 PASS TX 802.11 n40 14.34 27.16 3.36 0.0182 1.0 PASS TX 802.11 ac40 14.07 25.53 3.36 0.0171 1.0 PASS TX 802.11 ac80 12.30 16.98 3.36 0.0114 1.0 PASS 5.8G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result TX 802.11a 10.54 11.32 3.36 0.0076 1.0 PASS TX 802.11 n20 10.37 10.89 3.36 0.0073 1.0 PASS TX 802.11 ac20 10.51 11.25 3.36 0.0075 1.0 PASS TX 802.11 n40 9.45 8.81 3.36 0.0059 1.0 PASS TX 802.11 ac40 9.32 8.55 3.36 0.0057 1.0 PASS TX 802.11 ac80 8.17 6.56 3.36 0.0044 1.0 PASS If BLE and 2.4G WIFI operate simultaneously, Total power density=0.0012/1+0.1828/1=0.1840<1.0 If BLE and 5.2G WIFI operate simultaneously, Total power density=0.0012/1+0.0254/1=0.0266<1.0 If BLE and 5.8G WIFI operate simultaneously, Total power density=0.0012/1+0.0076/1=0.0088<1.0 Then SAR evaluation is not require .

shenzhenTian wei xun wireless technology co.,ltd. Product performance and specification 1. Project drawing 2. Antenna matching pattern The match says: has the match been changed according to the original motherboard EQ shenzhenTian wei xun wireless technology co.,ltd. 3. Antenna information 3.1 Electrical specifications and materials of antennas This report mainly provides the test status of the structural performance parameters of the IPC-A antenna. Physical drawing 3.2 Antenna form Implementation type: PIFA antenna material: FPC+ coaxial line 3.3 Working band of antenna design The antenna operates in the frequency band 2400MHz ~ 2500MHz\ 5100MHz~5900MHz 3.4 Measurement data of Antenna in ETS-SG24SYSTEM 3D Test system 3.5 Data of main antenna measured by network analyzer shenzhenTian wei xun wireless technology co.,ltd. VSWR Return loss Smith 3.6 Passive performance index: shenzhenTian wei xun wireless technology co.,ltd.

Report No.: ET-23030239E01 This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd. TEST REPORT Applicant: ShenZhen AZW Technology CO.,LTD. Address of Applicant: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Manufacturer/Factory: ShenZhen AZW Technology CO.,LTD. Address of Manufacturer 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Product Name: Mini PC Model No.: EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI Trade Mark: N/A FCC ID: 2A4J2-EQ Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Mar.24, 2023- Apri.07, 2023 Date of report issued: Apri.08, 2023 Test Result : PASS * Remark: * In the configuration tested, the EUT complied with the standards specified above. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 31 - Report No.: ET-23030239E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report Revision History Report No. Description Issue Date ET-23030239E01 Original Apri.08, 2023 - Page 3 of 31 - Report No.: ET-23030239E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1. TEST SUMMARY ......................................................................................................................................4 2. GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................5 2.2 TEST MODE ................................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ...............................................................................................................7 2.4 DEVIATION FROM STANDARDS .....................................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 2.6 TEST FACILITY ............................................................................................................................................7 2.7 TEST LOCATION ..........................................................................................................................................7 2.8 ADDITIONAL INSTRUCTIONS .........................................................................................................................7 3. TEST INSTRUMENTS LIST ......................................................................................................................8 4. TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1 ANTENNA REQUIREMENT .............................................................................................................................9 4.2 CONDUCTED EMISSIONS ...........................................................................................................................10 4.3 CONDUCTED PEAK OUTPUT POWER ..........................................................................................................13 4.4CHANNEL BANDWIDTH ...............................................................................................................................14 4.5 POWER SPECTRAL DENSITY ......................................................................................................................16 4.6 BAND EDGES ............................................................................................................................................18 Conducted Emission Method ...................................................................................................................18 Radiated Emission Method ......................................................................................................................19 4.7 SPURIOUS EMISSION .................................................................................................................................21 Conducted Emission Method ...................................................................................................................21 Radiated Emission Method ......................................................................................................................23 5. TEST SETUP PHOTO .............................................................................................................................31 6. EUT CONSTRUCTIONAL DETAILS .......................................................................................................31 - Page 4 of 31 - Report No.: ET-23030239E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1. Te…

Text truncated - open the document above for the full version.

Report No.: ET-23030239E02 Tel: +86 755 85259392 Email: [email protected] No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China TEST REPORT Applicant: ShenZhen AZW Technology CO.,LTD. Address of Applicant: 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Manufacturer/Factory: ShenZhen AZW Technology CO.,LTD. Address of Manufacturer 3th Floor, Building 11, 4th Floor, Building 18, longjun Industrial park,Longhua New District,ShenZhen,China Product Name: Mini PC Model No.: EQ,EQ PRO,EQ PLUS,EQ PRO PLUS,EQ MINI Trade Mark: N/A FCC ID: 2A4J2-EQ Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Mar.24, 2023- Apri.07, 2023 Date of report issued: Apri.08, 2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Remark: The results shown in this test report refer only to the sample(s) tested , this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 50 - Report No.: ET-23030239E02 Report Revision History Report No. Description Issue Date ET-23030239E02 Original Apri.08, 2023 - Page 3 of 50 - Report No.: ET-23030239E02 Tel: +86 755 85259392 Email: [email protected] No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1. TEST SUMMARY ......................................................................................................................................4 2. GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................5 2.2 TEST MODE ................................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ...............................................................................................................7 2.4 DEVIATION FROM STANDARDS .....................................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 2.6 TEST FACILITY ............................................................................................................................................7 2.7 TEST LOCATION ..........................................................................................................................................7 2.8 ADDITIONAL INSTRUCTIONS .........................................................................................................................7 3. TEST INSTRUMENTS LIST ......................................................................................................................8 4. TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1 ANTENNA REQUIREMENT .............................................................................................................................9 4.2 CONDUCTED EMISSIONS ...........................................................................................................................10 4.3 CONDUCTED PEAK OUTPUT POWER ..........................................................................................................13 4.4 6DB BANDWIDTH ......................................................................................................................................14 4.5 POWER SPECTRAL DENSITY ......................................................................................................................17 4.6 BAND EDGES ............................................................................................................................................20 Conducted Emission Method ...................................................................................................................20 Radiated Emission Method ......................................................................................................................23 4.7 SPURIOUS EMISSION .................................................................................................................................28 Conducted Emission Method ...................................................................................................................28 Radiated Emission Method ......................................................................................................................33 5. TEST SETUP PHOTO .............................................................................................................................50 6. EUT CONSTRUCTIONAL DETAILS .......................................................................................................50 - Page 4 of 50 - Report No.: ET-23030239E02 Tel: +86 755 85259392 Email: [email protected] No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1. Test Summary Test Item Section Result Test by Antenna requirement FCC part 15.203/15.247 (c) Pass / AC Power Line Conducted Emission FCC part 15.207 Pass Qiao Li Conducted Peak Output Power FCC part 15.247 (b)(3) Pass Yva…

Text truncated - open the document above for the full version.

ET-23030239 Page 1 of 2 Product Name: Mini PC Test Model No.: EQ Test Setup Photo Radiated emissions 30MHz to1GHz Above 1GHz ET-23030239 Page 2 of 2 Conducted Emission ------End------
