2AA7Y-MOSHIQI007otto Q Wireless Charging Pad

Otto Q User Manual Model: 99MO022219 • Package Contents o 1 x Otto Q o 1 x USB-C to USB-C cable o 1 x User guide • Spec o Input：5V/9V/12V, 15V 2A o Output：5V/5W，9V/10W,12V/15W o operating frequency：120~130kHz • How to charge your phone wirelessly with Otto Q o Plug the supplied USB-C to USB-C cable into Otto Q, then connect to any USB Type-C wall charger (not included). o For optimal performance, use a high-output wall charger (over 10 W, 1 8 W recommended) for better charging efficiency. o A QuickChargeTM 9V charger is required to enable the fast-charging p rotocols of Apple (7.5 W) and Samsung (9 W). • LED behavior: o Off: Not charging o Breathing light: Charging o Steady on: Fully charged o Flashing: Foreign Object Detection error • Foreign Object Detection Troubleshooting: o Remove any metal objects like coins or keys between your device and Otto Q. o Unplug the power adapter for Otto Q then plug it in again. o If the problem still exists, please contact [email protected]. FCC Statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the e quipment. This device complies with Part 18 of the FCC Rules. FCC Caution This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Oper ation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cau se undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, m ême si le brouillage est susceptible d'en compromettre le fonctionnement. ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée dans un autre environnement. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

Cover Letter-Wireless Charger Approval Date: 2020-6-17 Gentlemen: There’s a Wireless Charging Pad that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Wireless Charging Pad, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: Aevoe Inc. Product Name: otto Q Wireless Charging Pad Model Number: 99MO022219 FCC ID: 2AA7Y-MOSHIQI007 KDB 680106 D01 Section 5.2 Requirements Product Technical Specification Result a) Power transfer frequency is less that 1 MHz 120-130kHz Complied b) Output power from each primary coil is less than or equal to 15 watts. 15 watts Complied c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Complied d) Client device is placed directly in contact with the transmitter. Complied e) Mobile exposure conditions only Complied f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Please refer to RF exposure report Complied Sincerely, Print Name: Kevin Kang Title: Project Manager Signature: On behalf of Company: Aevoe Inc. Telephone:(02)87860516 Email:[email protected]

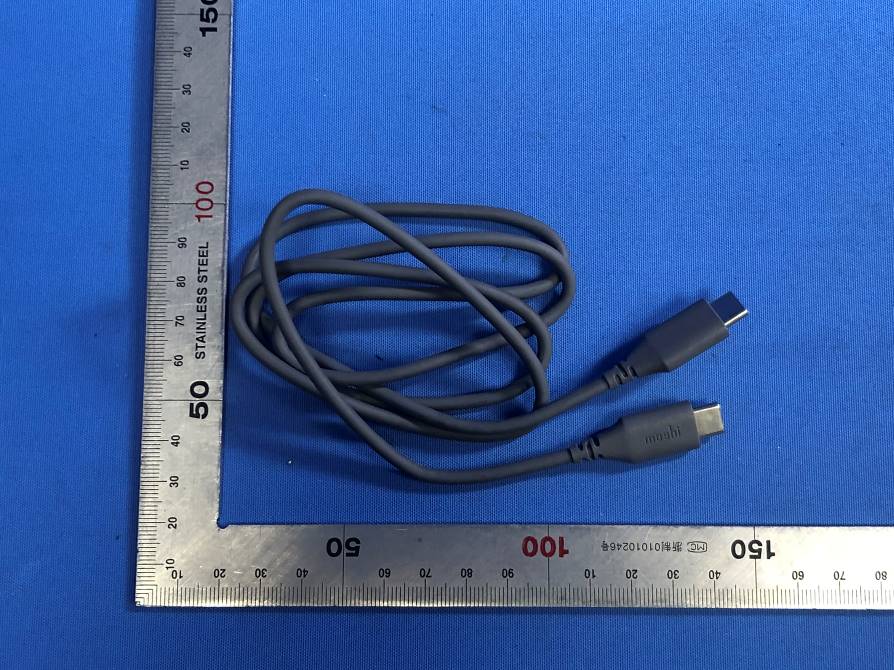

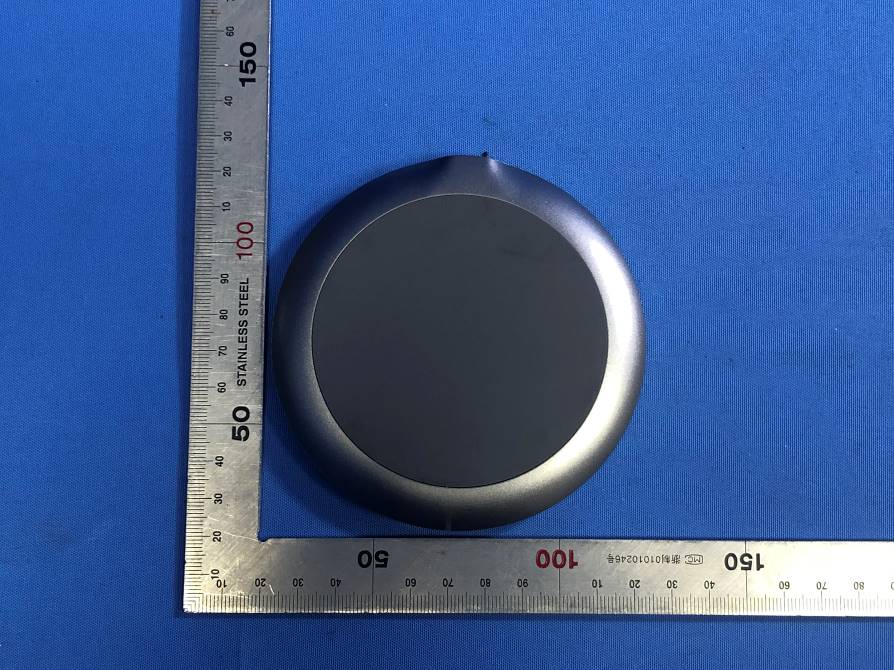

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: AEVOE INC. Address of Applicant: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Equipment Under Test (EUT): Product Name: otto Q Wireless Charging Pad Model No.: 99MO022219 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4 Page 4 of 4 End

7.43mm 5.29mm

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Page 1 of 3 Internal Photos Applicant: AEVOE INC. Address of Applicant: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Equipment Under Test (EUT): Product Name: otto Q Wireless Charging Pad Model No.: 99MO022219 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 Page 3 of 3 End

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523602 Page: 1 of 15 Keny Xu EMC Laboratory Manager Human Exposure Report Application No.: SZEM2006005236CR (SHEM2004003089CR) FCC ID: 2AA7Y-MOSHIQI007 Applicant: AEVOE INC. Address of Applicant: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Manufacturer: AEVOE INC. Address of Manufacturer: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Factory: PEI YING INDUSTRIAL CO., LTD Address of Factory: No.7, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 242, Taiwan (R.O.C.) Equipment Under Test (EUT): EUT Name: otto Q Wireless Charging Pad Model No.: 99MO022219 Trade Mark: Moshi Standards: 47 CFR PART 1, Subpart I, Section 1.1310 Date of Receipt: 2020-04-24 Date of Test: 2020-05-09 to 2020-05-16 Date of Issue: 2020-05-28 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SZEM200600523602 Page: 2 of 16 Revision Record Version Description Date Remark 00 Original 2020-05-28 / Authorized for issue by: Foray Chen /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SZEM200600523602 Page: 3 of 16 2 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 CONTENTS ....................................................................................................................................................... 3 3 GENERAL INFORMATION ............................................................................................................................. 4 3.1 DETAILS OF E.U.T. .............................................................................................................................................. 4 3.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................................... 4 3.3 TEST LOCATION .................................................................................................................................................. 5 3.4 TEST FACILITY .................................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ............................................................................................................................. 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................... 5 4 EQUIPMENTS USED DURING TEST ............................................................................................................ 6 5 TEST RESULTS ............................................................................................................................................... 7 5.1 RF EXPOSURE TEST ............................................................................................................................................. 7 E.U.T. Operation ............................................................................................................................................... 8 Operating Environment: .................................................................................................................................... 8 EUT Operation: ................................................................................................................................................. 8 Measurement Data: .......................................................................................................................................... 8 6 PHOTOGRAPHS ............................................................................................................................................ 10 6.1 TEST PHOTOS .................................................................................................................................................... 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SZEM200600523602 Page: 4 of 16 3 General Information 3.1 Details of E.U.T. Power supply: Input: DC 5V/9V/12V/15V Max 2A by adapter Serial Number: BK20335500A Firmware Version: N/A Test voltage: AC 120V 60Hz Cable: DC Cable 1m for USB Port Wireless Output: Output: DC 5V/5W,5V/7.5W,9V/10W,12V/15W Operation frequency: 120kHz to 130kHz Antenna type: Inductive Loop Coil Antenna Modulation Type: FSK 3.2 Description of Support Units The EUT has been tested with associated equipment below. Description Manufacturer Model No. Serial No. Load provided by client N/A N/A Mobile Phone Samaung Galaxy S8 N/A Mobile Phone Xiaomi Xiaomi 10 Pro N/A Mobile Phone Apple Iphone 11 Pro N/A Adapter Lanto Electronic Ltd. 191106C / Adapter Information Power supply: Input: AC100~240V 50/60Hz Output: DC 5V/3A,9V/3A,12V/3A or DC 15V/3A,20V/3.25A SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SZEM200600523602 Page: 5 of 16 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 1 of 28 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2006005236CR(SHEM2004003089CR) FCC ID: 2AA7Y-MOSHIQI007 Applicant: AEVOE INC. Address of Applicant: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Manufacturer: AEVOE INC. Address of Manufacturer: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Factory: PEI YING INDUSTRIAL CO., LTD Address of Factory: No.7, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 242, Taiwan (R.O.C.) Equipment Under Test (EUT): EUT Name: otto Q Wireless Charging Pad Model No.: 99MO022219 Trade Mark: Moshi Standard(s) : 47 CFR Part 18 Date of Receipt: 2020-04-24 Date of Test: 2020-05-09 to 2020-05-16 Date of Issue: 2020-05-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 2 of 28 Revision Record Version Description Date Remark 00 Original 2020-05-2 8 / Authorized for issue by: Foray Chen /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 3 of 28 2 Test Summary Emission Part Item Standard Method Requirement Result Conducted Emissions at Mains Terminals (150kHz-30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Class B Pass Radiated Emissions (Magnetic field Strength) (9kHz- 30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Class B Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 18 FCC OST/MP-5:1986 Class B Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 4 of 28 3 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................. 3 3 CONTENTS ........................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................... 5 4.1 DETAILS OF E.U.T. .......................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS ..................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY........................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................... 7 4.5 TEST FACILITY ................................................................................................................................. 7 4.6 DEVIATION FROM STANDARDS ........................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS................................................................................... 7 5 EQUIPMENT LIST ................................................................................................................................. 8 6 EMISSION TEST RESULTS .................................................................................................................10 6.1 CONDUCTED EMISSIONS AT MAINS TERMINALS (150KHZ-30MHZ) .......................................................10 6.2 RADIATED EMISSIONS (MAGNETIC FIELD STRENGTH) (9KHZ-30MHZ) ...................................................17 6.3 RADIATED EMISSIONS (30MHZ-1GHZ) .............................................................................................21 7 TEST SETUP PHOTOGRAPHS ...........................................................................................................28 8 EUT CONSTRUCTIONAL DETAILS .....................................................................................................28 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 5 of 28 4 General Information 4.1 Details of E.U.T. Power supply: Input: DC 5V/9V/12V/15V Max 2A by adapter Output: DC 5V/5W,5V/7.5W,9V/10W,12V/15W Serial Number: BK20335500A Firmware Version: N/A Test voltage: AC 120V/60Hz Cable: USB Cable 100cm Antenna Type: Inductive Loop Coil Antenna Modulation Type: FSK Operation Frequency: 120kHz to 130kHz 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Adapter Lanto Electronic Ltd. 191106C / Load N/A N/A N/A Adapter Information Power supply: Input: AC100~240V 50/60Hz Output: DC 5V/3A,9V/3A,12V/3A or DC 15V/3A,20V/3.25A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 6 of 28 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency ± 7.25 x 10 -8 2 Duty cycle ± 0.37% 3 Occupied Bandwidth ± 3% 4 Conduction emission ± 3.0dB (150kHz to 30MHz) 5 RF conducted power ± 0.75dB 6 RF power density ± 2.84dB 7 Conducted Spurious emissions ± 0.75dB 8 RF Radiated power ± 4.5dB (Below 1GHz) ± 4.8dB (Above 1GHz) 9 Radiated Spurious emission test ± 4.5dB (Below 1GHz) ± 4.8dB (Above 1GHz) 10 Temperature test ± 1°C 11 Humidity test ± 3% 12 Supply voltages ± 1.5% 13 Time ± 3% Remark: The U lab (lab Uncertainty) is less than U cispr (CISPR Uncertainty), so the test results – compliance is deemed to occur if no measured disturbance level exceeds the disturbance limit; – non-compliance is deemed to occur if any measured disturbance level exceeds the disturbance limit. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600523601 Page: 7 of 28 4.4 Test Location All tests were…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 Test Setup Photos-FCC Applicant: AEVOE INC. Address of Applicant: 27F, No.68 Zhong Xiao E. Rd, Sec. 5, Taipei City, 11065, Taiwan Equipment Under Test (EUT): Product Name: otto Q Wireless Charging Pad Model No.: 99MO022219 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS .......................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ......................................................... 3 2.1 Conducted Emission Test Setup ................................................................... 3 2.2 Radiated Emission Test Setup ...................................................................... 3 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emission Test Setup 2.2 Radiated Emission Test Setup Below 30MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 30MHz to 1GHz End
