2AA9WV3001Mobile phone

R.55 V3001 User Manual R.55 Phone User Manual -2- R.55 Phone User Manual -3- Disclaimer Some content and services accessible through this mobile phone device belong to third parties and are protected by copyright, patent, trademark and or other intellectual laws. Third Party services may be terminated or interrupted at any time. Revel Mobile does not bear any responsibility or authority for the warranty or usage of these applications. Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. Revel Mobile, LLC © February 2014 by Revel Mobile, LLC. All rights reserved. R.55 Phone User Manual -4- Table of Contents 1 Safety 6 1.1 Safety Precautions 6 1.2 Operational Warnings 6 2 Getting Started 9 2.1 Your Phone 9 2.2 Icons and Descriptions 10 2.3 Inserting & Removing the Battery 10 2.4 Charging the Battery 11 2.5 Inserting & Removing SIM Cards 11 2.6 Inserting & Removing SD Card Memory 11 3 Using Your Phone 13 3.1 Powering ON/OFF 13 3.2 Displaying the Main Menu 13 3.3 Making a Call 13 3.4 Answering a Call 13 3.5 Using the Notification Panel 13 3.6 Creating a New Home Screen 14 3.7 Customizing the Home Screen 14 3.8 Moving Icons on the Home Screen 14 3.9 Deleting Icons on the Home Screen 14 3.10 Changing Wallpaper 14 3.11 Installing APK through File Manager 15 3.12 Phone Applications 15 3.13 Wi-Fi 19 3.14 Typing 19 3.15 Cut, Copy, and Paste 19 4 Taking Care of Your Phone 20 5 Safety, Regulatory & Legal 21 5.1 FCC Notice 21 R.55 Phone User Manual -5- 5.2 SAR Notice 22 5.3 HAC Notice 错误！未定义书签。 5.4 Industry Canada Notice 23 R.55 Phone User Manual -6- 1 Safety 1.1 Safety Precautions Please read these precautions carefully and follow them to prevent danger or the violation of laws. • Your mobile phone device complies with applicable safety requirements for exposure to radio waves. Radio wave exposure guidelines employ a unit called Specific Absorption Rate (SAR) measured in Watts per Kilogram averaged over a 6-minute period and taken over a vol- ume containing a 1 gram mass of human tissue. The recommended SAR limit for a mobile handset is 1.6 W/Kg. Use your phone when the signal strength is good. Keep your calls short or, instead, use a headset or send a text message. This advice applies especially to children, adolescents, and pregnant women. SAR Value • If you are using a Bluetooth headset device, please make sure it has a low power emitter. 1.2 Operational Warnings On The Road Using a phone while driving may cause distraction and may be prohibited or restricted in certain areas. Please follow local laws and drive safely at all times. While Flying Yo ur phone can cause interference with aircraft equipment. If airline personnel instruct you to switch off your phone or dis- able its wireless functions, please comply. Near Sensitive Electronics R.55 Phone User Manual -7- Don’t use your phone near sensitive electronic equipment, particularly medical devices such as pacemakers or defibrilla- tors, as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. For more information about how your phone affects pace- makers or other electronic equipment, please contact the manufacturer or your healthcare provider. Yo ur phone may cause interference when used near TVs, radios, or automated office equipment. In a Hospital Yo ur phone may interfere with the normal operation of medi- cal equipment. Follow all hospital regulations and turn it OFF when medical staff asks or when warnings are posted. At a Fueling Station Don’t use your phone at fueling stations. Switch off your phone whenever you’re near fuels, chemicals, or explosives. Around Water Keep your phone away from water (or any other liquid). This phone model is not waterproof. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorized repairs could void your warranty. Around Children Keep your phone and accessories out of children’s reach. These products are not toys, and failure to observe this precaution could result in inju r y. Original Accessories R.55 Phone User Manual -8- Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, void the warranty, or even cause injury. Near Explosives Do not use or charge your phone in or near areas where explosive materials are used. Obey all signs and turn off your phone when requested. Emergency Calls To make an emergency call, your phone must be turned ON and in an area with network coverage. Yo u should not rely solely on your phone for emergency communications as it has limitation and may not work in your area. Working Temperature Working temperatures for the phone are from 32° to 104° F (0° to 40° C). Please don’t use the phone in temperatures ex- ceeding 104° F (40° C) and below 32° F (0° C) as this could cause damage to the phone and shorten battery life. Safe Audio Volume Prolonged listening to a phone at very high volume can damage your hearing. Use only compatible receivers or earphone accessories with your phone. Check the audio volume before inserting anything into your ear. R.55 Phone User Manual -9- 2 Getting Started 2.1 Your Phone R.55 Phone User Manual -10- 2.2 Icons and Descriptions 2.3 Inserting & Removing the Battery 1. Open the battery cover on the back of your phone. Inserting the Battery 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover and click it back into position. 1. Switch OFF your phone. Removing the Battery 2. Gently lift the battery cover and open. 3. Lift the battery up and out of your phone. R.55 Phone User Manual -11- 2.4 Charging the Battery The rechargeable Li-ion battery that comes with your phone is ready to be used, but is not fully charged. To charge your battery, follow these steps: 1. Connect the charger to yo…

Text truncated - open the document above for the full version.

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com www.vsnmobil.com FCC Authorization Letter Federal Communications Commission, Date: APR 8, 2014 Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 FCC ID: 2AA9WV3001 To whom it may concern: VSN Technologies Inc., the undersigned, hereby authorizes Ms. Ivy Zhu from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of VSN Technologies Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AA9WV3001 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd on our behalf of the VSN Technologies Inc. in connection with the Application shall have the same effect as acts of the VSN Technologies Inc.. VSN Technologies Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention in this matter. Yours sincerely, Company Officer: Amit Verma Signature: Title and Department: Director of Test Engineering Telephone Number: (954) 609 4912 Email: [email protected]

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com www.vsnmobil.com FCC Confidentiality Request Federal Communications Commission, Date: APR 8, 2014 Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: VSN Technologies Inc. FCC ID: 2AA9WV3001 To whom it may concern: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. VSN Technologies Inc. requests that the following documents regarding this submission for FCC ID: 2AA9WV3001 to be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Tune up procedure Tune up procedure.pdf BOM BOM.pdf Those documents contain detailed system and equipment description and related information about the product which 2AA9WV3001 considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, 2AA9WV3001 considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention in this matter. Yours sincerely, Company Officer: Amit Verma Signature: Title and Department: Director of Test Engineering Telephone Number: (954) 609 4912 Email: [email protected]

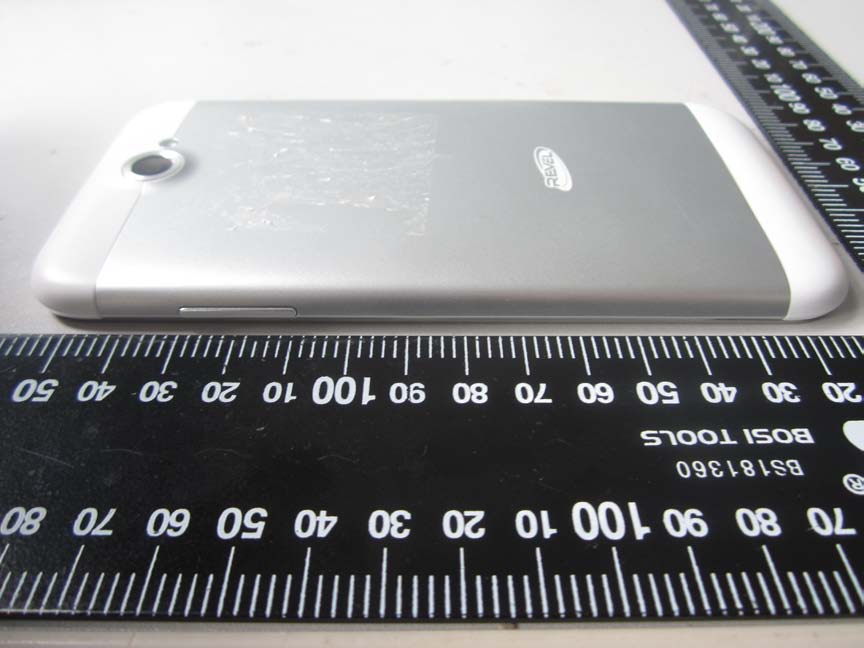

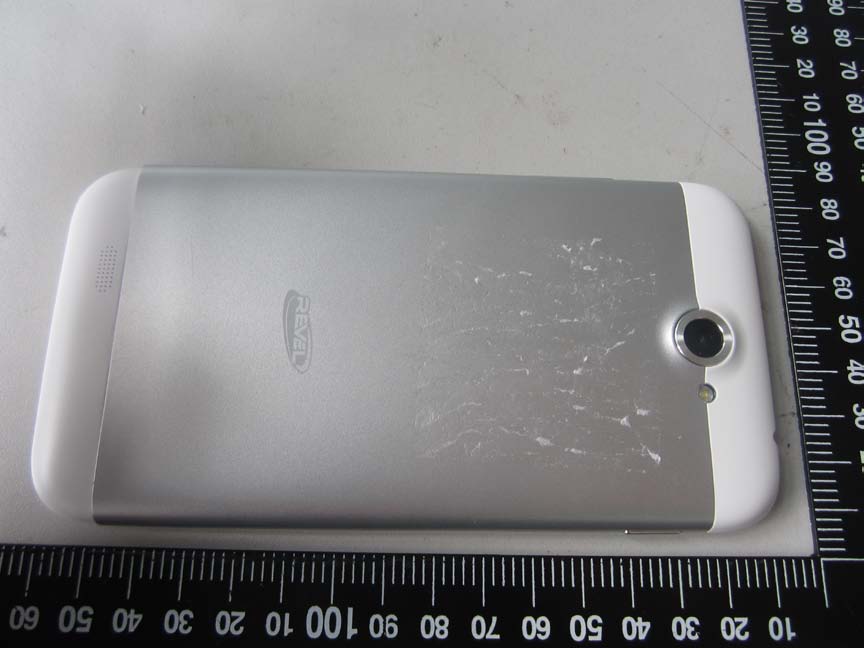

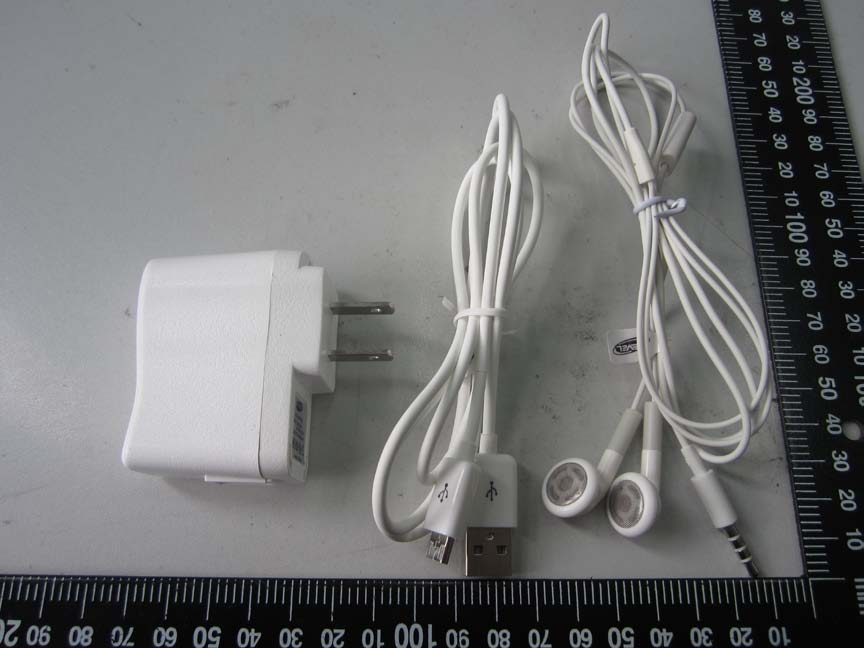

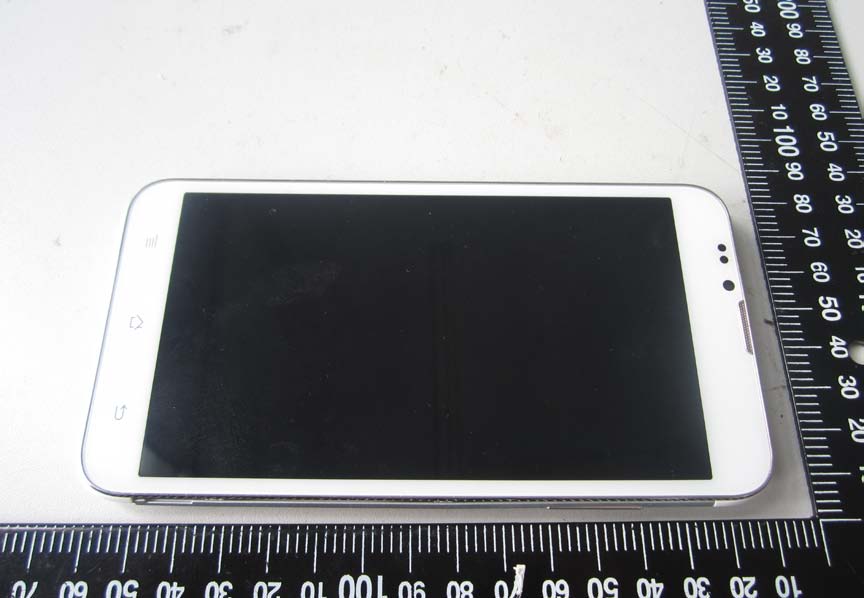

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. GSM/WCDMA chip view 5. CPU chip view 6. BT/WIFI/GPS/FM chip view 7. GSM/WCDMA antenna view 8. BT/WIFI/GPS antenna view BT/WIFI ANT GPS ANT

Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 1 of 7 1. EUT Right Head Touch Cheek Position 2. EUT Right Head Tilt15 Position Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 2 of 7 3. EUT Left Head Touch Cheek Position 4. EUT Left Head Tilt15 Position Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 3 of 7 5. Side Position with earphone 6. Back Side Position 10mm 10mm Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 4 of 7 7. Face Side Position 8. Edge A 10mm 10mm Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 5 of 7 9. Edge B 10. Edge C 10mm 10mm Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 6 of 7 11. Edge D Liquid Level Photo Head Liquid Liquid depth: 15.1cm 10mm Report No.: SZ14040091 Shenzhen Morlab Communications Technology Co., Ltd Phone: +86 (0) 755 36698555 Web site: http://www.morlab.cn/ Fax: +86 (0) 755 36698525 Email: [email protected] Page 7 of 7 Liquid Level Photo Body Liquid Liquid depth :15.5cm
