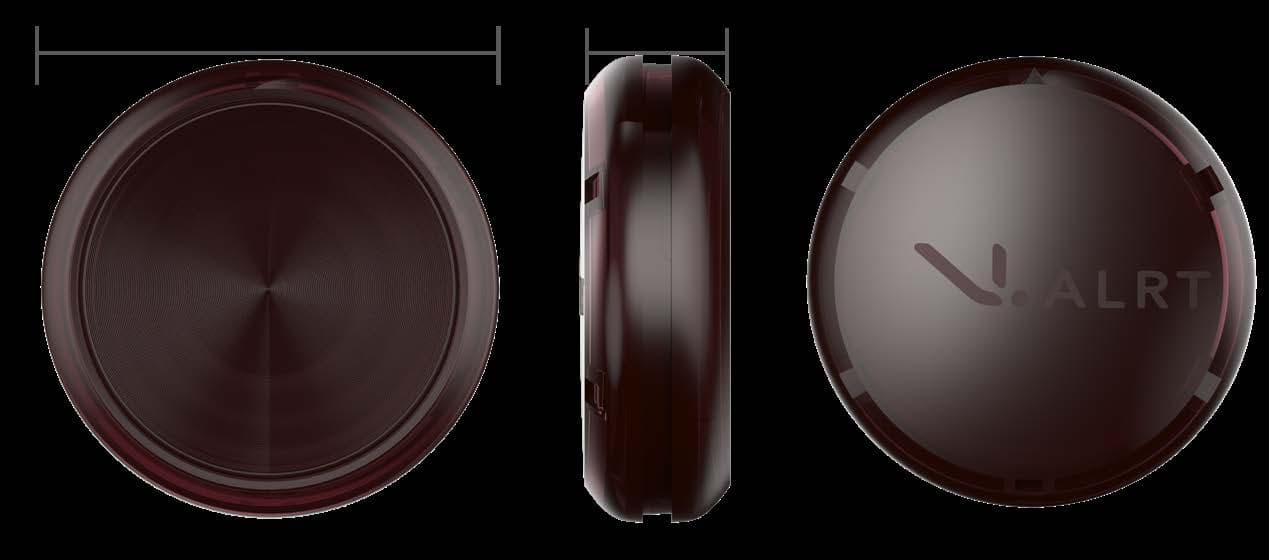

2AA9WVSN400V.ALRT Personal Emergency Response Device

VSN Technologies Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 23, 2014
Application Purpose: Original Equipment
Date of Application: Jan 23, 2014
Equipment Note: V.ALRT Personal Emergency Response Device
Frequency Range: 2402.00000000 - 2480.00000000
Company: VSN Technologies Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Certification Exhibit FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project: 13-2155 Manufacturer: VSN Technologies, Inc. Model: VSN400 User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 MANUAL Personal Emergency Response Device Sistema de Emergencia Personalizado PRODUCT INFORMATION & QUICK SET UP INFORMACIÓN DEL PRODUCTO Y RÁPIDA CONFIGURACIÓN MAIN FUNCTIONALITY FUNCIONAMIENTO FIND ME MODE ENCUENTRAME SILENT MODE MODO SILENCIOSO RANGE DISTANCIA ACCESSORIES DEPENDING ON PACKAGE ACCESORIOS DEPENDEN DEL MODELO EMERGENCY MODE MODO DE EMERGENCIA SEARCH VALRT APP, DOWNLOAD AND RUN, FOLLOW-SET UP DESCARGUE LA APLICACIÓN DE V.ALRT Y SIGA LAS INSTRUCCIONES DE CONFIGURACIÓN CONNECT UP TO 7 V.ALRT DEVICES CONECTE HASTA 7 V.ALRT CONNECT UP TO 4 V.ALRT DEVICES CONECTE HASTA 4 V.ALRT USE CASE • FORMA DE USO FALL DETECTION MODE DETECTOR DE CAÍDA TEXT 3 CONTACTS SMS A LOS 3 CONTACTOS TEXT LOCATION SMS CON LOCALIZACIÓN CALLS 3 CONTACTS LLAMA A LOS 3 CONTACTOS 123 OUT OF RANGE FUERA DE ALCANCE FALSE ACTIVATION ACTIVACIÓN POR ERROR PENDANT • CLIP INSERTION • INSTALACIÓN CHANGING THE BATTERY CAMBIAR LA BATERÍA RECONNECT VUELVA A CONECTAR WARRANTY & DISCLAIMER GARANTIA GENERAL INFORMATION INFORMACIÓN GENERAL COPYRIGHTS DERECHOS DE AUTOR FCC NOTICE AVISO DE FCC INDUSTRY CANADA NOTICE CNR D’INDUSTRIE CANADA 1 2 3 45 6 7 Subject to the warranty terms and conditions, VSN Mobil will at its option repair or replace the product for a period of one year after the date of original purchase if the product fails to perform its intended function due to defect in material, workmanship or design. Some exclusions apply. For details refer to full warranty terms and condition found at http://www.vsnmobil.com/support Terms and conditions: The use of this V.ALRT is subject to the terms and conditions found at http://www.vsnmobil.com/support Sujeto a los Términos y Condiciones, VSN Mobil podrá optar por reparar o reemplazar el producto dentro de un periodo de 12 meses contados a partir de la compra original, siempre y cuando este falle en operar según lo especicado debido a defectos de materiales, diseño o mano de obra. Algunas excepciones aplican. Para detalles por favor referirse a los términos de la garantía que encontrará en nuestro sitio de internet http://www.vsnmobil.com/support Términos y Condiciones: El uso de este V.ALRT está sujeto a los términos y condiciones descritos en nuestro sitio de internet http://www.vsnmobil.com/support Por otro lado la operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. • All images in the manual and the package are simulated. • This device supports Bluetooth® [BT4.0] proles and must be paired with a functioning and Bluetooth® compatible phone. • Bluetooth range varies depending on the structure where this device is used. • The location of this device is identied based on the location of the phone with which this device is paired. Make sure your phone's location services are active and functioning properly. • All operational times quoted are approximate. Battery performance depends on phone proximity, conguration, signal strength, operating temperature, features selected, and other application usage patterns. • This device is controlled under the export regulations of the United States which may restrict its exportation or re-exportation to certain countries. For more information contact the U.S. Department of Commerce. • This device, its packaging and product guides should be disposed of in accordance with local rules and regulations. Please contact your reional recycling authority to get information on recycling requirements in your region. • Todas las imágenes en el manual y el paquete son simuladas. • Este dispositivo admite los perles Bluetooth® [BT4.0] y debe estar asociado a un teléfono con Bluetooth® compatible. • El alcance de Bluetooth varía dependiendo de la estructura donde se utiliza este producto. • La ubicación de este dispositivo esta basada en la localización del teléfono con el cual está vinculado. Asegúrese de que servicios de localización del teléfono están activos y fun…

Text truncated - open the document above for the full version.

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Jan 20, 2014 FCC AGENCY AGREEMENT LETTER Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: 2AA9WVSN400 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Jan 20, 2014 VSN Technologies Inc. 1975 E. Sunrise Blvd., #400 Fort Lauderdale, Fl 33304 Amit Verma

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Jan 20, 2014 CONFIDENTIALITY REQUEST Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: VSN Technologies Inc. respectfully requests confidentiality of certain materials provided with the submission of the V-ALRT under FCC ID: 2AA9WVSN400 in accordance with 47 CFR 0.457(d) and 47 CFR 0.459. The confidentiality request applies to the block diagram, schematics and theory of operation contained in this filing and included in the following files. 13-2155 – Block Diagram.pdf 13-2155 – Schematics.pdf 13-2155 – Theory of Operation.pdf The V-ALRT has been developed at considerable effort and expense by VSN Technologies Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Jan 20, 2014 VSN Technologies Inc. 1975 E. Sunrise Blvd., #400 Fort Lauderdale, Fl 33304 Amit Verma

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2AA9WVSN400 To Whom It May Concern: The following application is submitted on behalf of our client, VSN Technologies, Inc., for evaluation of their model VSN400 for certification under FCC Part 15.247. The FCC ID: 2AA9WVSN400 is a battery powered personal emergency response device which uses the Bluetooth Low Energy (BLE) technology. The FCC ID:2AA9WVSN400 was tested in full and was found to be in compliance with the aforementioned test requirements. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Certification Exhibit FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-2155 Manufacturer: VSN Technologies, Inc. Model: VSN400 RF Exposure 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: VSN400 FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 General Information: Applicant: VSN Technologies, Inc. ACS Project: 13-2155 Device Category: Portable Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Planar Inverted-F Antenna (PIFA) Antenna Gain: -0.21 dBi Maximum Transmitter Conducted Power (Measured): 3.56 dBm, 2.27 mW Maximum Transmitter RF Output Power (Rated): 4 dBm, 2.512 mW Maximum System EIRP: 3.79dBm, 2.293 mW Justification for Exclusion: The VSN400 is a personal emergency response device which includes a Bluetooth Low Energy (BLE) transceiver, which operates from 2402 MHz to 2480 MHz. The unit is usually hand-held or body-worn and communicates with a smart phone application. Based on the device’s typical mode of operation, the justification for SAR test exclusion is provided below: Minimum Distance: 5 mm Highest Operating Frequency: 2480 MHz Maximum System Rated Power: 4 dBm Per KDB 447498 D01 General RF Exposure Guidance v05r01, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR = (2.512 / 5)*( √2.48) = 0.5024 * 1.575 = 0.8 Based on the results above, the unit meets both body and extremities SAR exclusion requirements. ACS Project: 13-2155 Advanced Compliance Solutions Page 2

Test Report

Certification Test Report FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 13-2155.W06.1A Manufacturer: VSN Technologies, Inc. Model(s): VSN400 Test Begin Date: December 12, 2013 Test End Date: January 17, 2014 Report Issue Date: January 22, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Thierry Jean-Charles Kirby Munroe EMC Engineer Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 28 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Manufacturer Information .............................................................................................................. 3 1.3 Product Description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM .............................. 9 7 SUMMARY OF TESTS ................................................................................. 10 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................10 7.2 6 dB Bandwidth - FCC: Section 15.247(a)(2) 99% Bandwidth IC: RSS-210 A8.2(a) ................10 7.3 Peak Output Power - FCC Section 15.247(b)(3) IC: RSS-210 A8.4(4) .......................................14 7.4 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) IC: RSS-210 A8.5 ................16 7.5 Power Spectral Density - FCC Section 15.247(e) IC: RSS-210 A8.2(b) ......................................26 8 CONCLUSION .............................................................................................. 28 Models: VSN400 FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Manufacturer Information VSN Technologies Inc. 1975 E. Sunrise Blvd., Suite 762 Ft. Lauderdale, FL 33304 1.3 Product Description The VSN400 is a Bluetooth low energy radio transceiver housed in a small two-piece plastic enclosure. The unit is powered by a single CR2032 coin cell battery. The device includes two-colored LEDs, a buzzer, an accelerometer and a button. The VSN400 works with a customized application installed on a Smart Phone. Technical Details Mode of Operation: Bluetooth Low Energy (BLE) Frequency Range: 2402 MHz - 2480 MHz Number of Channels: 40 Channel Separation: 2 MHz Transmit Data Rates: 1 Mbps Modulations: GFSK Antenna Type/Gain: PIFA, -0.21 dBi Input Power: 3VDC (Battery) Model Number: VSN400 Test Sample Serial Number(s): 1346000219 (Radiated), 1351000478 (RF Conducted) Test Sample Condition: The samples were in good conditions with no observable physical damages. 1.4 Test Methodology and Considerations The VSN400 was evaluated for radiated and RF conducted emissions. Preliminary radiated emissions measurements were performed on the EUT in three orthogonal orientations. Final measurements were performed with the EUT set in the vertical position which was the orientation leading to the highest emissions. The RF conducted measurements were performed on a sample configured with a temporary SMA connector. The unit was also evaluated for compliance for unintentional emissions. The results are documented separately in a verification report. ACS Report: 13-2155.W06.1A Advanced Compliance Solutions Page 3 of 28 Models: VSN400 FCC ID: 2AA9WVSN400 IC: 11665A-VSN400 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National Accreditation Board under their ACLASS program and has been issued certificate number AT-1533 in recognition of this accreditation. Unless otherwise specified, all test methods described within this report are covered under the ISO/IEC 17025 scope of accredita…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Amit Verma(Director of Test Engineering)

[email protected]9546094912Fax: 9543068450

Test Firm

Advanced Compliance Solutions, Inc.Sam Wismer

[email protected]561-961-5585

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	2.30 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.
