2AAHD-2PT4G-24Music Control LED Remote

Turn Off Turn OnAutoTiming Off Mode Lamp list Status of device connection scroll the selection mode Adjust seed Recycle mode Music list Adjust luminance Previous song, pause/play Next song Status of device connection Adjust the colorClick to shift the interface Click to show the lamp list switch the color wheel Display the RGB value click to manual adjustment view Click to display setting view Lamp switch button Music rhythm through cell phone microphone Music rhythm through the microphone on the product Switch phone microphone and external microphone Set the time of Light-On Enable or disable the light-On function 1. Download local music on android phone: 2. Download local music on iPhone Repeat setting No selection for once light·0nEnable or disable the Light-0ff function Click to save the new assignment Change the real color of this line Repeat setting No selection for once Light-Off Set the time of Light-Off Switch phone microphone and external microphone Change the sensitivity of MIC to match the sound 4-style rhythm Click square icon to adjust the color Brightness AdjustmentDynamic Mode Before using the remote control pull out the bottom plastic piece 5. Schedule: Select the date and time to turn on / off the timing light. The light will turn on / off for the time you set. APРnameis" duoCo Strip ". Please search for and install the APP in the QR code. Functions are listed as follows: (1) Click to show the lamp list, view lamp list: (3) Switch to the mode interface: (5) Switch to the microphone rhythm interface: (6) Switch to the schedule: (1) Android phone use music players to download songs or copy songs from computers to mobile phones. (1) Install iTunes software on your computer (Apple or Windows).(2) Log in to iTunes with the same Apple ID account on the iPhone.(3) Use iTunes to import downloaded music files on your computer.(4) The imported music files will be synchronized to the iPhone in real time.(5) Restart and switch to music Rhythm Interface to see the newly imported music files. (2) Restart duoCol Strip and switch to music Rhythm Interface to see the newly imported music files . Local music: (7) Switch to the modify pin sequence interface: (4) Switch to the music rhythm: (2) Switch to color and brightness interface: 4. Mic: Built-in high-sensitivity microphone, when you speak face to the mobile, the light strip will feel the size of your voice and the speed of speaking, and change the color and speed.3. Music: The LED lights can change the color and speed of the light according to the rhythm of the music.1. Adjust: Adjust the brightness and color temperature of 16 million kinds of colors for monochrome LED strip.2. Style: Multiple modes to choose from, includingstroboscopic, static, gradient, transition ... a total of 200+ RGB diversified lighting modes, you can choose the appropriate mode according to the specific scene. Music Activation Mode Increase / Decrease Speed 9 RGB Colors Éteindre AllumerAutoMode d'arrêt temporisé DISPONIBLE SUR Télécharger dans le État de la connexion du périphérique Liste des lampes Défilez le mode de sélection Réglez la vitesse Mode recyclageListe de musique Ajustez la luminosité Chanson précédent, pause/lecture Chanson suivante État de la connexion du périphérique Ajustez la couleurCliquez pour changer d'interface Cliquez pour afficher la liste des lumières changer la roue des couleurs Affichez la valeur RGB, cliquez sur la vue de réglage manuel Cliquez pour afficher leréglage de vision Bouton de conversion de lumière Les rythmes musicaux sont transmis par le microphone du téléphone portable Les rythmes musicaux sont transmis par le microphone du produit Conversez entre le microphone du téléphone et le microphone externe Réglez l'heure d’allumage Activez ou désactivez la fonction d'allumage 1.Téléchargez de la musique locale sur un téléphone Android2.Téléchargez de la musique locale sur un iPhone Réglage répété, Pas de sélection pour l’allumage en une foisActivez ou désactivez la fonction d'extinction Cliquez pour enregistrer la nouvelle tâche Changez la couleur réelle de cette ligne Réglage répété Pas de sélection pour l’extinction en une fois Réglez le temps d’extinction Conversez entre le microphone du téléphone et le microphone externe Modifiez la sensibilité du micro pour l'adapter au son 4 styles de rythme Cliquez sur l'icône carrée pour ajuster la couleur Réglage de la luminositéMode dynamique Avant d'utiliser la télécommande, retirez la pièce en plastique du bas 5. Horaire : Sélectionnez la date et l'heure pour allumer/éteindre la lampe temporisé. Les lampes s'allument et s'éteignent selon la durée que vous avez définie. Le nom de l’APP est « duoCo Strip ». Veuillez rechercher et installer l’APP selon le code QR. Les fonctions sont répertoriées comme suit : (1) Cliquez pour afficher la liste des lampes, voir la liste des lampes (3) Passez à l'interface du mode : (5) Passez à l'interface de rythme de microphone : (6) Passez à la programmation : (1) Les téléphones Android utilisent des lecteurs de musique pour télécharger des chansons ou copier des chansons des ordinateurs vers les téléphones mobiles. (1) Installez le logiciel iTunes sur votre ordinateur (Apple ou Windows).(2) Connectez-vous à iTunes avec le même compte Apple ID que celui de l'iPhone.(3) Utilisez iTunes pour importer les fichiers musicaux téléchargés sur votre ordinateur.(4) Les fichiers musicaux importés seront synchronisés en temps réel sur l'iPhone.(5) Redémarrez et passez à l'interface de rythme musicale pour voir les nouveaux fichiers musicaux importés. (2) Redémarrez « duoCol Strip » et passez à l'interface de rythme musicale pour voir les nouveaux fichiers musicaux importés. Musique locale : (7) Passez à l'interface de modification de la séquence des fiches : (4) Sassez au rythme de la musique : (2) Passez à l'interface de couleur et de luminosité : 4. Micro : Le microphone intégré à haute sensibilité, lorsque vous parlez face au mobile, la bande lumineuse …

Text truncated - open the document above for the full version.

Whalen LLC dba Whalen Furniture Manufacturing 2023-02-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AAHD-2PT4G-24) The applicant: Whalen LLC dba Whalen Furniture Manufacturing certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Print name: Dwayne Myers Title: Director - Quality Engineering Signature: Whalen LLC dba Whalen Furniture Manufacturing 2023-02-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AAHD-2PT4G-24) The applicant: Whalen LLC dba Whalen Furniture Manufacturing certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Print name: Dwayne Myers Title: Director - Quality Engineering Signature:

Attestation Statements -US agent 2023-02-08 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2AAHD-2PT4G-24) Whalen LLC dba Whalen Furniture Manufacturing, the undersigned, hereby authorize Whalen LLC dba Whalen Furniture Manufacturing to act as our designated U.S. agent for service of process, Whalen LLC dba Whalen Furniture Manufacturing accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Whalen LLC dba Whalen Furniture Manufacturing accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Whalen LLC dba Whalen Furniture Manufacturing Contact Name: Dwayne Myers Address: 1578 Air Wing Road, San Diego, CA 92154 Telephone No: 86- 18665131211 Email: [email protected] U.S. Agent Information: Company Name: Whalen LLC dba Whalen Furniture Manufacturing Address: 1578 Air Wing Road, San Diego, CA 92154 Contact Name: Dwayne Myers Telephone No: 18665131211 Email: [email protected] Print name: Dwayne Myers Title: Director - Quality Engineering Signature:

Whalen LLC dba Whalen Furniture Manufacturing Long Term Confidentiality Request Letter Date: 2023-02-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Music Control LED Remote MODEL: 2PT4G-24 FCC ID: 2AAHD-2PT4G-24 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (block diagram/schematics/PCB /operational description ) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Print name: Dwayne Myers Title: Director - Quality Engineering Signature:

Whalen LLC dba Whalen Furniture Manufacturing Agent Authorization Letter 2023-02-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (The Hong Kong Standards and Testing Centre Limited) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature:

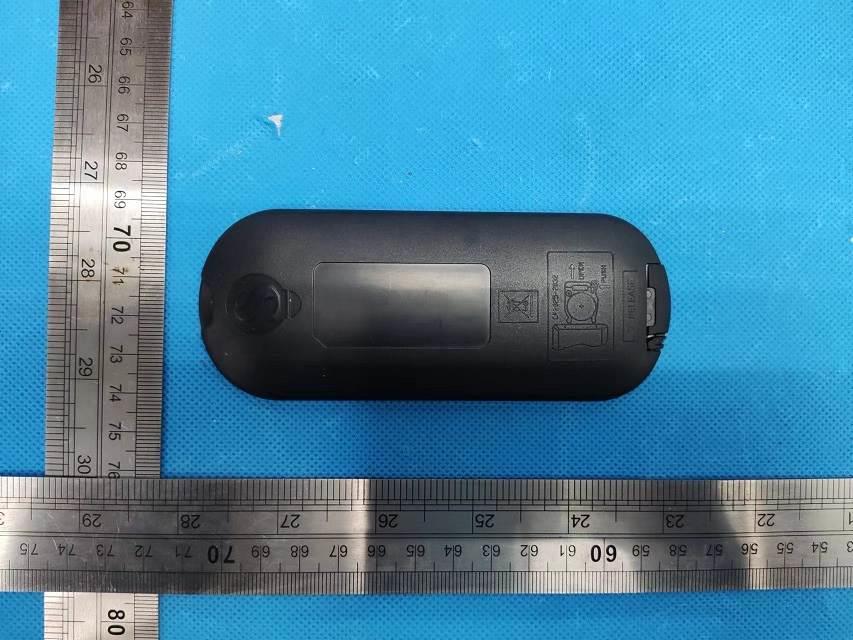

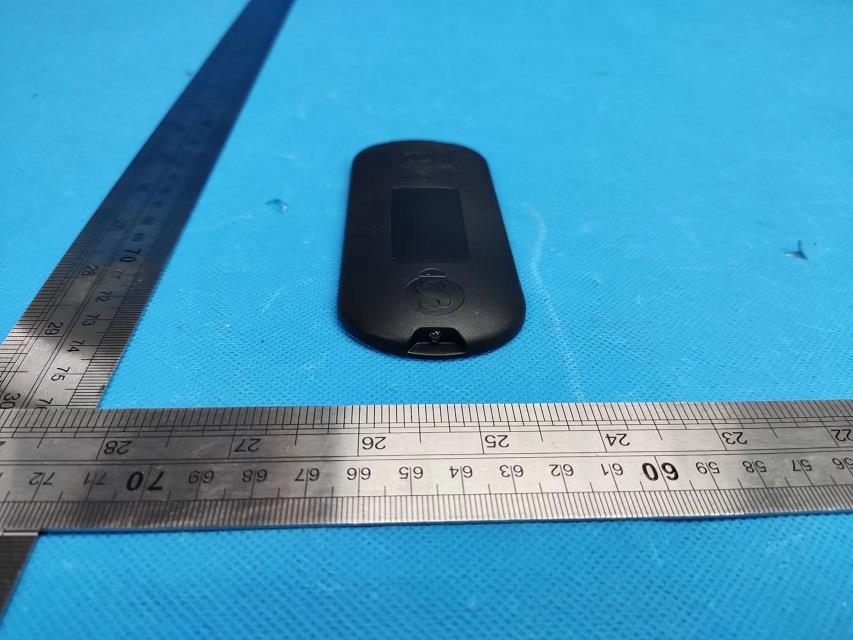

1 External Photo FCC ID: 2AAHD-2PT4G-24 View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product View of The Product 4 View of The Product battery

1 Internal Photo FCC ID: 2AAHD-2PT4G-24 Inner View of the EUT Inner View of the EUT 2 Inner View of the EUT View of the BT

RF Exposure Test Requirement: FCC 47CFR 15.247(i) FCC ID: 2AAHD-2PT4G-24 Test Date: 2023-02-03 Mode of Operation: BT Tx mode The Maximum ERP = 0.973 mW (at frequency = 2.402GHz) < 1mW Result: distance. sources with available maximum time-averaged power of no more than 1mW, regardless of separation The 1 mW Blanket Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF B.2 Blanket 1 mW Blanket Exemption According to KDB447498 D04 General RF Exposure Guidance v01, Appendix B Commission upon request. discussed below. Technical information showing the basis for this statement must be submitted to the compliance with the limits unless the facility, operation, or transmitter is categorically excluded, as equipment authorizations or modifications in existing facilities must contain a statement confirming Applications to the Commission for construction permits, licenses to transmit or renewals thereof, radio frequency energy levels in excess of the limits in §§ 1.1310 and 2.1093 of this chapter. In 15.247(i), an equipment shall be operated in a manner that ensures that the public is not exposed to Requirements:

describeAntenna 1.Antennadescribe: Antenna plate Remote control antenna Make name/model name YK-2.4G Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct 2.External view drawing: Picture of antenna INDUSTRLES.CO.,LTD DONGHUANSHI XINHONG NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA Manufacturer address: Manufacturer name: 3.Antenna Radiation Pattern Radiation [email protected] Total Average Gain:-0.475dbi 0 45 90 135 180 235 270 315 Phi Gain -0.1-0.3-0.8-0.5-0.2-0.6-0.8-0.5 Radiation [email protected] Total Average Gain:-0.275dbi 0 45 90 135 180 235 270 315 Phi Gain 0 -0.1-0.3-0.6-0.1-0.2-0.6-0.4 Radiation [email protected] Total Average Gain:-0.237dbi 0 45 90 135 180 235 270 315 Phi Gain 0 -0.1-0.2-0.50 -0.3-0.6-0.2

Test Report Date : 2023-02-03 Page 1 of 37 No. : HMD22120003 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : Whalen LLC dba Whalen Furniture Manufacturing 1578 Air Wing Road, San Diego, CA 92154 Supplier / Manufacturer : DONG GUAN CITY HUGE SUN LIGHTING CO., LTD Room 201, No. 15, Lane 2, Dacaofang, Dongcheng Street, Dongguan City, Guangdong Province Description of Sample(s) : Submitted sample(s) said to be Product: Music Control LED Remote Brand Name: N/A Model No.: 2PT4G-24 FCC ID: 2AAHD-2PT4G-24 Date Samples Received : 2022-11-30 Date Tested : 2022-11-30 to 2023-01-05 Investigation Requested : Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth DTS (GFSK) _______________________________ Dr.CHAN Kwok Hung, Brian Authorized Signatory Test Report Date : 2023-02-03 Page 2 of 37 No. : HMD22120003 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 37 Content Page 2 of 37 1.0 General Details 1.1 Test Laboratory Page 3 of 37 1.2 Equipment Under Test [EUT] Page 3 of 37 Description of EUT operation 1.3 Date of Order Page 3 of 37 1.4 Submitted Sample(s) Page 3 of 37 1.5 Test Duration Page 3 of 37 1.6 Country of Origin Page 3 of 37 1.7 RF Module Details Page 4 of 37 1.8 Antenna Details Page 4 of 37 1.9 Channel List Page 4 of 37 2.0 Technical Details 2.1 Investigations Requested Page 5 of 37 2.2 Test Standards and Results Summary Page 6 of 37 3.0 Test Results 3.1 Emission Page 7-32 of 37 Appendix A List of Measurement Equipment Page 33 of 37 Appendix B Photograph(s) of Product Page 34-37 of 37 Test Report Date : 2023-02-03 Page 3 of 37 No. : HMD22120003 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Music Control LED Remote Manufacturer: DONG GUAN CITY HUGE SUN LIGHTING CO., LTD Room 201, No. 15, Lane 2, Dacaofang, Dongcheng Street, Dongguan City, Guangdong Province Brand Name: N/A Model Number: 2PT4G-24 . Rating: 3Vd.c. (CR2025*1 battery) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Music Control LED Remote. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was digital transmission Modulation. 1.3 Date of Order 2022-11-24 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2022-11-30 to 2023-01-05 1.6 Country of Origin China Test Report Date : 2023-02-03 Page 4 of 37 No. : HMD22120003 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: N/A Module FCC ID: N/A Module Transmission Type: Bluetooth 4.2 BLE Modulation: GFSK Data Rates: 1Mbps Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: 0dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2442 1 2404 21 2444 2 2406 22 2446 3 2408 23 2448 4 2410 24 2450 5 2412 25 2452 6 2414 26 2454 7 2416 27 2456 8 2418 28 2458 9 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Test Report Date : 2023-02-03 Page 5 of 37 No. : HMD22120003 The Hong Kong Standards and Testing Centre …
