2AAHD-GN7214B18-1LED Lighting Set

Low Voltage Lighting Systems User Guide Please read this user guide before installing and using your Low Voltage Lighting Systems 1．THE COMPONENTS LIST 1> LED controller ----1pcs; 2> RF control---1pcs; 3> LED lighting ---2pcs; 4> LED strip---1pcs； 2．INSTALLATION 1>Slotted hole: according to the following dimensions; 2>Fix the light in the slotted hole; 3>Screw the LED controller on furniture,The controller can’t be installed in closed metal parts; 4>Connect the lights to the controller; 5>Connect the controller to the 5Vdc power supply; 6>Operate the Remote control to control the light bar(pull out the battery insulation before use); 3．SPECIFICATIONS ⚫ Input :5Vdc, Min.2.1A ⚫ LED lighting: Input: DC 5V Power: Max. 10W 4．RF wireless Remote RGB LED Controller Instructions 5Vdc, 7.2Watts RGB LED strip USB connector: connect the 5Vdc, min.2.1A power Pull out the battery insulation 5Vdc, 1.2Watts RGB LED strip 5Vdc, 1.2Watts RGB LED strip USB Connector: Connect the lights to the controller Units:mm Battery replacement method Turn Off Turn On Auto Timer Lamp listStatus of device connection Status of device connection Adjust the color Click to shift the interface Click to show the lamp list switch the color wheel Display the RGB value click to manual adjustment view Click to display setting view Lamp switch button Click square icon to adjust the color Brightness Adjustment Dynamic Mode Before using the remote control pull out the bottom plastic piece APР name is "duoCo Strip". Please search for and install the APP in the QR code. Functions are listed as follows: (1) Click to show the lamp list, view lamp list: (2)Switch to color and brightness interface: Music Activation Mode Increase / Decrease Speed 9 RGB Colors 1. Adjust the brightness and color temperature of 16 million kinds of colors for monochrome LED strip. 2. Six color sequence modes to choose from: Static, Strobe Flash, Gradual Change, Cross-Fade, and Jump Change, each with multiple color modes. 3. In music sync mode, the LED lights can change color and speed to sync according to the rhythm of the music. 4. In External Microphone mode: the Built-in high-sensitivity microphone can adjust the speed and color of the lighting to match the sounds around you. 5. Schedule: Select the date and time to turn on / off the timing light. The light will turn on / off for the time you set. Remote control pairing instruction: 2. The LED lights stop flashing, indicating that the remote control has been successfully paired with the light fixture. 3. This light fixture will not be controlled by another remote control until you perform the above pairing operation again. 1. Connect the light fixture to a USB port. Press and hold the “ON" button on the remote control within 5 seconds after the LED lights are powered on. The LED lights flash, indicating it is in searching and pairing mode. Scroll the selection mode Adjust speed Recycle mode Music list Adjust luminance Previous song Pause / play Next song Music rhythm through cell phone microphone Music rhythm through the microphone on the product Set the time of Light-On Enable or disable the light-On function Repeat setting No selection for once light·0n Enable or disable the Light-0ff function Click to save the new assignment Change the real color of this line Repeat setting No selection for once Light-Off Set the time of Light-Off External Microphone Mode Phone Microphone Mode Change the sensitivity of MIC to match the sound 4-style rhythm (3) Switch to the mode interface: (5) Switch to the microphone rhythm interface:(6) Switch to the schedule: (7) Switch to the modify pin sequence interface: (4) Switch to the music rhythm: 1. Download local music on android phone: 2. Download local music on iPhone (1) Android phone use music players to download songs or copy songs from computers to mobile phones. (1) Install iTunes software on your computer (Apple or Windows). (2) Log in to iTunes with the same Apple ID account on the iPhone. (3) Use iTunes to import downloaded music files on your computer. (4) The imported music files will be synchronized to the iPhone in real time. (5) Restart and switch to music Rhythm Interface to see the newly imported music files. (2) Restart duoCol Strip and switch to music Rhythm Interface to see the newly imported music files. Local music: FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the followi ng two conditions: (1) this device may not cause harmful interference, and (2) thisdevi ce must accept any interference received, including interference that may cause undesir ed operation. Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operatethis device. NOTE: This equipment hasbeen tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmfulinterference in a residentialinstallation. This equipment generates, usesandcan radiate radiofrequencyenergyand, if not installed and used in accordancewith the instructions, may causeharmfulinterference to radio communications.However, there is noguaranteethat interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turningthe equipment off and on, theuser is encouraged to try to correct the interference byone or more of thefollowingmeasures: -- Reorient or relocate the receiving antenna. --Increasethe separationbetween the equipment and receiver. --Connect the equipment into an outlet on a circuitdifferent from that to whichthe receiver isconnected. --Consultthedealer or an experienced radio/TV technicianforhelp. RF Exposurestatement: The device has been evaluated to meetgeneral RFexposure requirement IC statement: This device complies with Industry Canada Licence-exempt RSSs. Operation is subject to the follow…

Text truncated - open the document above for the full version.

Whalen LLC dba Whalen Furniture Manufacturing 2024-04-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AAHD-GN7214B18-1) The applicant: Whalen LLC dba Whalen Furniture Manufacturing certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature: Whalen LLC dba Whalen Furniture Manufacturing 2024-04-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AAHD-GN7214B18- 1) The applicant: Whalen LLC dba Whalen Furniture Manufacturing certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature:

Attestation Statements -US agent 2024-04-07 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AAHD-GN7214B18-1) Whalen LLC dba Whalen Furniture Manufacturing, the undersigned, hereby authorize Whalen LLC dba Whalen Furniture Manufacturing to act as our designated U.S. agent for service of process, Whalen LLC dba Whalen Furniture Manufacturing accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Whalen LLC dba Whalen Furniture Manufacturing accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Whalen LLC dba Whalen Furniture Manufacturing Address: 1578 Air Wing Road, San Diego, CA 92154 FRN: 0022769426 Contact Name: Dwayne Myers Telephone No: 86- 18665131211 Email: [email protected] Print name: Dwayne Myers Title: Director - Quality Engineering Signature: U.S. Agent Information: Company name: Whalen LLC dba Whalen Furniture Manufacturing Address: 1578 Air Wing Road, San Diego, CA 92154 FRN: 0022769426 Contact Name: Dwayne Myers Telephone No: 86- 18665131211 Email: [email protected] Print name: Dwayne Myers Title: Director - Quality Engineering Signature:

Whalen LLC dba Whalen Furniture Manufacturing Agent Authorization Letter 2024-04-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (The Hong Kong Standards and Testing Centre Limited) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature:

Whalen LLC dba Whalen Furniture Manufacturing Long Term Confidentiality Request Letter Date: 2024-04-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: LED Lighting Set MODEL: GN7214B-18 FCC ID: 2AAHD-GN7214B18-1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (block diagram/schematics/PCB /operational description ) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature:

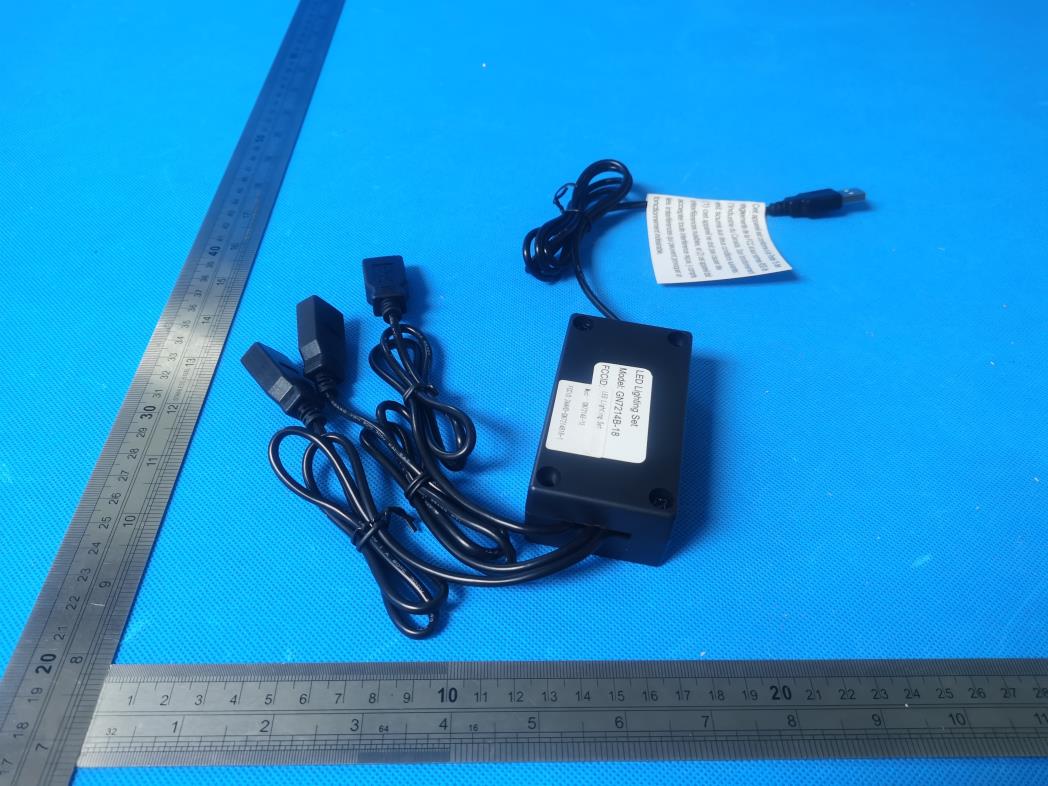

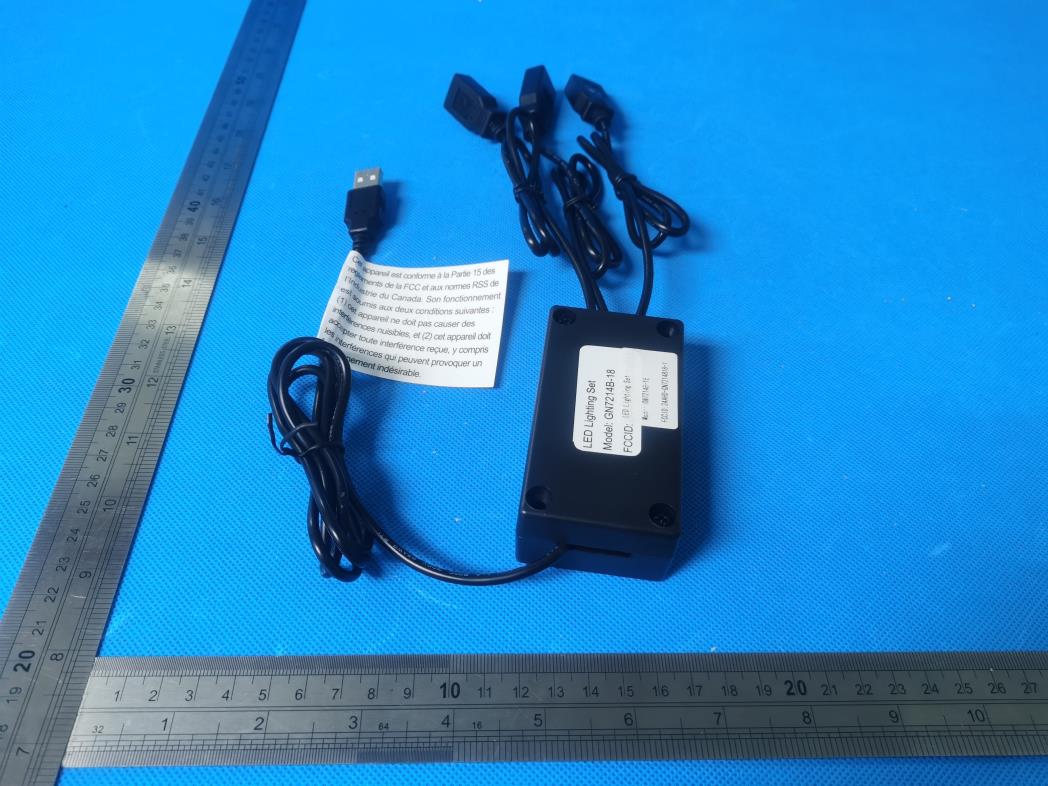

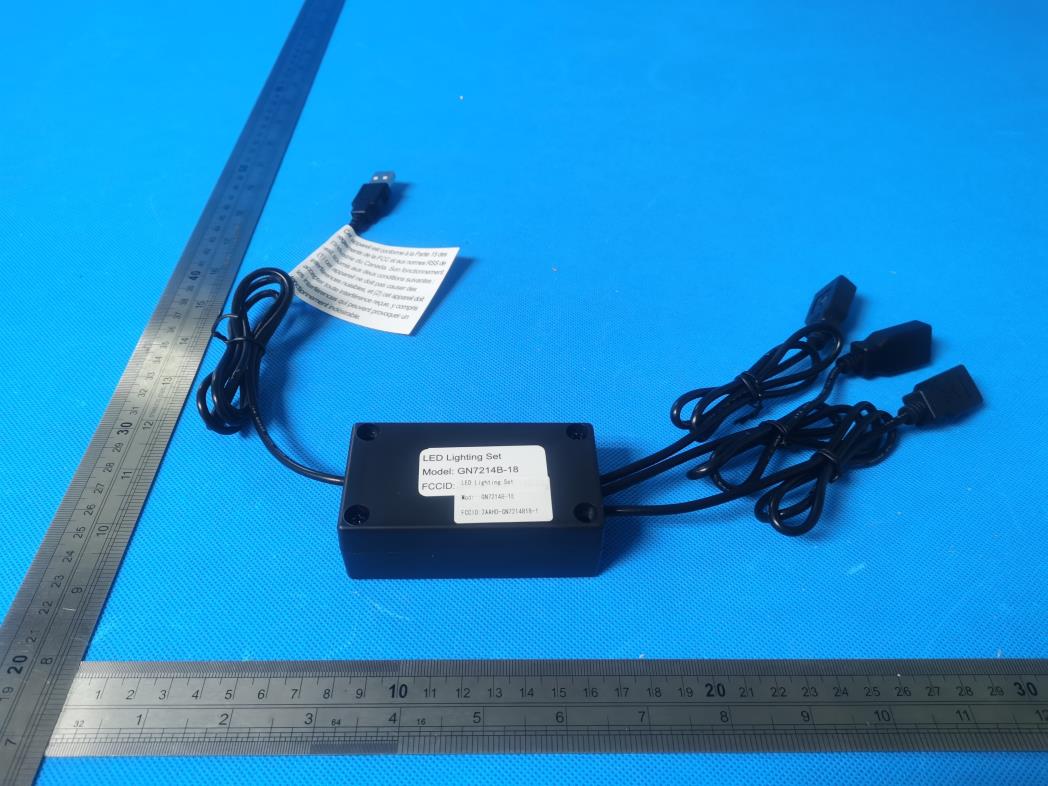

1 External Photo FCC ID: 2AAHD-GN7214B18-1 IC: 22626-GN7214B18 View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product

1 Internal Photo FCC ID: 2AAHD-GN7214B18-1 IC: 22626-GN7214B18 Inner View of the EUT Inner View of the EUT 2 Inner View of the EUT BT antenna

RF Exposure FCC ID: 2AAHD-GN7214B18-1 Test Requirement: FCC 47CFR 15.247(i) Test Date: 2024-03-25 Mode of Operation: Tx mode Requirements: In 15.247(i), an equipment shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the limits in §§ 1.1307. Applications to the Commission for construction permits, licenses to transmit or renewals thereof, equipment authorizations or modifications in existing facilities must contain a statement confirming compliance with the limits unless the facility, operation, or transmitter is categorically excluded, as discussed below. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB447498 D04 General RF Exposure Guidance v01, Appendix B B.2 Blanket 1 mW Blanket Exemption The 1 mW Blanket Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1mW, regardless of separation distance. Test Result of RFID mode: PASS The Maximum ERP = 0.780W (at frequency = 2402.0MHz) < 1mW

Antenna describe 1. Antenna describe: Antenna plate PCB ANTENNA Make name/model name PDT-002 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern

Test Report Date : 2024-04-12 Page 1 of 39 No. : HMD24030035 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : Whalen LLC dba Whalen Furniture Manufacturing 1578 Air Wing Road, San Diego, CA 92154 Supplier / Manufacturer : Dong guan City Huge Sun Lighting Co., LTD Room 301, Building 1, No. 6, Sanyyuan Yin yang Road, Dongcheng Street, Dongguan City, Guangdong Province Description of Sample(s) : Submitted sample(s) said to be Product: LED Lighting Set Brand Name: N/A Model No.: GN7214B-18 FCC ID: 2AAHD-GN7214B18-1 Date Samples Received : 2024-03-13 Date Tested : 2024-03-13 to 2024-03-25 Investigation Requested : Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth DTS (GFSK) Test by Susu _______________________________ Dr.CHAN Kwok Hung, Brian Authorized Signatory Test Report Date : 2024-04-12 Page 2 of 39 No. : HMD24030035 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 39 Content Page 2 of 39 1.0 General Details 1.1 Test Laboratory Page 3 of 39 1.2 Equipment Under Test [EUT] Page 3 of 39 Description of EUT operation 1.3 Date of Order Page 3 of 39 1.4 Submitted Sample(s) Page 3 of 39 1.5 Test Duration Page 3 of 39 1.6 Country of Origin Page 3 of 39 1.7 RF Module Details Page 4 of 39 1.8 Antenna Details Page 4 of 39 1.9 Channel List Page 4 of 39 2.0 Technical Details 2.1 Investigations Requested Page 5 of 39 2.2 Test Standards and Results Summary Page 6 of 39 3.0 Test Results 3.1 Emission Page 7-35 of 39 Appendix A List of Measurement Equipment Page 36 of 39 Appendix B Photograph(s) of Product Page 37-39 of 39 Test Report Date : 2024-04-12 Page 3 of 39 No. : HMD24030035 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: LED Lighting Set Manufacturer: Dong guan City Huge Sun Lighting Co., LTD Room 301, Building 1, No. 6, Sanyyuan Yin yang Road, Dongcheng Street, Dongguan City, Guangdong Province Brand Name: N/A Model Number: GN7214B-18 . Rating: 5.0Vd.c. by USB port 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a LED Lighting Set. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was digital transmission Modulation. 1.3 Date of Order 2024-03-13 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2024-03-13 to 2024-03-25 1.6 Country of Origin China Test Report Date : 2024-04-12 Page 4 of 39 No. : HMD24030035 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: N/A Module FCC ID: N/A Module Transmission Type: Bluetooth V5.2BLE Modulation: GFSK Data Rates: 1Mbps Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: 0dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2442 1 2404 21 2444 2 2406 22 2446 3 2408 23 2448 4 2410 24 2450 5 2412 25 2452 6 2414 26 2454 7 2416 27 2456 8 2418 28 2458 9 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Test Report Date : 2024-04-12 Page 5 of 39 No. : HMD24030035 The Hong Kong …

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2AAHD-GN7214B18-1 IC: 22626-GN7214B18 Measurement of Radiated Emission Test Set Up (9kHz – 30MHz) Measurement of Radiated Emission Test Set Up (30MHz to 1000MHz) 2 Measurement of Radiated Emission Test Set Up (Above 1000MHz) Measurement of Conducted Emission Test Set Up
