2AAHD-SF127B-33AI33in Electric Fireplace

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. USE AND CARE GUIDE COMBINATION ELECTRIC FIREPLACE/HEATER Covered by one or more of the following US Patents: 10,451,235 / 10,371,333 / 10,520,149 / 10,731,810. Additional US and International Patents Pending. Model # SF127B-33AI IMPORTANT NOTE: An excellent feature of the fireplace/heater unit is the free Bluetooth TM enabled remote app. Refer to the separated installation instructions and install the Whalen fireplace Bluetooth TM remote app on your mobile device, so that you can change the settings of the fireplace/heater conveniently. Please read all the information in this operating manual, including all safety, operating, and maintenance information. To avoid the potential risk of fire, electric shock, or injury to persons, users should follow the directions and warnings in this manual. Your Electric Fireplace / Heater is fully assembled from the factory. There are no installation steps required to make the fireplace / heater work. Quantum Flame and the Quantum Flame logo are registered trademarks of Living Style (B.V.I.) Limited. All rights reserved. HEATER DEFAULT SETTING: The default factory setting for your thermostat is 72 degrees. If your room temperature is already 72 degrees or above, then your heater will shut OFF after about 3 minutes. See thermostat directions for how to adjust the temperature settings in order to keep your heater ON until your desired room temperature is reached. LOT NUMBER: DATE PURCHASED: / / 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 0.9 meters (3 feet) from the front of the heater and keep them away from the sides and rear. 3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. 4. Always unplug heater when not in use. 5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair. 6. Do not use outdoors. 7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container. 8. Do not run power cord under carpeting. Do not cover power cord with throw rugs, runners, or the like. Do not route cord under furniture or appliances. Arrange power cord away from traffic area and where it will not be tripped over. 9. To disconnect heater, turn controls to off, then remove plug from outlet. 10. Connect to properly grounded outlets only. 11. Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause an electric shock or fire, or damage the heater. 12. To prevent a possible fire, do not block firebox air intakes or exhaust in any manner. Do not operate firebox on soft surfaces, like a bed, where openings may become blocked. 13. A heater has hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored. 14. There is a thermostat limiter inside the heater. When the inner temperature over heating or occur abnormal heating, the thermostat protective device would cut off power supply to avoid the fireplace damaged or risk of fire. 15. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons. 16. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No.14 AWG minimum size and rated not less than 1875 watts. While the heater is in use, the top center of the fireplace can get hot to the touch, and may cause serious injury or burns. Always supervise small children around the fireplace/heater. Do not place any cloth or decorations over the heater outlet of the fireplace, or otherwise obstruct the heater outlet of the fireplace, as this may cause a fire and serious injury may result. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS There are no user serviceable parts inside the fireplace/heater. If the unit appears to malfunction, turn the unit off and unplug the unit from the wall immediately, then contact our Customer Service for assistance, or refer service to qualified service personnel. CAUTION HOT Need Assistance? Visit us at: samsclub.com/membersmarkhelp 3 This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This heater is for use on 120 volts circuit and has a grounded plug that looks like the one illustrated on Figure 1. See Figure 1 for grounding instruction. An adapter as shown at C is available from your local electronics store or online supplier for connecting three-blade grounding type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available. GROUNDING INSTRUCT…

Text truncated - open the document above for the full version.

Whalen LLC dba Whalen Furniture Manufacturing Agent Authorization Letter 2021-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (The Hong Kong Standards and Testing Centre Limited) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name：Dwayne Myers Title: Director - Quality Engineering Signature:

Whalen LLC dba Whalen Furniture Manufacturing Long Term Confidentiality Request Letter Date: 2021-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (EUT NAME: 33’’ Electric Fireplace / MODEL: SF127B-33AI / FCC ID: 2AAHD-SF127B-33AI ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (block diagram/schematics/PCB/BOM/operational description ) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Print name: Dwayne Myers Title: Director - Quality Engineering Signature:

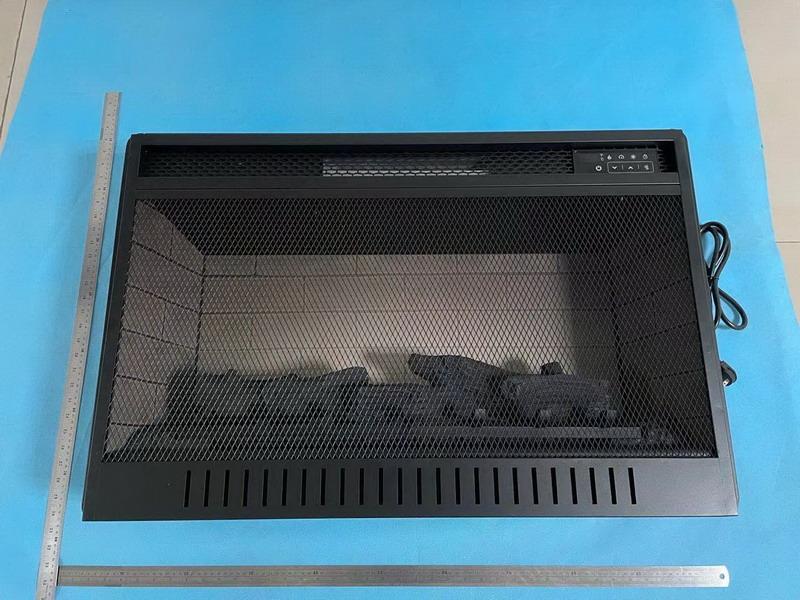

1 External Photo FCC ID: 2AAHD-SF127B-33AI View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product View of The Product 4 View of The Product View of The Product

WL 135*155 (R6) 25 SF127B-33AI FCC ID: 2AAHD-SF127B-33AI QDID: 86829 0056-C Whalen Furniture Manufacturing 1578 Air Wing Road San Diego, CA 92154, USA 1-866-942-5362

Date code / Code de date : / Código de fecha: 20210416 Serial No.: / N o de série : / Num. de Serie: Room Heaters Appareils de chauffage Calentones de habitación Made in Vietnam Fabriqué au Vietnam Fabricado en Vietnam 255895 RATED POWER FCC ID: 2AAHD-SF127B-33AI QDID: 86829 PUISSANCE NOMINALE POTENCIA NOMINAL 1500 W ELECTRIC FIREPLACE FOYER ÉLECTRIQUE INSERTO PARA CHIMENEA MODEL / MODÈLE / MODELO VOLTAGE TENSION VOLTAJE 120 VAC FREQUENCE FRÉQUENCE FRECUENCIA 60 Hz SF127B-33AI 0060-A

1 Internal Photo FCC ID: 2AAHD-SF127B-33AI Inner View of the EUT Inner View of module Antenna 2 Inner Circuit Bottom View Inner Circuit Bottom View 3 Inner Circuit Top View Inner Circuit Bottom View 4 Inner Circuit Top View Inner Circuit Bottom View 5 Inner Circuit Top View Inner Circuit Bottom View

RF Exposure HMD21040002 Test Requirement: FCC 47CFR 15.247(i) Test Date: 2021-04-20 Mode of Operation: Tx mode Test Method: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Test Results: The EUT complied with the requirement(s) of this section. EUT meets the requirements of these sections as proven through MPE calculation The MPE calculation for EUT @ 20cm Based on the highest Tolerance Power =0.36 mW Pd = PG/ 4pi*R 2 = (0.36 x 0.50)/12.566* (20) 2 = (0.180)/12.566x 400 = 0.000036mW/cm 2 where: *Pd = power density in mW/cm 2 * G = Antenna numeric gain (0.50); Log G = g/10 ( g = -3dBi ). *Tolerance Range(-0.5, 0.5)dB * P = Tolerance Power (0.36 mW). * R = Minimum allowable distance.(20 cm) *The power density Pd = 0.000101 mW/cm 2 is less than 1 mW/cm 2 (listed MPE limit) *The SAR evaluation is not needed ( this is a desk top device, R> 20 cm ) * The EUT( antenna ) must be 0.2 meters away from the General Population.

Test Report Date : 2021-04-23 Page 1 of 42 No. : HMD21040002 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : Whalen LLC dba Whalen Furniture Manufacturing 1578 Air Wing Road, San Diego, CA 92154 Supplier / Manufacturer : Sunshine Home Product Vietnam Company Limited Street No.1&6,Song May Industrial Zone, Ho Nai 3 Commune, Trang Bom District, Dong Nai Province, Vietnam Description of Sample(s) : Submitted sample(s) said to be Product: 33’’ Electric Fireplace Brand Name: N/A Model No.: SF127B-33AI FCC ID: 2AAHD-SF127B-33AI Date Samples Received : 2021-03-30 Date Tested : 2021-03-30 to 2021-04-22 Investigation Requested : Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth DTS (GFSK) _______________________________ Dr. LEE Kam Chuen, Authorized Signatory Test Report Date : 2021-04-23 Page 2 of 42 No. : HMD21040002 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 42 Content Page 2 of 42 1.0 General Details 1.1 Test Laboratory Page 3 of 42 1.2 Equipment Under Test [EUT] Page 3 of 42 Description of EUT operation 1.3 Date of Order Page 3 of 42 1.4 Submitted Sample(s) Page 3 of 42 1.5 Test Duration Page 3 of 42 1.6 Country of Origin Page 3 of 42 1.7 RF Module Details Page 4 of 42 1.8 Antenna Details Page 4 of 42 1.9 Channel List Page 4 of 42 2.0 Technical Details 2.1 Investigations Requested Page 5 of 42 2.2 Test Standards and Results Summary Page 6 of 42 3.0 Test Results 3.1 Emission Page 7-37 of 42 Appendix A List of Measurement Equipment Page 38 of 42 Appendix B Photograph(s) of Product Page 39-42 of 42 Test Report Date : 2021-04-23 Page 3 of 42 No. : HMD21040002 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: 33’’ Electric Fireplace Manufacturer: Sunshine Home Product Vietnam Company Limited Street No.1&6,Song May Industrial Zone, Ho Nai 3 Commune, Trang Bom District, Dong Nai Province, Vietnam Brand Name: N/A Model Number: SF127B-33AI . Rating: 120Va.c 60Hz 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a 33’’ Electric Fireplace. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was digital transmission Modulation. 1.3 Date of Order 2021-03-30 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2021-03-31 to 2021-04-22 1.6 Country of Origin Vietnam Test Report Date : 2021-04-23 Page 4 of 42 No. : HMD21040002 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: XLW-BLE003U Module FCC ID: N/A Module Transmission Type: Bluetooth 4.2 BLE Modulation: GFSK Data Rates: 1Mbps Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: -3.0dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2442 1 2404 21 2444 2 2406 22 2446 3 2408 23 2448 4 2410 24 2450 5 2412 25 2452 6 2414 26 2454 7 2416 27 2456 8 2418 28 2458 9 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Test Report Date : 2021-04-23 Page 5 of 42 No. : HMD210400…

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2AAHD-SF127B-33AI Measurement of Radiated Emission Test Set Up Measurement of Radiated Emission Test Set Up 2 Measurement of Radiated Emission Test Set Up Measurement of Conducted Emission Test Set Up
