Tracki pro 4G TRKM110-T The smart GPS heavy-duty tracker Product Safety Information (EN) Please read this safety information before you use the device. Following the warnings will help prevent injury to yourself or others and damage to your device. Additional safety warnings may be given for the operation of specific Apps on your device, you should also follow these instructions. Pictograms and Graphic Symbols ● Read the Safety Information section of this user guide before using this device. Failure to comply with safety warnings can result in serious injury. ● This device is not intended for use by children under the age of 3 years old. If you allow a child to use it, ensure the child is strictly supervised. This device contains small parts which are a choking hazard. ● For body-worn operation, maintain a separation of 5mm. ● Keep away from pacemakers and other personal medical devices. ● Switch off when instructed in hospitals and medical facilities. ● Switch off when instructed in aircrafts and airports. ● Do not take this device near explosive environments. ● Do not use while refuelling or near gas or flammable liquids. ● Do not dispose of this device or its battery in a fire. ● Avoid contact with magnetic media. ● Avoid Extreme Temperatures. ● Do not try to disassemble. ● This device will not communicate with emergency services. ● Only use approved accessories. ● This device may produce a bright or flashing light RF Exposure This device contains a radio transmitter and a receiver. When it is ON, it receives and transmits RF energy. Specific Absorption Rate (SAR) Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg. The highest SAR value for this device when tested at 0.5cm from the body complied with this limit. Regulatory Information The following safety approvals and notices apply in specific regions as noted. CE Maintenance 1. Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 2. EUT Operating temperature range: -10° C to 55° C. 3. The device complies with RF specifications when the device is used at 5mm from your body. 4. To prevent possible hearing damage. Do not listen at high volume levels for long periods. 5. The SAR limit of EU (CE) is 2.0 W/kg averaged over one gram of tissue. SAR(max) Body is 1.469 W/kg. Declaration of Conformity Trackimo INC. hereby declares that this GPS Tracker is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.In accordance with Article 10(2) and Article 10(10),This product is allowed to be used in all EU member states. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This GPS Tracker meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: GPS Tracker (FCC ID: 2AAI6-TRKM110-T) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for when properly worn on the body is 1.231W/kg. This device was tested for typical body-worn operations with the back of the handset kept 5mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 5mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 5mm…

Text truncated - open the document above for the full version.

Trackimo INC. Agent Authorization Company: Trackimo INC. Address: 680 Central Ave, Cedarhurst, New York 11516, USA Product Name: GPS Tracker Model Number(s): TRKM110-T Product Description: GPS Tracker FCC ID: 2AAI6-TRKM110-T We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.12.14 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

Trackimo INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.12.14 Subject; Request for Confidentiality FCC ID: 2AAI6-TRKM110-T To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure Part List SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiankuai Li Title: PM

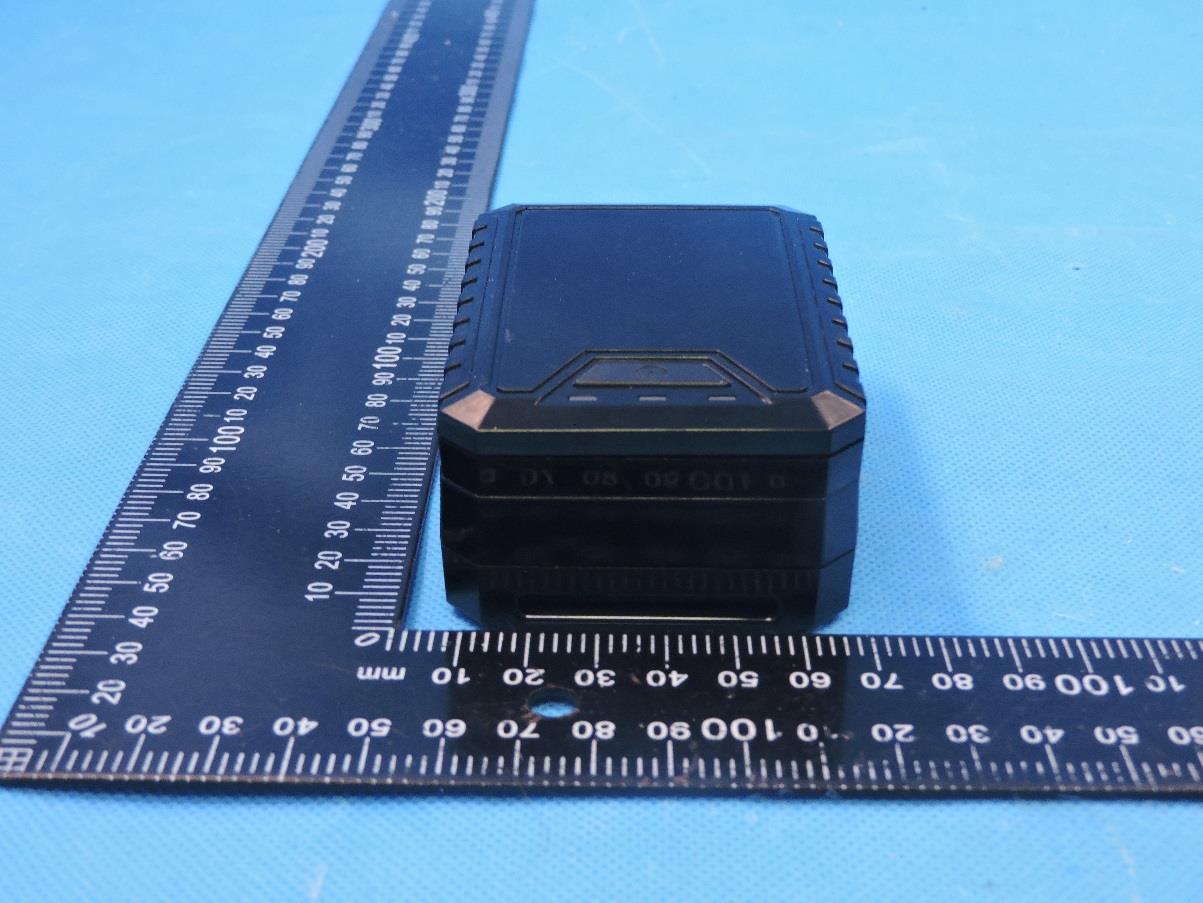

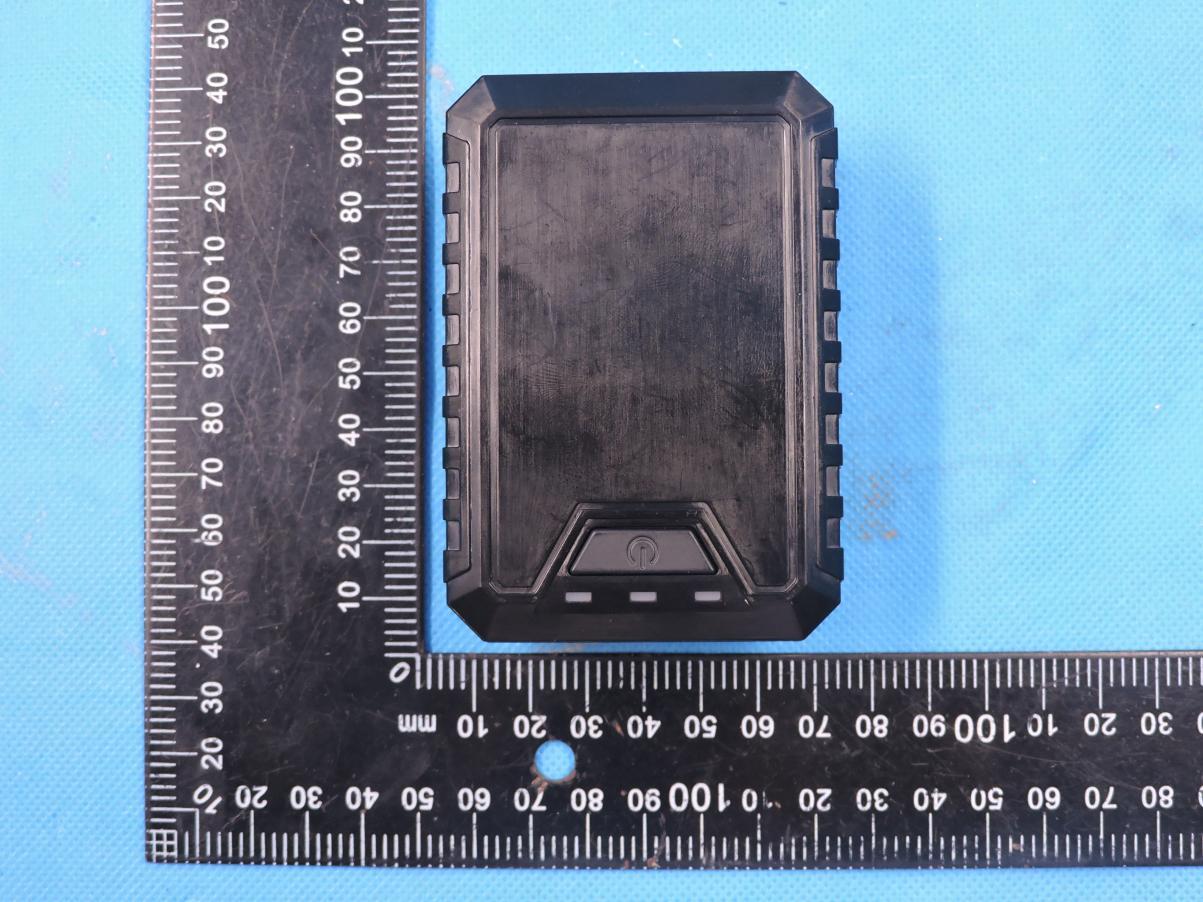

Page 1 of 4 Report No.: STS2208326 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 4 Report No.: STS2208326 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2208326 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2208326 Photo 7

FCC Label GPS Tracker Model name: TRKM110-T FCC ID: 2AAI6-TRKM110-T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 40mm 20mm

Page 1 of 7 Report No.: STS2208326 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 7 Report No.: STS2208326 Photo 3 Photo 4 BT Antenna WIFI(RX) Antenna GSM/WCDMA/LTE Antenna GPS Antenna Page 3 of 7 Report No.: STS2208326 Photo 5 Photo 6 Page 4 of 7 Report No.: STS2208326 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2208326 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2208326 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2208326 Photo 13 Photo 14

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S Testing Engineer : ((Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP0G750, DIP0G835, DIP1G800, DIP1G900, DIP2G600, Brand Name: SATIMO Test Conclusion： Pass Test Date： 08 July 2022 Date of Issue： 11 July 2022 ISSUED BY Shenzhen STS Test Services Co., Ltd. 1. Equipment List Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 07/21 EPGO352 2022.02.28 2023.02.27 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2021.11.23 2022.11.22 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom3 MVG SAM SN 21/21 ELLI48 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent 8753ES US38432810 2022.09.28 2023.09.27 Multi Meter Keithley Multi Meter 2000 4050073 2022.09.29 2023.09.28 Signal Generator Agilent N5182A MY50140530 2022.09.28 2023.09.27 Power Amplifier DESAY ZHL-42W 9638 2022.10.08 2023.10.07 Power Meter R&S NRP 100510 2022.09.28 2023.09.27 Power Sensor R&S NRP-Z11 101919 2022.09.28 2023.09.27 Temperature hygrometer SuWei SW-108 N/A 2022.09.30 2023.09.29 Thermograph Elitech RC-4 S/N EF7176501537 2022.09.30 2023.09.29 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2. <Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 750 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -25.47 - 55.2 - 2021.07.11 -25.98 2.00 54.86 -0.34 2022.07.08 -24.06 -5.54 53.63 -1.57 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 750 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 750 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -27.25 - 51.4 - 2021.07.11 -26.17 -3.96 51.56 0.16 2022.07.08 -27.27 0.07 51.36 -0.04 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 750 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 835 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -28.13 - 51.4 - 2021.07.11 -28.43 1.07 52.62 1.22 2022.07.08 -28.83 2.49 52.65 1.25 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 835 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -23.88 - 49.2 - 2021.07.11 -24.25 1.55 50.26 1.06 2022.07.08 -25.02 4.77 50.76 1.56 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 835MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 1800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -29.49 - 46.9 - 2021.07.11 -29.08 -1.39 46.36 -0.54 2022.07.08 -30.03 1.83 47.21 0.31 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1800 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 1800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -24.55 - 44.7 - 2021.07.11 -25.54 4.03 45.55 0.85 2022.07.08 -24.24 -1.26 45.64 0.94 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1800 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 1900 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -23.66 - 51.4 - 2021.07.11 -23.62 -0.17 50.73 -0.67 2022.07.08 -23.89 0.97 51.23 -0.17 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1900 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 1900 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -20.20 - 48.7 - 2021.07.11 -21.12 4.55 47.02 -1.68 2022.07.08 -21.93 8.56 47.91 -0.79 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1900 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 2600 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -34.32 - 50.3 - 2021.07.11 -34.78 1.34 49.61 -0.69 2022.07.08 -31.54 -8.10 48.39 -1.91 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibrat…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2208326H02 Issued for Trackimo INC. 680 Central Ave, Cedarhurst, New York 11516, USA Product Name: GPS Tracker Brand Name: Trackimo Model Name: TRKM110-T Series Model: N/A FCC ID: 2AAI6-TRKM110-T Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Body: 1.231 W/kg S T L A B S Page 2 of 92 Report No.: STS2208326H02 Test Report Certification Applicant’s name ................. : Trackimo INC. Address ................................. : 680 Central Ave, Cedarhurst, New York 11516, USA Manufacturer's Name .......... : Trackimo INC. Address ................................. : 680 Central Ave, Cedarhurst, New York 11516, USA Product description Product name ........................ : GPS Tracker Brand name ......................... : Trackimo Model name ......................... : TRKM110-T Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ............................................ : Date (s) of performance of tests ............. : 16 Aug. 2022 ~ 26 Sept. 2022 Date of Issue ........................................... : 18 Oct. 2022 Test Result ............................................... : Pass Testing Engineer : (Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 92 Report No.: STS2208326H02 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 15 5.1 Validation System 15 5.2 Validation Result 15 6. SAR Evaluation Procedures 16 7. EUT Antenna Location Sketch 17 7.1 SAR test exclusion consider table 18 8. EUT Test Position 23 8.1 Body-worn Position Conditions 23 9. Uncertainty 24 9.1 Measurement Uncertainty 24 10. Conducted Power Measurement 25 10.1 Test Result 25 11. EUT and Test Setup Photo 53 11.1 EUT Photo 53 11.2 Setup Photo 56 12. SAR Result Summary 59 12.1 Body-worn and Hotspot SAR 59 13. Equipment List 67 Appendix A. System Validation Plots 68 Appendix B. SAR Test Plots 78 Appendix C. Probe Calibration and Dipole Calibration Report 92 Page 4 of 92 Report No.: STS2208326H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 18 Oct. 2022 STS2208326H02 ALL Initial Issue Page 5 of 92 Report No.: STS2208326H02 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name GPS Tracker Brand Name Trackimo Model Name TRKM110-T Series Model N/A Model Difference N/A Battery Rated Voltage:3.7V Charge Limit Voltage:4.2V Capacity: 10000mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version UG02 PCB V0.3 Software Version UG02 V0.1 Frequency Range GSM 850: 824 MHz ~ 849 MHz PCS1900: 1850 MHz ~ 1910 MHz WCDMA Band II: 1850 MHz ~ 1910 MHz WCDMA Band V: 824 MHz ~ 849 MHz LTE Band 2: 1850MHz to 1910 MHz LTE Band 4: 1710 MHz to 1755 MHz LTE Band 5: 824 MHz~849 MHz LTE Band 7: 2500 MHz to 2570 MHz LTE Band 12: 699MHz to 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 25: 1850MHz to 1915 MHz LTE Band 26: 814 MHz ~ 849 MHz LTE Band 41: 2555 MHz ~ 2655 MHz Bluetooth: 2402 MHz to 2480 MHz Page 6 of 92 Report No.: STS2208326H02 Max. Reported SAR(1g): (Limit:1.6W/kg) Band Mode Body (W/kg) PCB GSM 850 0.255 PCB GSM 1900 1.231 PCB WCDMA Band II 0.592 PCB WCDMA Band V 0.166 PCB LTE Band 2 0.501 PCB LTE Band 4 0.496 PCB LTE Band 5 0.197 PCB LTE Band 7 1.064 PCB LTE Band 12 0.253 PCB LTE Band 13 0.769 PCB LTE Band 17 0.232 PCB LTE Band 25 0.515 PCB LTE Band 26 0.249 PCB LTE Band 41 0.312 DSS BT 0.343 1-g Sum SAR 1.574 FCC Equipment Class Licensed Portable Transmitter (PCB) Digital Transmission System (DTS) Operating Mode: GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM BLE: GFSK Antenna Specification: GSM/WCDMA/LTE: PIFA Antenna Bluetooth: PIFA Antenna SIM Card Only one SIM card is supported. Hotspot Mode Does not support DTM Mode Not Support Note: 1. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power 2. Bluetooth SAR was estimated Page 7 of 92 Report No.: STS2208326H02 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub- District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration No.: 625569 IC Registration No.: 12108A A2LA Certificate No.: 4…

Text truncated - open the document above for the full version.

Ref : ACR.262.4.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING 2, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 750 MHZ SERIAL NO.: SN 30/14 DIP0G750-331 SAR Reference Dipole Calibration Report Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 07/14/2020 Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG. using the CALIPROBE test bench. for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units(SI). Page: 1/11 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Name Function Date Signature Prepared by : Jérôme LUC Technical Manager 7/28/2020 Checked by : Jérôme LUC Technical Manager 7/28/2020 Approved by : Yann Toutain Laboratory Director 7/28/2020 Issue Date Modifications A 7/28/2020Initial release Name Jérôme LUC Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 3/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. MVGB.A 20. Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 750 MHz REFERENCE DIPOLE Manufacturer MVG Model SID750 Serial Number SN 30/14 DIP0G750-331 Product Condition (new / used) Used A yearly calibration interval is recommended. 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole Page: 4/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A 4 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constucted as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimensions frequency an…

Text truncated - open the document above for the full version.

Report No: STS2208326W05_Appendix GSM 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.702228117 13.00 PASS EGPRS1900 661 1880 5.901383285 13.00 PASS EGPRS1900 810 1909.8 7.234864865 13.00 PASS EGPRS850 128 824.2 9.519078014 13.00 PASS EGPRS850 190 836.6 9.286266667 13.00 PASS EGPRS850 251 848.8 9.485402299 13.00 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No: STS2208326W05_Appendix GSM EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=190 EGPRS850 Channel=251 Report No: STS2208326W05_Appendix GSM 16 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 242.894 309.524 PASS EGPRS1900 661 1880 245.810 318.662 PASS EGPRS1900 810 1909.8 244.533 309.217 PASS EGPRS850 128 824.2 247.485 301.342 PASS EGPRS850 190 836.6 245.428 303.484 PASS EGPRS850 251 848.8 253.875 311.992 PASS EGPRS1900 Channel=512 Report No: STS2208326W05_Appendix GSM EGPRS1900 Channel=661 EGPRS1900 Channel=810 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=128 EGPRS850 Channel=190 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=251 17 Band edge Report No: STS2208326W05_Appendix GSM Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.99 -37.98 -13 PASS EGPRS1900 810 1909.8 1910.01 -38.61 -13 PASS EGPRS850 128 824.2 823.97 -37.08 -13 PASS EGPRS850 251 848.8 849.02 -33.12 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=128 EGPRS850 Channel=251 Report No: STS2208326W05_Appendix GSM 18 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 19103.85 -23.95 -13 PASS EGPRS1900 661 1880 18930.11 -23.96 -13 PASS EGPRS1900 810 1909.8 19022.47 -24.48 -13 PASS EGPRS850 128 824.2 5569.83 -29.29 -13 PASS EGPRS850 190 836.6 2586.06 -29.73 -13 PASS EGPRS850 251 848.8 6210.40 -29.29 -13 PASS EGPRS1900 Channel=512 Report No: STS2208326W05_Appendix GSM EGPRS1900 Channel=661 EGPRS1900 Channel=810 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=128 EGPRS850 Channel=190 Report No: STS2208326W05_Appendix GSM EGPRS850 Channel=251 09 Peak-to-Average Ratio Report No: STS2208326W05_Appendix GSM Band Channel …
