2AALG-NWP-F130Smart Pen

Quick Start Guide FrontBack Ballpoint NCODE camera Pogo Pin connector(charging) Power button LED indicator Power on How to use We are analog beings living in the digital environment. We connect your handwriting to the digital world to dream, create and achieve more. Charging Tap here! STEP 1 Download NEO STUDIO™ STEP 2 Connect STEP 3 Start to write 간단 사용 설명서 전면부 충전하기 다운로드 Web viewer supported / 웹 뷰어 지원 필기하기 사용방법 연결하기 후면부 전원켜기 볼펜 포고 핀 충전단자 LED 상태표시등 전원버튼 NCODE 카메라 Experience the NWP-F130 NWP-F130 USER MANUAL File share 파일 공유 Search 필기 검색 Media share 미디어 공유 Bookmark 즐겨찾기 ※The above functions are supported when using NWP-F130 and digital paper. ※위 기능들은 NWP-F130와 digital paper를 사용할 때, 지원됩니다. Smart Pen 스마트펜 Magnet Charger 자석 충전 케이블 Pen Refill 여분 펜 팁 Smart notebook 스마트 노트 Components 구성품 For after-sales support, questions, information and the full text of the warranty, go to: www.moleskine.com/support 제품 구매 후 지원, 제품정보, 제품보증사항은 www.moleskine.com/support 를 참조하십시오. LED Colour Status InformationPrecautions Product Warranty Serial No. / 제품번호 Date of Purchase / 구입일자 Seller / 구입처 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ·· Reorient or relocate the receiving antenna. ·· Increase the separation between the equipment and receiver. ·· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·· Consult the dealer or an experienced radio/TV technician for help. IMPORTANT NOTE : FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Information to User This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Attention: Tout changement ou modi_cation non expressément approuvé par le fabricant peut annuler le droit de l'utilisateur à utiliser l'équipement. exposition aux rayonnements radiofréquences. Pour se conformer aux exigences de conformité de l'exposition IC RF, une distance de séparation d'au moins 0.5 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes. Caution THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 과학기술정보통신부 고지에 따른 고지사항 · · 해당 무선설비는 운용 중 전파 혼선 가능성이 있으므로 인명 안전과 관련된 서비스는 할 수 없습니다. · · 이 기기는 가정용(B급) 전자파 적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다. Regulatory Compliance Information LED 표시 안내주의 규정 준수 정보 제품 보증 Status 상태 LED colour LED 컬러 Power ON 전원 ON App connection 앱과 연결 시 Low battery power 배터리 부족 Sensor recognition or usage environment check 인식센서 또는 사용환경 점검 필요 KC:R-C-NCV-NWP-F130 203-JN1196 FCC ID: 2AALG-NWP-F130 IC: 21452-NWPF130 Product Specification Model Name Wireless Connection Receiving / Transmitting Frequency Tx Power Storage Media Battery Charging Time Rated Input Usage Time Size and Weight Usage Environment Ink refills NWP-F130 Bluetooth® 4.2 (LE) 2,402 ~ 2,480 MHz ≤ 1mW (0 dBm) 16MB of internal memory Rechargeable Lithium Polymer Battery 3.7V / 180mAh About 90 min DC 5V / 1A Max 125 days in standby mode Standard mode: 8 hours(for continuous writing) Eco mode: 11 hours(for continuous writing) * Actual usage time may vary depending on usage environment. Length: 143 mm /5.6" (without pen cap) Thickness: 12.4 Φ / 0.49" (without pen cap) Weight: 15.8g / 0.56 oz (without pen cap) Operating temperature : 10 ~ 35 °C / 50 ~ 95 °F Temperature for storage(No operation) : -10 ~ 50 °C / 14 ~ 122 °F Relative humidity : ~ 90% D1 multi pen ink refills

#1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 Tel No : +82-2-2284-9241 Fax No : +82-2-3462-2983 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: July 27, 2021 SUBJECT: FCC Application for (FCC ID : 2AALG-NWP-F130) To Whom It May Concern: We, the undersigned, hereby authorize Kim Gwan-Yong at CTK on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CTK on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Cho Min-Gu/ Senior Research Engineer NEOLAB CONVERGENCE

Rev 11/20/07 #1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 Tel No : +82-2-2284-9241 Fax No : +82-2-3462-2983 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : 2AALG-NWP-F130 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram Schematics Schematics_PCB Layout Parts list Operational description Operational description_Antenna specification Block diagram_NWP-F130.pdf Schematics_NWP-F130.pdf Schematics_PCB Layout_NWP-F130.pdf Part list_NWP-F130.pdf Operational description_NWP-F130.pdf Operational description_Antenna specification _NWP- F130.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Cho Min-Gu / Senior Research Engineer NEOLAB CONVERGENCE

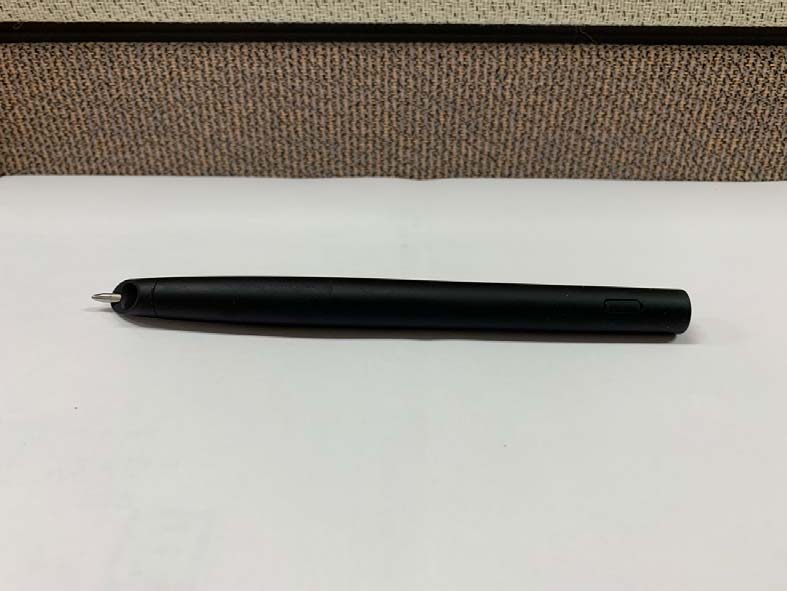

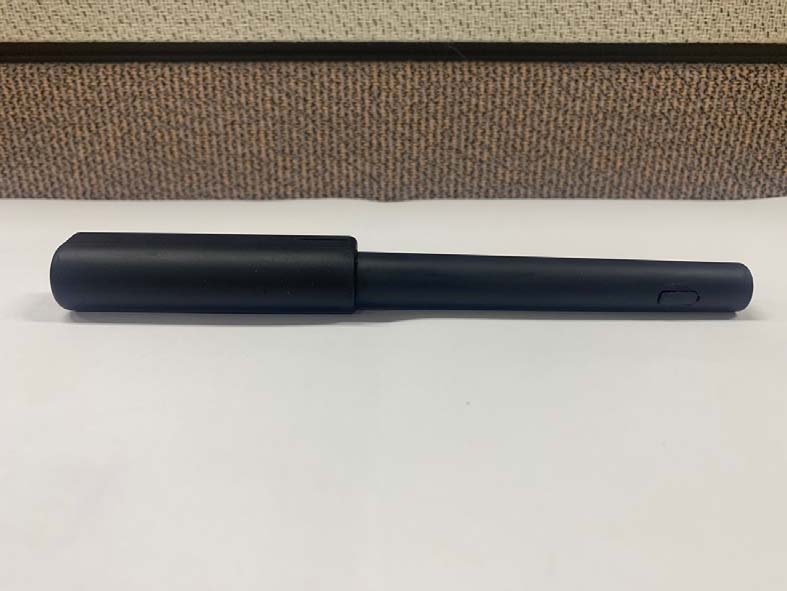

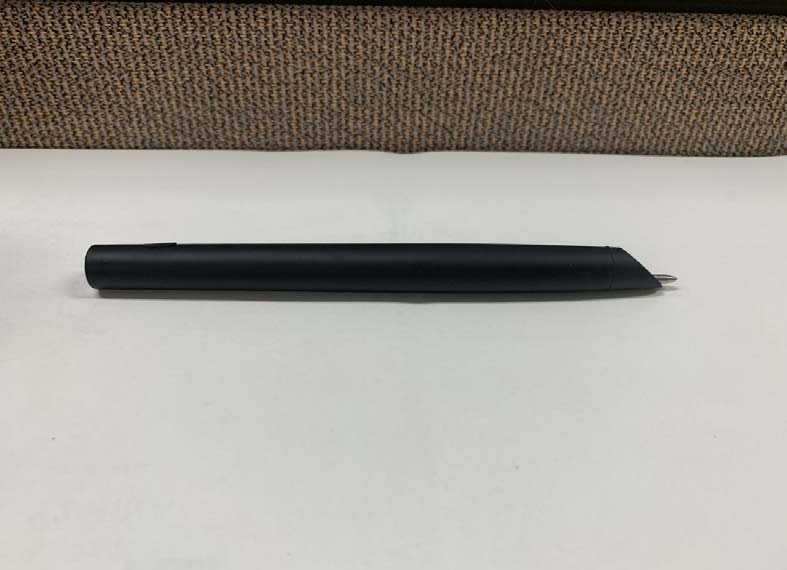

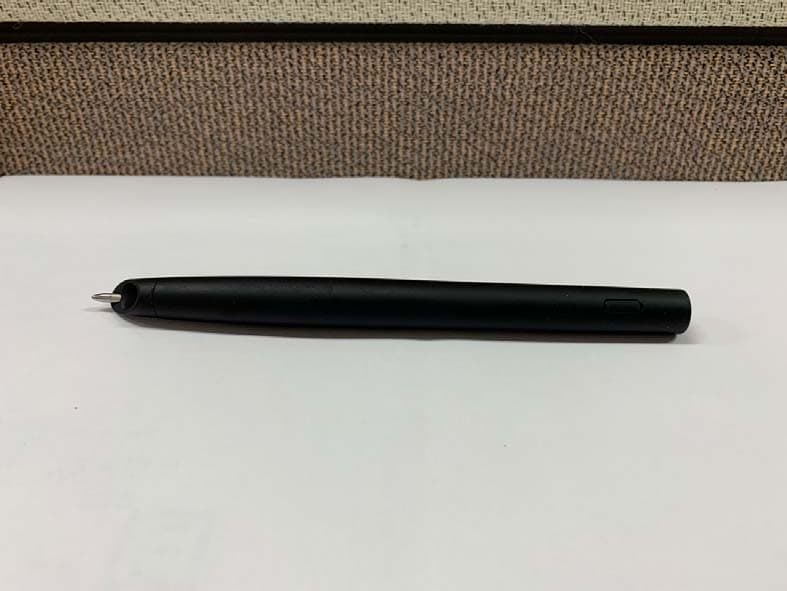

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 1 / 3 EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 2 / 3 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 3 / 3

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com ANTENNA

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 4 This Report shall not be reproduced except in full without the written approval of CTK RF EXPOSURE EVALUATION Applicant NEOLAB CONVERGENCE Applicant Address #1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 FCC ID 2AALG-NWP-F130 IC 21452-NWPF130 Product Description Smart Pen Basic model NWP-F130 Variant Model name - Operating Frequency 2 402 MHz - 2 480 MHz Antenna type PCB Antenna Antenna gain -1.62 dBi Power Source DC 3.7 V (Battery) Number of channels Bluetooth LE : 40 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 4 This Report shall not be reproduced except in full without the written approval of CTK ** RF Exposure Evaluation** Exemption Limits for Routine Evaluation SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table, The equation and threshold in Note 1 must be applied to determine SAR test exclusion. Note 1 : The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by : CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 3 of 4 This Report shall not be reproduced except in full without the written approval of CTK [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison - 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1f) is applied to determine SAR test exclusion. Output Power : Mode Frequency (MHz) Measured conducted power (dBm) Power tolerance [dB] Maximum conducted power (dBm) Maximum conducted power (mW) SAR Test Exclusion Threshold (mW) Bluetooth LE 2 480 -0.13 + 1.5 1.37 1.371 10 Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances ≤50mm is defined by the following equation : [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 Base on the maximum conducted power of the antenna to use separation distance, SAR was not required; Bluetooth LE : [(1.371 / 5) * √2.480] = 0.432 (≤ 3.0) Result : As a result of the calculation above, the SAR test is exempt CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 4 of 4 This Report shall not be reproduced except in full without the written approval of CTK Exemption Limits for Routine Evaluation (RSS-102 Issue 5, Section 2.5.1) SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table 1. Table 1: SAR evaluation - Exemption limits for routine evaluation based on frequency and separation distance Result : SAR test is exempt as shown in the table below. Mode Frequency (MHz) Measured conducted power (dBm) Power tolerance (dB) Maximum conducted power (dBm) Maximum conducted power (mW) SAR Test Exclusion Threshold (mW) Bluetooth LE 2 480 -0.13 + 1.5 1.37 1.371 4

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2021-02583 Page (1) / (37) Pages QF-QP15-03 R101 Rev.0 1. Client ◦ Name : NEOLAB CONVERGENCE ◦ Address : #1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 ◦ Date of Receipt : 2021-07-06 2. Manufacturer ◦ Name : NEOLAB CONVERGENCE ◦ Address : #1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 3. Use of Report : For FCC & ISED Certification 4. Test Sample / Model: Smart Pen / NWP-F130 5. Date of Test : 2021-07-09 to 2021-07-14 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247 ANSI C63.10-2013, RSS-247, RSS-Gen 7. Testing Environment: Temp.: (23 ± 1) °C, Humidity: (48 ± 5) % R.H. 8. Test Results : Compliance The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Affirmation Tested by Gwanyong Kim: (Signature) Technical Manager Young-taek Lee: (Signature) 2021-07-14 Republic of KOREA CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2021-02583 Page (2) / (37) Pages QF-QP15-03 R101 Rev.0 REPORT REVISION HISTORY Date Revision Page No 2021-07-14 Issued (CTK-2021-02583) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2021-02583 Page (3) / (37) Pages QF-QP15-03 R101 Rev.0 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Client Information ............................................................................................. 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 2. Facility and Accreditations .......................................................................................... 5 2.1 Test Facility ...................................................................................................... 5 2.2 Laboratory Accreditations and Listings .................................................................. 5 2.3 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Mode of operation during the test ........................................................................ 6 3.3 Maximum Measurement Uncertainty .................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 6 dB Bandwidth and 99 % Bandwidth ................................................................... 8 4.2 Maximum peak Conducted Output Power ............................................................ 11 4.3 Power Spectral Density .................................................................................... 13 4.4 Band Edge & Conducted Spurious emission ......................................................... 15 4.5 Radiated Emission ........................................................................................... 19 4.6 AC Conducted Emissions .................................................................................. 34 5. APPENDIX A – Test Equipment Used For Tests ............................................................. 37 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2021-02583 Page (4) / (37) Pages QF-QP15-03 R101 Rev.0 1. General Product Description 1.1 Client Information Company NEOLAB CONVERGENCE Contact Point #1501, Mario Tower, 28, Digital-ro 30-gil, Guro-gu, Seoul, Korea 08389 Contact Person Name : Cho Min-Gu E-mail : [email protected] Tel : +82–70-4377-0741 Fax : +82-2-3462-2983 1.2 Product Information FCC ID 2AALG-NWP-F130 Certification Number ISED 21452-NWPF130 Product Description Smart Pen Basic model (HVIN) NWP-F130 Variant Model name - Operating Frequency 2 402 MHz - 2 480 MHz RF Output Power -0.13 dBm (0.97 mW) Antenna type PCB Antenna Antenna gain -1.62 dBi Number of channels 40 Channel Spacing 2 MHz Type of Modulation GFSK (Bluetooth LE 1 Mbps) Power Source DC 3.7 V (Battery) FVIN 1.00 Test Software(Version) Tera term (Version 4.8.5) MediTek BT Tool (Version W1537) RF Power setting in Test SW Power Setting “Default” 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer Tech Front (Chongqing) Computer Co., Ltd. HP ProBook 455 G7 5CD0234DX4 AC/DC Adapter Chicony Power Technology Co., Ltd. TPM-CA16 L25298-002 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2021-02583 Page (5) / (37) Pages QF-QP15-03 R101 Rev.0 2. Facility and Accreditations 2.1 Test Facility The measurement facility is located at (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. 2.2 Laboratory Accreditations and Listings Country Agency Registration Number USA FCC 805871 CANADA ISED 8737A-2 KOREA NRRA KR0025 2.3 Calibration Details of Equipme…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (1) / (6) Pages Test Setup Photo AC Power Line Emissions measurement CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (2) / (6) Pages Radiated Emissions measurement 9 kHz to 30 MHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (3) / (6) Pages 30 MHz to 1 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (4) / (6) Pages 1 GHz to 18 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (5) / (6) Pages 18 GHz to 26.5 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (6) / (6) Pages Conducted Emissions measurement
