Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 1 www.idealindustries.com PRODUCT DESCRIPTION The Audacy RS1800 Plug Load Controller is a wireless device which provides electrical connectivity between the outlet (load) and 120VAC line power as well as provide on/off power control. The information that tells the controller to power on/off the outet is acquired via wireless signals that originate from a building automation system or from room controls, based on environmental conditions and/or predetermined programs. S KEY FEATURES FCC and IC approved Small form factor with internal antenna RoHS compliant Factory configurable for custom applications PRODUCT CONTENTS The following items are included inside the package: Qty Description 1 Plug Load Control RS1800 1 Instruction card Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES. All other trademarks are the property of their respective owners. Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 2 www.idealindustries.com IDEAL Model RS1800 Plug Load Controller Installation Instructions WARNING: This is a current rated device. Use in applications involving amperage beyond its rating can be dangerous and cause electrical fires. Wiring must comply with all applicable electrical codes. Turn off power before removing or installing connector. TERMINOLOGY LINE(Black): Controller power feed to be connected to premise wiring LOAD(Red): Power output Controller to AC outlet Neutral(White): Incoming Neutral from premise wiring and outgoing AC outlet CONNECTING THE WIRES Input Power The smart connector LINE(Black) and NEUTRAL(White) wires are 12 AWG stranded copper conductors. 1. Strip wires to 1/2”. 2. Connect Controller Line Input to premise line power feed with appropriate sized wirenut or push-in connector. 3. Connect Smart Connector Neutral Input to premise neutral feed with appropriately sized wirenut or push-in connector.. 4. For feed-through (i.e., “daisy-chain”) installations, connect the LINE hot feed-through conductor into the wirenut in step 2. Also, connect the NEUTRAL feet-through conductor connected without re-installing the wires. into the wirenut in step 3. LOAD The LOAD(red) and Neutral(White) wire are 18 AWG solid copper conductors. 1. Strip wires to 1/2”. 2. Connect Controller LOAD wire to the AC outlet with appropriate sized wirenut or push-in connector if necessary. 3. Connect Controller NEUTRAL Output to the AC outlet with appropriately sized wirenut or push-in connector if necessary. 4. For feed-through (i.e., “daisy-chain”) installations, connect the LOAD hot feed-through conductor into the wirenut in step 2. Also, connect the NEUTRAL Output feed-through conductor into the wirenut in step 3. Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 3 www.idealindustries.com SPECIFICATIONS Item Description Radio 915 MHz Internal Antenna Regulatory Approvals FCC Part 15 and Industry Canada Contains FCC ID: 2AAMXRS1800 Contains IC: 11250A-RS1800 Transmit Range 100 ft. indoors to an Audacy Gateway or Smart Connector in a typical commercial office building Power 25+ year Li battery, non-replaceable Operating Temperature 10°C to 32°C Storage Temperature -20°C to 50°C Installation Environment Indoor use only Color White Dimensions 2.84” x 1.65” x 1.03” (72.13 x 41.91 x 26.12 mm) Weight 3.7 oz (106 grams) Warranty 1 year MECHANICAL (TOP VIEW) *Dimensions in inches Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 4 www.idealindustries.com MECHANICAL (SIDE VIEWS) *Dimensions in inches Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 5 www.idealindustries.com SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: [email protected] Product Manual RS1800 – Plug Load Control ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 6 www.idealindustries.com COMPLIANCE STATEMENTS This device is intended for commercial and industrial applications. Changes or modifications not expressly approved by IDEAL INDUSTRIES could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! FCC and IC Radiation Exposure Statement: This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled environment under the following conditions: 1. This equipment should be installed and operated such that a minimum separation distance of 20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times. 2. This transmitter must not be…

Text truncated - open the document above for the full version.

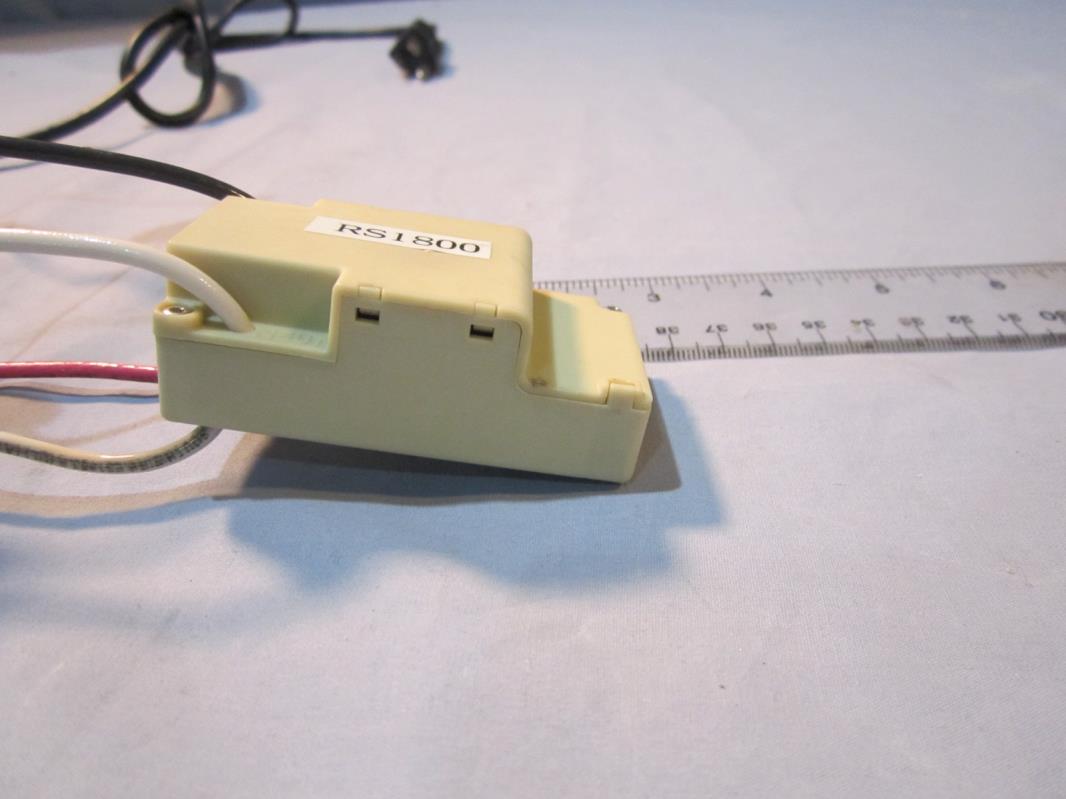

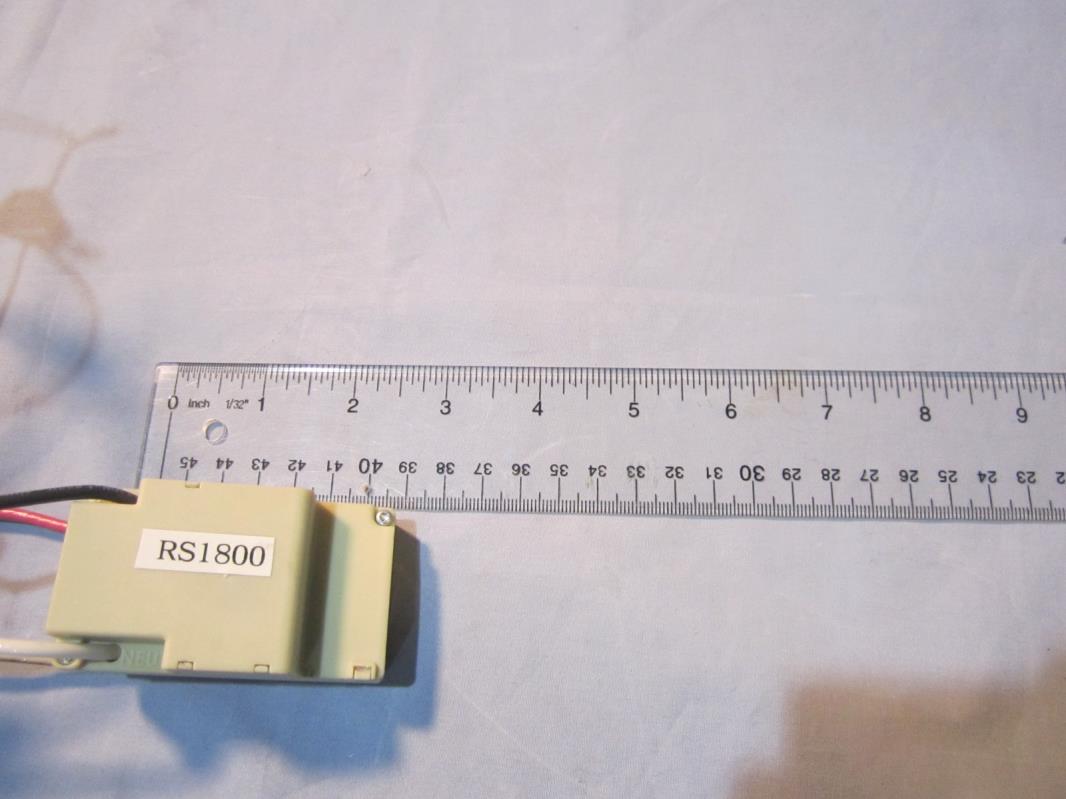

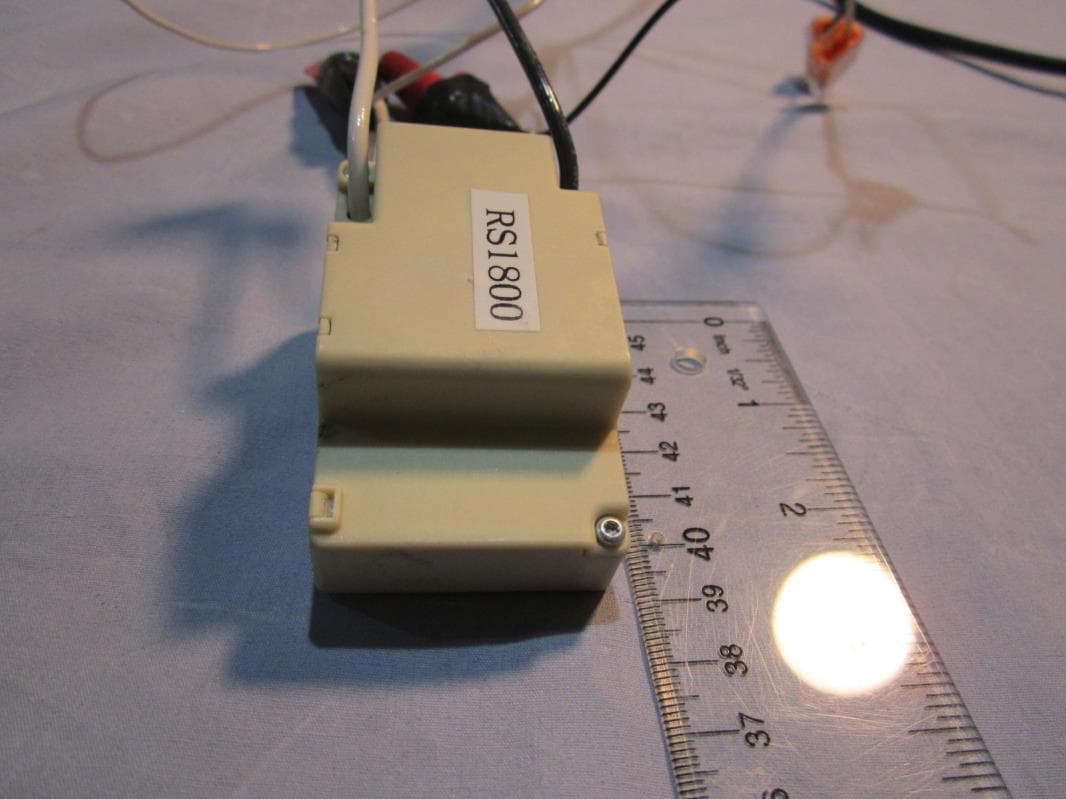

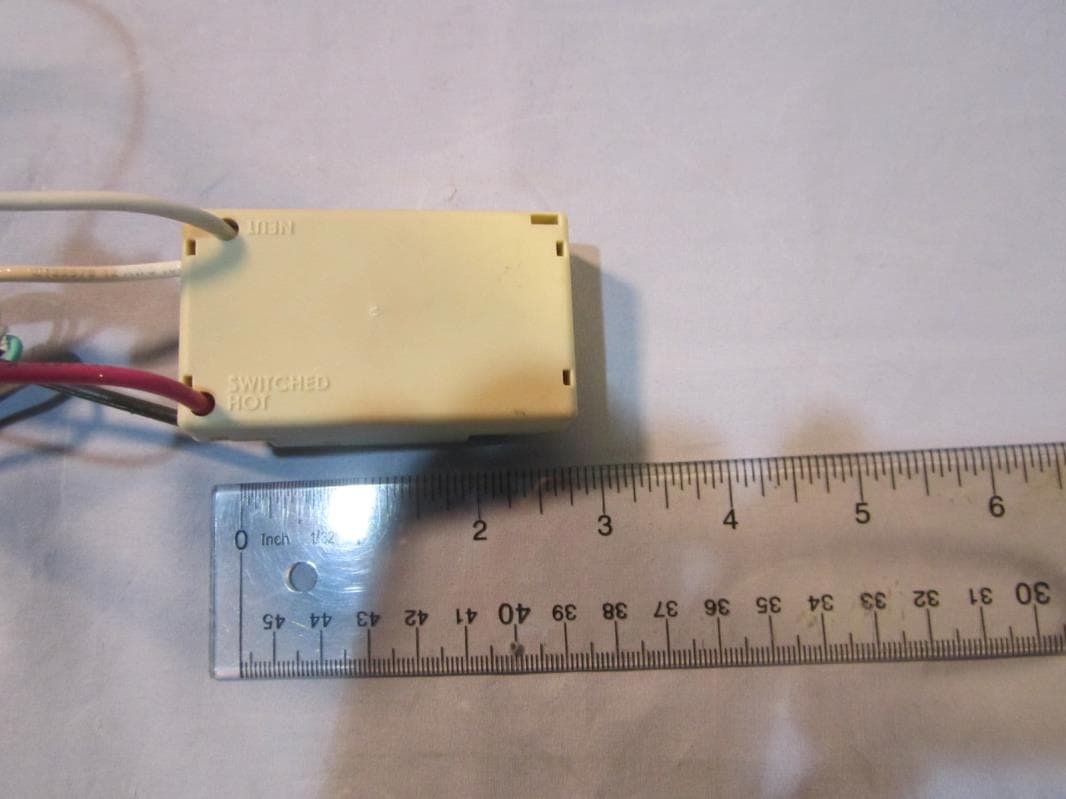

External Photo – RS1800

DURABLE PORTFOLIO Product Data Sheet Fasson® 2 Mil White Polyester TC/S8015/50#SCK Spec#: 76656 Facestock Facestock physical properties 2 Mil White Polyester TC is a homogeneously pigmented white facestock featuring excellent tear strength, heat resistance, dimensional stability, opacity, and chemical resistance. Imperial ValueUnitsMetric ValueUnits Caliper: ASTM D1000 0.0020inches50.80micron Tensile: ASTM D882 MD21,300PSI1,497kg/cm2 CD28,400PSI1,997kg/cm2 Adhesive Adhesive physical properties S8015 adhesive is a high strength clear adhesive featuring high initial tack, adhesion and shear. Offers strong permanent bonding to a wide variety of substrates including high surface energy (HSE), low surface energy (LSE) and powder coat substrates. Excellent chemical and UV resistance. Imperial ValueUnitsMetric ValueUnits Type:Solvent Acrylic Caliper: ASTM D1000 0.0010inches25.40micron Standard Coat Wt:32g/sq m Minimum Appl Temp:45F7C Service Temp Range: Min-30F-34C Max300F149C Loop Tack Stainless Steel: PSTC11 96.0oz/in105.6N/100mm Liner Liner physical properties 50#SCK is a bleached, super- calendered paper stock with very good diecutting and matrix stripping properties. Suitable for back-printing with standard inks. Imperial ValueUnitsMetric ValueUnits Caliper: ASTM D1000 0.0032inches81.2800microns Basis Wt: TAPPI T410 * (24" x 36" 500 sheets) 53.9lb/ream86.2g/sq m Tensile: ASTM D882 MD48.0lb/inch211.2N/25 mm CD26.0lb/inch114.4N/25 mm Tear: TAPPI T414 MD1.8ounces51.1grams CD2.0ounces56.8grams Liner Release: TMLI 90 o removal of Liner from Facestock. Total Construction Caliper (approximate): Rate of RemovalGrams/2" Width 400 inches/min.600.0060 inches Page 1 of 7Durable Form 1/29/2014http://na1.fasson.com/frna/Prod_sht.nsf/frna/Prod_sht.nsf/E0CCBFF8A68E33D2852570F... Features and Benefits
Opaque white facestock with very good hiding power and physical strength
Glossy clear top coat that accepts most flexographic, letterpress, and rotary screen inks
Excellent thermal transfer printability with most wax/resin and resin ribbons
Topcoat and adhesive have excellent chemical resistance Applications and Uses This product is suitable for wide variety of durable labeling applications such as:
Product identification labels
Barcodes and rating plates
Work in progress labels (WIP)
Property identifcation and asset tags
Durable goods labeling
Automotive exterior or underhood labels. Meets GM6121M Type A & B; Daimler Chrysler MS-CG121 Type A, B, & D; Ford WSS-M99P34 Types A, A2, A3, & A4
UL Rating plates. This product is UL and UL-c recognized for indoor and outdoor use (see appendix). For specific information, see UL file # MH17205 for conditions of recognitions Printing and Converting The topcoat is designed for printing by flexography with most solvent and some water based inks. Specially formulated inks are normally not needed, however, testing is recommend prior to final ink selection. Suitable for thermal transfer printing applications with select ribbons and printer models. This product can be diecut and stripped at high speeds on standard web-fed presses. Sample labels in a variety of shapes have been successfully dispensed and applied with standard labeling systems. RoHS/Regulation 2002/95/EU The substances listed in article 4 lid 1 of 2002/95/EU (RoHS) are not intentionally used in this product. The concentration limits of these substances will not exceed the set maximum concentration limits as provided in the proposed amendment for 2002/95/EU. Shelf Life Unless specified otherwise in this document, one year when stored at 72°F at 50% RH Note: The technical data presented is from tests we believe to be reliable but should be considered representative or typical only and should not be used for specifications purposes. This product should be tested thoroughly under end-use conditions to ensure it meets the requirements of the specific application. DURABLE PORTFOLIO Product Data Sheet Page 2 of 7Durable Form 1/29/2014http://na1.fasson.com/frna/Prod_sht.nsf/frna/Prod_sht.nsf/E0CCBFF8A68E33D2852570F... DURABLE PORTFOLIO Product Data Sheet Appendix Performance Data: The following technical data should be considered representative or typical only and should not be used for specification purposes. Initial (15 minute dwell) 72 Hours at Room Temperature 72 Hours at 120 0 F96 Hours at 150 0 F (65 0 C) & 80% Relative Humidity Surface oz/inN/100mmoz/inN/100mmoz/inN/100mmoz/inN/100mm 1. Stainless Steel 2. Aluminum 3. Polypropylene 4. HDPE 5. LDPE 6. ABS Plastic 82.1 83.7 52.2 43.2 42.1 73 90.3 92.1 57.4 47.5 46.3 80.3 73.7 54.8 23.9 40.4 74.5 82.4 81.1 60.3 26.3 44.4 82 90.6 77.4 60.5 65.4 41.7 21.4 78.5 85.1 66.6 71.9 45.9 23.5 86.4 83.7 81.1 59.2 46.4 2.2 23.2 92.1 89.2 65.1 51 2.4 25.5 Environmental Performance: Chemical Resistance test results The performance results are based on 4 hour immersions at room temperature unless otherwise noted (gasoline is 1 hour). Samples were applied to stainless steel panels and conditioned for 24 hours before immersion and evaluated immediately upon removal. Adhesion measured at 180° peel. Adhesion to Stainless SteelVisualEdge Chemical oz/inN/100mmAppearancePenetration mm 1. 70% IPA 2. Tide® Detergent 3. Engine Oil (10W30) 4. Water 5. Ammonia - pH 11 6. 409® Cleaner 7. Toluene 8. Brake Fluid 9. Reference Fuel C 10. Kerosene K1 73.4 58.5 62.5 66.7 27.3 28.9 17.8 68.3 35.2 46.2 80.7 64.4 68.8 73.4 30 31.8 19.6 75.1 38.7 50.8 No Change No Change No Change No Change No Change No Change No Change No Change No Change No Change 0 0 0 0 0 0 8.9 0 6.4 3.3 Page 3 of 7Durable Form 1/29/2014http://na1.fasson.com/frna/Prod_sht.nsf/frna/Prod_sht.nsf/E0CCBFF8A68E33D2852570F... Compliance Recognition:UL, C-U 11. Heptane12.914.2No Change3.6 Underwriters Laboratories, Inc. Minimum TemperatureMaximum Temperature Substrates o F o C o F o C (I=Indoor Only I/O=Indoor & Outdoor) 1. Stainless Steel 2. Galvanized Steel 3. Polyurethane Powder Paint 4. Epoxy Paint 5. Porcelain 6. Alkyd Enam…

Text truncated - open the document above for the full version.

Internal Photo – RS1800

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:18.34(dBm) Maximum peak output power at the antenna terminal:68.23386941(mW) Antenna gain(typical):2(dBi) Maximum antenna gain:1.584893192(numeric) Prediction distance:20(cm) Prediction frequency:902.7(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.601(mW/cm^2) Power density at prediction frequency:0.021514(mW/cm^2) Maximum allowable antenna gain:16.46144327(dBi) 2 4 R PG S p =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 27 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EO3616-1 Client Powercast Corporation Charlie Greene Address 566 Alpha Drive Pittsburgh, PA 15238 Phone 412-436-4077 Items tested RS1800 FCC ID IC 2AAMXRS1800 11250A-RS1800 FRN 0002862225 Equipment Type Part 15.247 Digitally Modulated Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247, RSS-210 Issue 8 Test Dates December 31, 2014, January 2, 5 and 7 and February 10, 2015 Results As detailed within this report Prepared by Tuyen Truong A. – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 5/4/2015 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 26 of this report. Test Report for Powercast Corporation.  Report No. EO3616-1 May 4, 2015 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 27 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 4 Product Tested - Configuration Documentation ....................................................................... 5 Statement of Conformity ...................................................................................................... 6 Test Results ............................................................................................................................ 7 Bandwidth ............................................................................................................................ 7 Fundamental Emission Output Power ................................................................................ 10 Radiated Spurious Emissions ............................................................................................ 13 Conducted Spurious Emissions ......................................................................................... 16 Power Spectral Density ...................................................................................................... 18 AC Line Conducted Emissions ........................................................................................... 21 Occupied Bandwidth .......................................................................................................... 22 Measurement Uncertainty...................................................................................................... 25 Conditions Of Testing ............................................................................................................ 26 Form Final Report REV 7-20-07 (DW) Test Report for Powercast Corporation.  Report No. EO3616-1 May 4, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 27 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the RS1800. It is a digitally modulated transmitter that operates in the range 902.7-927.3MHz. The product was tested with an integrated wire antenna with a gain of 2.0dBi. We found that the product met the above requirements without modification. Charlie Greene from Powercast Corporation was present during the testing. The test samples were received in good condition. Test Report for Powercast Corporation.  Report No. EO3616-1 May 4, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 27 Test Methodology Radiated emission and AC line conducted testing were performed according to the procedures specified in FCC Guidance for performing compliance measurement on DTS operating under section 15.247, April 19, 2013 and ANSI C63.10 (2009) and C63.4 (2003). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. Conducted emissions at the antenna port were performed with temporary connector for testing only, as required by rule section. The EUT operating voltage is 120VAC, 60Hz Low operating channel frequency = 902.7MHz Mid operating channel frequency = 915MHz High operating channel frequency = 927.3MHz The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-10GHz 1MHz 3MHz Test Report for Powercast Corporation.  Report No. EO3616-1 May 4, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TE…
