2AAOY-710005958AUDIO BLUETOOTH MODULE

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1)Reorient or relocate the receiving antenna. 2)Increase the separation between the equipment and receiver. 3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4)Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC warning statements: This device complies with license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-04-29> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AAOY-710005958 710005958 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Simon / Director of Engineering Company: Mitek Corp Address: 1 Mitek Plaza Winslow Illinois 61089, United States Phone: (815)-367-3000 Fax: 608-328-2562 E-mail: [email protected]

Mitek Corp 1 Mitek Plaza Winslow Illinois 61089, United States Date: April 29, 2020 FCC ID: 2AAOY-710005958 Model Number: 710005958 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Mitek Corp hereby declare that our product (AUDIO BLUETOOTH MODULE) Model Number: 710005958 will disable Bluetooth Lower Energy function (Bluetooth V4.2 LE) and Bluetooth Classics function (8-DPSK) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK) although Bluetooth modular AC6905A support both Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) and Bluetooth Lower Energy function (Bluetooth V4.2 LE) due to marketing purposes. End-user will only use Bluetooth Classics function (GFSK, π/4-DQPSK) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Simon / Director of Engineering Company: Mitek Corp Address: 1 Mitek Plaza Winslow Illinois 61089, United States Phone: ( 815)-367-3000 Fax: 608-328-2562 E-Mail: [email protected]

Mitek Corp 1 Mitek Plaza Winslow Illinois 61089, United States Labeling Declaration Letter Date: April 29, 2020 FCC ID: 2AAOY-710005958 Model Number: 710005958 Following the KDB 784748 D01 General labeling and Notification, the information related to Labeling implementation for the AUDIO BLUETOOTH MODULE, FCC ID: 2AAOY-710005958 Information On Product On Product Packaging In Online User Guide In Printed User Guide FCC ID Number Yes Yes No No 15.19 Statement “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” No NoNo Yes Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment No No No Yes Product Packaging Label is shown below: FCC ID: 2AAOY-710005958 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, The product is packaged individually. Mitek Corp 1 Mitek Plaza Winslow Illinois 61089, United States Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Simon / Director of Engineering Company: Mitek Corp Address: 1 Mitek Plaza Winslow Illinois 61089, United States Phone: (815)-367-3000 Fax: 608-328-2562 E-Mail: [email protected]

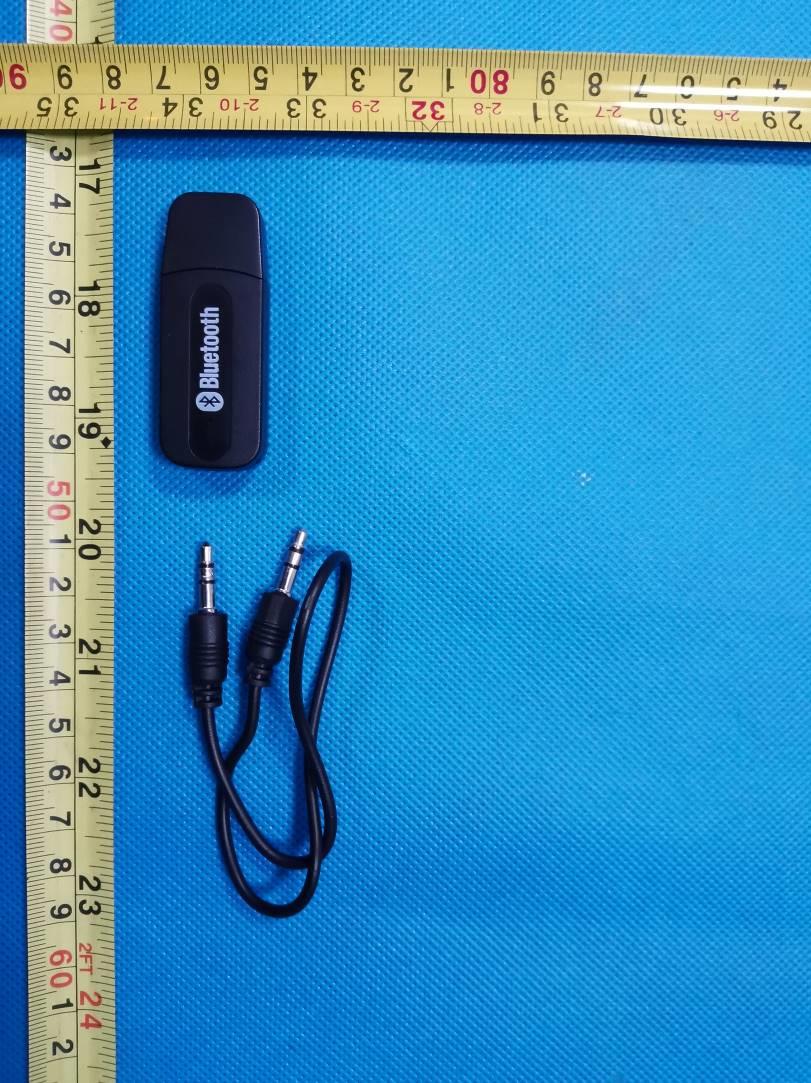

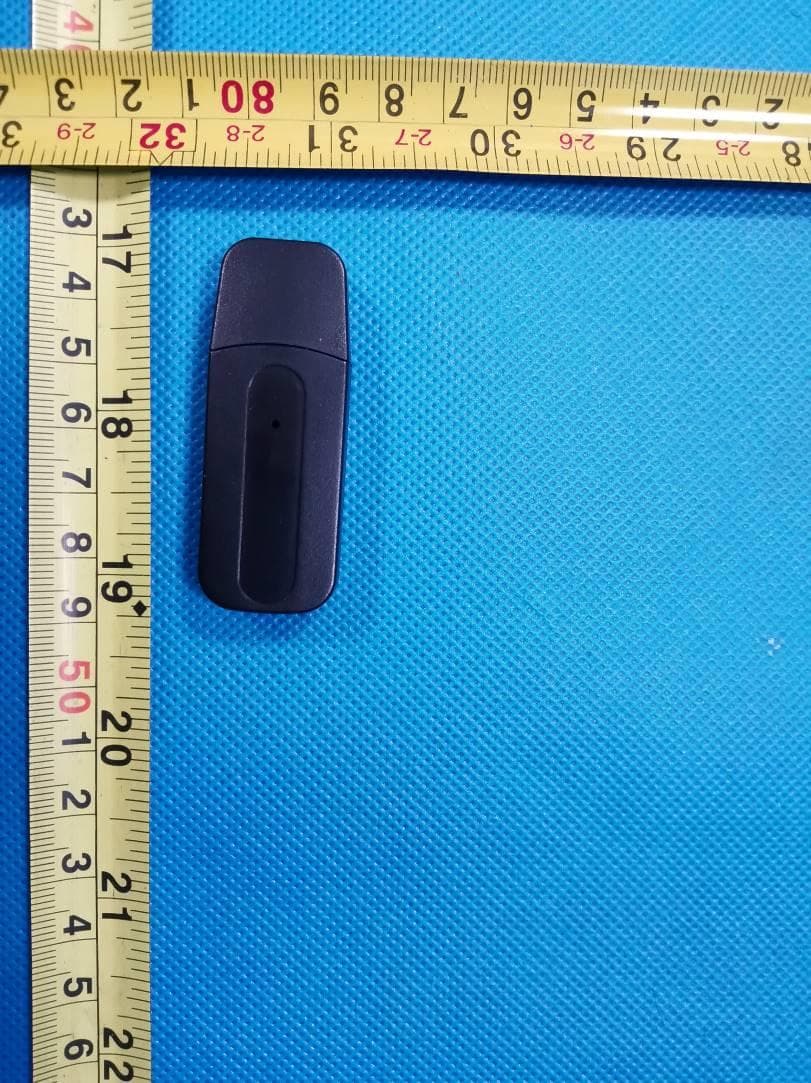

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERNAL PHOTOGRAPHS OF THE EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AAOY-710005958 Product name AUDIO BLUETOOTH MODULE Model number 710005958 Power supply DC 5V 100mA Modulation Type GFSK, π/4-DQPSK for V4.2 (BT Classics) Antenna Type Internal Antenna Antenna Gain -0.58 dBi (maximum) Hardware version HT-AC-BHM04-6905A-V1 Software version 1189 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.862 39 2441 -0.353 78 2480 -3.915 π/4-DQPSK 0 2402 0.029 39 2441 0.699 78 2480 -2.735 5. Manufacturing Tolerance GFSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.450 5 1.0 1.2589 0.4 < 3.0 Yes π/4-DQPSK 2.450 5 2.0 1.5849 0.5 < 3.0 Yes Remark: (1). RF output power including tune up tolerance; (2). When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Exclusion The sample support one BT modular and one antenna, no need consider simultaneous transmission; SHENZH…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 1 of 35 Appendix A RF Test Data for BT V4.2 (BDR/EDR) (Conducted Measurement) Product Name: AUDIO BLUETOOTH MODULE Trade Mark: N/A Test Model: 710005958 Environmental Conditions Temperature: 23.5 C Relative Humidity: 54% ATM Pressure: 100.0 kPa Test Engineer: Chuang Wang Supervised by: Jayden Zhuo A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -0.862 21 PASS MCH -0.353 21 PASS HCH -3.915 21 PASS π/4DQPSK LCH 0.029 21 PASS MCH 0.699 21 PASS HCH -2.735 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 2 of 35 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 3 of 35 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 4 of 35 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 5 of 35 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.82812 0.8427 Not Specified PASS MCH 0.82414 0.8401 Not Specified PASS HCH 0.82325 0.8410 Not Specified PASS π/4DQPSK LCH 1.1618 1.212 Not Specified PASS MCH 1.1611 1.211 Not Specified PASS HCH 1.1602 1.215 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 6 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 7 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 8 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 9 of 35 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.000 0.562 PASS MCH 1.002 0.560 PASS HCH 1.000 0.561 PASS π/4DQPSK LCH 1.002 0.808 PASS MCH 1.000 0.807 PASS HCH 1.000 0.810 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 10 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 11 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 12 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 13 of 35 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 14 of 35 π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 15 of 35 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.917 106.7 0.311 0.4 PASS DH5 MCH 2.900 106.7 0.309 0.4 PASS DH5 HCH 2.908 106.7 0.310 0.4 PASS π/4DQPSK 2DH5 LCH 2.917 106.7 0.311 0.4 PASS 2DH5 MCH 2.917 106.7 0.311 0.4 PASS 2DH5 HCH 2.917 106.7 0.311 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 16 of 35 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 17 of 35 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 18 of 35 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 19 of 35 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.935 -28.172 -20.94 PASS MCH -0.449 -29.090 -20.45 PASS HCH -0.148 -34.993 -20.15 PASS π/4DQPSK LCH -0.995 -28.168 -21.00 PASS MCH -0.406 -33.288 -20.41 PASS HCH -0.152 -31.460 -20.15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 20 of 35 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 21 of 35 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 22 of 35 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 23 of 35 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 24 of 35 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 25 of 35 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 26 of 35 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -0.979 Off -30.651 -20.98 PASS -1.091 On -31.271 -21.09 PASS HCH 2480 -0.029 Off -35.813 -20.03 PASS -0.225 On -35.951 -20.23 PASS π/4DQPSK LCH 2402 -0.982 Off -30.646 -20.98 PASS -1.019 On -30.924 -21.02 PASS HCH 2480 -0.089 Off -35.984 -20.09 PASS -0.131 On -36.026 -20.13 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 27 of 35 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 28 of 35 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 Page 29 of …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 Report No.: LCS200423068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR Mitek Corp AUDIO BLUETOOTH MODULE Test Model: 710005958 Prepared for : Mitek Corp Address : 1 Mitek Plaza Winslow Illinois 61089, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 24, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : April 24, 2020 ~ April 29, 2020 Date of Report : April 29, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 Report No.: LCS200423068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS200423068AEA Date of Issue .................................. : April 29, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Mitek Corp Address .......................................... : 1 Mitek Plaza Winslow Illinois 61089, United States Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : AUDIO BLUETOOTH MODULE Trade Mark ..................................... : N/A Test Model ..................................... : 710005958 Ratings ........................................... : DC 5V 100mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 Report No.: LCS200423068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200423068AEA April 29, 2020 Date of issue Test Model........................... : 710005958 EUT......................................... : AUDIO BLUETOOTH MODULE Applicant............................... : Mitek Corp Address.................................. : 1 Mitek Plaza Winslow Illinois 61089, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN HONGTAIDINGYE ELECTRONICS CO., LTD Address................................... : W201(2033) Block 01, Xintianxia Industrial Zone, Wankecheng Community, Bantian Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHENZHEN HONGTAIDINGYE ELECTRONICS CO., LTD Address................................... : W201(2033) Block 01, Xintianxia Industrial Zone, Wankecheng Community, Bantian Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 Report No.: LCS200423068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 April 29, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 Report No.: LCS200423068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................. 6 1.2 SUPPORT EQUIPMENT LIST ......................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ............................................................................................................................... 6 1.4 DESCRIPTION OF TEST FACILITY ..............................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig.1 (Below 1GHz) Fig.2 (Above 1GHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOY-710005958 IC: 22793-710005958 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement Fig.3
