2AAOY-715005354BRP ATV Sound System

MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 1 of 6 OWNER’S MANUAL MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 2 of 6 BRP ATV Sound System 715005354 1 FUNCTIONAL 1.1 USER INTERFACE  Same as the BRP Sea-doo Orca F and Orca L user interface (BT dongle). Also includes Audio line-in and line-out features on the amplifier.  System to mute BT signal if Aux in use used o Loss of volume, back and forward controls will not work when in Aux in mode  Ergonomic and safety o Controls are accessible while driving the vehicle o Controls positions are readable while driving o No possible entrapment of clothing or body part o No interference with driving maneuvers or visibility 1.2 MECHANICAL REQUIREMENTS  All gasket and seals to be closed cell Poronfoam type  Tweeters to IP67 rated o Potted with silicone glue on back side o Must withstand high press washing IP69K (with grill)  No sharp edges where contact may occur while riding  Injected plastic parts information in raised lettering: o FABRIQUE AU / MADE IN (XXX)SUPPLIER PART NUMBER o SAE PLASTIC CODE o CALENDAR (YEAR, MONTH) o CAVITY NUMBER (IF APPLICABLE) 1.2.1 Enclosures Mitek will provide the 3D and 2D CAD for the sound system enclosures designed by BRP. The enclosures will have over-molded threaded inserts that must resist between 8 Nm and 12 Nm of torque and 250 N pull-out force.  LH enclosure to include over molded aluminum ring for BT remote mounting  Weep hole for condensation and water at lowest point of enclosure while installed on the machine  M4 threaded brass inserts for amplifier and speaker (2 places for each component)  The sound system will be installed on the front fender of the vehicle which will use M6 threaded screws. Fastener locations and qty highlighted in blue MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 3 of 6 LH enclosure RH enclosure 1.3 ELECTRICAL 1.3.1 Maximum Input Current  10 Amps 1.3.1.1 Amplifier  Amplifier to be Class D topology  Amplifier to be DSP 50W x 2  Amplifier to not have noticeable turn-on/off pop 1.3.2 Wireless Bluetooth  Bluetooth Version 4.1 1.4 WIRE HARNESSES AND CONNECTIONS  For all wire harnesses o Wire Type to be TWP o 1” rubber grommets to be used for 5mm thick material o 105C pvc tubing with adhesive lined heat shrink tube sealing the ends of the PVC tube to the wires.  Glue to be used between wires to keep out water MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 4 of 6 o All external connectors to be sealed o Use dielectric grease on all internal and external connections o Apply connector glue to all connectors on PCB o Apply glue between grommet and harness for maximum sealing  For speaker connectors o Solder wires directly to speaker followed by glue  Amp connections o Use dielectric grease on all connectors o Add connector glue to all connectors o Secure harness to amplifier via 2x zip ties MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 5 of 6 NOTE This device complies with Part 15 of the FCC Rules [and contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licencecontenu dans le présentappareilestconforme aux CNR d’Innovation, Sciences et Développementéconomique Canada applicables aux appareils radio exempts de licence.L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. 2、 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: MiTek Confidential Revision 1.0 715005354 OWNER’S MANUAL Page 6 of 6 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAN ICES-003 (B) / NMB-003 (B) 3、Radiation Exposure Statement This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet appareil est conforme à FCC et IC l’exposition aux rayonnements limites fixées pour un environnement non contrôlé. Cet appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co-situé ou opérant en liaison avec toute autre antenne ou transmetteur

0LWHN &RUS WKH DSSOLFDQW PXVW GHVLJQDWH D FRQWDFW ORFDWHG LQ WKH 8QLWHG 6WDWHV IRU SXUSRVHV RI DFWLQJ DV WKH DSSOLFDQW¶V DJHQW IRU VHUYLFH RI SURFHVV UHJDUGOHVV RI ZKHWKHU WKH DSSOLFDQW LV D GRPHVWLF RU IRUHLJQ HQWLW\ $Q DSSOLFDQW ORFDWHG LQ WKH 8QLWHG 6WDWHV PD\ GHVLJQDWH LWVHOI DV WKH DJHQW IRU VHUYLFH RI SURFHVV 86 $JHQW 'HVLJQDWLRQ IRU 6HUYLFH RI 3URFHVV  &HUWLILFDWLRQ $WWHVWDWLRQ /HWWHU  )HGHUDO &RPPXQLFDWLRQV &RPPLVVLRQ $XWKRUL]DWLRQ DQG (YDOXDWLRQ 'LYLVLRQ  2DNODQG 0LOOV 5RDG &ROXPELD 0'  86$ $771 5HYLHZLQJ (QJLQHHU )&& ,' $$2< 3HU VHFWLRQ  G  RI WKH )&& UXOHV 0LWHN &RUS ³WKH DSSOLFDQW ́ FHUWLILHV WKDW WKH HTXLSPHQW IRU ZKLFK DXWKRUL]DWLRQ LV VRXJKW LV GHVLJQDWHG WR WKHIROORZLQJ 86 DJHQW IRU VHUYLFH RI SURFHVV &RPSDQ\ 1DPH 0LWHN &RUS )&& 5HJLVWUDWLRQ 1XPEHU )51   3K\VLFDO 86 &RPSDQ\ $GGUHVV  ( %DVHOLQH 5G 3KRHQL[  $UL]RQD  8QLWHG 6WDWHV &RQWDFW 3HUVRQ 6LPRQ %URDGOH\ $JHQW (PDLO $GGUHVV VLPRQEURDGOH\#PLWHNXVDFRP 7KH DERYH FRQWDFW SHUVRQ DFFHSWV WKH REOLJDWLRQ IRU VHUYLFH RI SURFHVV 7KH DSSOLFDQW DFFHSWV WR PDLQWDLQ DQ DJHQW IRU QR OHVV WKDQ RQH \HDU DIWHU WKH JUDQWHH KDV WHUPLQDWHG DOO PDUNHWLQJ DQG LPSRUWDWLRQ RU WKH FRQFOXVLRQ RI DQ\ &RPPLVVLRQUHODWHG SURFHHGLQJ LQYROYLQJ WKH HTXLSPHQW $SSOLFDQW 6LJQHG$JHQW 6LJQHG LI GLIIHUHQW WR $SSOLFDQW  6LJQHG6LJQHG 3ULQWHG QDPH 6LPRQ %URDGOH\ 3ULQWHG QDPH &OLFNKHUHWRHQWHUWH[W 7LWOH 93 RI (QJLQHHULQJ 7LWOH &OLFNKHUHWRHQWHUWH[W &RPSDQ\ 1DP H 0LWHN &RUS &RPSDQ\ 1DPH &OLFNKHUHWRHQWHUWH[W 'DWH 'DWH &OLFNKHUHWRHQWHUDGDWH

0LWHN &RUS &RYHUHG (TXLSPHQW &HUWLILFDWLRQ $WWHVWDWLRQ /HWWHU  )HGHUDO &RPPXQLFDWLRQV &RPPLVVLRQ $XWKRUL]DWLRQ DQG (YDOXDWLRQ 'LYLVLRQ  2DNODQG 0LOOV 5RDG &ROXPELD 0'  86$ $771 5HYLHZLQJ (QJLQHHU )&& ,' $$2< 0LWHN &RUS ³WKH DSSOLFDQW ́ FHUWLILHV WKDW WKH HTXLSPHQW IRU ZKLFK DXWKRUL]DWLRQ LV VRXJKW LV QRW ³FRYHUHG ́ HTXLSPHQW SURKLELWHG IURP UHFHLYLQJ DQ HTXLSPHQW DXWKRUL]DWLRQ SXUVXDQW WR VHFWLRQ  RI WKH )&& UXOHV 1RWH ,I WKH HTXLSPHQW IRU ZKLFK WKH DSSOLFDQW VHHNV DXWKRUL]DWLRQ LV SURGXFHG E\ DQ\ RI WKH HQWLWLHV LGHQWLILHG RQ WKH FXUUHQW&RYHUHG /LVW  WKH DSSOLFDQW VKRXOG LQFOXGH DQ H[SODQDWLRQ RQ ZK\ WKH HTXLSPHQW LV QRW ³FRYHUHG ́ HTXLSPHQW 6LJQHG 3ULQWHG QDPH 6LPRQ %URDGOH\ 7LWOH 93 RI (QJLQHHULQJ &RPSDQ\ 1DPH 0LWHN &RUS 'DWH

0LWHN &RUS &RYHUHG (TXLSPHQW &HUWLILFDWLRQ $WWHVWDWLRQ /HWWHU  )HGHUDO &RPPXQLFDWLRQV &RPPLVVLRQ $XWKRUL]DWLRQ DQG (YDOXDWLRQ 'LYLVLRQ  2DNODQG 0LOOV 5RDG &ROXPELD 0'  86$ $771 5HYLHZLQJ (QJLQHHU )&& ,' $$2< 0LWHN &RUS ³WKH DSSOLFDQW ́ FHUWLILHV WKDW DV RI WKH GDWH RI WKH ILOLQJ RIWKH DSSOLFDWLRQ WKH DSSOLFDQW LV QRW LGHQWLILHG RQ WKH &RYHUHG /LVW DV DQ HQWLW\ SURGXFLQJ ³FRYHUHG ́ HTXLSPHQW 6LJQHG 3ULQWHG QDPH 6LPRQ %URDGOH\ 7LWOH 93 RI (QJLQHHULQJ &RPSDQ\ 1DPH 0LWHN &RUS 'DWH

Mitek Corp DATE : 2023.03.02 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint ESTTechnologyCo.,Ltd. Address:Chilingxiang,Qishantou,Santun, Houjie,Dongguan,Guangdong,China(Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with MitekCorp Address:4545EBaselineRd,Phoenix, Arizona,85042,UnitedStates(Applicant Name and address) <Signature> Name: Simon Broadley Title: VP of Engineering Company: Mitek Corp

Mitek Corp DATE : 2023.03.02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AAOY-715005354 Product Name: BRP ATV Sound System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Simon Broadley Title: VP of Engineering Company: Mitek Corp

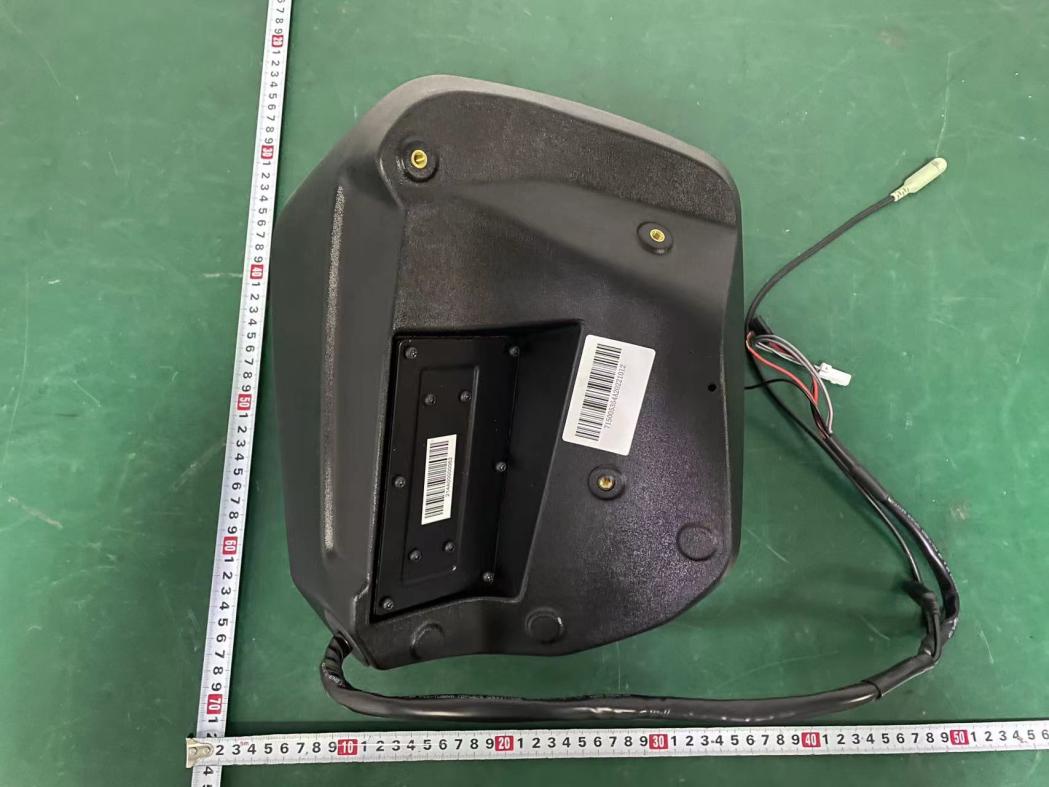

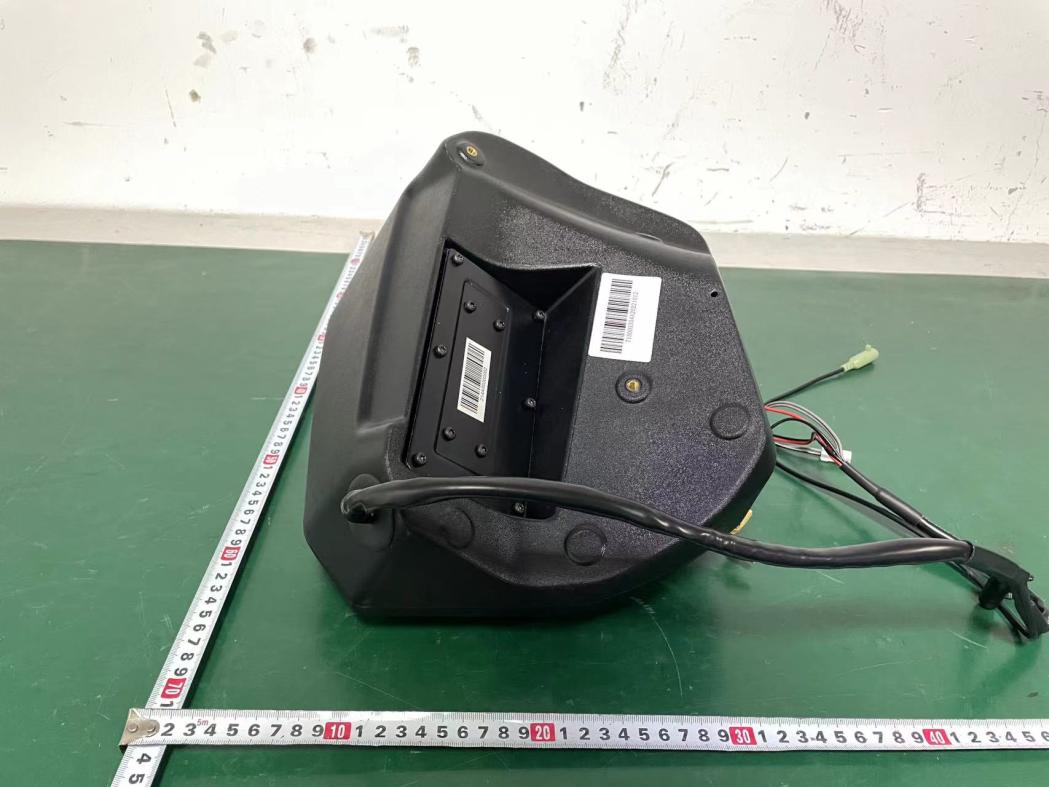

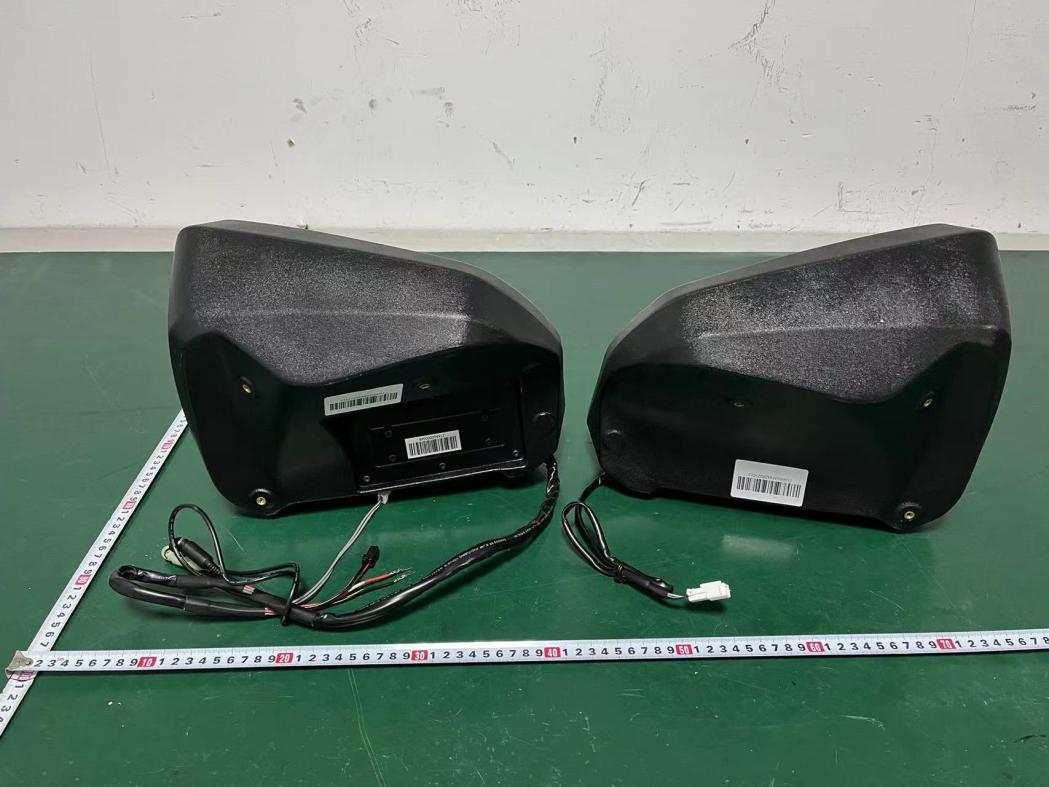

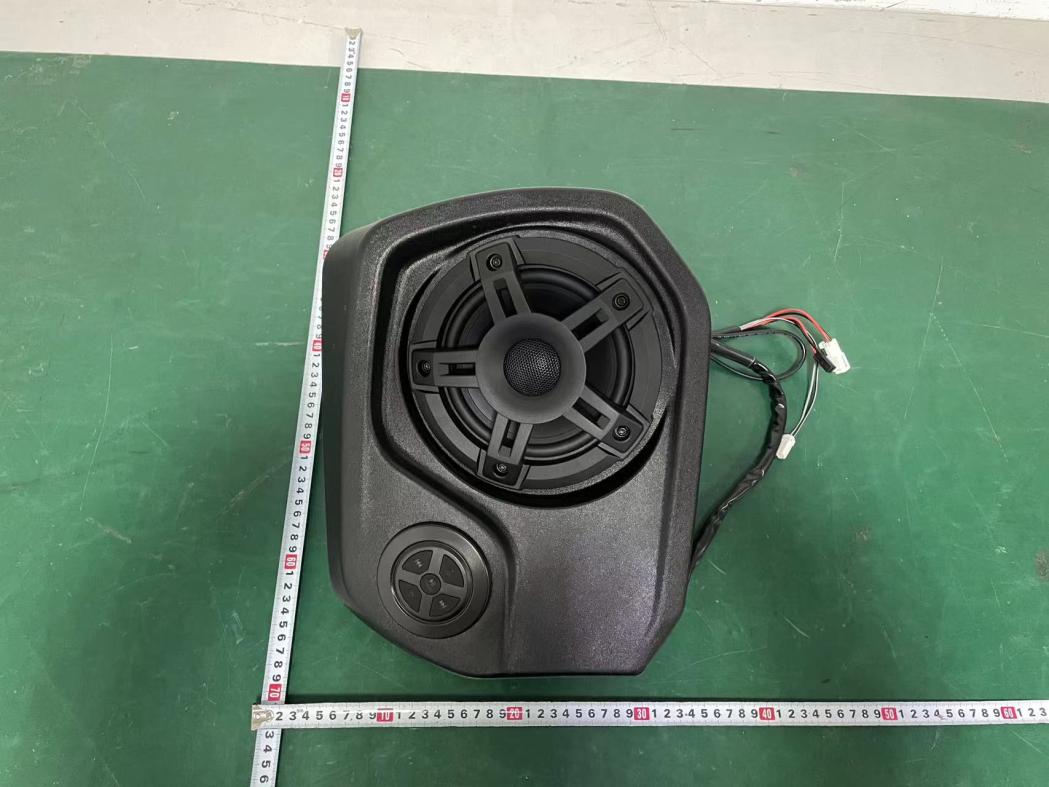

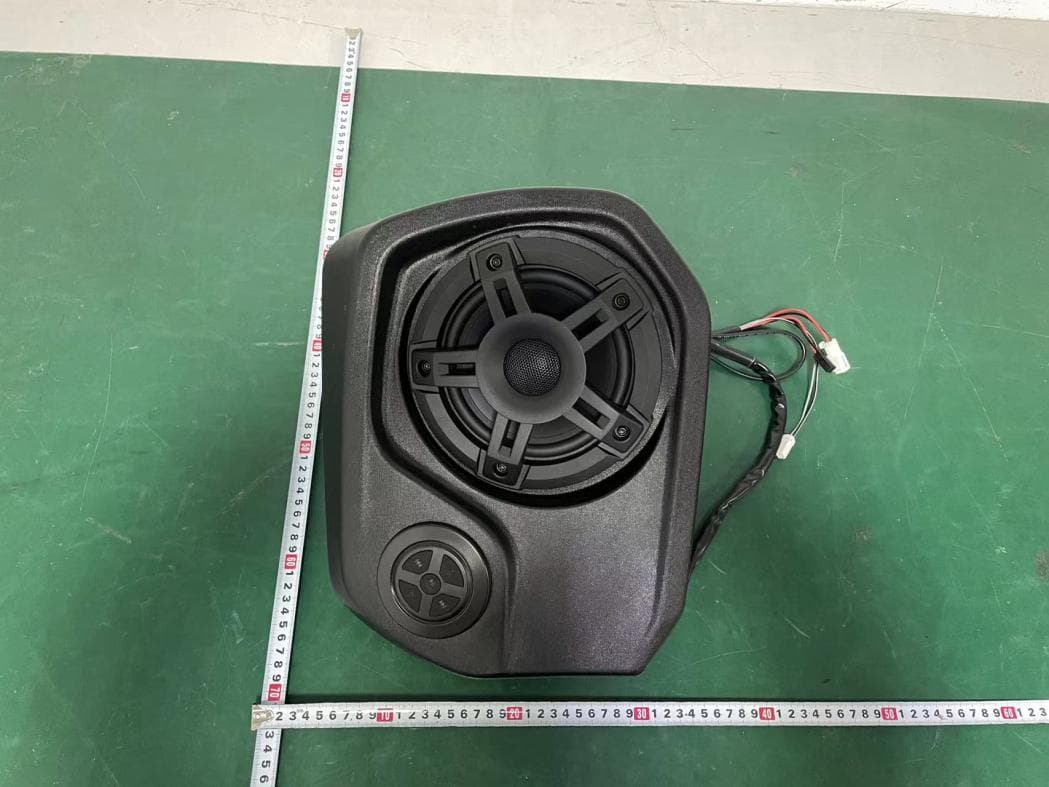

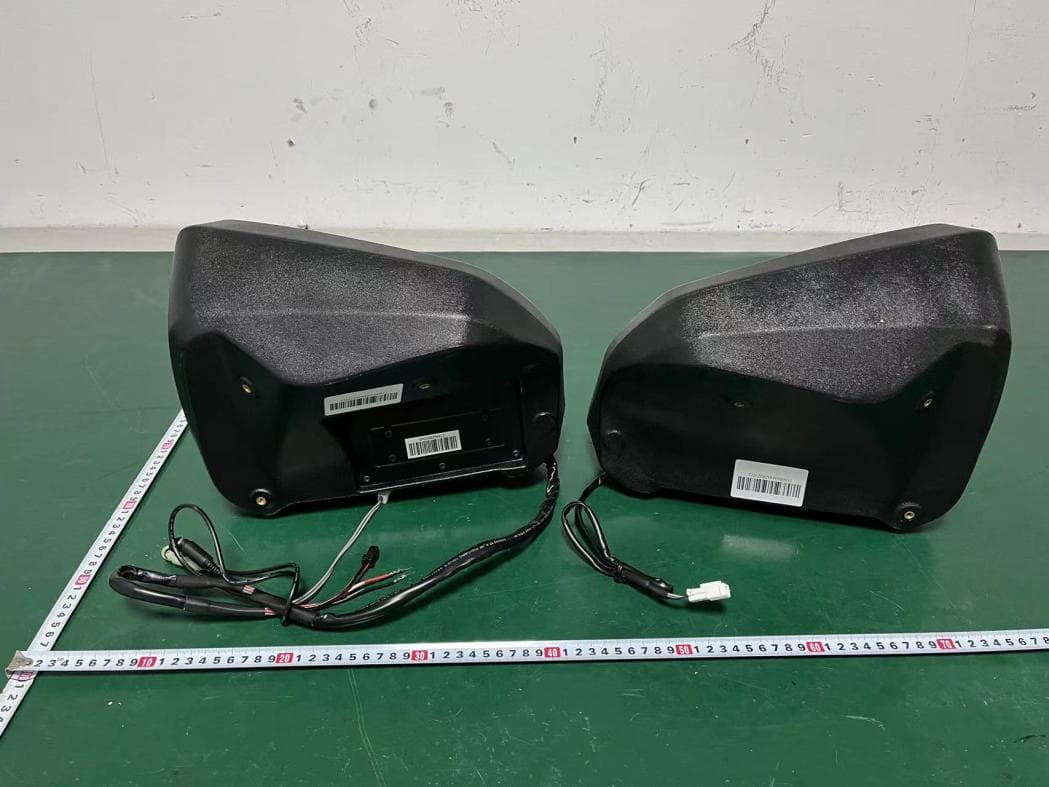

External photos M/N: 715005354 External photos M/N: 715005354 External photos M/N: 715005354 External photos M/N: 715005354

Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Internal photos M/N: 715005354 Bluetooth antenna

FCC ID: 2AAOY-715005354 EST Technology Co. ,Ltd Report No. ESTE-R2303013 Page 1 of 4 FCC 47 CFR MPE REPORT Mitek Corp BRP ATV Sound System Model Number: 715005354 FCC ID: 2AAOY-715005354 Applicant: Mitek Corp Address: 4545 E Baseline Rd, Phoenix, Arizona, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2303013 Date of Test: Dec. 22, 2022~Mar. 01, 2023 Date of Report: Mar. 02, 2023 FCC ID: 2AAOY-715005354 EST Technology Co. ,Ltd Report No. ESTE-R2303013 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AAOY-715005354 EST Technology Co. ,Ltd Report No. ESTE-R2303013 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AAOY-715005354 EST Technology Co. ,Ltd Report No. ESTE-R2303013 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 0.67 1.167 2441 2.44 1.754 2480 2.93 1.963 π/4-DQPSK 2402 -1.89 0.647 2441 0.36 1.086 2480 0.94 1.242 8-DPSK 2402 -1.52 0.705 2441 0.71 1.178 2480 1.15 1.303 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) GFSK 2.93 2±1 3 0 1.000 0.00040 1 Complies π/4-DQPSK 0.94 0±1 1 0 1.000 0.00025 1 Complies 8-DPSK 1.15 1±1 2 0 1.000 0.00032 1 Complies End of Test Report

Antenna describe 1. Antenna describe: Antenna plate Monoploe antenna Make name/model name BC8 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Location of mearement(company name) SHENZHENSHIHUIJIE TECHNOLOGY.CO.,LTD 2. External view drawing: Picture of antenna 3.Antenna Radiation Pattern Radiation [email protected] Total Average Gain:-0.475dbi Phi Gain 0 45 90 135 180 235 270 315 -0.1 -0.3 -0.8 -0.5 -0.2 -0.6 -0.8 -0.5 Radiation [email protected] Total Average Gain:-0.275dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.3 -0.6 -0.1 -0.2 -0.6 -0.4 Radiation [email protected] Total Average Gain:-0.237dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.2 -0.5 0 -0.3 -0.6 -0.2

FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 1 of 79 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Mitek Corp BRP ATV Sound System Model Number: 715005354 FCC ID: 2AAOY-715005354 Applicant : Mitek Corp Address: 4545 E Baseline Rd, Phoenix, Arizona, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2303012 Date of Test: Dec. 22, 2022~Mar. 01, 2023 Date of Report: Mar. 02, 2023 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 2 of 79 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 12 4. 20 DB BANDWIDTH ....................................................................................................................... 13 4.1. Limit ............................................................................................................................................... 13 4.2. Test Setup ....................................................................................................................................... 13 4.3. Spectrum Analyzer Setting ............................................................................................................. 13 4.4. Test Procedure ................................................................................................................................ 13 4.5. Test Result ...................................................................................................................................... 13 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 14 5.1. Limit ............................................................................................................................................... 14 5.2. Test Setup ....................................................................................................................................... 14 5.3. Spectrum Analyzer Setting ............................................................................................................. 14 5.4. Test Procedure ................................................................................................................................ 14 5.5. Test Result ...................................................................................................................................... 14 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 15 6.1. Limit ............................................................................................................................................... 15 6.2. Test Setup ...................................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 41 of 79 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 42 of 79 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 43 of 79 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 44 of 79 Appendix C: Carrier frequency separation Test Result Test Mode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.017 ≥0.888 PASS 2441 0.987 ≥0.888 PASS 2480 1.02 ≥0.888 PASS 2DH5 Ant1 2402 1.05 ≥0.882 PASS 2441 1.035 ≥0.882 PASS 2480 1.149 ≥0.882 PASS 3DH5 Ant1 2402 1.005 ≥0.854 PASS 2441 1.158 ≥0.854 PASS 2480 1.014 ≥0.854 PASS FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 45 of 79 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 46 of 79 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 47 of 79 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 48 of 79 Appendix D: Number of hopping channels Test Result Test Mode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 49 of 79 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 50 of 79 Appendix E: Time of occupancy Test Result Test Mode Antenna Freq(MHz) Burst Width [ms] Total Hops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.41 320 0.131 ≤0.4 PASS DH3 Ant1 Hop 1.65 160 0.264 ≤0.4 PASS DH5 Ant1 Hop 2.90 106.67 0.309 ≤0.4 PASS 2DH1 Ant1 Hop 0.42 320 0.135 ≤0.4 PASS 2DH3 Ant1 Hop 1.66 160 0.266 ≤0.4 PASS 2DH5 Ant1 Hop 2.90 106.67 0.309 ≤0.4 PASS 3DH1 Ant1 Hop 0.42 320 0.135 ≤0.4 PASS 3DH3 Ant1 Hop 1.66 160 0.266 ≤0.4 PASS 3DH5 Ant1 Hop 2.90 106.67 0.309 ≤0.4 PASS FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 51 of 79 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 52 of 79 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 53 of 79 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 54 of 79 Appendix F: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.93 2.10 2441 2440.95 3.08 2480 2479.78 3.65 2DH5 Ant1 2402 2401.81 -2.51 2441 2440.95 0.19 2480 2480.11 0.80 3DH5 Ant1 2402 2401.77 -1.41 2441 2440.77 0.38 2480 2479.77 1.23 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 55 of 79 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 56 of 79 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 57 of 79 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 58 of 79 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch Name Freq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 2.10 -44.9 ≤-17.9 PASS High 2480 3.65 -51.52 ≤-16.35 PASS Low Hop_2402 2.62 -51.56 ≤-17.38 PASS High Hop_2480 3.27 -47.53 ≤-16.73 PASS 2DH5 Ant1 Low 2402 -2.51 -50.64 ≤-22.51 PASS High 2480 0.80 -50.74 ≤-19.2 PASS Low Hop_2402 -0.85 -52.06 ≤-20.85 PASS High Hop_2480 -1.87 -49.74 ≤-21.87 PASS 3DH5 Ant1 Low 2402 -1.41 -51.17 ≤-21.41 PASS High 2480 1.23 -52.07 ≤-18.77 PASS Low Hop_2402 -4.12 -51.79 ≤-24.12 PASS High Hop_2480 0.87 -48.07 ≤-19.13 PASS FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 59 of 79 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 60 of 79 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 61 of 79 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 62 of 79 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 63 of 79 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 2.10 -43.35 ≤-17.9 PASS 2441 30~26500 3.08 -42.45 ≤-16.92 PASS 2480 30~26500 3.65 -43.16 ≤-16.35 PASS 2DH5 Ant1 2402 30~26500 -2.51 -42.85 ≤-22.51 PASS 2441 30~26500 0.19 -43.6 ≤-19.81 PASS 2480 30~26500 0.80 -43.23 ≤-19.2 PASS 3DH5 Ant1 2402 30~26500 -1.41 -42.57 ≤-21.41 PASS 2441 30~26500 0.38 -43.03 ≤-19.62 PASS 2480 30~26500 1.23 -33.95 ≤-18.77 PASS FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 64 of 79 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 65 of 79 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 66 of 79 3DH5_Ant1_2402_30~26500 3DH5_Ant1_2441_30~26500 3DH5_Ant1_2480_30~26500 FCC ID: 2AAOY-715005354 EST Technology Co., Ltd Report No. ESTE-R2303012 Page 67 of 79 13. TEST SETUP PHOTO Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2AAOY-7150…

Text truncated - open the document above for the full version.

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz
