2AAWXKB001Bluetooth Keyboard

Bluetooth Keyboard User’s Guide Model Name: BTKYB-001 FCC ID: 2AAWXKB001 CAUTION: To use this product properly, please read the user's guide before installation Welcome Congratulations on selecting Bluetooth Keyboard as your input device. The super thin (only 5.8mm thick) keyboard is lightweight and crafted with precision typing design. It is the ideal product for your tablet and other Bluetooth enabled device. Overview - Blue LED Blinking: Pairing - Red LED on: Charging - Green LED on: Full Charged - Yellow LED on: Low in Battery - White LED: Capslock Status Installation Guide Step 1. Charging the battery When to charge 1 First-Time Use: Please charge at least 2 hours for the first time usage and charge at least 1 hours when battery runs low 2 When the yellow LED starts blinking, it means the battery is nearly empty How to charge Plug the USB cable into your keyboard and computer by USB port respectively and it starts charging. Step 2. Pairing your Bluetooth Keyboard with your tablet 1 Turn on the keyboard and press the PAIR button on the keyboard, the LED light will blink blue. Turn on your tablet, and tap“ Settings” 2 Select “Wireless and networks”, enable the Bluetooth function, and tap “Bluetooth settings” 3 Your tablet will start to search Bluetooth keyboard，after finding “ Bluetooth Keyboard ”, then you should tap “ Bluetooth Keyboard”, it will start connecting 4 You will now be prompted to enter a PIN number using your keyboard. Enter the 4 digit PIN from your keyboard and press ENTER. Product Specifications  Bluetooth Specification: Version 2.0  Range of Frequency: 2.4GHz Spectrum  Operating Voltage: 3.7Vdc ( powered by Li-ion )  Operation Current: < 3mA  Standby Current: 0.5 mA  Sleep Current: < 0.2 mA  Transmit Range: up to 10 meters  Storage Temperature: -40 ~ +125 degree What's in the box?  Cover with Bluetooth wireless keyboard and stand  USB to micro USB charging cable  User documentation Important Regulatory Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Sep. 03, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AAWXKB001 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Incipio Technologies, Inc. Contact person: C K Li Title: Manager

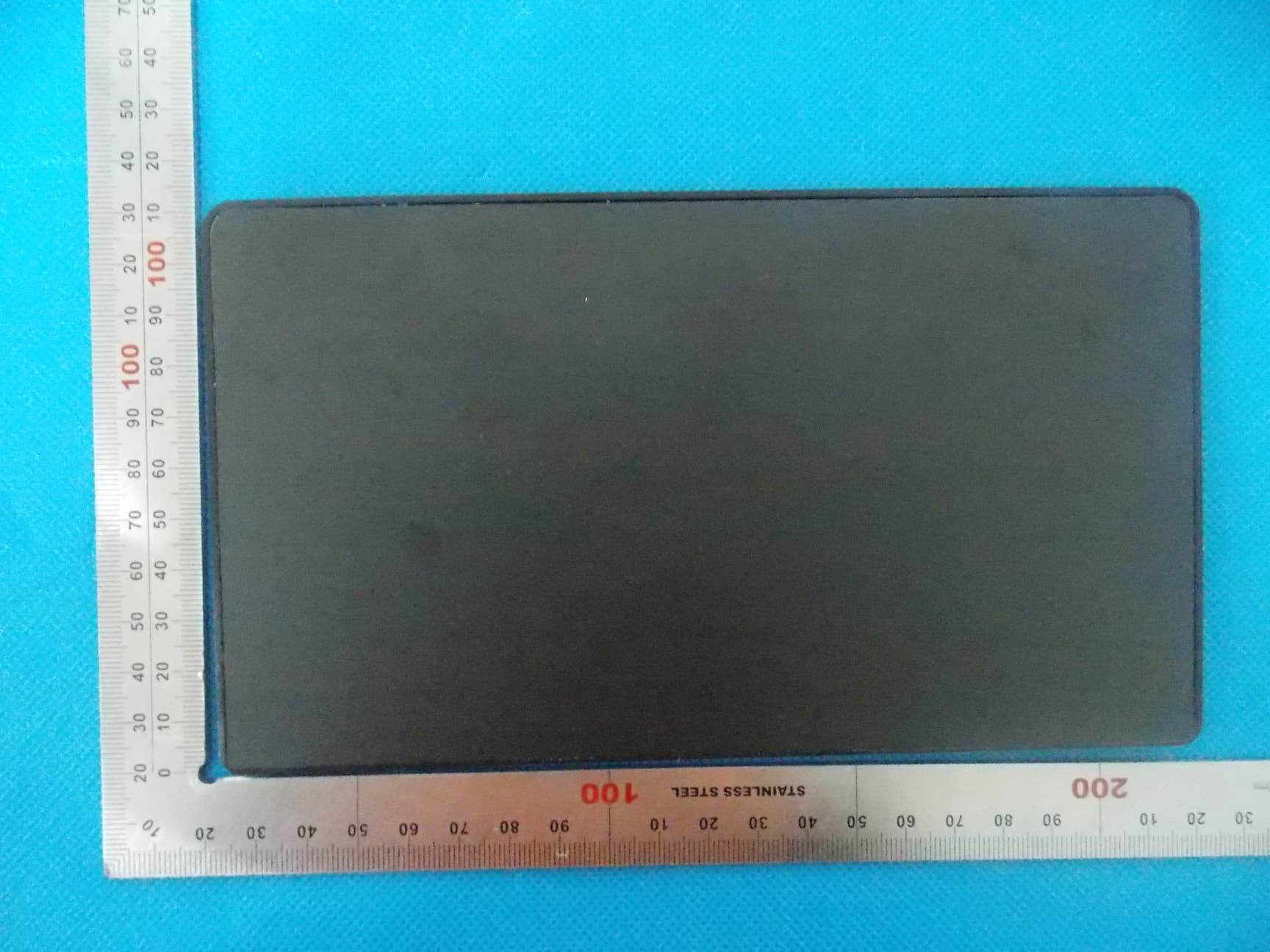

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth Keyboard Model:BTKYB-001 FCC ID: 2AAWXKB001

Internal Photos INTERNAL VIEW OF EUT‐1 INTERNAL VIEW OF EUT‐2 BT Antenna INTERNAL VIEW OF EUT‐3

Report No.: AGC00005130803FE03 Page 1 of 49 FCC Test Report Report No.: AGC00005130803FE03 FCC ID : 2AAWXKB001 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Keyboard BRAND NAME : N/A MODEL NAME : BTKYB-001 CLIENT : Incipio Technologies, Inc. DATE OF ISSUE : Aug.31,2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00005130803FE03 Page 2 of 49 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug.31,2013 Valid Original Report Report No.: AGC00005130803FE03 Page 3 of 49 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ......................................................................................................... 5 2. GENERAL INFORMATION ..................................................................................................................... 6 2.1. PRODUCT DESCRIPTION................................................................................................................6 2.2. TABLE OF CARRIER FREQUENCYS ...............................................................................................6 2.3. RECEIVER INPUT BANDWIDTH ......................................................................................................7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE .................................................................7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ...................................................7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................8 2.7. TEST METHODOLOGY ....................................................................................................................8 2.8. SPECIAL ACCESSORIES .................................................................................................................8 2.9. EQUIPMENT MODIFICATIONS ........................................................................................................8 3. MEASUREMENT UNCERTAINTY ........................................................................................................... 9 4. DESCRIPTION OF TEST MODES ........................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ....................................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ............................................................................................. 10 5.2. EQUIPMENT USED IN EUT SYSTEM ............................................................................................ 10 5.3. SUMMARY OF TEST RESULTS ..................................................................................................... 10 6. TEST FACILITY..................................................................................................................................... 11 7. PEAK OUTPUT POWER ....................................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ..................................................................................................... 12 4. RBW > the 20 dB bandwidth of the emission being measured, VBW  RBW. .................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT.......................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ..................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ....................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION .................................................................................................. 18 9.1. MEASUREMENT PROCEDURE ..................................................................................................... 18 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 18 9.3. MEASUREMENT EQUIPMENT USED ............................................................................................ 18 9.4. LIMITS AND MEASUREMENT RESULT.......................................................................................... 18 10. RADIATED EMISSION ........................................................................................................................ 22 10.1. MEASUREMENT PROCEDURE ................................................................................................... 22 Report No.: AGC00005130803FE03 Page 4 of 49 10.2. TEST SETUP ................................................................................................................................ 24 10.3. TEST RESULT .............................................................................................................................. 25 11. BAND EDGE EMISSION ..................................................................................................................... 29 11.1. MEASUREMENT PROCEDURE ................................................................................................... 29 11.2. TEST SET-UP..........................................................................................................…

Text truncated - open the document above for the full version.

Te s t Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
