2AAWXPW-201PROMPT AUTO Visual Notification Car Charger

AUTO CAR CHARGER AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO Auto Auto AUTO Car Charger It’s also a 2.4A car charger







   !
     " # $

    % #& $
          %
      ' ()*+,-.*/-/0123*-+4*5)67,8+59:;<7<,<3*/-7/-=->-125?@@ +5<7,<9,A+BCD2-9<5*07*++8EF-/5505)-G03304*7H504/07,*5*07+I AJB5)*+,-.*/-1<:705/<8+-*75-9G-9-7/-K<7,ALB5)*+,-.*/-18+5 <//-25<7:*75-9G-9-7/-K*7/38,*7H*75-9G-9-7/-5)<51<:/<8+- 87,-+*9-,02-9<5*070G5)-,-.*/-C M-29N+-75<22<9-*3-+5/07G091-<8>;O?,P67,8+59*-;<7<,< <223*/<E3-+<8><22<9-*3+9<,*0->-125+,-3*/-7/-CMP->230*5<5*07 -+5<8509*+N-<8>,-8>/07,*5*07++8*.<75-+IAJB3P<22<9-*37-,0*5 2<+290,8*9-,-E908*33<H-K-5ALB3P85*3*+<5-89,-3P<22<9-*3,0*5 <//-25-95085E908*33<H-9<,*0N3-/59*Q8-+8E*K1R1-+*3-E908*33<H- -+5+8+/-25*E3-,P-7/012901-559-3-G07/5*077-1-75C

Incipio Technologies, Inc. ADD: 6001 Oak Canyon, Irvine, CA, USA TEL: +1 949.236.7371 FAX: 949-250-4928 Date (10/02/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We,Incipio Technologies, Inc.,hereby authorize Wilson Sung (TUV SUD HK LTD)to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires onAug. 10, 2015. Sincerely, Company Officer:Carlos del Toro Telephone Number: +1 949.236.7371 Email:[email protected]

Incipio Technologies, Inc. ADD: 6001 Oak Canyon, Irvine, CA, USA TEL: +1 949.236.7371 FAX: 949-250-4928 Date (10/02/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID:2AAWXPW-201 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules,Incipio Technologies, Inc.hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1. Schematics 2. Bill of Materials/Parts List 3. Block Diagrams 4. Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer:Carlos del Toro Telephone Number: +1 949.236.7371 Email:[email protected]

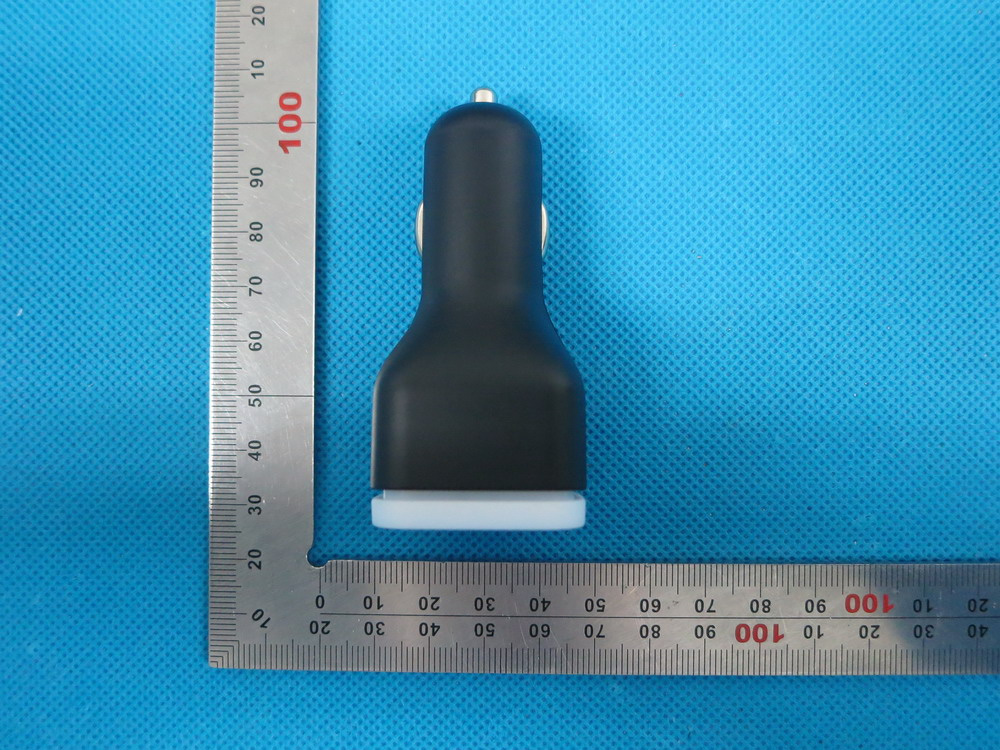

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID/IC Label Location Model: PW‐201 Brand Name:INCIPIO FCC ID: 2AAWXPW-201 IC:11525A-PW201

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 1.72mW @ 2.440GHz For the head and body SAR, use 50mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] = 0.054 ≤ 3.0 So standalone SAR measurements are not required for both head and body.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288FAX: +86-755 3688 6277E-mail:[email protected] FCC TESTREPORT Report No: STS1502041 Issued for Incipio Technologies, Inc. 6001 Oak Canyon, Irvine, CA 92618, USA Product Name: PROMPT AUTO Visual Notification Car Charger Brand Name: INCIPIO Model No.: PW-201 FCC ID: 2AAWXPW-201 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 46 Report No.:STS1502041 TEST RESULT CERTIFICATION Applicant’s name ................. : Incipio Technologies, Inc. Address ................................. : 6001 Oak Canyon, Irvine, CA 92618, USA Manufacture's Name ............ : Incipio Technologies, Inc Address ................................. : 6001 Oak Canyon, Irvine, CA 92618, USA Product description Product name........................... : PROMPT AUTO Visual Notification Car Charger Band name ............................... : INCIPIO Model and/or type reference ............................. : PW-201 Ratings ................................... DC12V by car source Standards ............................. : FCC Part15.247 Test procedure .............................. : ANSI C63.4-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ......................................... : Date (s) of performance of tests ............ : Nov.11,2014~Feb.07, 2015 Date of Issue ........................................ : Feb.07, 2015 Test Result ............................................ : Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 46 Report No.:STS1502041 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.3BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4EUT OPERATING CONDITIONS 14 3.1.5TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1RADIATED EMISSION LIMITS 15 3.2.2 TEST PROCEDURE 16 3.2.3 DEVIATION FROM TEST STANDARD 16 3.2.4 TESTSETUP 17 3.2.5EUT OPERATING CONDITIONS 18 3.2.6 TEST RESULTS 19 4. BANDWIDTH TEST 36 4.1APPLIED PROCEDURES / LIMIT 36 4.2 TEST PROCEDURE 36 4.3 TEST SETUP 36 4.4 EUT OPERATION CONDITIONS 36 4.5TEST RESULTS 37 5. OUTPUT POWER TEST 39 5.1 APPLIED PROCEDURES / LIMIT 39 5.2 TEST PROCEDURE 39 5.3 TEST SETUP 39 5.4 EUT OPERATION CONDITIONS 39 Page 4 of 46 Report No.:STS1502041 Table of Contents Page 6. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY 42 6. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY 42 6.1 MEASUREMENT PROCEDURE 42 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) 42 6.3 LIMITS AND MEASUREMENT RESULT 42 7. ANTENNA REQUIREMENT 45 7.1 STANDARD REQUIREMENT 45 7.2 EUT ANTENNA 45 APPENDIX-PHOTOS OF TEST SETUP 46 Page 5 of 46 Report No.:STS1502041 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark §15.203 Antenna Requirement Compliant §15.209 §15.247(d) Radiated Emission Compliant §15.247(d) Band Edges Compliant §15.247 Bandwidth Compliant §15.247(b) Output power Compliant §15.247(e) Maximum Conducted Output Power SPECTRAL Density Compliant §15.207 Line Conduction Emission N/A Note:N/A means not applicable. Page 6 of 46 Report No.:STS1502041 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 46 Report No.:STS1502041 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment PROMPT AUTO Visual Notification Car Charger Trade Name INCIPIO Model Name PW-201 Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz Modulation: GFSK Hardware version number N/A Software versioningnumber N/A Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 46 Report No.:STS1502041 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2.402 MHZ 14 2.430MHZ 28 2.458 MHZ 1 2.404MHZ 15 2.432 MHZ 29 2.460 MHZ 2 2.406 MHZ 16 2.434 MHZ 30 2.462 MHZ 3 2.408 MHZ 17 2.436 MHZ 31 2.464 MHZ 4 2.410 MHZ 18 2.438 MHZ 32 2.466 MHZ 5 2.412 MHZ 19 2.440 MHZ 33 2.468 MHZ 6 2.414 MHZ 20 2.442MHZ 34 2.470 MHZ 7 2.416 MHZ 21 2.444 MHZ 35 2.472 MHZ 8 2.418 MHZ 22 2.446 MHZ 36 2.474 MHZ 9 2.420 MHZ 23 2.448 MHZ 37 2.476 MHZ 10 2.422 MHZ 24 2.450 MHZ…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP Radiated Measurement Photos
