2AAXO-CPK565CARPOOL KARAOKE MICROPHONE

Información importante sobre seguridad 1. Lea estas instrucciones. 2. Conserve estas instrucciones. 3. Preste atención a todas las advertencias. 4. Siga todas las instrucciones. 5. No utilice este artefacto cerca del agua. 6. Límpielo únicamente con un paño seco. 7. No obstruya las aberturas para ventilación. Instálelo de acuerdo con las instrucciones del fabricante. 8. No instale cerca de fuentes de calor, como radiadores, rejillas de calefacción, estufas u otros aparatos (incluso amplificadores) que produzcan calor. 9. Desenchufe este artefacto durante las tormentas eléctricas o cuando no se lo utilice durante períodos prolongados. 10. Derive todas las reparaciones al personal de reparaciones calificado. Es necesario reparar el artefacto cuando se encuentra dañado; por ejemplo, cuando el cable de suministro de energía o el enchufe están dañados, cuando se derrama líquido sobre la unidad o caen objetos dentro del mismo, cuando el producto ha estado expuesto a la lluvia o a la humedad, cuando no funciona con normalidad o cuando se ha caído. 11. ADVERTENCIA: Para reducir el riesgo de incendio o descarga eléctrica, no exponga este artefacto a la lluvia o la humedad. No coloque objetos llenos de agua, como jarrones, sobre el aparato. 12. PRECAUCIÓN: Para reducir el riesgo de incendio o explosión no exponga las baterías al calor excesivo, como al rayo del sol, fuego u otras fuentes de calor. 13. Para evitar una salida de sonido excesivamente amplificada, se recomienda que el control de volumen se ajuste inicialmente a un tercio o menos y luego se aumente si es necesario. Specifications Microphone ........................................................................................... Dynamic Microphone Frequency Range ...................................................................................... 87.5 - 108.0 MHz UHF frequency for duets ....................................................................................... 600 MHz Battery ................................................................................... Lithium ion battery 3.7 V 1.2A Input Power ............................................................................................ Micro USB DC5V 1A Line Out....................................................................................................... 3.5 mm Stereo jack Dimensions ....................................... 3.6 x 2.1 x 10.6 (inches) / 9.2 X 5.4 X 26.8 (cm) WEIGHT................................................................................................ 0.35 (kgs) / 0.77 (lbs) CHARGING THE UNIT 1 Insert the included USB charging cable into micro USB port on bottom of the unit. 2 Plug the other end of the cable into computer USB port or USB charging device charge the unit for 4 hours to ensure it is fully charged. 3 The battery indicator (on display) will slowly flash while the unit is charging. The battery indicator will change to full and solid once the unit is fully charged. NOTE:The battery indicator (on display) will show the battery charge left indicated by the amount of bars. The rechargeable battery must not be replaced by the user. Before you get started Manual What’s in the box Included The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks and logos by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners. AUX AUDIO CONNECTION This unit is able to connect to your car audio, headphones or favorite audio device. You can connect by 3.5mm AUX cord(included). Warnings CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DRIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. Warnings: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To parents recommending that the adaptor be periodically examined for conditions that may result in the risk of fire, electric shock, or injury to persons and that, in an event such conditions, the adaptor should not be used until properly repaired. FCC WARNING:This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiv…

Text truncated - open the document above for the full version.

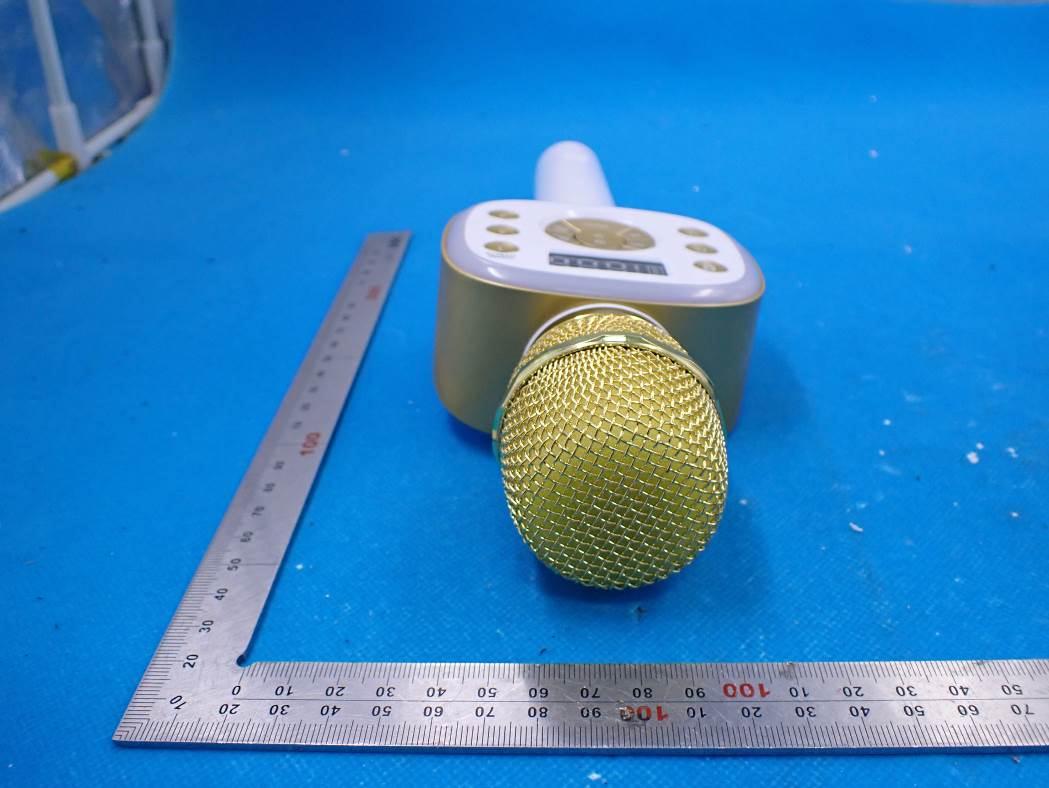

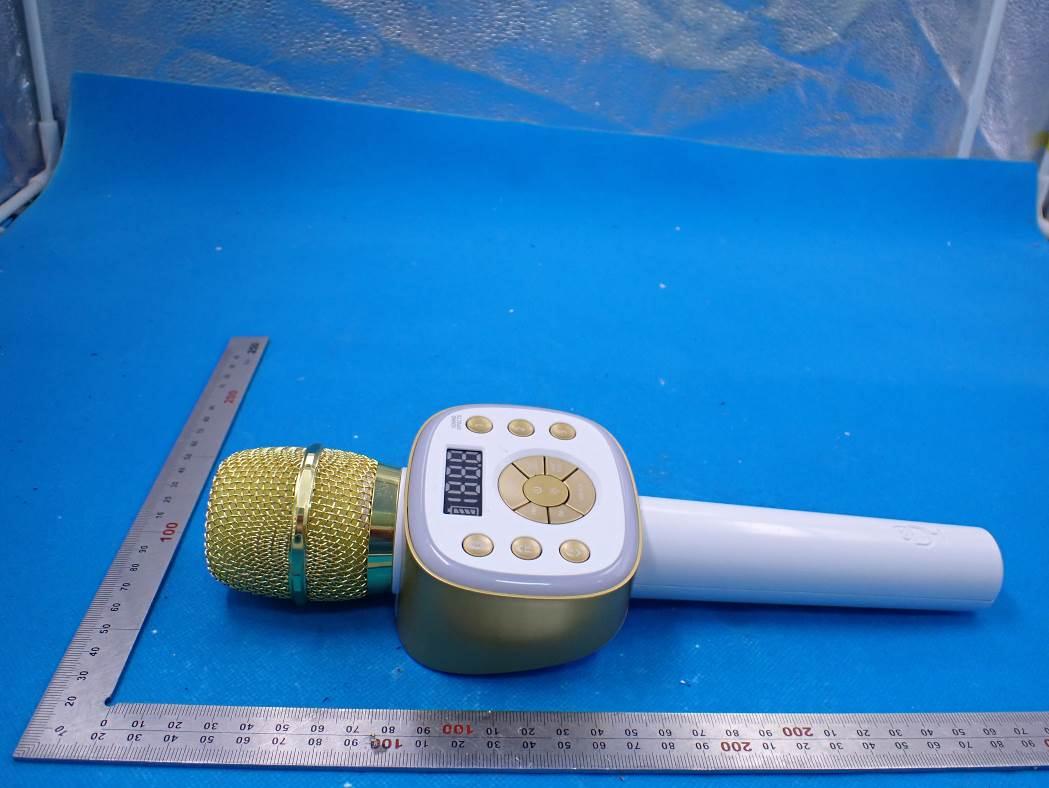

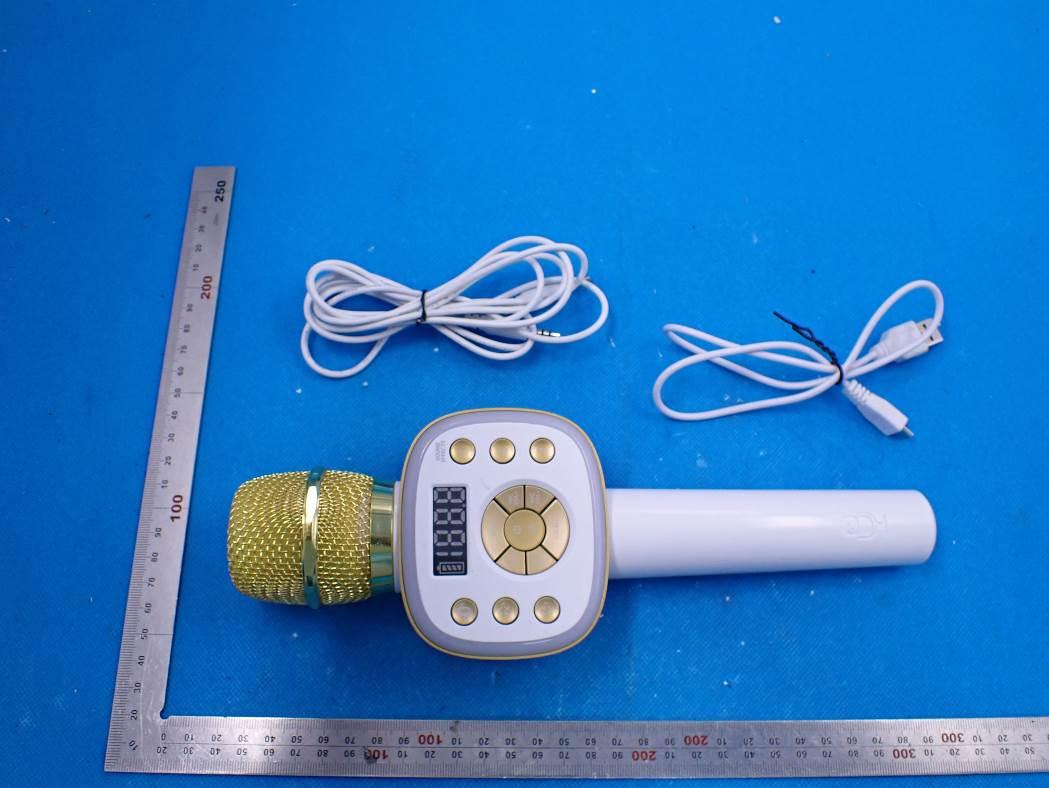

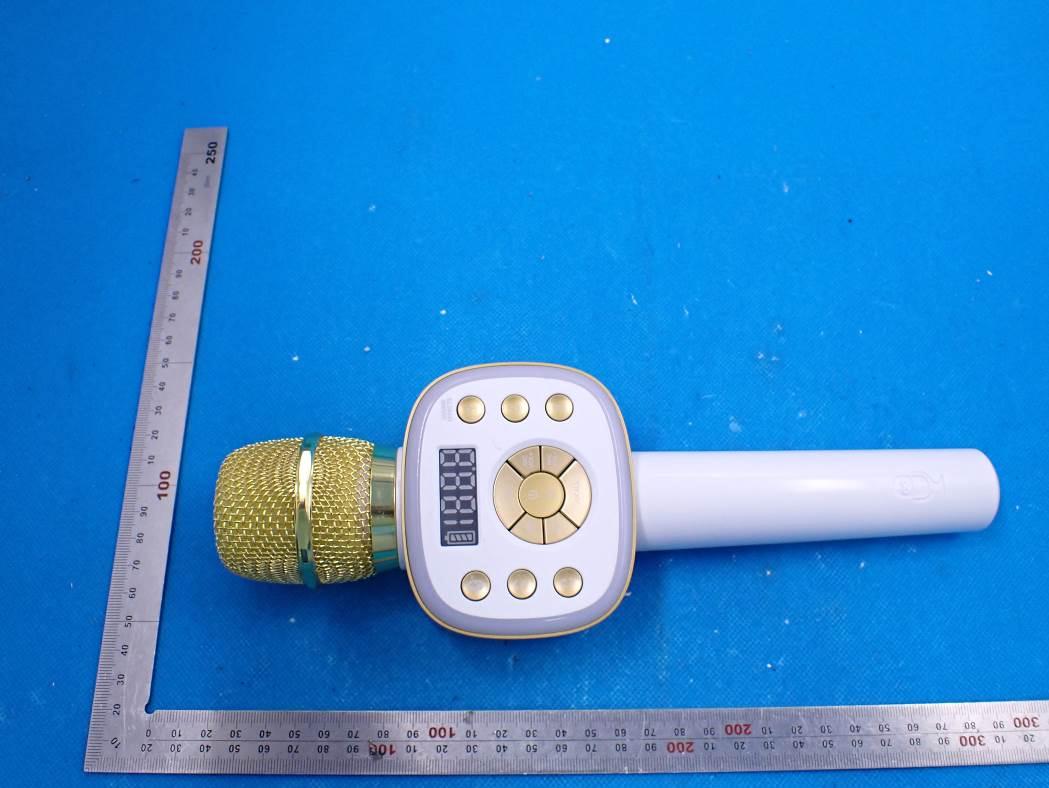

External Photos All VIEW OF EUT EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT EXTERNAL VIEW-7 OF EUT

FCC ID and IC Label Location 30mm*40mm FCC ID: 2AAXO-CPK565 IC: 11387A-CPK565 HVIN: CPK565 30mm*40mm FCC ID: 2AAXO-CPK565 IC: 11387A-CPK565 HVIN: CPK565G 30mm*40mm FCC ID: 2AAXO-CPK565 IC: 11387A-CPK565 HVIN: CPK565R 30mm*40mm FCC ID: 2AAXO-CPK565 IC: 11387A-CPK565 HVIN: CPK565GD 30mm*40mm FCC ID: 2AAXO-CPK565 IC: 11387A-CPK565 HVIN: CPK565RD

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT INTERNAL VIEW-12 OF EUT INTERNAL VIEW-13 OF EUT INTERNAL VIEW-14 OF EUT INTERNAL VIEW-15 OF EUT INTERNAL VIEW-16 OF EUT MIC Antenna BT Antenna INTERNAL VIEW-17 OF EUT INTERNAL VIEW-18 OF EUT FM Antenna

Page 1 of 24 FCC Test Report Report No.: AGC04138210303FE06 FCC ID : 2AAXO-CPK565 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : CARPOOL KARAOKE MICROPHONE BRAND NAME : Singing Machine MODEL NAME : CPK565, CPK565G, CPK565R, CPK565GD, CPK565RD, CPK565XX (XX means unit color, it can be A to Z or N/A) APPLICANT : The Singing Machine Company, Inc. DATE OF ISSUE : May. 17, 2021 STANDARD(S) : FCC Part 15.239 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd Report No.: AGC04138210303FE06 Page 2 of 24 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May. 17, 2021 Valid Initial Release Report No.: AGC04138210303FE06 Page 3 of 24 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................ 4 2. GENERAL INFORMATION ......................................................................................................................... 5 2.1. PRODUCT DESCRIPTION ................................................................................................................... 5 2.2 TABLE OF CARRIER FREQUENCYS ................................................................................................... 5 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4. DESCRIPTION OF TEST MODES .............................................................................................................. 6 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 7 5.1. EQUIPMENT USED IN EUT SYSTEM .................................................................................................. 7 5.2. SUMMARY OF TEST RESULTS ........................................................................................................... 7 6. TEST FACILITY ........................................................................................................................................... 8 7. RADIATED EMISSION ................................................................................................................................ 9 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 9 7.2.TEST SETUP ........................................................................................................................................ 11 7.3. TEST RESULTFOR FIELD STRENGTH OF FUNDAMENTAL ........................................................... 12 7.4. TEST RESULT FOR FIELD STRENGTH OF BAND EDGE EMISSION ............................................. 12 7.5. TEST RESULT FOR SPURIOUS EMISSION ..................................................................................... 13 8. BANDWIDTH ............................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE ......................................................................................................... 15 8.2. TEST SETUP ....................................................................................................................................... 15 8.3. TEST RESULT ..................................................................................................................................... 16 9. FCC LINE CONDUCTED EMISSION TEST ............................................................................................. 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ............................................................................. 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .......................................................... 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................ 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................ 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ..................................................................................... 22 APPENDIX B: PHOTOGRAPHS OF EUT .................................................................................................... 24 Report No.: AGC04138210303FE06 Page 4 of 24 1. VERIFICATION OF CONFORMITY Applicant The Singing Machine Company, Inc. Address 6301 NW 5th Way, Suite 2900 Fort Lauderdale, FL, 33309, U.S.A. Manufacturer The Singing Machine Company, Inc. Address 6301 NW 5th Way, Suite 2900 Fort Lauderdale, FL, 33309, U.S.A. Factory ZHUHAI FULLWING ELECTRONIC CO.,LTD ZHONGSHAN BRANCH Address 4/F & 5/F, No 10, Xingye Road, Xinxu, San Xiang, Zhongshan, Guangdong, China Product Designation CARPOOL KARAOKE MICROPHONE Brand Name Singing Machine Test Model CPK565 Series Model CPK565, CPK565G, CPK565R, CPK565GD, CPK565RD, CPK565XX (XX means unit color, it can be A to Z or N/A) Difference Description All the series models are the same as the test model except for the model names and the color of appearance. Date of test Mar. 22, 2021 to May 14, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF (2013-03-01) We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC part 15.239. Prepared By Thea Huang Project Engineer May 14, 2021 Reviewed By Max Zhang Reviewer May 17, 202…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
