2AAXO-ISM1080WIFI ENABLED PEDESTAL KARAOKE SYSTEM

TM iSM1080 INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES /MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc. — E1 — Important Safety Information 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects filled with water, such as a vase, on the apparatus. 16. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket. 17. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DRIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The rating information is located at the rear of the unit. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. — E2 — Included Please make sure that the following items are included. Wired Microphone x 2 Tower Speaker x 2Pedestal Main Unit Pedestal Feet x 4 Speaker Stand x 2 Pedestal jack cover AC Adapter Manual Speaker Stand Screws x 4 Pedestal Screws x 5 — E3 — Assembly 1 Install the …

Text truncated - open the document above for the full version.

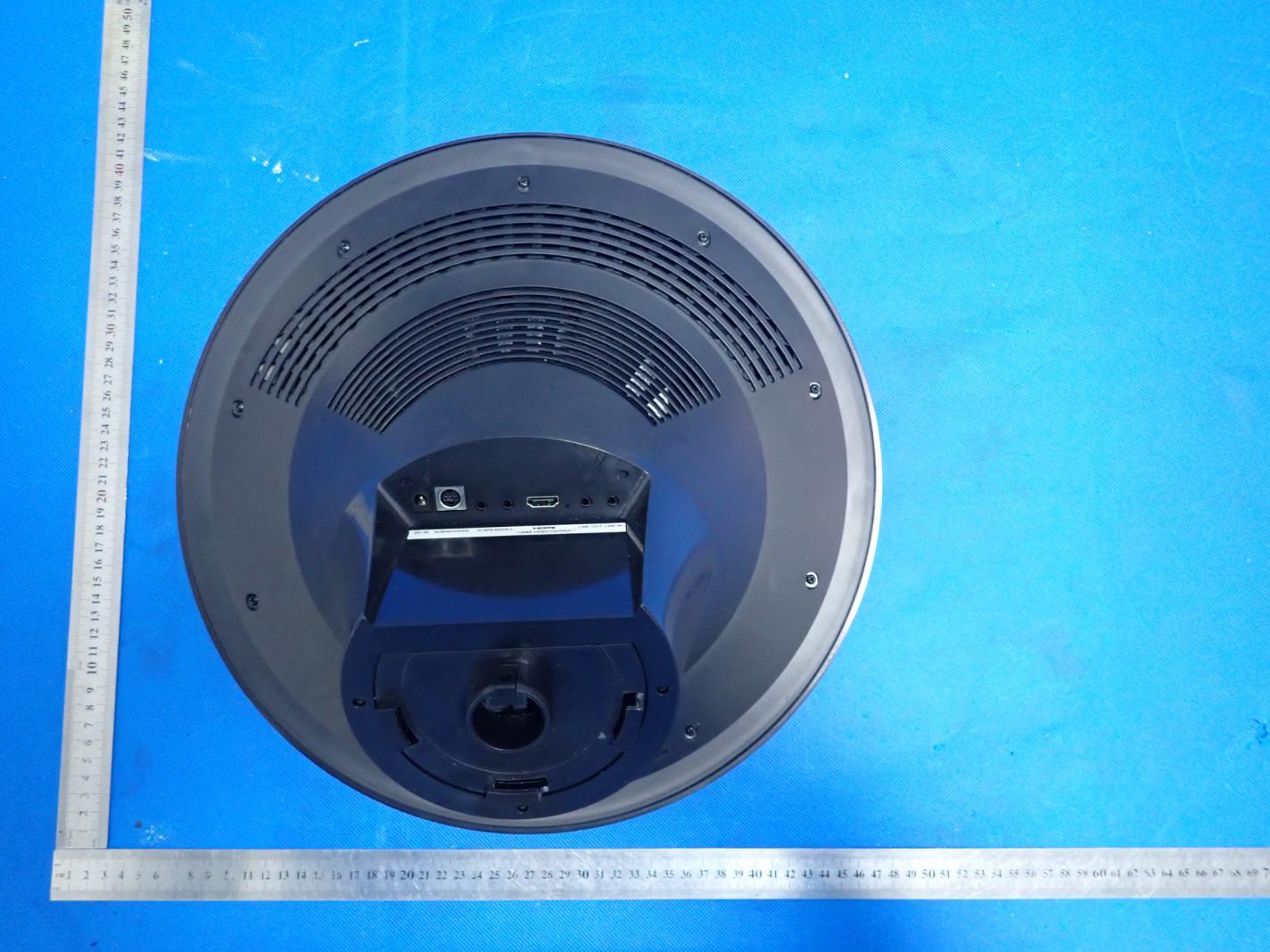

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2 VIEW OF EUT(PORT)-3 ADAPTER

Tower speaker rating label (x2) Size : 55 x 22mm Color : Black B/G, white texts Caution label Size : 58 x 40mm Color : Black B/G, white texts TOWER SPEAKER SYSTEM IMPEDANCE : 4 OHMS MAX. RATED INPUT : 60 WATTS RMS Manufactured date label SIZE: 45MM X 5MM (APPROX.) COLOR: White label with black text e.g. MANUFACTURED: JULY 2020 FW-FullWing 1080-model no. 20-2020 year 000001 - six digits start from 1 *first digit will be “9” for RTV* Serial number & sign-in code label SIZE: 40MM X 10MM (APPROX.) BARCODE: Code 128-A COLOR: White label with black text e.g FW-1080-20-000001 FW-1080-20-000001 Date: 2 Jun 20 + US label WIFI ENABLED PEDESTAL KARAOKE SYSTEM POWER SOURCE: DC 16.1V, 3.5A THE SINGING MACHINE COMPANY INC. 4060 E, JURUPA STREET, UNIT B, ONTARIO, CA 91761-1413, USA © 2020 FCC ID: 2AAXO-ISM1080 Model: iSM1080 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. LINE OUT LINE IN DC INR-SPEAKER-LSUBWOOFER * HDMI VIDEO OUTPUT * Jack + Rating label Color : White sticker with Black print Size : 101 x 70 mm

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT INTERNAL VIEW-12 OF EUT INTERNAL VIEW-13 OF EUT WIFI Antenna BT Antenna INTERNAL VIEW-14 OF EUT INTERNAL VIEW-15 OF EUT INTERNAL VIEW-16 OF EUT INTERNAL VIEW-17 OF EUT INTERNAL VIEW-18 OF EUT

Declaration concerning Antenna Specification It is hereby declared that the product FCC ID : 2AAXO-ISM1080 Model Number: iSM1080, ERP-iSM1080XX (X is reserved for future color change, it can be 0-9, A-Z or NA) fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Type of antenna: 2 Integral Antennas Gain of the antenna: 2 dBi Frequency range: 2.402 GHz to 2.480GHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: The Singing Machine Company Inc. Address: 6301 NW 5th Way, Suite 2900 Fort Lauderdale, FL, 33309, U.S.A. Place: Fort Lauderdale Date: 2020-07-03 Signature:

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description WIFI ENABLED PEDESTAL KARAOKE SYSTEM Model Name iSM1080, ERP-iSM1080XX (X is reserved for future color change, it can be 0-9, A-Z or NA) FCC ID 2AAXO-ISM1080 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. BR/EDR: Antenna Gain=2dBi (Numeric 1.58), π=3.14 2.4G WIFI Antenna Gain=2dBi (Numeric 1.58), π=3.14 Note: 1. Only the worst case recorded. Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2480 1.635 1.46 0.0005 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2437 11.41 13.84 0.0044 1

Page 1 of 72 FCC Test Report Report No.: AGC04138200502FE03 FCC ID : 2AAXO-ISM1080 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : WIFI ENABLED PEDESTAL KARAOKE SYSTEM BRAND NAME : N/A MODEL NAME : iSM1080, ERP-iSM1080XX (X is reserved for future color change, it can be 0-9, A-Z or NA) APPLICANT : The Singing Machine Company Inc. DATE OF ISSUE : Jul. 03, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04138200502FE03 Page 2 of 72 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 03, 2020 Valid Initial Release Report No.: AGC04138200502FE03 Page 3 of 72 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 12 6. TEST FACILITY ........................................................................................................................................... 13 7. PEAK OUTPUT POWER ............................................................................................................................. 14 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 14 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 14 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 15 8. 20DB BANDWIDTH ..................................................................................................................................... 19 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 24 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 24 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 24 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 Report No.: AGC04138200502FE03 Page 4 of 72 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 24 10. RADIATED EMISSION ............................................................................................................................... 32 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 32 10.2. TEST SETUP ....................................................................................................................................... 34 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 35 10.4. TEST RESULT ..................................................................................................................................... 35 11. NUMBER OF HOPPING FREQUENCY .........................................…

Text truncated - open the document above for the full version.

Report No.: AGC04138200502FE03 Page 61 of 72 VIEW OF EUT(PORT)-2 VIEW OF EUT(PORT)-3 Report No.: AGC04138200502FE03 Page 62 of 72 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Report No.: AGC04138200502FE03 Page 63 of 72 OPEN VIEW OF EUT-3 INTERNAL VIEW-1 OF EUT Report No.: AGC04138200502FE03 Page 64 of 72 INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT Report No.: AGC04138200502FE03 Page 65 of 72 INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT Report No.: AGC04138200502FE03 Page 66 of 72 INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT Report No.: AGC04138200502FE03 Page 67 of 72 INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT Report No.: AGC04138200502FE03 Page 68 of 72 INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT Report No.: AGC04138200502FE03 Page 69 of 72 INTERNAL VIEW-12 OF EUT INTERNAL VIEW-13 OF EUT WIFI Antenna BT Antenna Report No.: AGC04138200502FE03 Page 70 of 72 INTERNAL VIEW-14 OF EUT INTERNAL VIEW-15 OF EUT Report No.: AGC04138200502FE03 Page 71 of 72 INTERNAL VIEW-16 OF EUT INTERNAL VIEW-17 OF EUT Report No.: AGC04138200502FE03 Page 72 of 72 INTERNAL VIEW-18 OF EUT ADAPTER ----END OF REPORT----

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP
