2AAXO-SMCHOMESMC HOME

User Guide Guía de Usuario Guide d’Utilisation 1 Congratulations on the purchase of your new Singing Machine Home! Table of Contents Warnings ......................................................................................................2 Important Safety Information ................................................................5 In The Box ....................................................................................................6 Bluetooth® Speaker Operation ..............................................................7 Plug In AC Power Adapter ...................................................................7 Activate Pairing ......................................................................................8 Mic-Remote Operation ...........................................................................9 Install Batteries ......................................................................................9 Mic-Remote ........................................................................................ 10 Connecting to Television ..................................................................11 Using Singing Machine Play ................................................................. 12 Setting Up Your Account .................................................................. 13 Navigating The User Interface ........................................................ 14 Specifications........................................................................................... 15 Warranty ................................................................................................... 16 23 Warnings DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. DIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use. Class II equipment symbol. This symbol indicates that the unit has a double insulation system. CAUTION: TO REDUCE THE RISK OF ELEC TRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. INDUSTRY CANADA NOTICE: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two c onditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 45 SMC HOME equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. SMC HOME equipment should be installed and operated with minimum distance 20cm between the radiator and your body. SMC HOME transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. The rating information is located at the bottom of the unit. CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Important Safety Information 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions. 8. Do no t install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce…

Text truncated - open the document above for the full version.

The Singing Machine Company, Inc Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subj ect: Request for Confidential ity FCC ID: 2AAXO-SMCHOME Whom It M ay Concern: Pur suant to the provisions of Sections 0.457 and 0.459 of the Commission’s rule s (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as conf idential document from public disclosure indefinitely. Schematic Di agr am Block Di ag ram Ci rcuit D es cription Theory of Operation Above mentioned document contains detailed system and equipment description are considered as p roprietary information in operation of the equipment. The public disclosu re of above documents might be harmful to our company and would give competitor an unfair advantage in the m arket. It is our understanding that all measureme nt t est reports, FCC ID l abe l format and correspondent during certification revie w p rocess cannot be granted as conf identia l d ocuments and those information will be ava ilable for public review o nce the grant of equipment authorization is issu ed. Be st Regards Gary Atkinson Presid ent The Singing Machine Company. Inc January 7, 2014

Date: August 26, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. TY_Yoon/ RAPA, to act on our behalf in al l manners relating to application fo r equipment authorizat ion, including signing of all documents relating to th es e matters. Any and all acts carried out by Mr. TY_Yoon / RAPA on our behalf shall have the same effe ct as acts of our own. I, the undersigned, hereby certify that we ar e not subject to a denial of feder al benef its, that includes FCC benefits, pursuant to Sectio n 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. t esting, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Di vision into disrepute and not make any statement regarding our product certification which t he Certification Divisi on may co nsider misleading or unauthorized; e) upon suspension or cancellation of certifi cation, discontinue use of all advertisi ng matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity wi th specif ied standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certifi cation Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certifi cation Division when requested; j) take appropriate ac tion with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notic e from the applicant. Sincerely Yours, Name: / President Gary Atkinson Company: Singing Machine Company REMARK: 1. This au th orization letter will be sent along with your application when filing with the Certifi cation Division. 2. Please follow the format and type it on co mpan y letterhead an d send original to us. 3. Authorized signature must be in agreemen t with grantee code contact in FCC database.

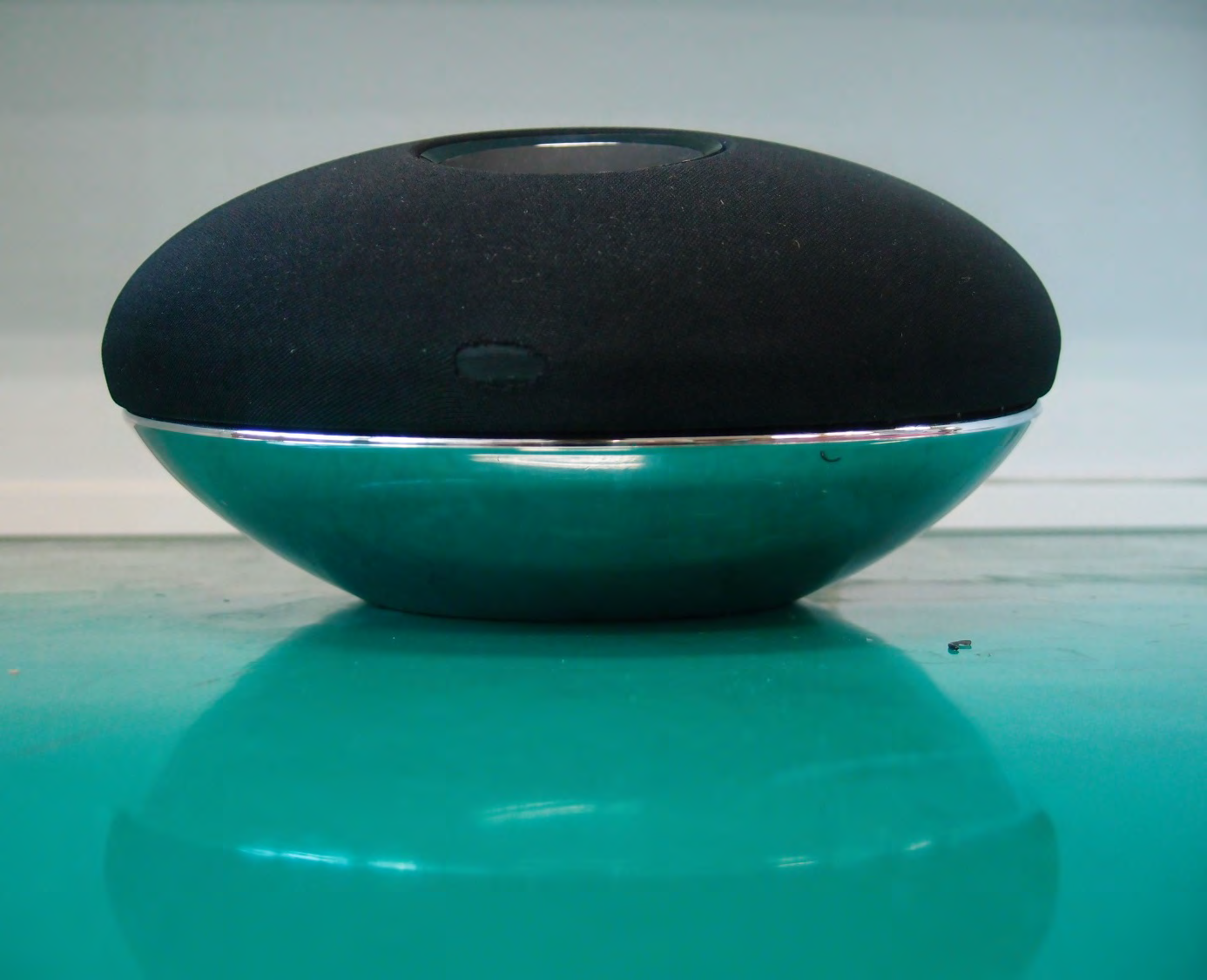

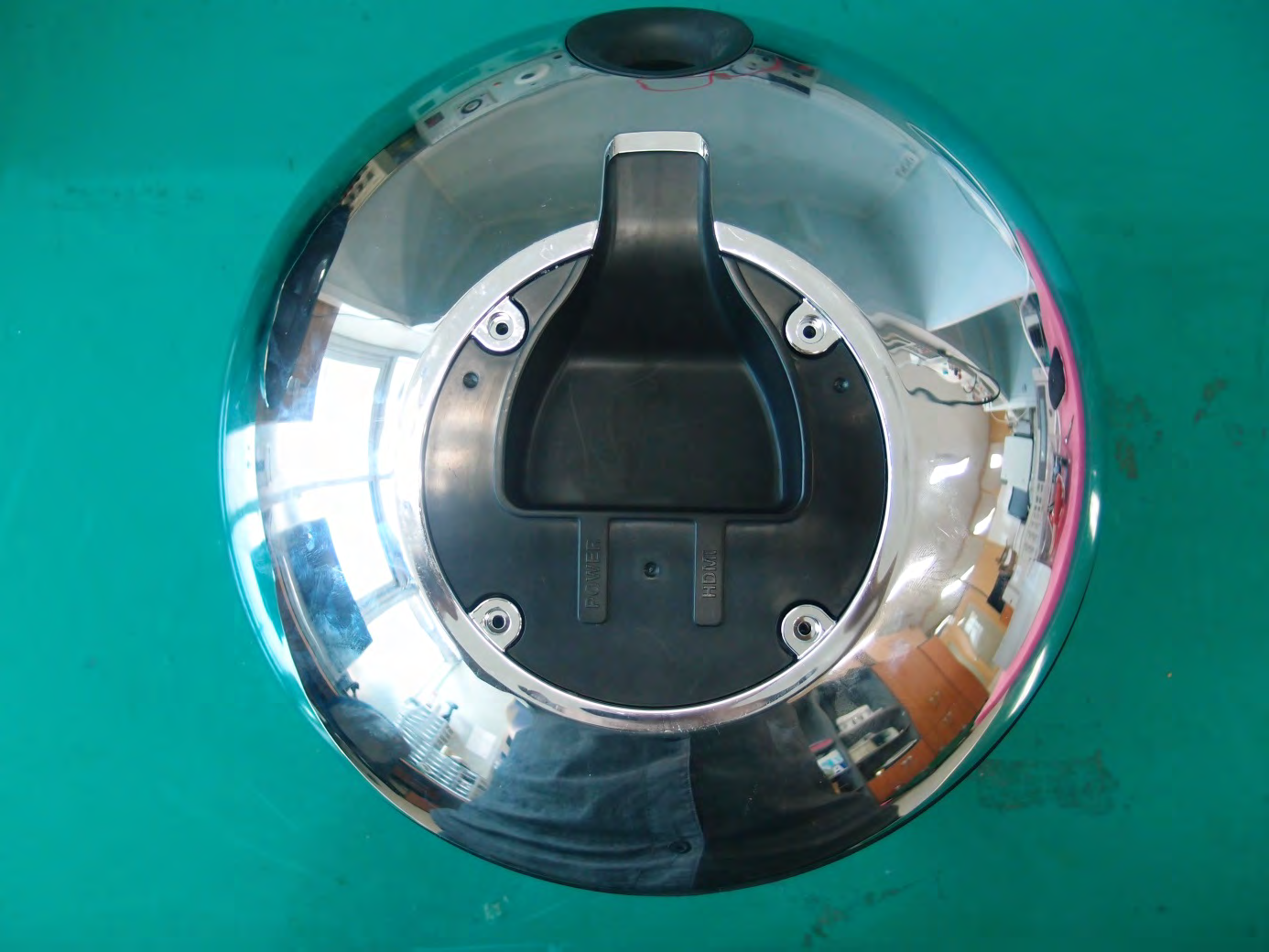

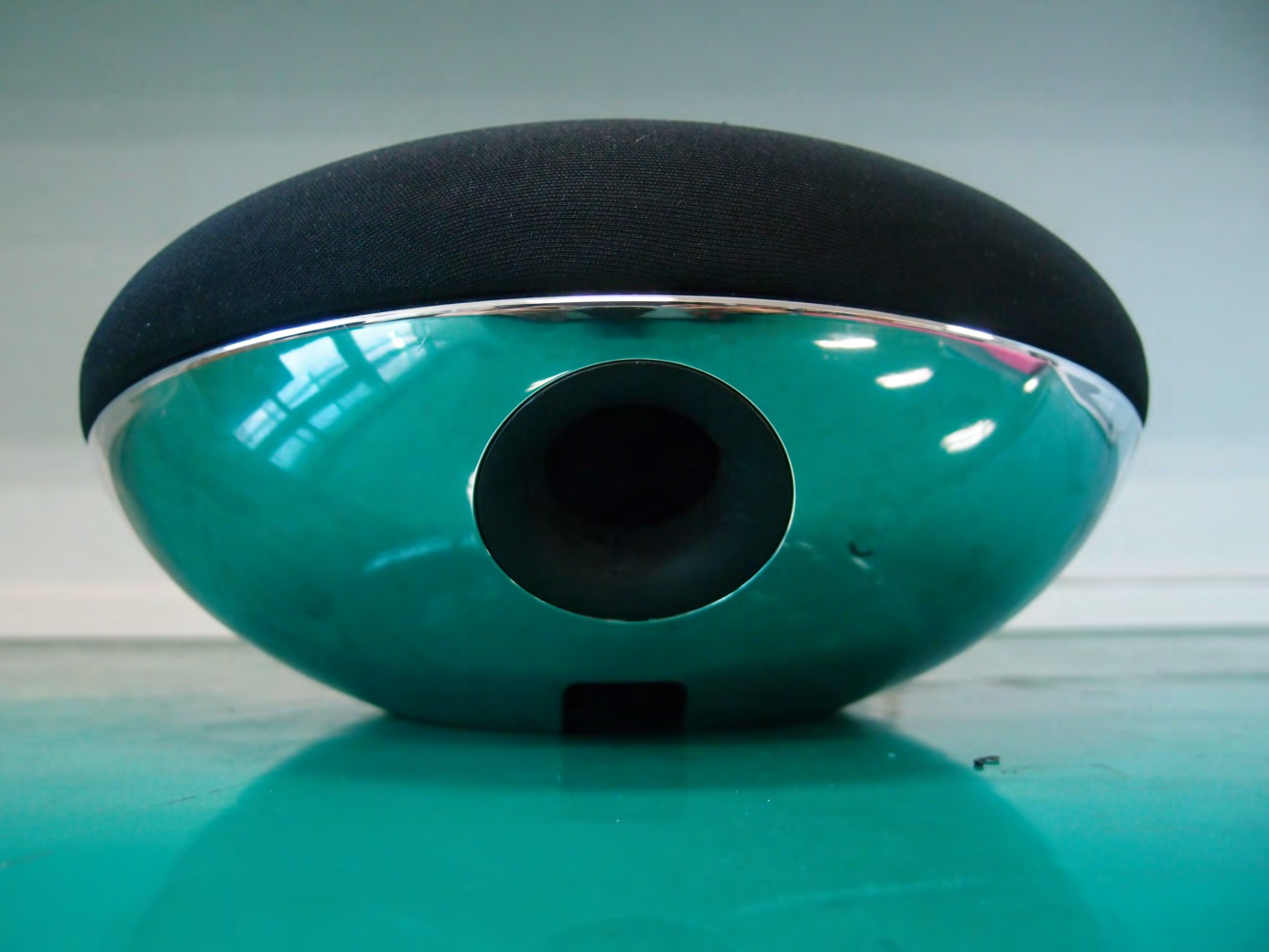

The Singing Machine Company, Inc. Singing Machine Home SMCHOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 1. Front The Singing Machine Company, Inc. Singing Machine Home SMCHOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 2. Back The Singing Machine Company, Inc. Singing Machine Home SMCHOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 3. Top Side The Singing Machine Company, Inc. Singing Machine Home SMCHOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 4. Bottom Side The Singing Machine Company, Inc. Singing Machine Home SMCHOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 5. Bottom

The Singing Machine Company, Inc. Singing Machine Home SMC HOME It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 2. FCC ID Label and Location

The Singing Machine Company, Inc. Singing Machine Home SMCHome It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 1. Front The Singing Machine Company, Inc. Singing Machine Home SMCHome It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 2. Back

Testing and Certification Laboratory Company : Singing Machine Home Model : SMC HOME Page : 1 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. RF exposure statement According to §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range [MHz] Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 100 30 1.34 – 30 824/f 2.19/f 180/f 2 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 - - f/1500 30 1500 – 100 000 - - 1.0 30 ※f = frequency in MHz 1. Friis transmission formula P d = (P out X G) / (4πr 2 ) P d = Power density P out = power input to antenna G = power gain r = distance to the center of radiation of the antenna Testing and Certification Laboratory Company : Singing Machine Home Model : SMC HOME Page : 2 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Item Specification Frequency range 2 400 – 2483.5 GHz VSWR 1.5 : 1 Polarization Linear Radiation Omni-directional Impedance 50 Ω Frequency [MHz] 2 400 2 420 2 440 2 460 2 480 Gain [dBi] Peak 2.0 3.1 2.7 2.2 1.5 Average -2.3 -1.4 -1.6 -2.2 -2.8 Efficiency [%] 58.7 72.4 69.6 60.8 52.7 2. Information of Antenna • Model Name : ABM6020B2 Testing and Certification Laboratory Company : Singing Machine Home Model : SMC HOME Page : 3 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. 3. Calculation of MPE at 20 cm Band Frequency [MHz] Output power [dBm] Antenna gain [dBi] EIRP Power density at 20 cm [mW/cm 2 ] Limit 2 [mW/cm ] [dBm] [mW] Wireless LAN 2 412 10.62 2.0 12.62 18.28 0.003 639 1.0 2 442 10.34 2.7 13.04 20.14 0.004 008 1.0 2 472 10.87 1.5 12.37 17.26 0.003 435 1.0 Bluetooth 2 402 5.68 2.0 7.68 5.86 0.001 167 1.0 2 442 5.50 2.7 8.20 6.61 0.001 315 1.0 2 480 4.92 1.5 6.42 4.39 0.000 873 1.0 Wireless Audio 2 405 6.62 2.0 8.62 7.28 0.001 448 1.0 2 440 5.59 2.7 8.29 6.75 0.001 342 1.0 2 475 5.87 1.5 7.37 5.46 0.001 086 1.0 • Wireless LAN The maximum conducted power is 10.34 dBm; antenna is fix -mounted with a maximum gain of 2.7 dBi gain. Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Peak EIRP calculated is 13.04 dBm. The Power Density can be calculated using the formula. It is considered that 20 cm is the minimum distance that a user can go closer to the EUT. At 0.2 m, S = 0.0040 mW/cm 2 , which is below the MPE Limit of 1 mW/cm 2 • Bluetooth The maximum conducted power is 5.50 dBm; antenna is fix -mounted with a maximum gain of 2.7 dBi gain. Therefore, to comply with RF Exposure Requir ement, the MPE is calculated. The maximum Peak EIRP calculated is 8.20 dBm. It is considered that 20 cm is the minimum distance that a user can go closer to the EUT. At 0.2 m, S = 0.0013 mW/cm 2 , which is below the MPE Limit of 1.00 mW/cm 2 • Wireless Audio The maximum conducted power is 7.21 dBm; antenna is fix -mounted with a maximum gain of 2.7 dBi gain. Therefore, to comply with RF Exposure Requir ement, the MPE is calculated. The maximum Peak EIRP calculated is 8.62 dBm. It is considered that 20 cm is the minimum distance that a user can go closer to the EUT. At 0.2 m, S = 0.0014 mW/cm 2 , which is below the MPE Limit of 1.00 mW/cm 2 • Wireless LAN + Bluetooth + Wireless Audio = 0.0040 + 0.0013 + 0.0014 = 0.0067 mW/cm 2 so combined they are still well below 100 % of the limit.

Page : 1 / 30 Report No. : RAPA13-O-625 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-625 Type of Equipment Singing Machine Home Model Name SMC HOME FCC ID 2AAXO-SMCHOME IC Number 11387A-SMCHOME Applicant Name The Singing Machine Company, Inc. Logo Address 6301 NW 5 th Way, Suite 2900, Fort Lauderdale FL 33309 Manufacturer Name VisionScape Address 404, 60-19, Gasan-dong, Geumcheon-gu, Seoul, Korea Test period August 20, 2013 to September 10, 2013 Issuing date of report September 16, 2013 Total page 30 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass- production. Date : September 16, 2013 Date : September 16, 2013 Prepared and tested by Ta e Yang Yo o n Reviewed by Sukil Park Manager / TCL of RAPA Executive Managing Director / TCL of RAPA Page : 2 / 30 Report No. : RAPA13-O-625 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant .................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................. 3 1.3 Basic description of EUT.......................................................................................................................... 3 1.4 Electrical specification ............................................................................................................................. 4 2. General information of test ............................................................................................................ 5 2.1 Standard for measurement methods ...................................................................................................... 5 2.2 Description of EUT modification ............................................................................................................. 5 2.3 Description of test system configuration ............................................................................................... 5 3. Measurement data .......................................................................................................................... 7 3.1 6 dB and 99 % bandwidth ......................................................................................................................... 7 3.2 Maximum peak output power ................................................................................................................ 12 3.3 Power spectral density ........................................................................................................................... 16 3.4 Conducted band edges and spurious emission .................................................................................. 19 3.5 Radiated Band Edges and Spurious Emission .................................................................................... 24 3.6 Power line conducted emission ............................................................................................................ 27 4. Test equipment list. ..................................................................................................................... 30 Page : 3 / 30 Report No. : RAPA13-O-625 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : The Singing Machine Company, Inc. • Address : 6301 NW 5 th Way, Suite 2900, Fort Lauderdale FL 33309 • Contact person : Gary Atkinson / CEO • Phone/Fax : +1-954-596-1000 / +1-954-596-2000 1.2 Manufacturer • Company name : VisionScape • Address : 404, 60-19, Gasan-dong, Geumcheon-gu, Seoul, Korea • Contact person : Hun Pil Lim / CEO • Phone/Fax : 82-2-856-8150 / 82-2-856-2828 1.3 Basic description of EUT • Product name : Singing Machine Home • Model name : SMC HOME • Serial number : N/A • Frequency : 2 405 MHz to 2 475 MHz • Number of channel(s) : 18 Channels • Modulation method : GFSK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DTS / Digital Transmission System • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902 - 928 MHz, 2 400 - 2 483.5 MHz and 5 725 - 5 850 MHz • Test period : August 26, 2013 to September 10, 2013 • Issuing date of report : September 16, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 / 30 Report No. : RAPA13-O-625 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1.4 Electrical specification Item Specifications Input power DC15V/3A(Adapter : 100~240V, 50~60Hz, 1.2A) Internal clock CPU Main OSC : 24MHz CPU RTC : 32.768KHz 2.4G Wireless Audio CC8520 : 48MHz RF frequency WiFi : 2.4GHz Bluetooth : 2.4GHz W…

Text truncated - open the document above for the full version.

Page : 1 of 63 Report No. : RAPA13-O-624 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O- 624 Type of Equipment Singing Machine Home Model Name SMC H OME FCC ID 2AAXO-SMCHOME IC Number 11387A-SMCHOME Applicant Name The Singing Machine Company, Inc. Logo Address 6301 NW 5 th Way, Suite 2900, Fort Lauderdale FL 33309 Manufacturer Name VisionScape Address 404, 60-19, Gasan-dong, Geumcheon-gu, Seoul, Korea Test period August 20 , 2013 to September 10, 2013 Issuing date of report September 16, 2013 Total page 63 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Date : March 16, 201 3 Date : March 16, 201 3 Prepared and tested by Tae Ya ng Yoon Reviewed by Sukil Park Manager /TC L of RAP A Executive Managing Director/TC L of RAP A Page : 2 of 63 Report No. : RAPA13-O-624 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant .................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................. 3 1.3 Basic description of EUT.......................................................................................................................... 3 1.4 Electrical specification ............................................................................................................................. 4 2. General information of test ............................................................................................................ 5 2.1 Standard for measurement methods ...................................................................................................... 5 2.2 Description of EUT modification ............................................................................................................. 5 2.3 Description of test system configuration ............................................................................................... 5 3. Measurement data .......................................................................................................................... 6 3.1 6 dB and 99% bandwidth .......................................................................................................................... 6 3.2 Maximum peak output power ................................................................................................................ 25 3.3 Power spectral density ........................................................................................................................... 27 3.4 Conducted band edges and spurious emission .................................................................................. 37 3.6 Power line conducted emission ............................................................................................................ 60 4. Test equipment list ...................................................................................................................... 63 Page : 3 of 63 Report No. : RAPA13-O-624 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1. G ENERAL DESCRIPTION 1.1 Applicant • Company name : The Singing Machine Company, Inc. • Address : 6301 NW 5 th Way, Suite 2900, Fort Lauderdale FL 33309 • Contact person : Gary Atkinson / CEO • Phone/Fax : +1-954-596-1000 / +1-954-596-2000 1.2 Manufacturer • Company name : VisionScape • Address : 404, 60-19, Gasan-dong, Geumcheon-gu, Seoul, Korea • Contact person : Hun Pil Lim / CEO • Phone/Fax : 82-2-856- 8150 / 82-2-856- 2828 1.3 Basic description of EUT • Product name : Singing Machine Home • Model name : SMC HOME • Serial number : N/A • Frequency : 2 400 MHz to 2 483.5 MHz • Number of channel(s) : 802.11 b/g/n-HT20 : 11 ch, 802.11 n-HT-40 :7 ch • Modulation method : CCK, BPSK, QPSK, DSSS, OFDM, • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DTS / Digital Transmission System • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902 - 928 MHz, 2 400 - 2 483.5 MHz and 5 725 - 5 850 MHz • Test period : August 26, 2013 to September 10, 2013 • Issuing date of report : September 16, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449- 825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 63 Report No. : RAPA13-O-624 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1.4 Electrical specification Item Specifications Input power DC15V/3A(Adapter : 100~240V, 50~60Hz, 1.2A) Internal clock CPU Main OSC : 24MHz CPU RTC : 32.768KHz 2.4G Wireless Audio : 48MHz RF frequency WiFi : 2.4GHz Bluetooth : 2.4GHz Wireless Audio : 2.4GHz Transmitter frequency WiFi : 2.4GHz Bluetooth : 2.4GH…

Text truncated - open the document above for the full version.

The Singing Machine Company, Inc. Singing Machine Home SMCHome It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup Test Setup of Radiation
