2AAXO-SML654MP3+G KARAOKE PLAYER WITH BLUETOOTH

TM SML654BK/BL/P/V INSTRUCTION MANUAL/ MANUAL DE INSTRUCCIONES/ MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc. — E1 — Warnings Important Safety Information 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects filled with water, such as a vase, on the apparatus. 16. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket. 17. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The Caution marking is located on the bottom panel. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The rating information is located at the bottom of the unit. INDUSTRY CANADA NOTICE: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. DRIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void…

Text truncated - open the document above for the full version.

— S19 — y 5 Ajuste el volumen a un nivel que le resulte cómodo con el control de VOLUMEN PRINCIPAL (MASTER VOLUME). Nota: Si se conecta a un televisor, ajuste el volumen del televisor con su propio control de volumen. 6 Conecte los micrófonos y ubique el interruptor de ENCENDIDO/ APAGADO (ON/OFF) del micrófono en la posición de ENCENDIDO (ON). 7 Ajuste el control de VOLUMEN DEL MICRÓFONO (MIC VOLUME) hasta el nivel deseado. Al aumentar el nivel de este control se incrementará el volumen de los dos micrófonos. 8 SALTO (SKIP): Avance o retroceda una pista presionando los botones / O /. También puede saltar 10 archivos/pistas hacia adelante si solo presiona y mantiene presionado el botón / o el botón / en modo Detener (Stop). V U W Funcionamiento Reproducir canciones desde archivos grabados (continuación) — S20 — 1 Conecte la unidad como se describió. Oprima el botón de ENCENDIDO/ APAGADO (ON/OFF) para encender la unidad. 2 Conecte la unidad externa al conector de ENTRADA AUXILIAR (AUX IN) en la parte trasera de esta unidad. Conectar una unidad externa permitirá reproducir audio a través de su Singing Machine. Notas: • Se recomienda que configure el volumen en la unidad auxiliar a 1/3 o menos para evitar distorsiones. • No es posible saltar archivos o pistas cuando se usa un dispositivo externo. 3 Presione varias veces el botón LUCES/ FUNCIÓN (LIGHTS/FUNCTION) para seleccionar el modo ENTRADA de Aux; aparecerá “AU” cuando busque el dispositivo. 4 Ajuste el volumen con el control de VOLUMEN PRINCIPAL (MASTER VOLUME) de esta unidad o con el control de volumen del dispositivo externo. 5 Conecte el/los micrófono/s. Ubique el interruptor de ENCENDIDO/APAGADO (ON/OFF) del Control remoto/ Micrófono en la posición de ENCENDIDO (ON). u x v y w Funcionamiento Uso del conector de ENTRADA de Aux — S21 — 6 Ajuste el control de VOLUMEN DEL MICRÓFONO (MIC VOLUME) hasta el nivel deseado. Al aumentar el nivel de este control se incrementará el volumen de los dos micrófonos. 7 EFECTOS DE VOZ: Repetidamente oprima los botones EFECTOS DE VOZ/ VOCAL (VOCAL/VOICE EFFECTS) para seleccionar entre los efectos vocales ECO, FEMENINO, MASCULINO, ARDILLA, ROBOT o RADIO. Seleccione NINGUNO (OFF) para cantar sin efectos de voz. 8 GRABAR SU INTERPRETACIÓN VOCAL: Para grabar lo que canta y la música, oprima el botón Grabar (REC); comenzará la grabación y el indicador de grabar comenzará a parpadear. Cuando finalice la grabación, oprima otra vez el botón Grabar (REC); el indicador de grabar se apagará. Notas: • El archivo de audio grabado se almacenará en el dispositivo USB. • El archivo de audio grabado tendrá un nombre que comenzará con el prefijo "LINE IN". 9 Oprima Encendido/Apagado (ON/ OFF) para apagar la unidad. U W X V Uso del conector de ENTRADA de AUX (Continuación) Funcionamiento — S22 — La aplicación Tienda de Karaoke (Karaoke Store) se puede instalar en computadoras con Microsoft Windows que operen Vista, Windows 7 y Windows 8 o superior. La aplicación Tienda de Karaoke (Karaoke Store) requiere una conexión a Internet (se recomienda una conexión de alta velocidad). TIENDA DE KARAOKE Instalación en PC 1 Introduzca el Dispositivo Flash USB (no incluido) en una ranura USB en su computadora. 2 Abra el navegador web e ingrese en www.singingmachine.com/ pages/app-install. Haga clic en DESCARGA PARA WINDOWS ("DOWNLOAD FOR WIN- DOWS"). Guarde el archivo “Karaoke_ Store_Win_Setup.exe” en su dispositivo flash USB. 3 Haga doble clic en el archivo “Karaoke_Store_Win_Setup”. Siga las instrucciones en línea para instalar el software en su computadora. 4 Después de la instalación, abra su carpeta de Programas y abra la carpeta de Tienda de Karaoke (Karaoke Store). 5 Haga doble clic en “Karaoke Store” para abrir el software. 6 Ahora puede registrarse en esta página y comprarla/descargarla en su computadora o dispositivo USB para reproducir en su nueva Singing Machine! — S23 — La aplicación Tienda de Karaoke (Karaoke Store) se puede instalar en computadoras Apple Macintosh con sistema operativo OS X 10.8 y superior La aplicación Tienda de Karaoke (Karaoke Store) requiere una conexión a Internet (se recomienda una conexión de alta velocidad). TIENDA DE KARAOKE Instalación en Mac 1 Introduzca el Dispositivo Flash USB (no incluido) en una ranura USB en su computadora. 2 Abra el navegador web e in- grese en www.singingmachine. com/pages/app-install. Haga clic en DESCARGA PARA MAC ("DOWNLOAD FOR MAC"). Guarde el archivo “Karaoke_ Store_Win_Setup.pkg” en su dispositivo flash USB. 3 Haga doble clic en el archivo “Karaoke_Store_Win_Setup.pkg”. Siga las instrucciones en línea para instalar el software en su computadora. 4 Después de la instalación, abra su carpeta de Aplicación y abra la carpeta Stingray Karaoke Store. 5 Haga doble clic en la aplicación Tienda de Karaoke (Karaoke Store) para abrir el software. 6 Ahora puede registrarse en esta página y comprarla/descargarla en su computadora o dispositivo USB para reproducir en su nueva Singing Machine! — S24 — Guía de Resolución de Problemas Si esta unidad presentara un problema, lea el siguiente cuadro antes de llamar al servicio técnico: No hay energía • La unidad no está encendida; oprima Encendido/Apagado (ON/OFF) para encenderla. • Verifique que el adaptador de CA esté conectado de forma segura en la parte trasera de la unidad. • Conecte la unidad a otro tomacorriente. • El funcionamiento normal del producto puede verse afectado por la fuerte Interferencia electromagnética. En ese caso, solo reinicie el producto para reanudar el funcionamiento normal, siguiendo el manual de instrucciones. En caso de que no se reanude el funcionamiento, use la máquina en otra parte de su hogar. No hay sonido (General) • El Volumen principal (Master Volume) está en mínimo: suba el volumen. • No se seleccionó la Función correcta; oprima el botón de LUCES/FUNCIÓN (LIGHTS/ FUNCTION) para cambiar la función. • Si utiliza un dispositivo externo, suba el volumen. No hay sonido – si está conectado a un tel…

Text truncated - open the document above for the full version.

The Singing Machine Company Inc. May 07, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AAXO-SML654 Model Number: SML654, SML652BK, SML652P, SML652W, SML652XX, SML654BK, SML654BL, SML654P, SML654V, SML654XX (X is reserved for future color change, it can be 0-9, A-Z or NA), GROOVE MINI To Whom It May Concern: We, The The Singing Machine Company Inc. hereby declare that the models are identical except the model name and appearance color. Except for the different above, no other modification is performed. Sincerely, Signature: The Singing Machine Company Inc. Contact person: Gary Atkinson

The Singing Machine Company Inc. Agent Authorization Company: The Singing Machine Company Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, FL, 33309, U.S.A. Product Name: MP3+G KARAOKE PLAYER WITH BLUETOOTH Model Number(s): SML654, SML652BK, SML652P, SML652W, SML652XX, SML654BK, SML654BL, SML654P, SML654V, SML654XX (X is reserved for future color change, it can be 0-9, A-Z or NA), GROOVE MINI Product Description: MP3+G KARAOKE PLAYER WITH BLUETOOTH We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-07 Name: Gary Atkinson Company: The Singing Machine Company Inc.

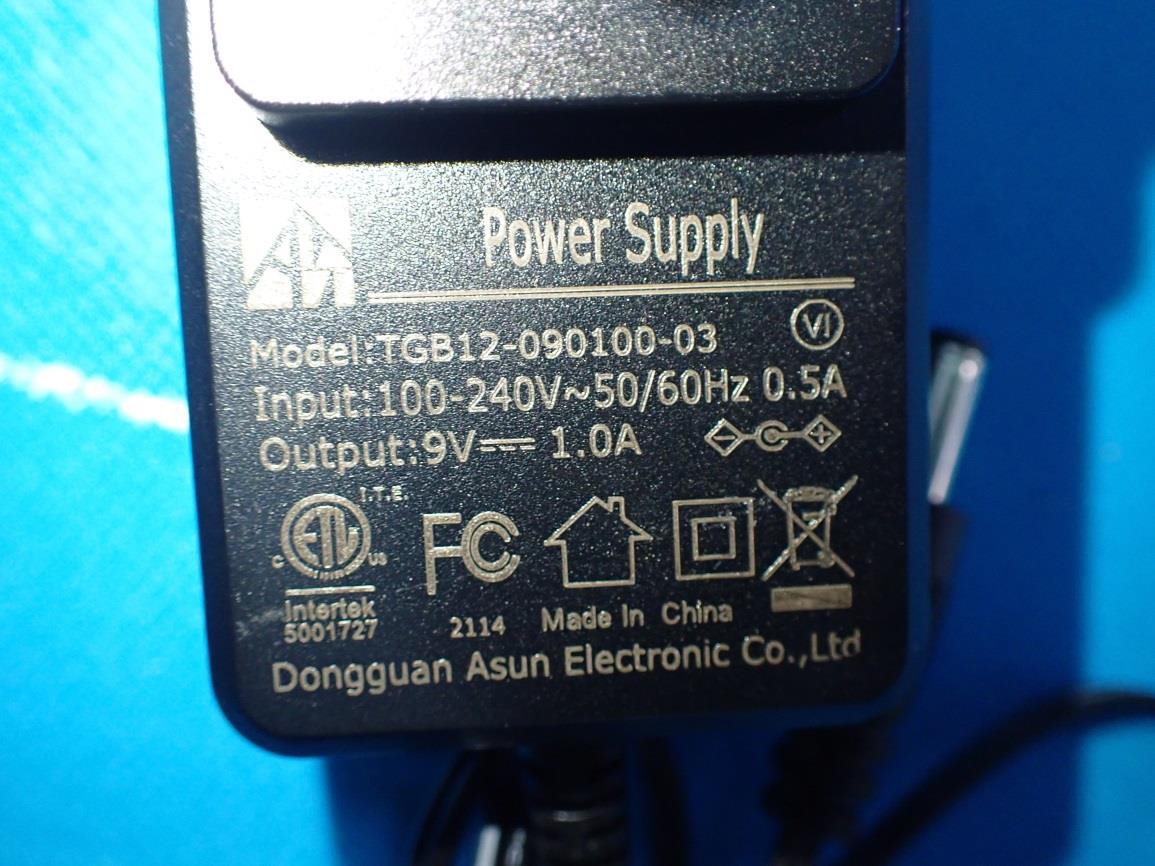

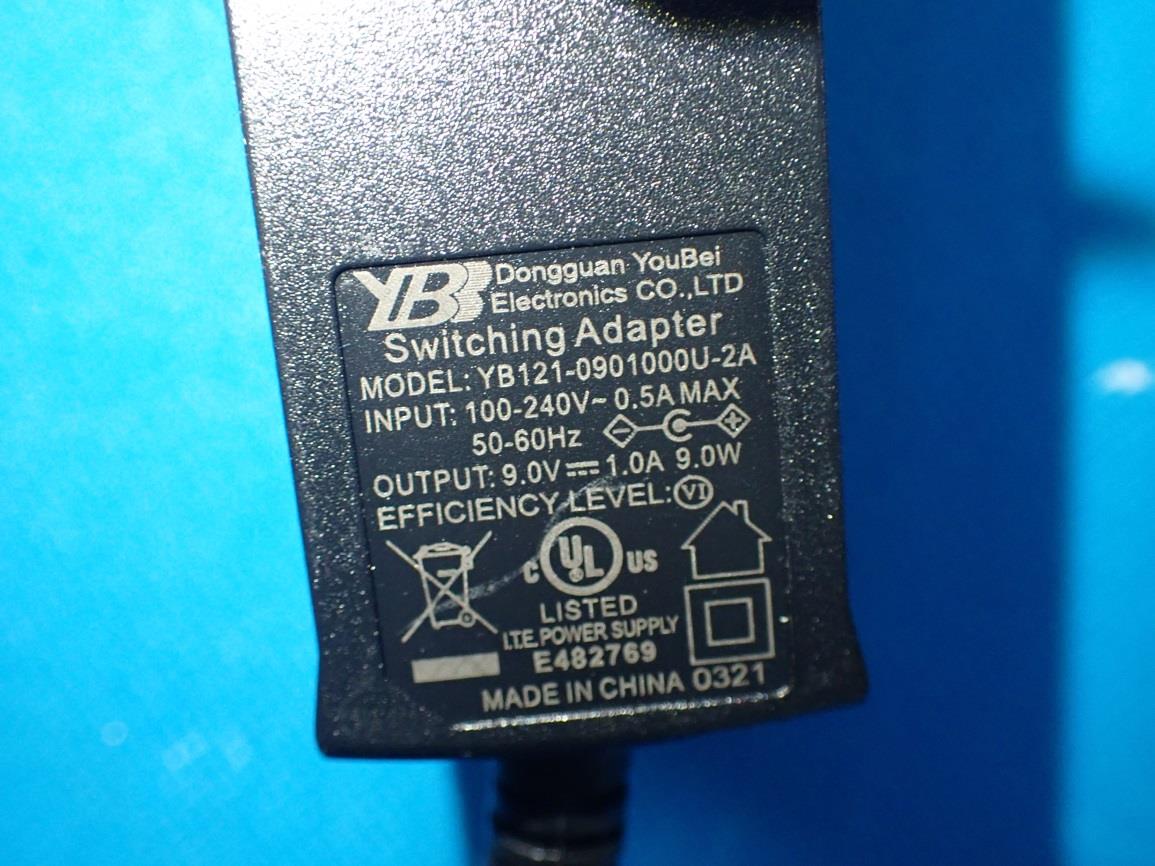

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2 VIEW OF EUT(PORT)-3 ADAPTER OF EUT-1 ADAPTER OF EUT-2 ADAPTER OF EUT-3

FCC ID Label Location

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 BT Antenna INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description MP3+G KARAOKE PLAYER WITH BLUETOOTH Model Name SML654, SML652BK, SML652P, SML652W, SML652XX, SML654BK, SML654BL, SML654P, SML654V, SML654XX (X is reserved for future color change, it can be 0-9, A-Z or NA), GROOVE MINI FCC ID 2AAXO-SML654 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-5.573dBm=0.28mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.28mW /5mm) .[√2.402GHz)]=0.09<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 78 FCC Test Report Report No.: AGC04138210301FE03 FCC ID : 2AAXO-SML654 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : MP3+G KARAOKE PLAYER WITH BLUETOOTH BRAND NAME : Singing Machine MODEL NAME : SML654, SML652BK, SML652P, SML652W, SML652XX, SML654BK, SML654BL, SML654P, SML654V, SML654XX (X is reserved for future color change, it can be 0-9, A-Z or NA), GROOVE MINI APPLICANT : The Singing Machine Company Inc. DATE OF ISSUE : May 06, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC04138210301FE03 Page 2 of 78 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 06, 2021 Valid Initial Release Report No.: AGC04138210301FE03 Page 3 of 78 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 21 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC04138210301FE03 Page 4 of 78 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 40 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 40 10.2. TEST SETUP ....................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 43 10.4. TEST RESULT .................................................................................................................................…
