The Singing Machine Company Inc. July 28, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AAXO-SMM548 Model Number: SMM548XX (X is reserved for future color change, it can be 0-9, A-Z or NA) To Whom It May Concern: We, The Singing Machine Company Inc. hereby declare that the model : SMM548XX (X is reserved for future color change, it can be 0-9, A-Z or NA) is identical with the model : SMM548, except the model name and appearance color.. Except for the different above, no other modification is performed. Sincerely, Signature: The Singing Machine Company Inc. Contact person: Gary Atkinson

The Singing Machine Company Inc. Agent Authorization Company: The Singing Machine Company Inc. Address: 6301 NW 5th Way, Suite 2900 Fort Lauderdale, FL, 33309, U.S.A. Product Name: BLUETOOTH KARAOKE MICROPHONE Model Number(s): SMM548, SMM548XX (X is reserved for future color change, it can be 0-9, A-Z or NA) Product Description: BLUETOOTH KARAOKE MICROPHONE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-07-30 Name: Gary Atkinson Company: The Singing Machine Company Inc.

The Singing Machine Company, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-28 Subject; Request for Confidentiality FCC ID: 2AAXO-SMM548 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely The Singing Machine Company, Inc. Contact person: Gary Atkinson

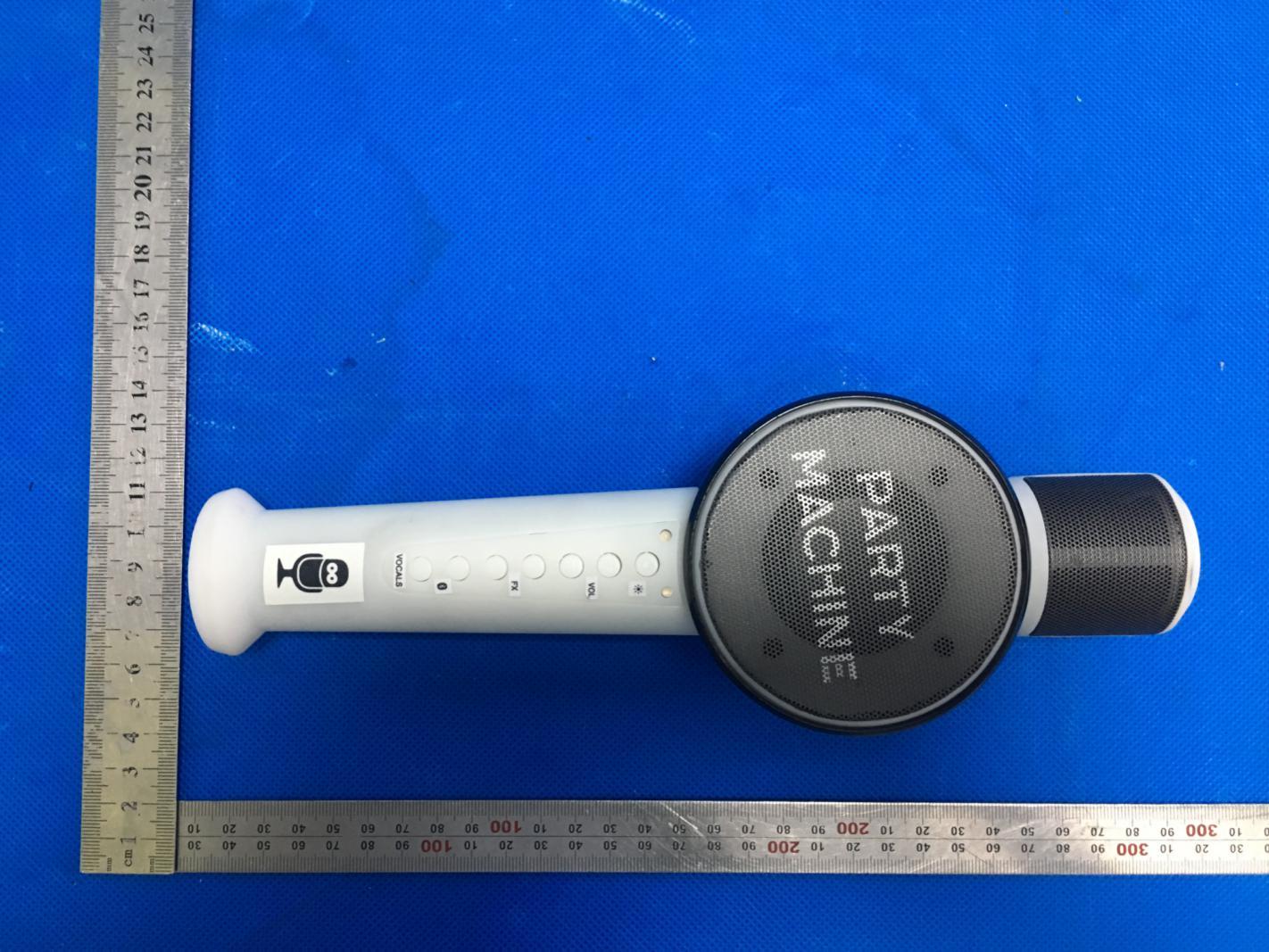

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT VIEW OF BATTERY Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description BLUETOOTH KARAOKE MICROPHONE Model Name SMM548, SMM548XX (X is reserved for future color change, it can be 0-9, A-Z or NA) FCC ID 2AAXO-SMM548 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =4.374dBm=2.74mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(4.06mW /5mm) .[√2.402(GHz)]= 1.26<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 70 FCC Test Report Report No.: AGC04138200702FE03 FCC ID : 2AAXO-SMM548 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLUETOOTH KARAOKE MICROPHONE BRAND NAME : Singing Machine MODEL NAME : SMM548, SMM548XX (X is reserved for future color change, it can be 0-9, A-Z or NA) APPLICANT : The Singing Machine Company Inc. DATE OF ISSUE : Jul. 22, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaalllllllllllllllllllllllllllllllllllllllllllllllllllllllllll CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCompliaaaaaaaaaaaaaaaaaaaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnncccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccceCC edddddddddddddddddddddddddddddddddddddddddddddeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeexcxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxept in full wiwiwiwiwiwiwiwiwiwiwiwiiwiwiwiwiwiwiwiwwiwiiwiwwwiwiwwiwwiwiwiwiwiwiiwiwiwwiwwwiwiwwiwiwwwiwwiwwiwwwiwwwwwwwwwwwittththtthtththtthttttttttttttttttttttttttttt uotetetteeeeeeteeeteeeeeeeeeeeeeeeeeeed d ddd d dd dddddddd ddddddd dddddddddddddddddddddddddouoooooooooot of cononononnnonnnnonnononnnnnnnnnnonnnnnonnnnnnonnnononnontetetetetetetetetetettttetetetttttttttttteeetttttettetettteettttttttxt. Report No.: AGC04138200702FE03 Page 2 of 70 REPORT REVISE RECORD Report VersionRevise TimeIssued DateValid VersionNotes V1.0/Jul. 22, 2020ValidInitial Release Report No.: AGC04138200702FE03 Page 3 of 70 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY..................................................................................................................5 2. GENERAL INFORMATION ..............................................................................................................................6 2.1. PRODUCT DESCRIPTION........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF AHOPPING SEQUENCY IN DATA MODE......................................................................... 7 2.5. EQUALLYAVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY............................................................................................................................. 8 2.8. SPECIALACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ...................................................................................................................9 4. DESCRIPTION OF TEST MODES.................................................................................................................10 5. SYSTEM TEST CONFIGURATION................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM...................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM............................................................................................... 11 5.3. SUMMARY OF TEST RESULTS.............................................................................................................. 11 6. TEST FACILITY..............................................................................................................................................12 7. PEAK OUTPUT POWER................................................................................................................................13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION).................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT.................................................................................................. 14 8. 20DB BANDWIDTH........................................................................................................................................20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION).................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS...............................................................................................21 9. CONDUCTED SPURIOUS EMISSION...........................................................................................................27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION).................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED.................................................................................................... 27 Report No.: AGC04138200702FE03 Page 4 of 70 9.4. LIMITS AND MEASUREMENT RESULT......…

Text truncated - open the document above for the full version.

Report No.: AGC04138200702FE03 Page 36 of 70 π /4-DQPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC04138200702FE03 Page 37 of 70 π /4-DQPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC04138200702FE03 Page 38 of 70 8-DPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC04138200702FE03 Page 39 of 70 8-DPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC04138200702FE03 Page 40 of 70 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC04138200702FE03 Page 41 of 70 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC04138200702FE03 Page 42 of 70 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC04138200702FE03 Page 43 of 70 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ No emission found between lowest internal used/generated frequencies to 30MHz. Report No.: AGC04138200702FE03 Page 44 of 70 RADIATED EMISSION BELOW 1GHZ EUT BLUETOOTH KARAOKE MICROPHONE Model Name SMM548 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal RESULT: PASS Report No.: AGC04138200702FE03 Page 45 of 70 EUT BLUETOOTH KARAOKE MICROPHONE Model Name SMM548 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 4 is the worst case and recorded in the report. Report No.: AGC04138200702FE03 Page 46 of 70 RADIATED EMISSION ABOVE 1GHZ EUT BLUETOOTH KARAOKE MICROPHONE Model Name SMM548 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) V…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP
