2AB6UABR1Smart Doorbell with 802.11a/b/g/n and Bluetooth 4.0

Sensor Sensor detects motion within a 5-6 ft range. Doorbell Touch activated doorbell. Doorbell Cam Features Camera Wide angle view. Speaker Communicate with visitors at your door. Photo FPO Microphone Visitors at your door can easily speak with you. Questions? If you have any questions, call 844-AUGUST1 (284-8781) or visit august.com/support ©2015 August Home Inc. 080-00064-01 Getting Started Photo FPO back inside flap doorbell cam QSG front, back, inside flap front cover Installation Prep Make sure to turn-o power to your existing doorbell before removal. For detailed installation instructions visit august.com/install Install Doorbell Cam Follow the instructions in the digital Installation Guide to connect the power wires, install the mounting plate and Doorbell Cam. august.com/install The digital Installation Guide will help determine if the included optional mounting wedge will help optimize the camera’s view of your door. 1 Download App On the settings screen in the August app, select “Set up a Doorbell Cam” and follow the instructions. Use Doorbell Cam Use the August app to see and speak with visitors at your door. 2 Optional Mounting Wedge Information: The wedge is included to help optimize the camera’s view of your door. Follow the instructions online to install your August Doorbell Cam using the included mounting wedge: august.com/install. Wedge image here Warning: Installing the Doorbell Cam involves working with your home’s electrical wires. Disconnecting power to your doorbell is a precaution we recommend. If you have any questions about this, please consult an electrician for assistance. 3 3 page inside spread doorbell cam QSG inside spread Safety Risk of explosion and personal injury if device is installed into non compatible circuit. Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire or heat above 54° C (130° F), incinerate, or immerse in water or liquid of any kind. Do not short circuit. Doing so may cause batteries to leak or explode, resulting in personal injury. The August Doorbell Cam must be correctly installed and used with a wired doorbell circuit that is operating in good condition. You assume all risk associated with the suitability, installation and performance of the door bell and other third party components, hardware, software and services that you select. 4 Terms and Conditions Environmental DIMENSIONS: 2.9” (H) x 2.9” (W) x 0.9” (L) DEVICE WEIGHT: 14.1 oz. CERTIFICATION: FCC, IC, CE, BQB, WEEE OPERATING TEMP: -13 to 122 Fahrenheit (-25 to 50C) STORAGE TEMP: -22 to 140 Fahrenheit (-30C to 60C) OPERATING HUMIDITY: 0 to 95% Specifications MODEL NAME: August Doorbell Cam DESCRIPTION: Video and Wi-Fi® enabled Smart Doorbell MODEL NUMBER: AB-R1 STANDARDS: Bluetooth Specification v4.0 (Bluetooth® Smart ), 5GHz, 2.4GHz 80211(b/g/n) Wi-Fi®SECURITY: WPA2, WEP INTERFACE: Bluetooth® Smart LED indicates Doorbell is active, and may also indicate Wireless Accessory Configuration mode. POWER CONSUMPTION: 100-240V ~ 50-60Hz 0.1A The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by August Home, Inc. is under license. Other trademarks and trade names are those of their respective owners. Wi-Fi® is a registered trademark of Wi-Fi Alliance®. iPhone® is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may affect wireless performance. 5 Terms and Conditions Terms and Conditions Limited Warranty Statement IMPORTANT: By using the August Doorbell Cam hardware (the “Device”) you are agreeing to be bound by the terms of this Limited Warranty set forth below. If you do not agree to the terms of this Limited Warranty you may return the Device (in its original, unused condition) within thirty days of the date of purchase (or the return period provided by your place of purchase, whichever is longer) for a refund in accordance with our returns policy as set forth in Section 3 of this Limited Warranty. This Limited Warranty gives you specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this Limited Warranty will not apply to the extent prohibited by applicable law. For a full description of your legal rights you should refer to the laws applicable in your jurisdiction and you may wish to contact a relevant consumer advisory service. 1. Duration and Coverage. One (1) year Limited Hardware Warranty. Subject to the additional terms and conditions set forth below, August provides the following Limited Warranty: • Only to the person or entity that originally purchased the Device from August or from one of its authorized resellers or distributors; and • Only for Devices purchased and delivered to the end user within the United States, Canada, or Mexico. 2. Limited Warranty. August warrants the Device against defects in materials and workmanship under normal use for a period of one (1) year from the date of purchase (“Warranty Period”). If a Device is returned to August during the Warranty Period as provided below, and August determines that the Device is defective, August will repair or replace the unit with either a new or a refurbished August Doorbell Cam. If the Warranty Period has expired or is otherwise not applicable as per the Scope and Limitation on Warranty (below), we will return the Device to you. More information about this warranty can be found at www.august.com/support. 3. Return and Warranty Service Process. Please review the online help resources at www.august.com/support prior to seeking warranty…

Text truncated - open the document above for the full version.

Sensor Sensor detects motion within a 5-6 ft range. Doorbell Touch activated doorbell. Doorbell Cam Features Camera Wide angle view. Speaker Communicate with visitors at your door. Photo FPO Microphone Visitors at your door can easily speak with you. Questions? If you have any questions, call 844-AUGUST1 (284-8781) or visit august.com/support ©2015 August Home Inc. 080-00064-01 Getting Started Photo FPO back inside flap doorbell cam QSG front, back, inside flap front cover Installation Prep Make sure to turn-o power to your existing doorbell before removal. For detailed installation instructions visit august.com/install Install Doorbell Cam Follow the instructions in the digital Installation Guide to connect the power wires, install the mounting plate and Doorbell Cam. august.com/install The digital Installation Guide will help determine if the included optional mounting wedge will help optimize the camera’s view of your door. 1 Download App On the settings screen in the August app, select “Set up a Doorbell Cam” and follow the instructions. Use Doorbell Cam Use the August app to see and speak with visitors at your door. 2 Optional Mounting Wedge Information: The wedge is included to help optimize the camera’s view of your door. Follow the instructions online to install your August Doorbell Cam using the included mounting wedge: august.com/install. Wedge image here Warning: Installing the Doorbell Cam involves working with your home’s electrical wires. Disconnecting power to your doorbell is a precaution we recommend. If you have any questions about this, please consult an electrician for assistance. 3 3 page inside spread doorbell cam QSG inside spread Safety Risk of explosion and personal injury if device is installed into non compatible circuit. Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire or heat above 54° C (130° F), incinerate, or immerse in water or liquid of any kind. Do not short circuit. Doing so may cause batteries to leak or explode, resulting in personal injury. The August Doorbell Cam must be correctly installed and used with a wired doorbell circuit that is operating in good condition. You assume all risk associated with the suitability, installation and performance of the door bell and other third party components, hardware, software and services that you select. 4 Terms and Conditions Environmental DIMENSIONS: 2.9” (H) x 2.9” (W) x 0.9” (L) DEVICE WEIGHT: 14.1 oz. CERTIFICATION: FCC, IC, CE, BQB, WEEE OPERATING TEMP: -13 to 122 Fahrenheit (-25 to 50C) STORAGE TEMP: -22 to 140 Fahrenheit (-30C to 60C) OPERATING HUMIDITY: 0 to 95% Specifications MODEL NAME: August Doorbell Cam DESCRIPTION: Video and Wi-Fi® enabled Smart Doorbell MODEL NUMBER: AB-R1 STANDARDS: Bluetooth Specification v4.0 (Bluetooth® Smart ), 5GHz, 2.4GHz 80211(b/g/n) Wi-Fi®SECURITY: WPA2, WEP INTERFACE: Bluetooth® Smart LED indicates Doorbell is active, and may also indicate Wireless Accessory Configuration mode. POWER CONSUMPTION: 100-240V ~ 50-60Hz 0.1A The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by August Home, Inc. is under license. Other trademarks and trade names are those of their respective owners. Wi-Fi® is a registered trademark of Wi-Fi Alliance®. iPhone® is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may affect wireless performance. 5 Terms and Conditions Terms and Conditions Limited Warranty Statement IMPORTANT: By using the August Doorbell Cam hardware (the “Device”) you are agreeing to be bound by the terms of this Limited Warranty set forth below. If you do not agree to the terms of this Limited Warranty you may return the Device (in its original, unused condition) within thirty days of the date of purchase (or the return period provided by your place of purchase, whichever is longer) for a refund in accordance with our returns policy as set forth in Section 3 of this Limited Warranty. This Limited Warranty gives you specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this Limited Warranty will not apply to the extent prohibited by applicable law. For a full description of your legal rights you should refer to the laws applicable in your jurisdiction and you may wish to contact a relevant consumer advisory service. 1. Duration and Coverage. One (1) year Limited Hardware Warranty. Subject to the additional terms and conditions set forth below, August provides the following Limited Warranty: • Only to the person or entity that originally purchased the Device from August or from one of its authorized resellers or distributors; and • Only for Devices purchased and delivered to the end user within the United States, Canada, or Mexico. 2. Limited Warranty. August warrants the Device against defects in materials and workmanship under normal use for a period of one (1) year from the date of purchase (“Warranty Period”). If a Device is returned to August during the Warranty Period as provided below, and August determines that the Device is defective, August will repair or replace the unit with either a new or a refurbished August Doorbell Cam. If the Warranty Period has expired or is otherwise not applicable as per the Scope and Limitation on Warranty (below), we will return the Device to you. More information about this warranty can be found at www.august.com/support. 3. Return and Warranty Service Process. Please review the online help resources at www.august.com/support prior to seeking warranty…

Text truncated - open the document above for the full version.

657 Bryant St. San Francisco, CA 94107 August Home Inc 657 Bryant St. San Francisco, CA 94107 August 3 rd , 2015 To Whom It May Concern: I Joe Aranda, employee of August Home Inc, hereby authorize Shannon Petty of August Home Inc to sign all regulatory compliance documents. Shannon is a Sr. EE technical leader for August Home Inc. If there any questions please contact me at [email protected]. Sincerely, Joe Aranda

August Home Inc. 665 3rd Street #150, San Francisco, CA 9410 Request of Confidentiality TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Pursuant to FCC Sections 0.457 and 0.459 of the Commission’s Rules and IC RSP100 Paragraph 10, we, August Home Inc. hereby requests confidential treatment of information accompanying of following product: Product Name: AB-R1 FCC ID: 2AB6UABR1 The following information should be held confidential: (1) Operational description (2) Circuit Schematics; (3) Block diagram; ...... The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 DFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices.. We are requesting the commission to grant another 180 days short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. The Exhibits/Items which are not here are allowed to be published. And also, Pursuant to RSP100 Paragraph 10, we request confidential treatment of information accompanying this application of the following product: August Home Inc. 665 3rd Street #150, San Francisco, CA 9410 Product Name: AB-R1 IC Model No.: AB-R1 IC : 12163A-ABR1 The following information should be held confidential: (1) Operational description (2) Circuit Schematics; (3) Block diagram; ...... The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Exhibits/Items which are not here are allowed to be published. Yours Sincerely, Name: Shannon Petty Sign: Date: 2015-08-03 Email: [email protected] Phone No: 7608282067

657 Bryant St. San Francisco, CA 94107 August Home Inc 657 Bryant St. San Francisco, CA 94107 August 3 rd , 2015 To Whom It May Concern: I Joe Aranda, employee of August Home Inc, hereby authorize Shannon Petty of August Home Inc to sign all regulatory compliance documents. Shannon is a Sr. EE technical leader for August Home Inc. If there any questions please contact me at [email protected]. Sincerely, Joe Aranda

August Home Inc. 665 3rd Street #150, San Francisco, CA 9410 Request of Confidentiality TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Pursuant to FCC Sections 0.457 and 0.459 of the Commission’s Rules and IC RSP100 Paragraph 10, we, August Home Inc. hereby requests confidential treatment of information accompanying of following product: Product Name: AB-R1 FCC ID: 2AB6UABR1 The following information should be held confidential: (1) Operational description (2) Circuit Schematics; (3) Block diagram; ...... The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 DFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices.. We are requesting the commission to grant another 180 days short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. The Exhibits/Items which are not here are allowed to be published. And also, Pursuant to RSP100 Paragraph 10, we request confidential treatment of information accompanying this application of the following product: August Home Inc. 665 3rd Street #150, San Francisco, CA 9410 Product Name: AB-R1 IC Model No.: AB-R1 IC : 12163A-ABR1 The following information should be held confidential: (1) Operational description (2) Circuit Schematics; (3) Block diagram; ...... The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Exhibits/Items which are not here are allowed to be published. Yours Sincerely, Name: Shannon Petty Sign: Date: 2015-08-03 Email: [email protected] Phone No: 7608282067

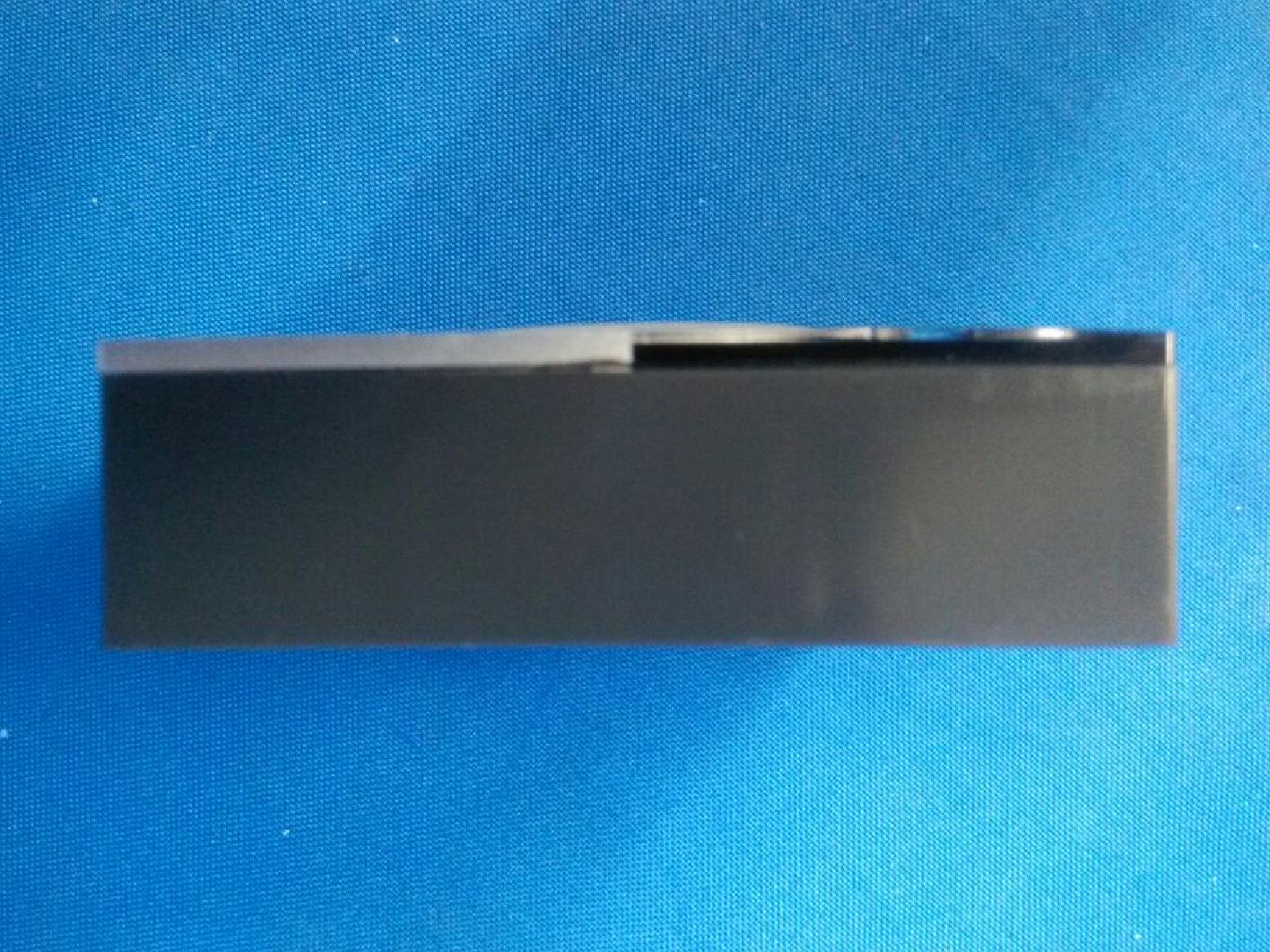

EUT Internal Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

EUT Internal Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

EUT Internal Photograph (1) EUT Photo (2) EUT Photo

EUT Internal Photograph (1) EUT Photo (2) EUT Photo

RF Exposure Evaluation Declaration Product Name : AB-R1 Model No. : AB-R1 FCC ID : 2AB6UABR1 IC : 12163A-ABR1 Applicant : August Home, INC. Address : 657 Bryant Street San Francisco, CA 94107 USA Date of Receipt : Jul. 17, 2015 Issued Date : Aug. 20, 2015 Report No. : 1570462R-RF-US-P20V01 Report Version : V1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1570462R-RF-US-P20V01 Page: 2 of 8 Tes t Re p o r t Ce r t i f i c a t i o n Issued Date : Jul. 31, 2015 Report No. : 1570462R-RF-US-P20V01 Product Name : AB-R1 Applicant : August Home, INC. Address : 657 Bryant Street San Francisco, CA 94107 USA Manufacturer : August Home, INC. Address : 657 Bryant Street San Francisco, CA 94107 USA Model No. : AB-R1 FCC ID : 2AB6UABR1 IC 12163A-ABR1 EUT Voltage : AC 16V Brand Name : AB-R1 Applicable Standard : KDB 447498D01V05V02 FCC Part1.1310(b) Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Elaine Wang Senior Engineer Reviewed By : Harry Zhao RF Engineering Manager Approved By : Dream Cao Director Report No: 1570462R-RF-US-P20V01 Page: 3 of 8 Laboratory Information We, QuieTek Corporation , are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF USA : FCC Japan : VCCI China : CNAS Report No: 1570462R-RF-US-P20V01 Page: 4 of 8 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE 1570462R-RF-US-P20V01 V1.0 Initial Issued Report Jul. 31, 2015 1570462R-RF-US-P20V01 V1.1 Added simultaneous evaluation for RF exposure. Aug. 20, 2015 Report No: 1570462R-RF-US-P20V01 Page: 5 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1570462R-RF-US-P20V01 Page: 6 of 8 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : AB-R1 Test Item : RF Exposure Evaluation Test Site : AC-6  Antenna Gain: No. Peak Gain ANT 2.4GHz band: 3.13dBi 5GHz Band: 2.65dBi Report No: 1570462R-RF-US-P20V01 Page: 7 of 8 1.3.1 Standalone transmission of RF Exposure Evaluation  Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462MHz 160.6941 0.0657 802.11a/n(20MHz) 5180~5240MHz 7.1779 0.0026 802.11a/n(20MHz) 5260-5320MHz 8.3560 0.0031 802.11a/n(20MHz) 5500~5700MHz 11.0662 0.0041 802.11a/n(20MHz) 5745~5825MHz 11.5080 0.0042 802.11n(40MHz) 5190~5230MHz 5.7412 0.0021 802.11n(40MHz) 5270~5310MHz 6.7764 0.0025 802.11n(40MHz) 5510~5670MHz 8.6099 0.0032 802.11n(40MHz) 5755~5795MHz 10.5925 0.0039 Bluetooth 2402~2480MHz 2.7606 0.0011 Note: The standalone power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is below the limit of 1 mW/cm2. Report No: 1570462R-RF-US-P20V01 Page: 8 of 8 1.3.2 Simultaneous transmission of RF Exposure Evaluation Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/est…
